Google Apps Script (GAS) からODBC データソースを連携利用する方法

Google Apps Script (GAS)では、簡単にサーバーアプリケーションを開発できるほか、Google Spreadsheets やGoogle Docs にカスタム機能を開発すうことができます。 CData SQL Gateway を使って、ODBC Drivers に連携できるMySQL インターエースを構築すれば、GAS がサポートするMySQL プロトコルからあらゆるODBC データソースに連携できます。 CData の100を超えるODBC Drivers と併せて使えば、GAS のクラウド連携を大幅に拡張することができます。

この記事では、GAS からSQL Gateway 経由でODBC 接続を行い、Google Spreadsheet からデータを操作する例を示します。

この例では、特定のテーブルのデータをSELECT で読み込みます。もちろんINSERT、UPDATE、DELETE などの構文を拡張して実装することができます。

SQL Gateway でリアルタイム接続を構築

With SQL Gateway, your local ODBC data sources can look and behave like a standard MySQL database. Simply create a new MySQL remoting service in SQL Gateway for the ODBC driver and ensure that the SQL Gateway is installed on a Web-facing machine (or can connect to a hosted SSH server).

Create a MySQL Remoting Service

The MySQL Remoting feature of the SQL Gateway enables you to access an ODBC data source as a virtual MySQL database. The SQL Gateway runs a service process that listens for MySQL requests from clients. The service can be configured in the SQL Gateway UI.

Connecting to ODBC Data Sources with Apps Script

At this point, you have configured the SQL Gateway for your ODBC driver. All that is left now is to use Google Apps Script to access the SQL Gateway and work with your ODBC data source in Google Sheets.

In this section, you will create a script (with a menu option to call the script) to populate a spreadsheet with your data. We have created a sample script and explained the different parts. You can view the raw script at the end of the article.

1. Create an Empty Script

To create a script for your Google Sheet, click Tools Script editor from the Google Sheets menu:

2. Declare Class Variables

Create a handful of class variables that are available for any functions created in the script.

//replace the variables in this block with real values as needed
var address = 'my.server.address:port';
var user = 'SQL_GATEWAY_USER';
var userPwd = 'SQL_GATEWAY_PASSWORD';
var db = 'DSN_HERE';

var dbUrl = 'jdbc:mysql://' + address + '/' + db;

3. Add a Menu Option

This function adds a menu option to your Google Sheet, allowing you to use the UI to call your function.

function onOpen() {
  var spreadsheet = SpreadsheetApp.getActive();
  var menuItems = [
  {name: 'Write data to a sheet', functionName: 'connectToODBCData'}
  ];
  spreadsheet.addMenu('ODBC Data', menuItems);
}

4. Write a Helper Function

This function is used to find the first empty row in a spreadsheet.

/*
 * Finds the first empty row in a spreadsheet by scanning an array of columns
 * @return The row number of the first empty row.
 */
function getFirstEmptyRowByColumnArray(spreadSheet, column) {
  var column = spreadSheet.getRange(column + ":" + column);
  var values = column.getValues(); // get all data in one call
  var ct = 0;
  while ( values[ct] && values[ct][0] != "" ) {
    ct++;
  }
  return (ct+1);
}

5. Write a Function to Write ODBC Data to a Spreadsheet

The function below writes the data, using the Google Apps Script JDBC functionality to connect to the MySQL remoting service, SELECT data, and populate a spreadsheet. When the script is run, two input boxes appear:

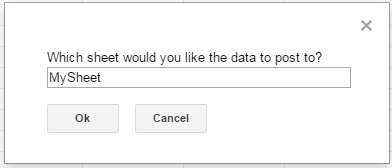

The first one asking the user to input the name of a sheet to hold the data (if the spreadsheet does not exist, the function creates it)

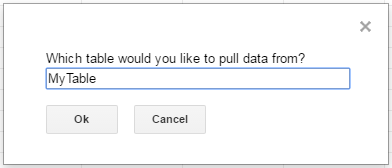

and the second one asking the user to input the name of an ODBC table to read. If an invalid table is chosen, an error message appears and the function is exited.

It is worth noting that, while the function is designed to be used as a menu option, it could be extended for use as a formula in a spreadsheet.

/*
 * Reads data from a specified ODBC 'table' and writes it to the specified sheet.
 *    (If the specified sheet does not exist, it is created.)
 */
function connectToODBCData() {
  var thisWorkbook = SpreadsheetApp.getActive();

  //select a sheet and create it if it does not exist
  var selectedSheet = Browser.inputBox('Which sheet would you like the data to post to?',Browser.Buttons.OK_CANCEL);
  if (selectedSheet == 'cancel')
    return;

  if (thisWorkbook.getSheetByName(selectedSheet) == null)
    thisWorkbook.insertSheet(selectedSheet);
  var resultSheet = thisWorkbook.getSheetByName(selectedSheet);
  var rowNum = 2;

  //select an ODBC 'table'
  var table = Browser.inputBox('Which ODBC data table would you like to pull data from?',Browser.Buttons.OK_CANCEL);
  if (table == 'cancel')
    return;

  var conn = Jdbc.getConnection(dbUrl, user, userPwd);

  //confirm that var table is a valid table/view
  var dbMetaData = conn.getMetaData();
  var tableSet = dbMetaData.getTables(null, null, table, null);
  var validTable = false;
  while (tableSet.next()) {
    var tempTable = tableSet.getString(3);
    if (table.toUpperCase() == tempTable.toUpperCase()){
      table = tempTable;
      validTable = true;
      break;
    }
  }
  tableSet.close();
  if (!validTable) {
    Browser.msgBox("Invalid table name: " + table, Browser.Buttons.OK);
    return;
  }

  var stmt = conn.createStatement();

  var results = stmt.executeQuery('SELECT * FROM ' + table);
  var rsmd = results.getMetaData();
  var numCols = rsmd.getColumnCount();

  //if the sheet is empty, populate the first row with the headers
  var firstEmptyRow = getFirstEmptyRowByColumnArray(resultSheet, "A");
  if (firstEmptyRow == 1) {
    //collect column names
    var headers = new Array(new Array(numCols));
    for (var col = 0; col < numCols; col++){
      headers[0][col] = rsmd.getColumnName(col+1);
    }
    resultSheet.getRange(1, 1, headers.length, headers[0].length).setValues(headers);
  } else {
    rowNum = firstEmptyRow;
  }

  //write rows of data to the sheet
  var values = new Array(new Array(numCols));
  while (results.next()) {
    for (var col = 0; col < numCols; col++) {
      values[0][col] = results.getString(col + 1);
    }
    resultSheet.getRange(rowNum, 1, 1, numCols).setValues(values);
    rowNum++;
  }

  results.close();
  stmt.close();
}

When the function is completed, you have a spreadsheet populated with data from your ODBC driver and you can now leverage all of the calculating, graphing, and charting functionality of Google Sheets anywhere you have access to the Internet.


Complete Google Apps Script

//replace the variables in this block with real values as needed
var address = 'my.server.address:port';
var user = 'SQL_GATEWAY_USER';
var userPwd = 'SQL_GATEWAY_PASSWORD';
var db = 'DSN_HERE';

var dbUrl = 'jdbc:mysql://' + address + '/' + db;

function onOpen() {
  var spreadsheet = SpreadsheetApp.getActive();
  var menuItems = [
    {name: 'Write table data to a sheet', functionName: 'connectToODBCData'}
  ];
  spreadsheet.addMenu('ODBC Data', menuItems);
}

/*
 * Finds the first empty row in a spreadsheet by scanning an array of columns
 * @return The row number of the first empty row.
 */
function getFirstEmptyRowByColumnArray(spreadSheet, column) {
  var column = spreadSheet.getRange(column + ":" + column);
  var values = column.getValues(); // get all data in one call
  var ct = 0;
  while ( values[ct] && values[ct][0] != "" ) {
    ct++;
  }
  return (ct+1);
}

/*
 * Reads data from a specified 'table' and writes it to the specified sheet.
 *    (If the specified sheet does not exist, it is created.)
 */
function connectToODBCData() {
  var thisWorkbook = SpreadsheetApp.getActive();

  //select a sheet and create it if it does not exist
  var selectedSheet = Browser.inputBox('Which sheet would you like the data to post to?',Browser.Buttons.OK_CANCEL);
  if (selectedSheet == 'cancel')
    return;

  if (thisWorkbook.getSheetByName(selectedSheet) == null)
    thisWorkbook.insertSheet(selectedSheet);
  var resultSheet = thisWorkbook.getSheetByName(selectedSheet);
  var rowNum = 2;

  //select an ODBC 'table'
  var table = Browser.inputBox('Which ODBC data table would you like to pull data from?',Browser.Buttons.OK_CANCEL);
  if (table == 'cancel')
    return;

  var conn = Jdbc.getConnection(dbUrl, user, userPwd);

  //confirm that var table is a valid table/view
  var dbMetaData = conn.getMetaData();
  var tableSet = dbMetaData.getTables(null, null, table, null);
  var validTable = false;
  while (tableSet.next()) {
    var tempTable = tableSet.getString(3);
    if (table.toUpperCase() == tempTable.toUpperCase()){
      table = tempTable;
      validTable = true;
      break;
    }
  }
  tableSet.close();
  if (!validTable) {
    Browser.msgBox("Invalid table name: " + table, Browser.Buttons.OK);
    return;
  }

  var stmt = conn.createStatement();

  var results = stmt.executeQuery('SELECT * FROM ' + table);
  var rsmd = results.getMetaData();
  var numCols = rsmd.getColumnCount();

  //if the sheet is empty, populate the first row with the headers
  var firstEmptyRow = getFirstEmptyRowByColumnArray(resultSheet, "A");
  if (firstEmptyRow == 1) {
    //collect column names
    var headers = new Array(new Array(numCols));
    for (var col = 0; col < numCols; col++){
      headers[0][col] = rsmd.getColumnName(col+1);
    }
    resultSheet.getRange(1, 1, headers.length, headers[0].length).setValues(headers);
  } else {
    rowNum = firstEmptyRow;
  }

  //write rows of data to the sheet
  var values = new Array(new Array(numCols));
  while (results.next()) {
    for (var col = 0; col < numCols; col++) {
      values[0][col] = results.getString(col + 1);
    }
    resultSheet.getRange(rowNum, 1, 1, numCols).setValues(values);
    rowNum++;
  }

  results.close();
  stmt.close();
}
