Connect and Visualize Live Act CRM Data in Databricks Lakehouse Federation with CData Connect Cloud

Databricks Lakehouse Federation enables organizations to query and integrate data from multiple sources without requiring data movement. It allows federated queries across databases, data warehouses, and lakehouses, providing a unified interface for data analysis and management within Databricks. When combined with CData Connect Cloud, it enables seamless access to Act CRM data for data virtualization, while also supporting data lineage and fine-grained access control.

This article explains how to use CData Connect Cloud to establish a live connection to Act CRM and how to access live Act CRM data from the Databricks platform.

CData Connect Cloud offers a seamless SQL Server, cloud-to-cloud interface for Act CRM, enabling you to effortlessly create dashboards and visualizations using live Act CRM data in Databricks. While building visualizations, Databricks requires SQL queries to retrieve the necessary data. With built-in optimized data processing, CData Connect Cloud pushes all supported SQL operations (such as filters and JOINs) directly to Act CRM, utilizing server-side processing for fast and efficient data retrieval of Act CRM data.

Configure Act CRM connectivity for Databricks in CData Connect Cloud

To work with Act CRM data in Databricks - Lakehouse Federation, you need to connect to Act CRM from Connect Cloud and provide user access to the connection.

1. Log into Connect Cloud, click Connections and click Add Connection.
2. Select "Act CRM" from the Add Connection panel.
3. Enter the necessary authentication properties to connect to Act CRM.

   The User and Password properties, under the Authentication section, must be set to valid Act! user credentials. In addition to the authentication values, see the following:

   • Connecting to Act! Premium

     In addition to the authentication values, the URL to Act! is also required; for example https://eup1-iis-04.eu.hosted.act.com/.

     Additionally, you must specify the ActDatabase you will connect to. This is found by going to the About Act! Premium menu of your account, at the top right of the page, in the ? menu. Use the Database Name in the window that appears.

   • Connecting to Act! Premium Cloud

     To connect to your Act! Premium Cloud account, you also need to specify the ActCloudName property. This property is found in the URL address of the Cloud account; for example https://eup1-iis-04.eu.hosted.act.com/ActCloudName/.

   Note that retrieving ActCRM metadata can be expensive. It is advised that you set the CacheMetadata property to store the metadata locally.



4. Click Create & Test.
5. Navigate to the Permissions tab in the Add Act CRM Connection page and update the User-based permissions

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile
2. On the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT
3. Give your PAT a name and click Create
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use

With the connection configured, you are ready to connect to Act CRM data from Databricks.

Connecting live Act CRM data in Databricks

Follow these steps to establish a connection from Databricks to the CData Connect Cloud Virtual SQL Server API.

1. Log into Databricks.

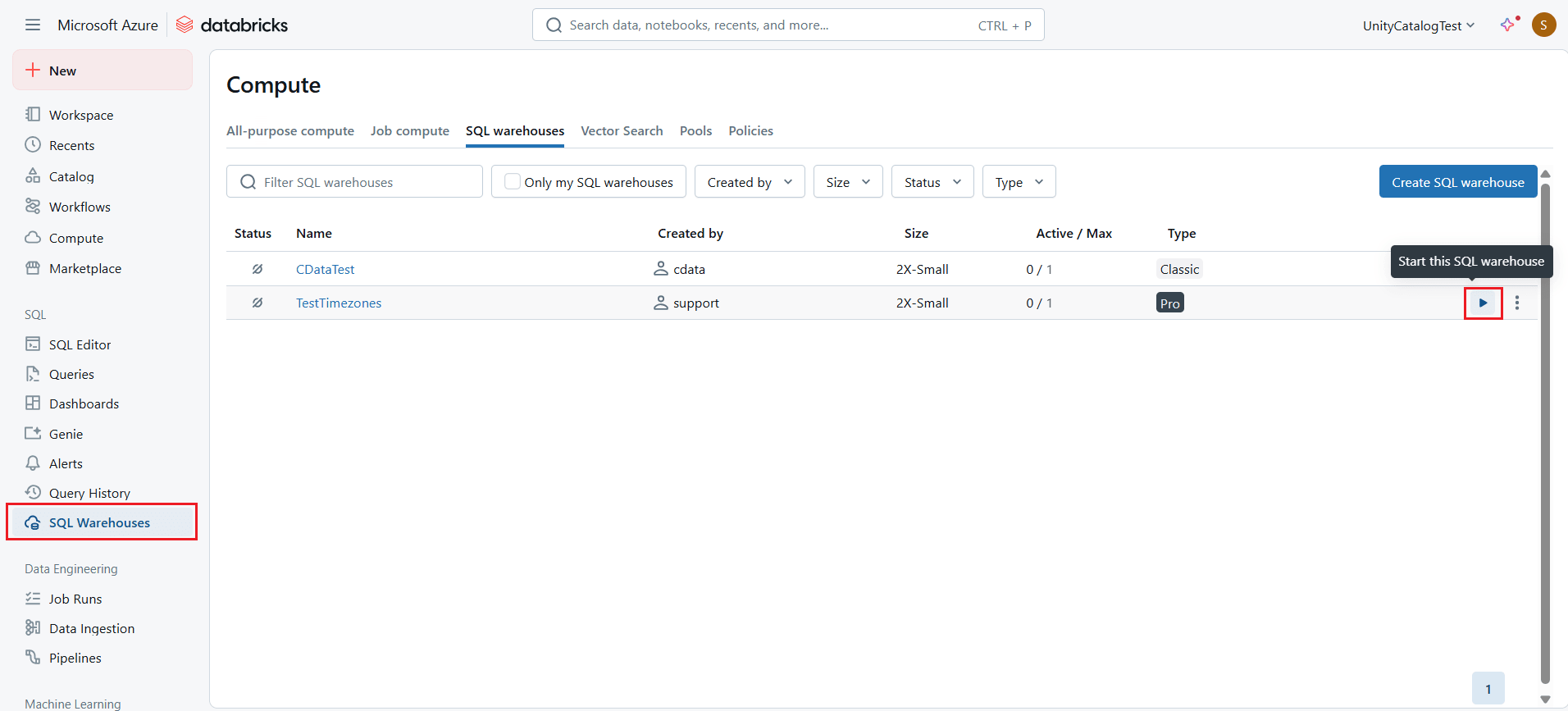

2. Navigate to SQL Warehouses and start any warehouse of your choice.

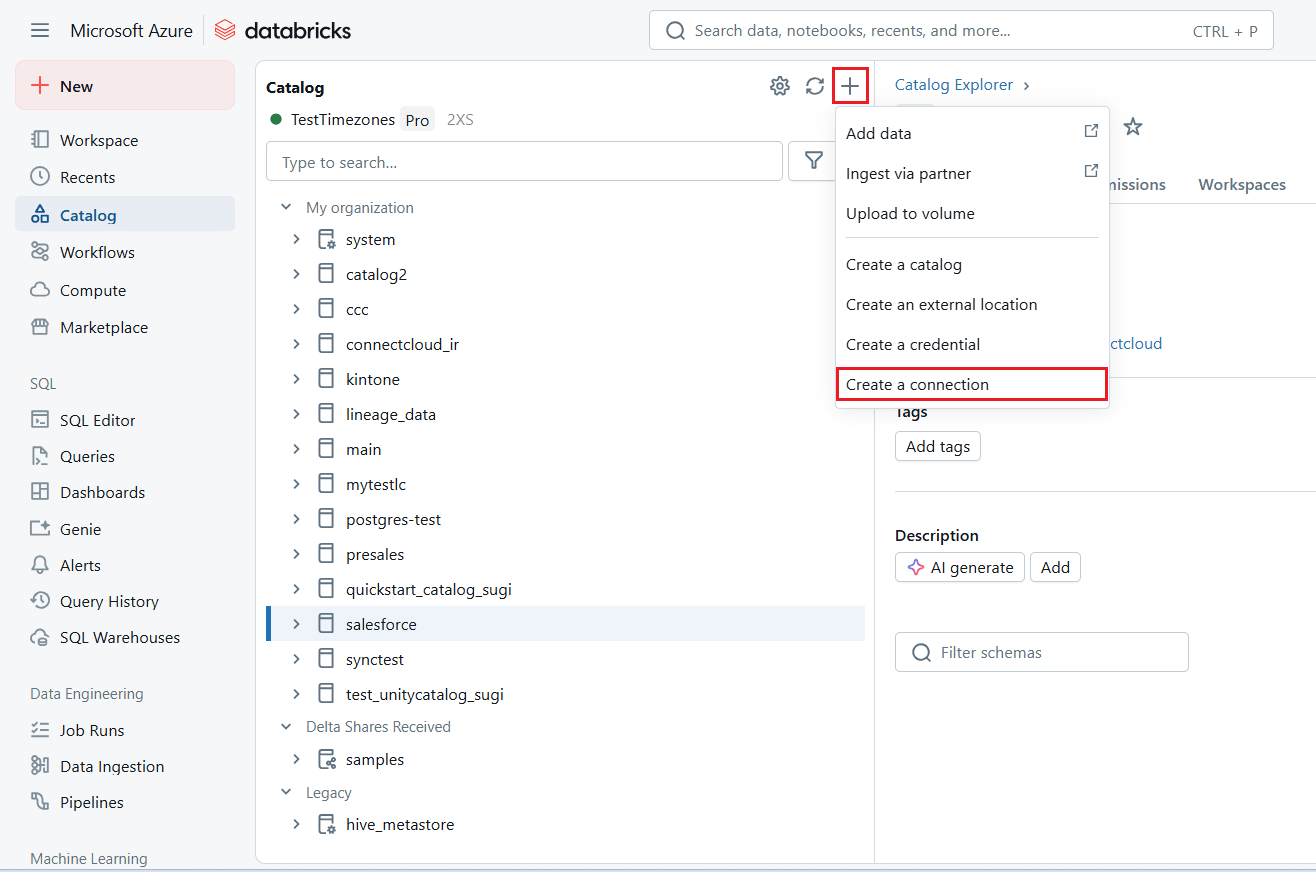

3. In the navigation pane, select Catalog. Click and select Create a connection.

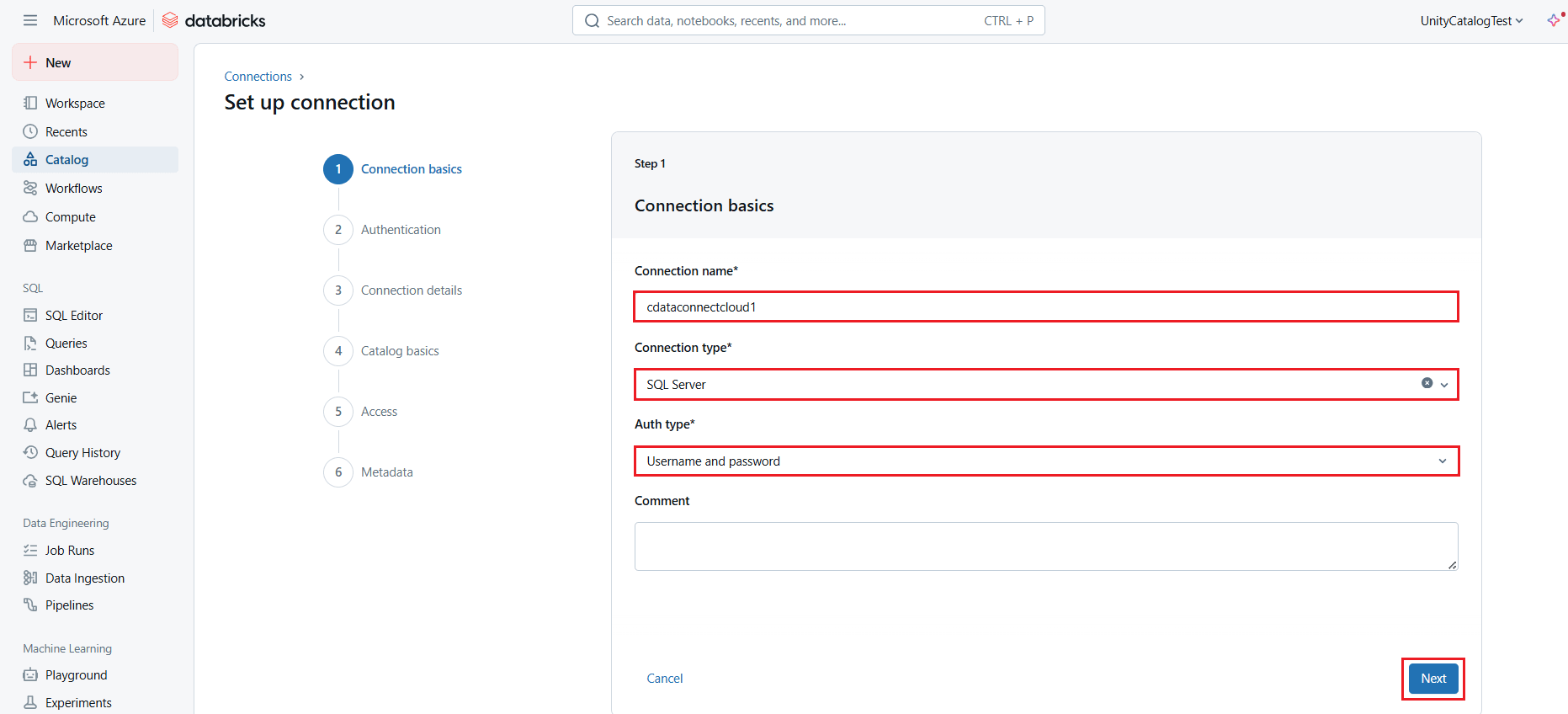

4. In the Connection basics section (or Step 1 of Set up connection page), enter the following connection details and click Next:
   • Connection name: a user-defined connection name.
   • Connection type: select SQL Server from the drop-down list.
   • Auth type: select Username and password.

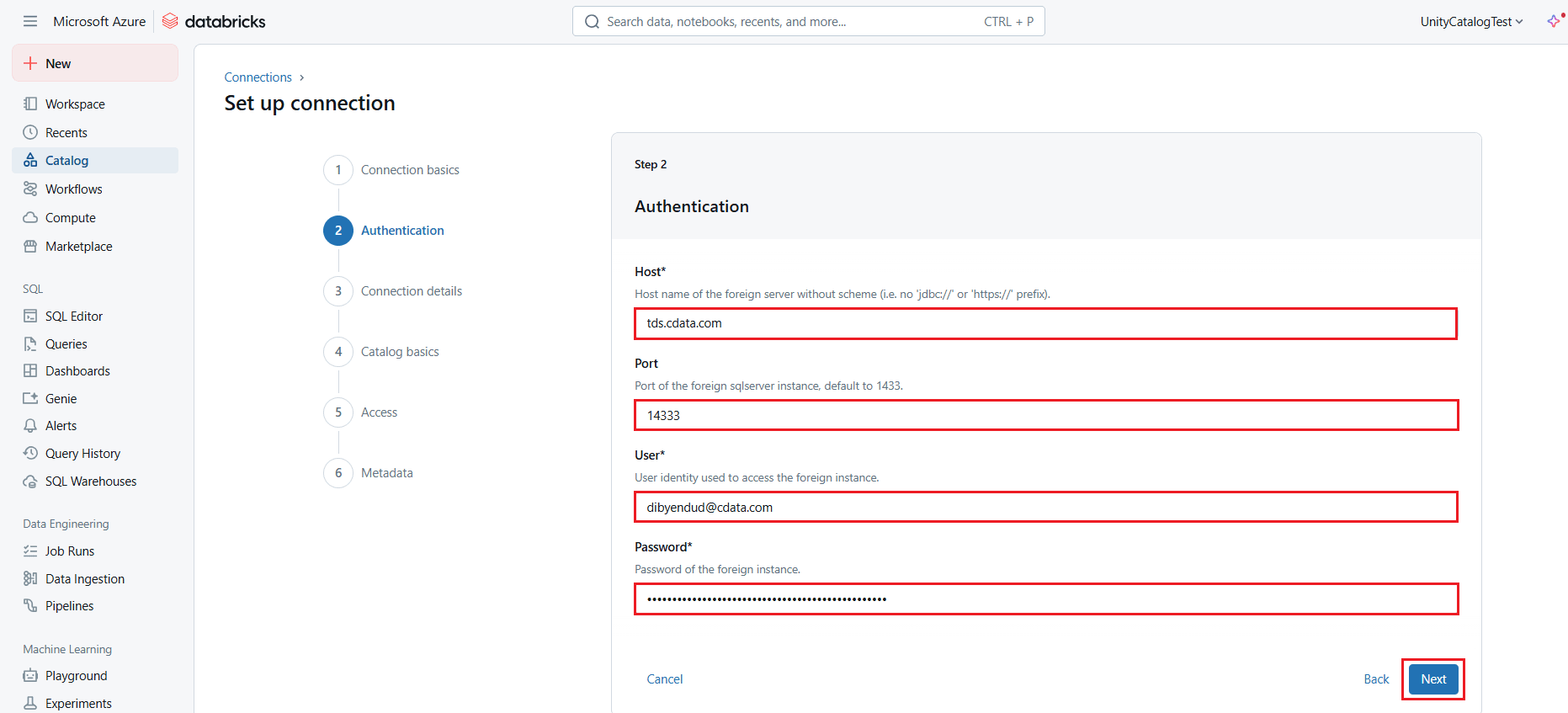

5. In the Authentication section (or Step 2), enter the required authentication details, and click Next:
   • Host: tds.cdata.com
   • Port: 14333
   • User: enter your CData Connect Cloud username, displayed in the top-right corner of the CData Connect Cloud interface. For example, [email protected]
   • Password: enter the PAT generated and copied in the previous section.

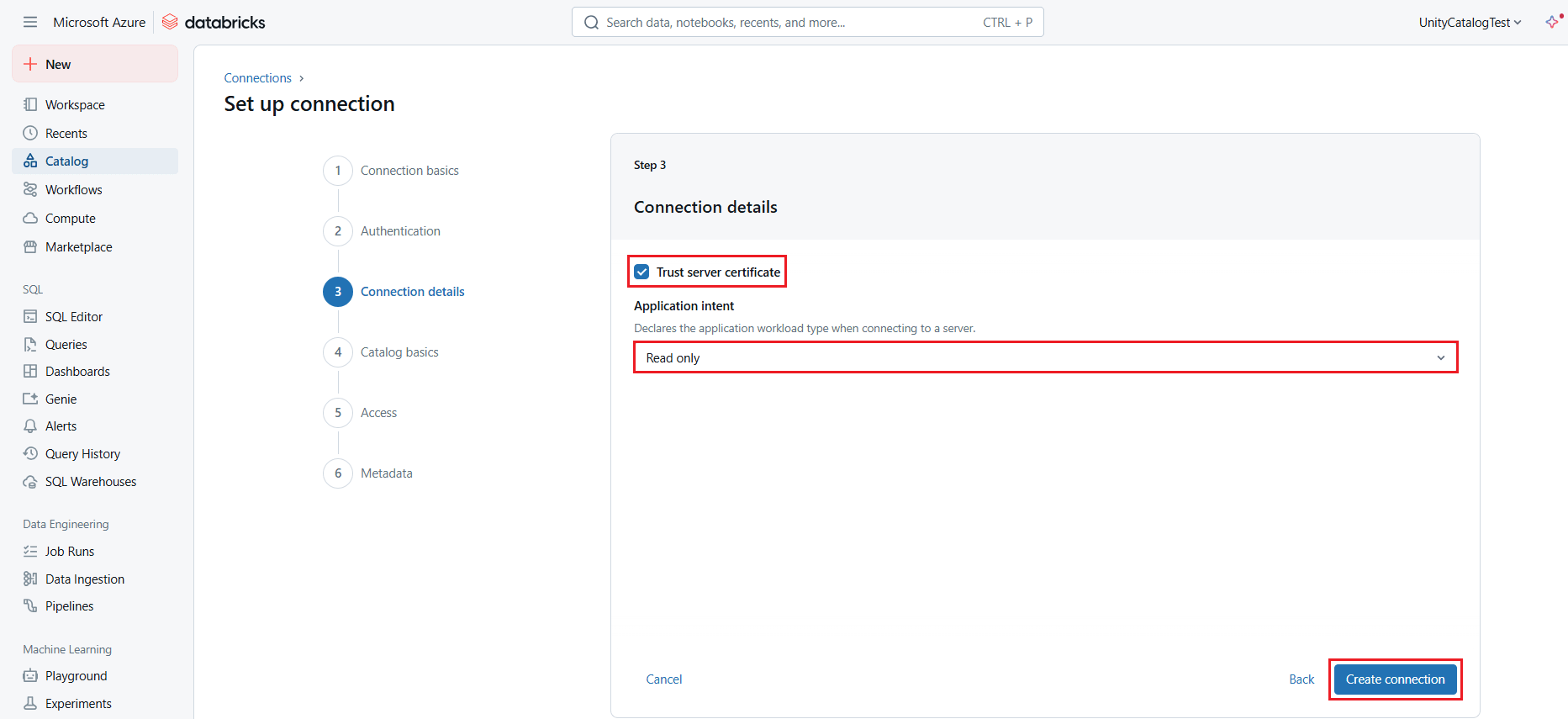

6. In the Connection details section (or Step 3), enable the Trust server certificate checkbox and select the appropriate Application intent. Click Create Connection.

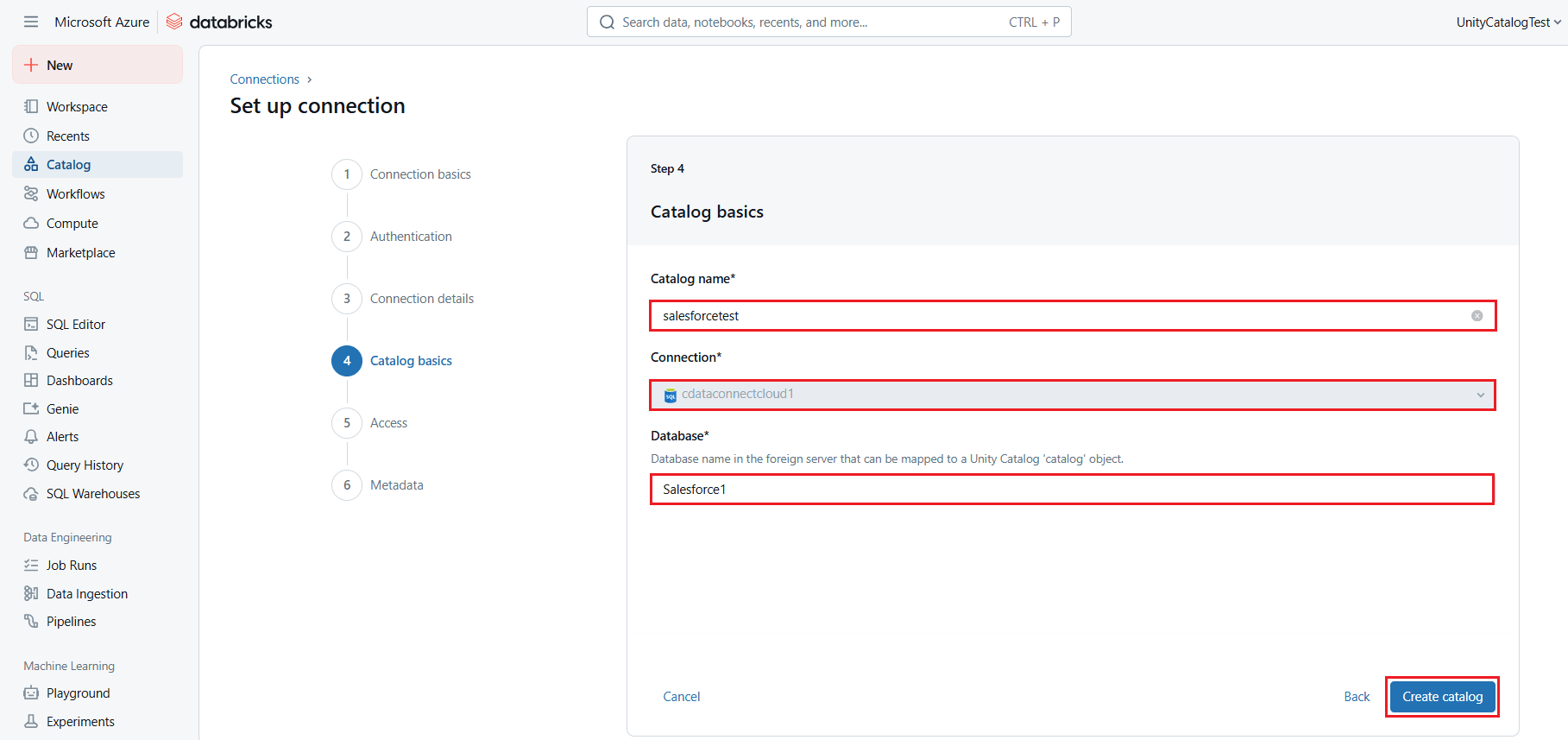

7. In the Catalog basics section (or Step 4), enter the required details and click Create catalog:
   • Catalog name: enter a name of your choice
   • Connection: this will be the Databricks connection you defined earlier
   • Database: enter your Act CRM connection name (for example, Act CRM1)

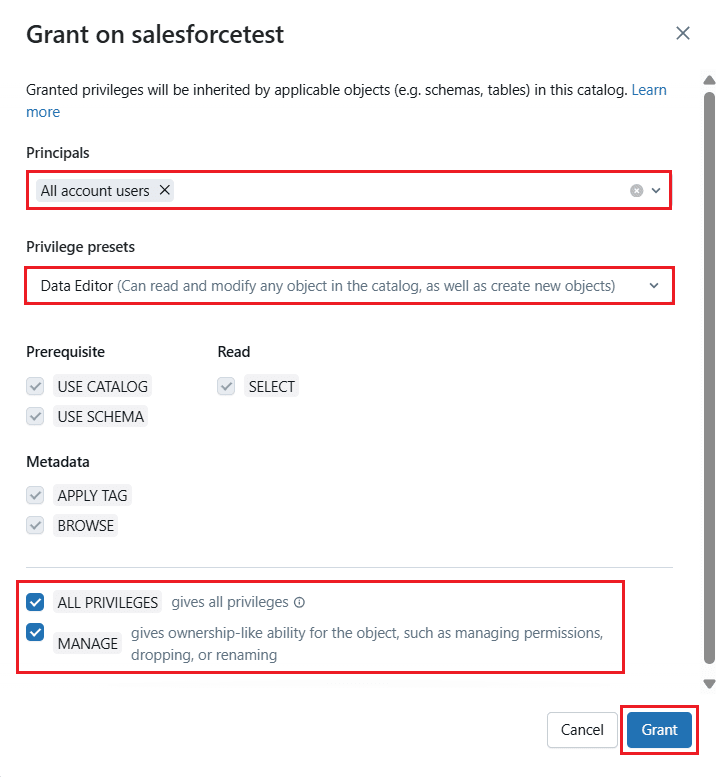

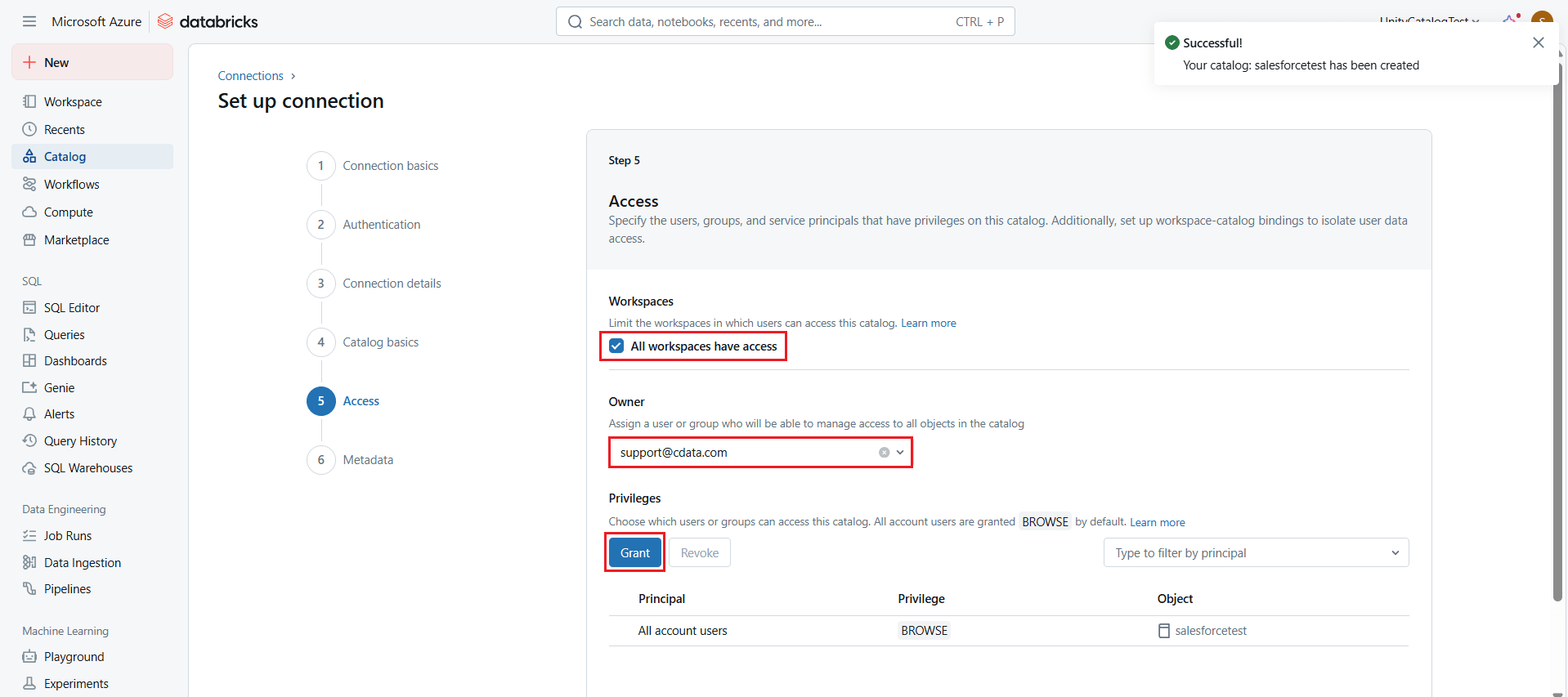

8. In the Access section (or Step 5), assign the Workspace, User access rights, and Grant read or edit privileges to the catalog.

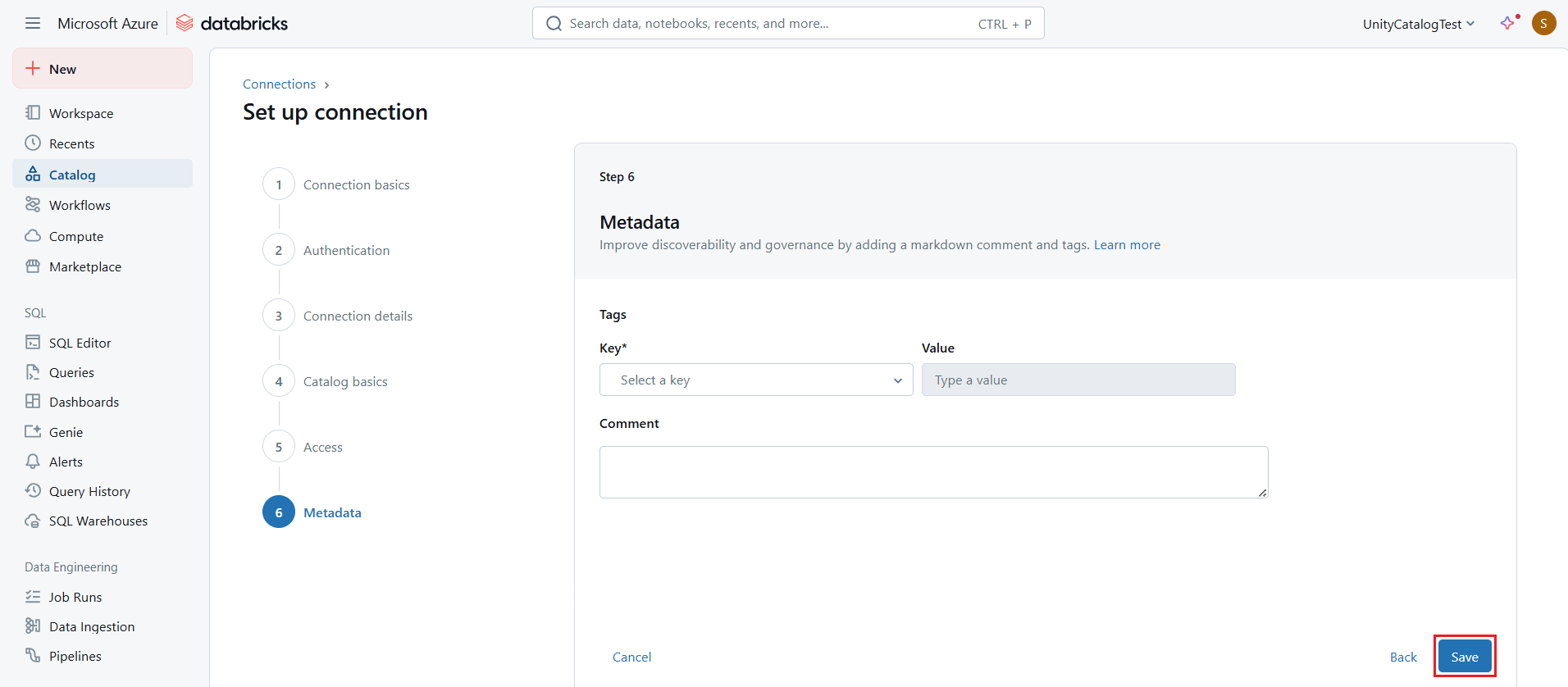

9. Click Next > Save to save all the details for the catalog.

Access the catalog and visualize live Act CRM data in Databricks

To access the newly created catalog and create a dashboard to visualize live Act CRM data in Databricks, follow these steps:

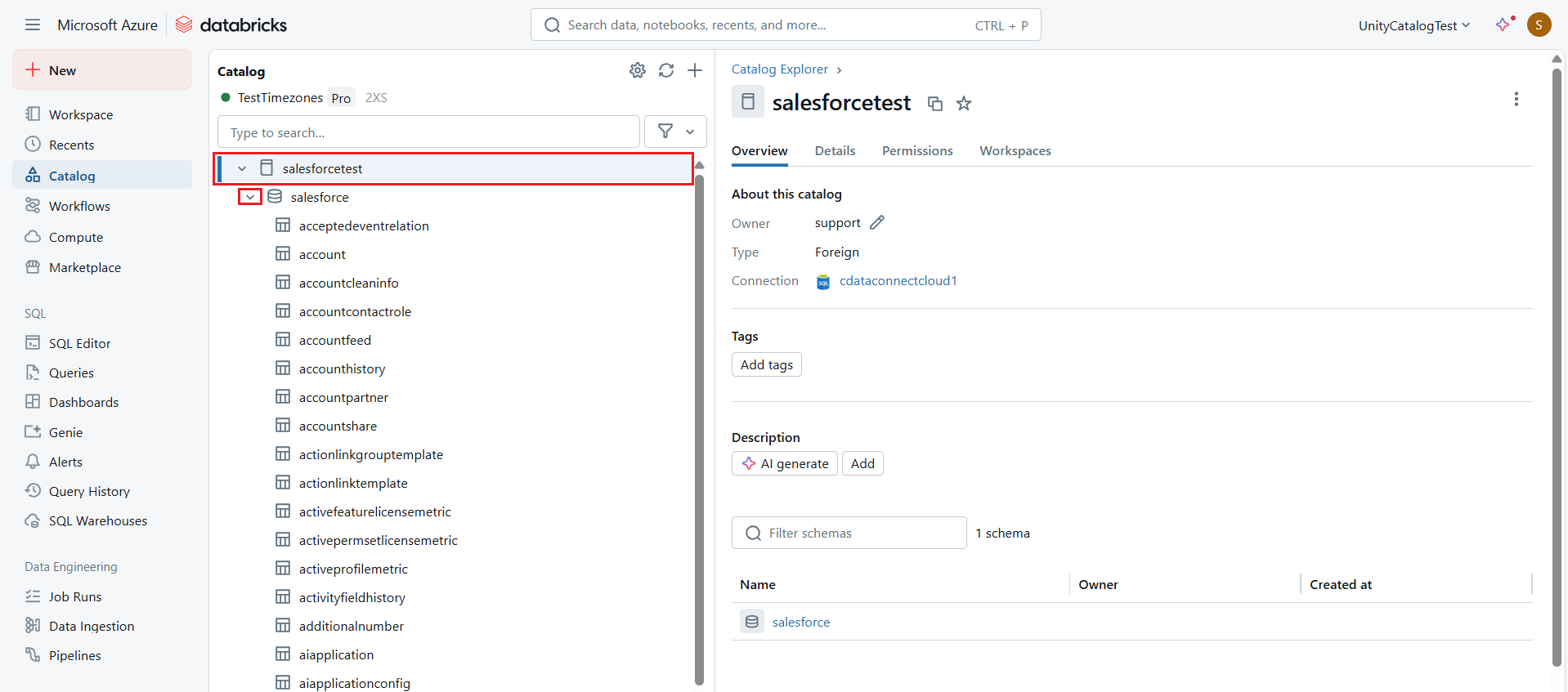

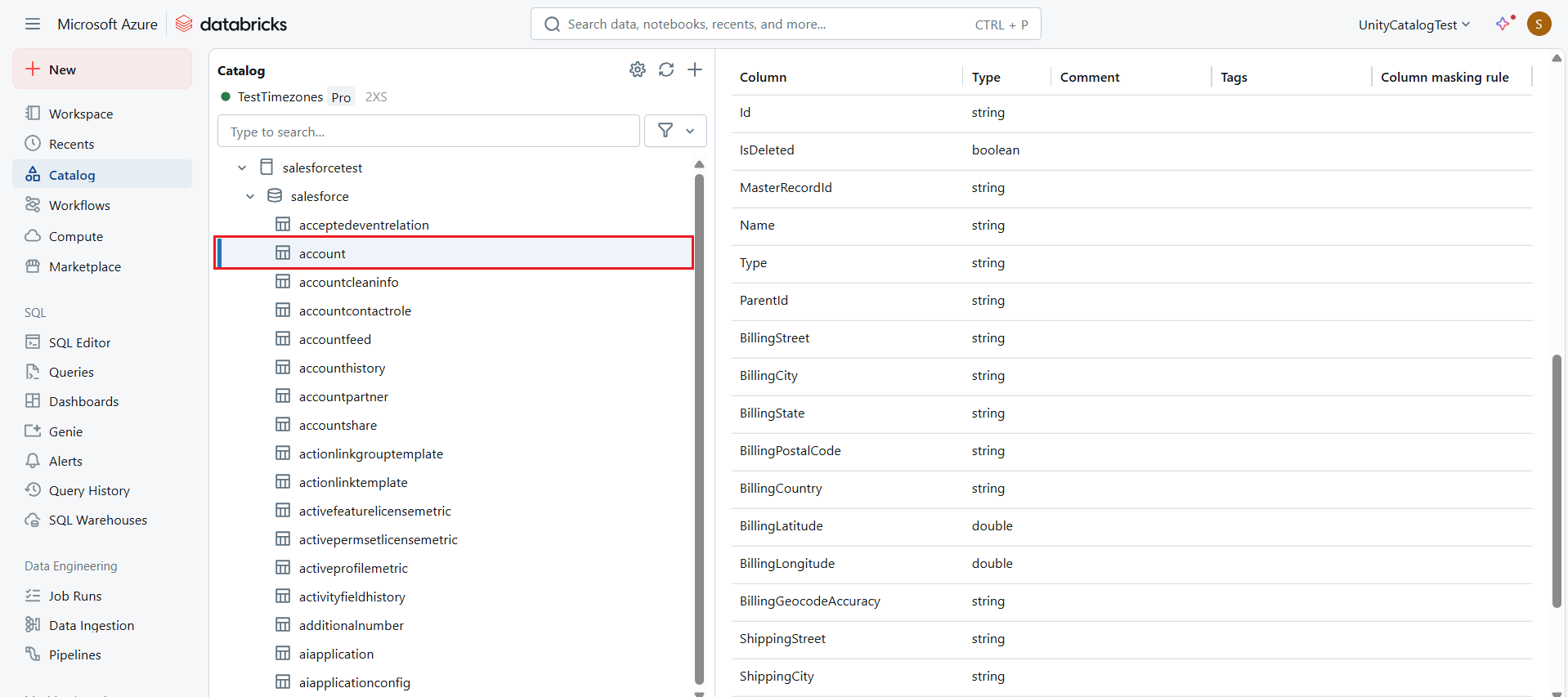

1. Select the catalog and expand it. A list of tables from Act CRM will appear on the screen.

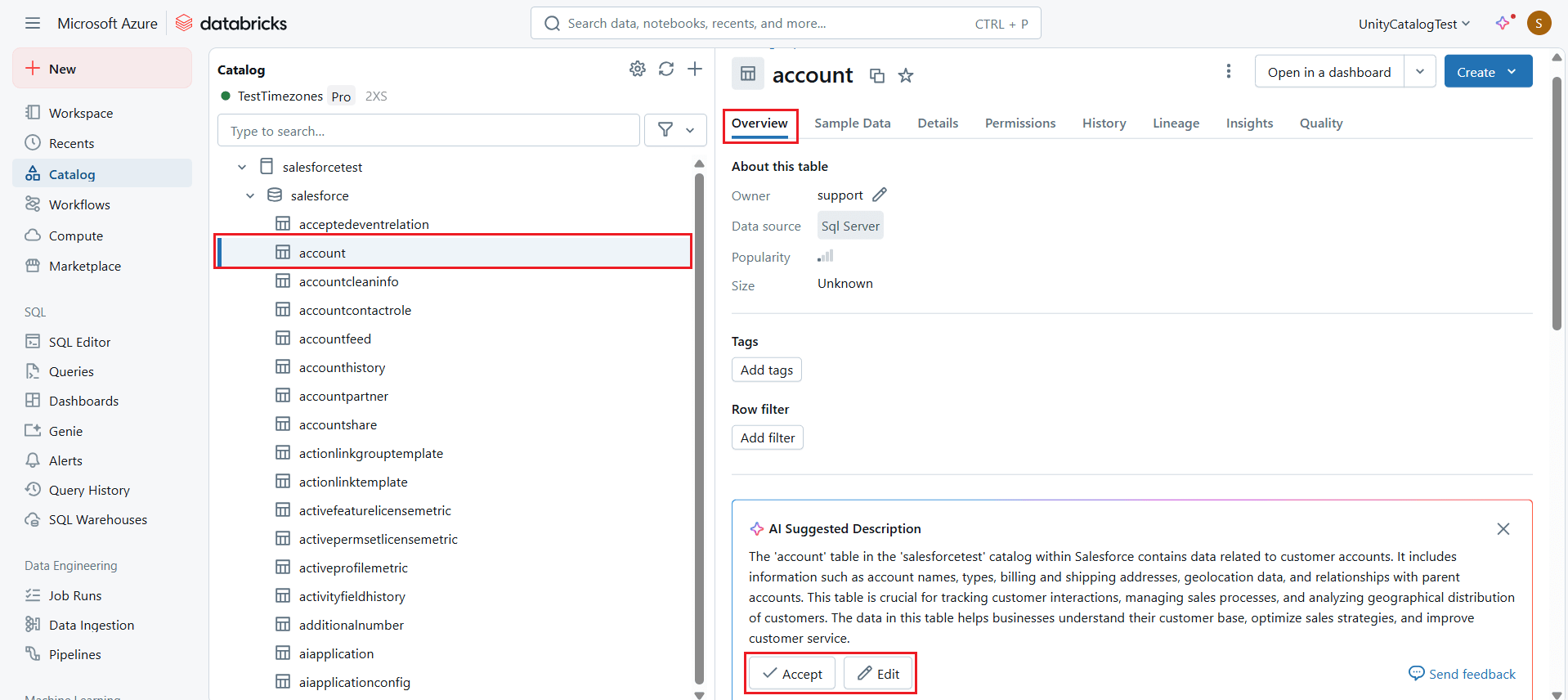

2. Choose the desired table and click the Overview tab to view the table metadata.

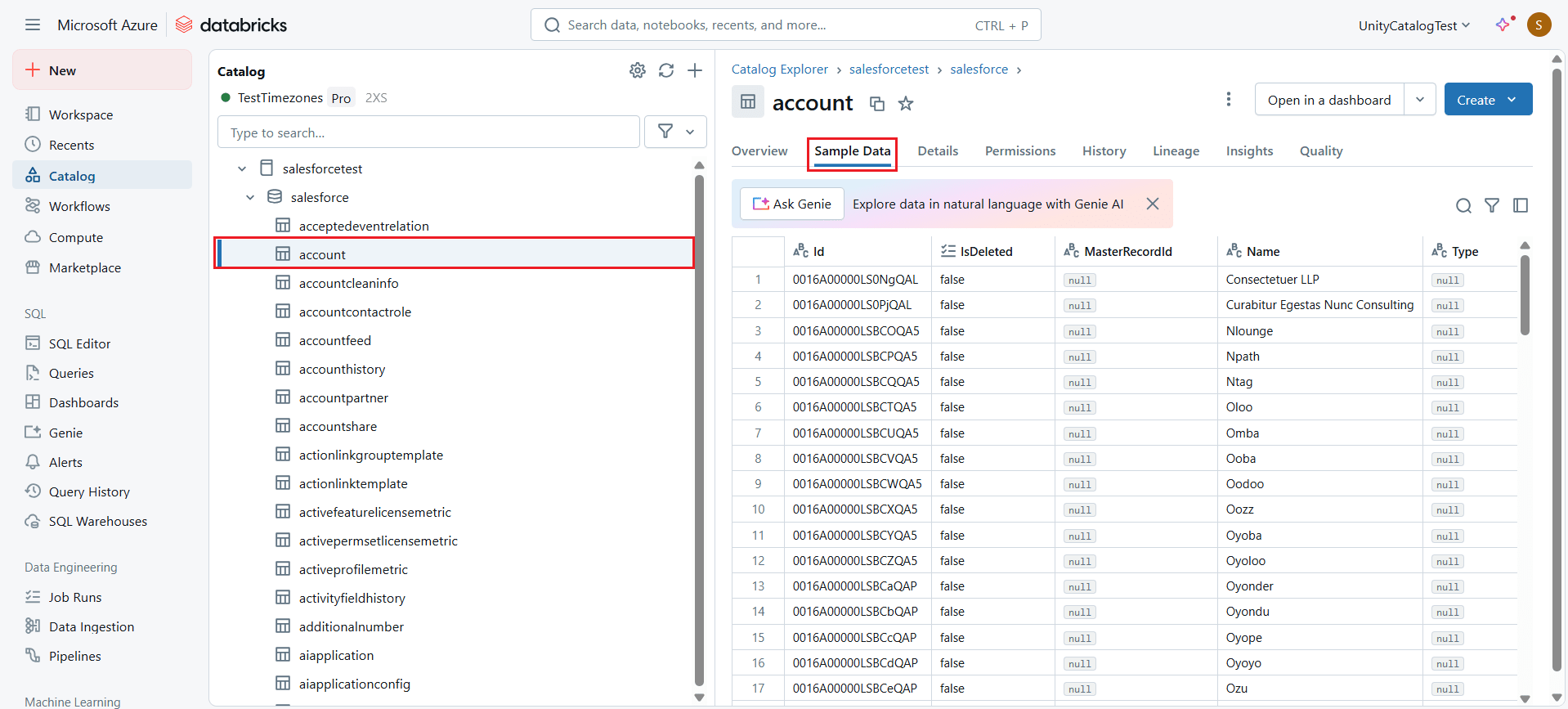

3. Click the Sample Data tab to view real-time data in the table.

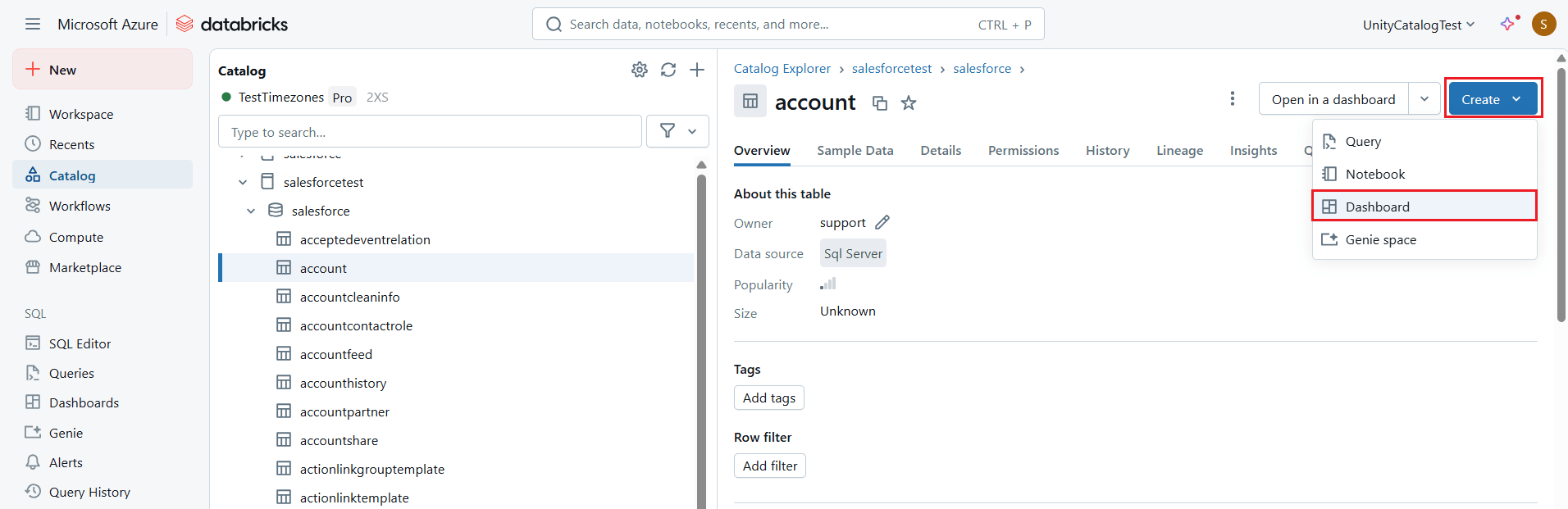

4. Now, click Create at the top right corner and select Dashboard.

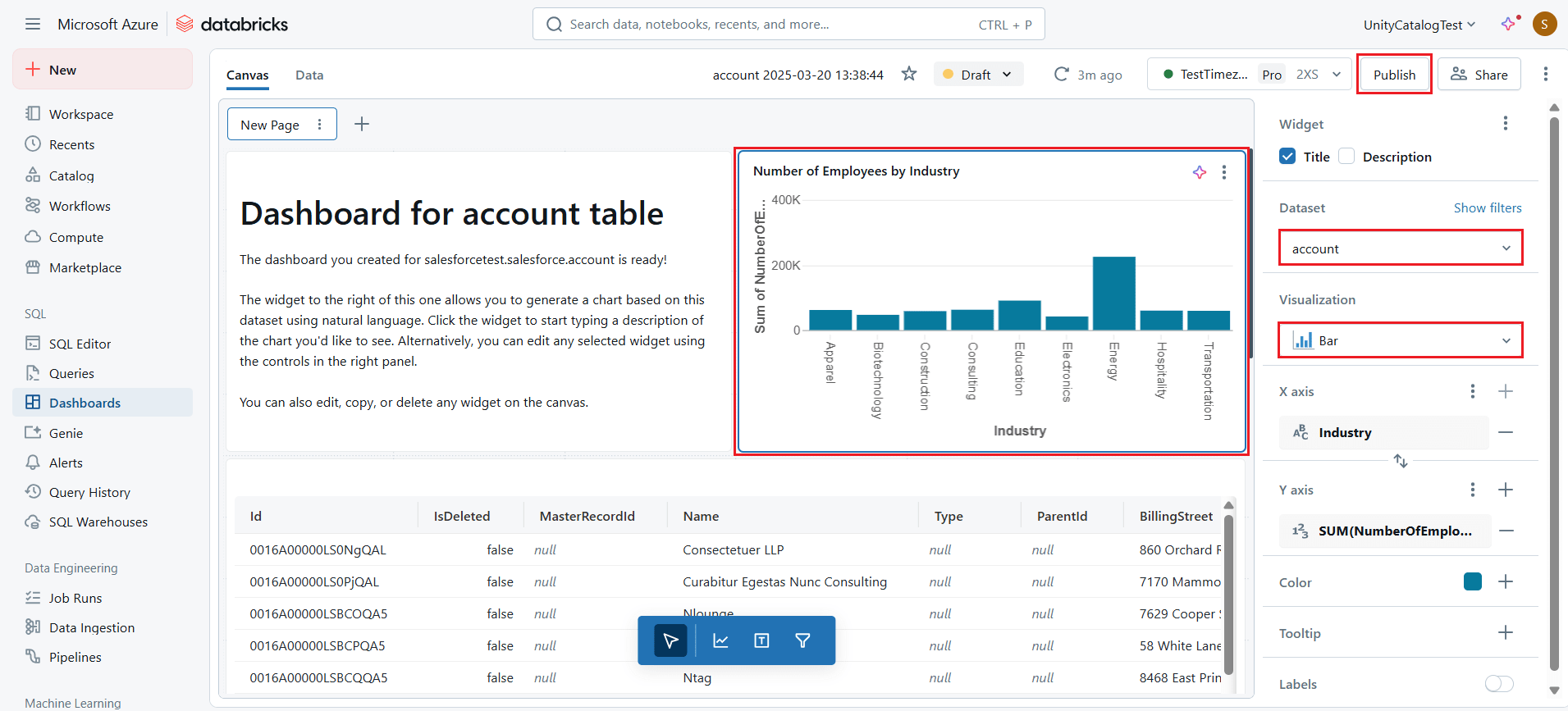

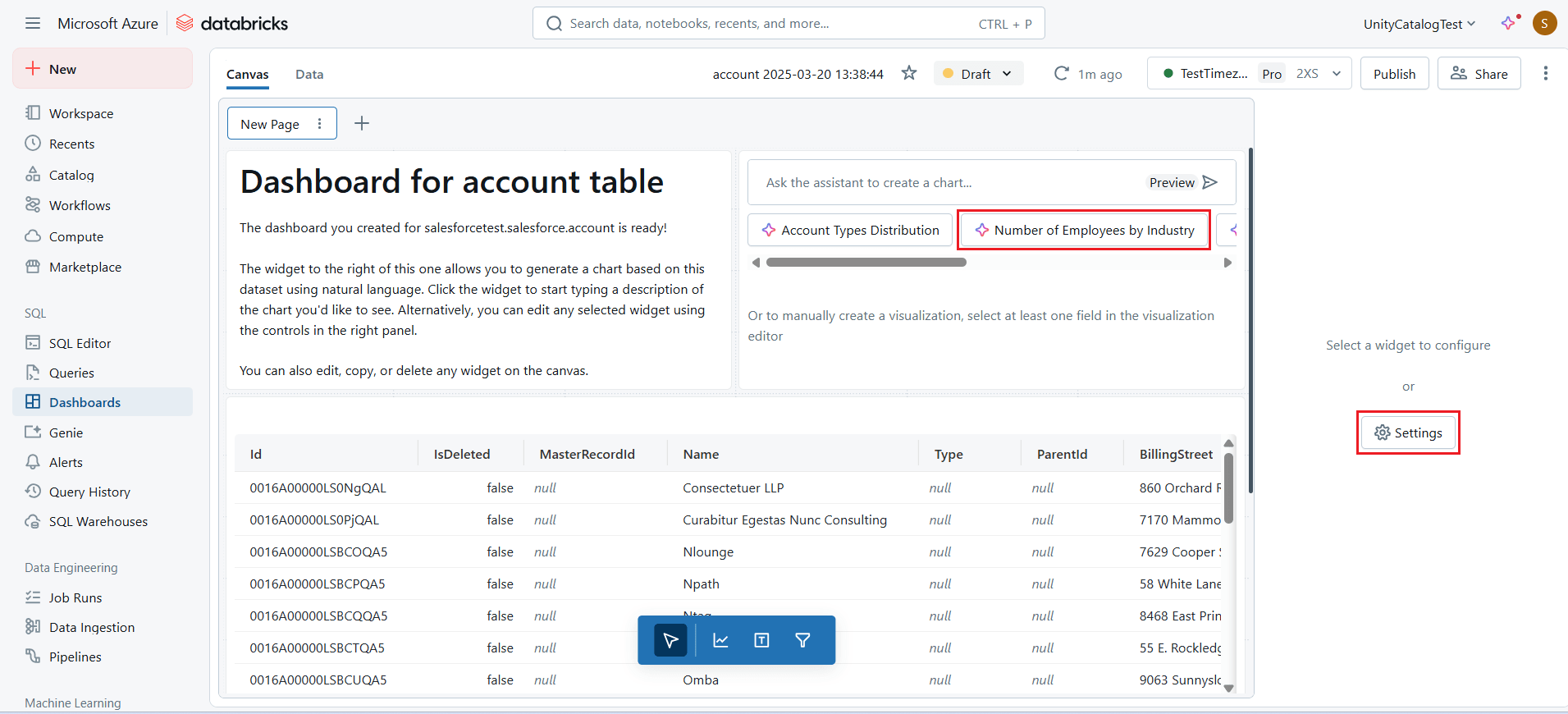

5. Manually create a visualization by selecting at least one field in the visualization editor from the widget, or choose one of the visualization options suggested by Databricks AI.
6. Once the visualization is created, edit the details in the widget settings of the dashboard.

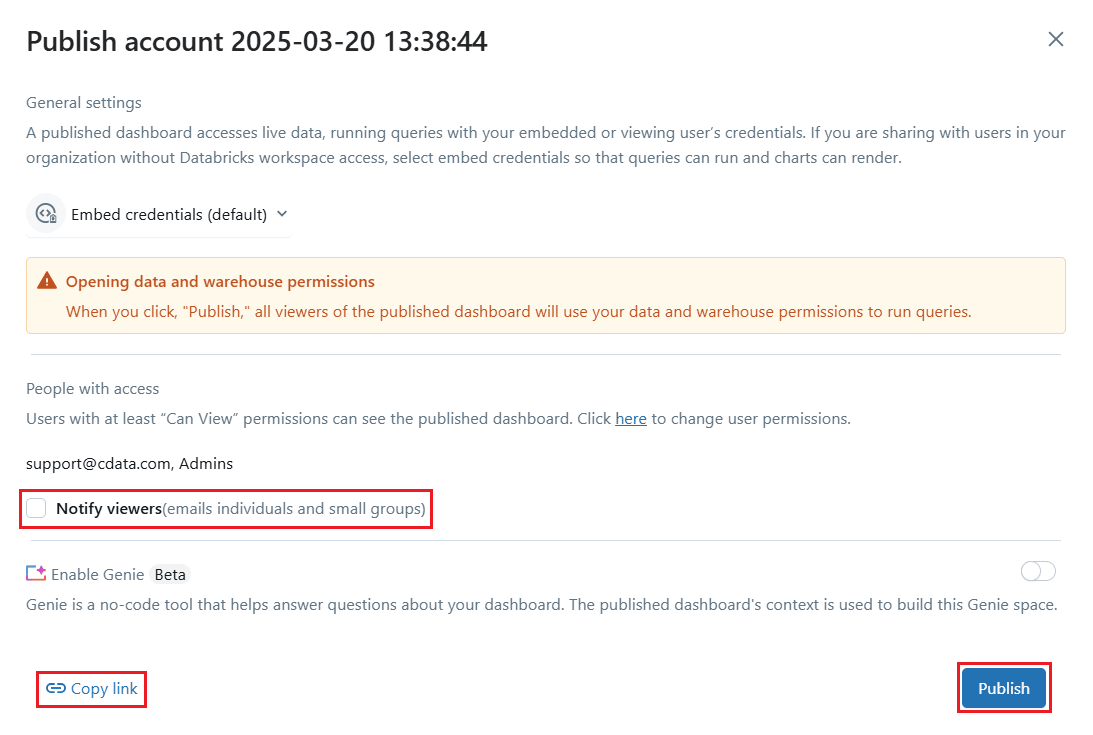

7. Click Publish to publish the dashboard report.

Live access to Act CRM data from cloud applications

At this stage, you have established a direct, cloud-to-cloud connection to live Act CRM data in Databricks. This enables you to create dashboards to monitor and visualize your data seamlessly.
