Access Open Exchange Rates Data in Anypoint Using SQL

Create a simple Mule Application that uses HTTP and SQL with the CData Mule Connector for Open Exchange Rates to create a JSON endpoint for Open Exchange Rates data.

The CData Mule Connector for Open Exchange Rates connects Open Exchange Rates data to Mule applications enabling read functionality with familiar SQL queries. The Connector allows users to easily create Mule Applications to backup, transform, report, and analyze Open Exchange Rates data.

This article demonstrates how to use the CData Mule Connector for Open Exchange Rates inside of a Mule project to create a Web interface for Open Exchange Rates data. The application created allows you to request Open Exchange Rates data using an HTTP request and have the results returned as JSON. The exact same procedure outlined below can be used with any CData Mule Connector to create a Web interface for the 180+ available data sources.

  1. Create a new Mule Project in Anypoint Studio.
  2. Add an HTTP Connector to the Message Flow.
  3. Configure the address for the HTTP Connector.
  4. Add a CData Open Exchange Rates Connector to the same flow, after the HTTP Connector.
  5. Create a new Connection (or edit an existing one) and configure the properties to connect to Open Exchange Rates (see below). Once the connection is configured, click Test Connection to ensure the connectivity to Open Exchange Rates.

    The Open Exchange Rates API supports basic authentication with an App Id. After you register, your App Id is displayed in your account dashboard. Set this to the AppId connection property.

  6. Configure the CData Open Exchange Rates Connector.
    1. Set the Operation to 'Select with Streaming'.
    2. Set the Query type to Dynamic.
    3. Set the SQL query to SELECT * FROM #[message.inboundProperties.'http.query.params'.get('table')] to parse the URL parameter table and use it as the target of the SELECT query. You can customize the query further by referencing other potential URL parameters.

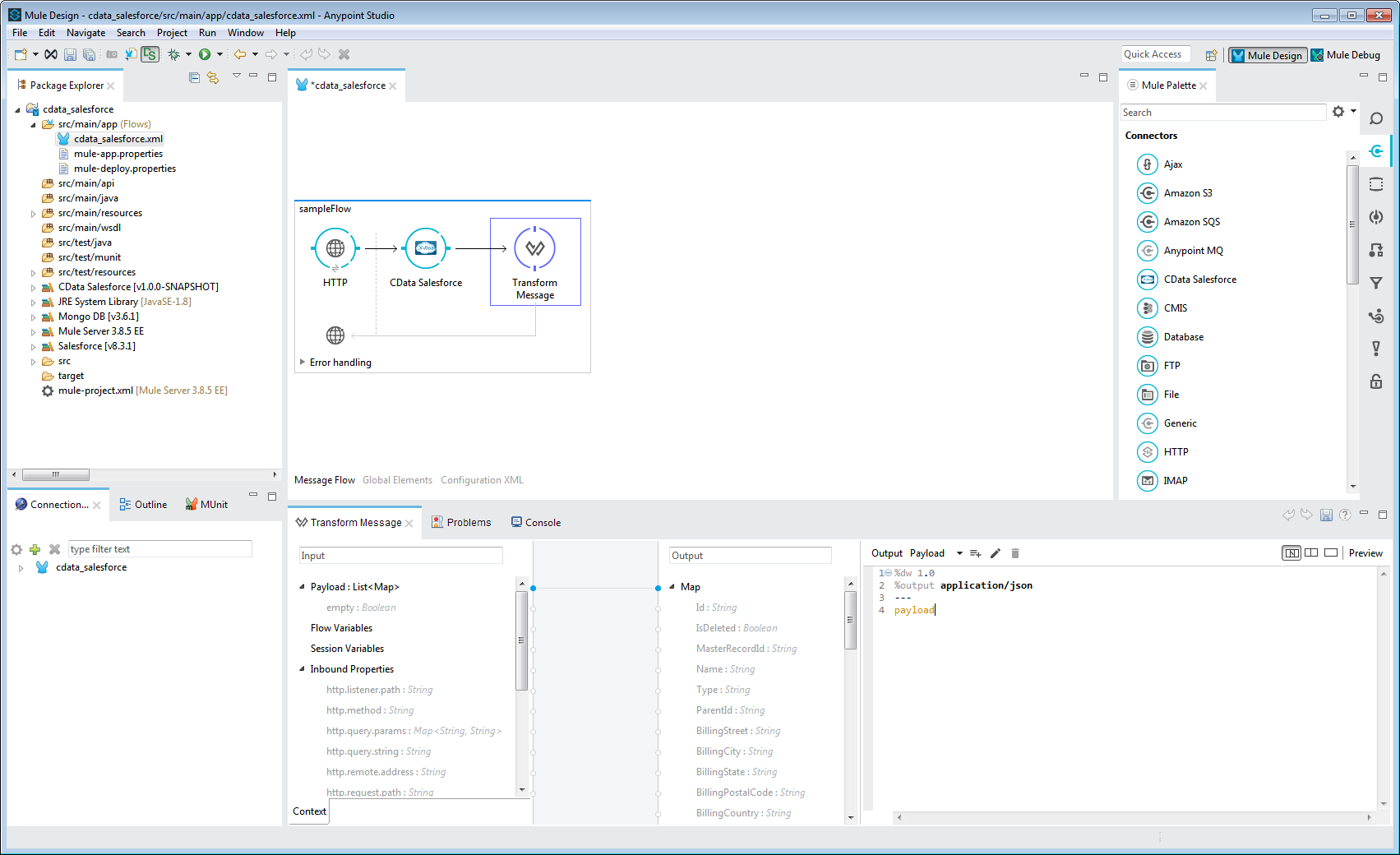

  7. Add a Transform Message Component to the flow.
    1. Map the Payload from the input to the Map in the output.
    2. Set the Output script to the following to convert the payload to JSON:
      %dw 1.0
      %output application/json
      ---
      payload

  8. To view your Open Exchange Rates data, navigate to the address you configured for the HTTP Connector (localhost:8081 by default) and pass a table name as the table URL parameter: http://localhost:8081?table=Projects
    The Projects data is available as JSON in your Web browser and any other tools capable of consuming JSON endpoints.

At this point, you have a simple Web interface for working with Open Exchange Rates data (as JSON data) in custom apps and a wide variety of BI, reporting, and ETL tools. Download a free, 30 day trial of the Mule Connector for Open Exchange Rates and see the CData difference in your Mule Applications today.
