DataBind Charts to Reckon Accounts Hosted Data


Use the standard ADO.NET procedures for databinding to provide bidirectional access to Reckon Accounts Hosted data from controls in the Visual Studio toolbox. This article demonstrates a graphical approach using wizards in Visual Studio, as well as how to databind with only a few lines of code.

DataBinding facilitates two-way interaction with data through UI controls. Using the CData ADO.NET Provider for Reckon Accounts Hosted streamlines the process of binding Reckon Accounts Hosted data to Windows Forms and Web controls within Visual Studio. In this article, we will demonstrate using wizards to establish a binding between Reckon Accounts Hosted data and a chart that dynamically updates. Additionally, the code walk-through section will guide you through the creation of a chart using just 10 lines of code.

DataBind to a Chart

DataBinding consists of three steps: Instantiate the control, configure the data source, and databind.

Configure the Connection and Select Database Objects

To create a chart control and establish a connection to Reckon Accounts Hosted, follow the steps outlined below using the Data Source Configuration Wizard. Within the wizard, you'll have the option to choose the specific Reckon Accounts Hosted entities you wish to bind to.

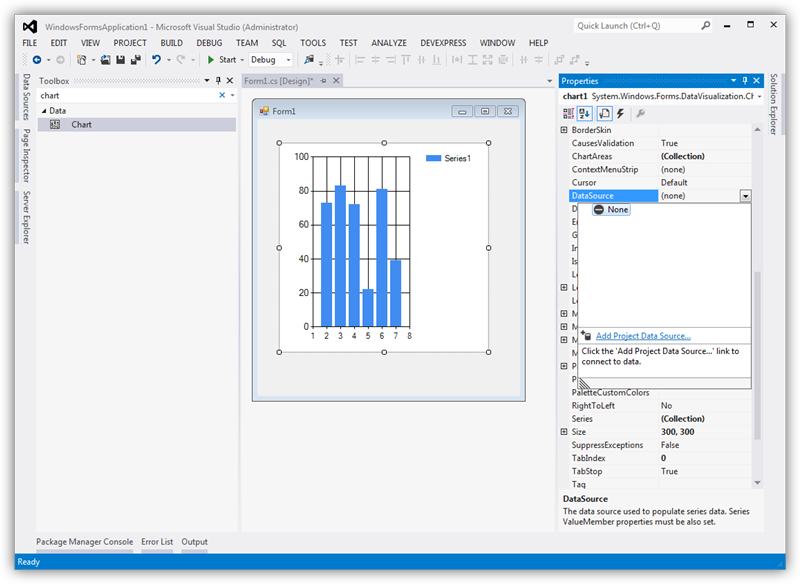

  1. In a Windows Forms project, drag and drop a Chart control from the toolbox to the form. In the Data section of the Chart properties, select DataSource and then select Add Project Data Source from the menu.
  2. In the Data Source Configuration Wizard that appears, select Database -> Dataset.
  3. In the Choose Your Data Connection step, click New Connection.

  4. In the Add Connection dialog, click Change to select the CData Reckon Accounts Hosted Data Source.

    Below is a typical connection string:

    SubscriptionKey=my_subscription_key;CountryVersion=2021.R2.AU;CompanyFile=Q:/CompanyName.QBW;User=my_user;Password=my_password;CallbackURL=http://localhost:33333;OAuthClientId=my_oauth_client_id;OAuthClientSecret=my_oauth_client_secret;InitiateOAuth=GETANDREFRESH

    The connector makes requests to Reckon Accounts Hosted through OAuth. Specify the following connection properties:

    • SubscriptionKey: Required. You get this value when you created your developer account.
    • CountryVersion: Defaults to 2021.R2.AU.
    • CompanyFile: Required. The path to the company file.
    • User: Required. The username of the company file.
    • Password: Required. The password of the company file.
    • InitiateOAuth: Set this to GETANDREFRESH to let the driver handle access tokens.
    • CallbackURL: The redirectURI of your Custom OAuth App.
    • OAuthClientId: The client id of your Custom OAuth App.
    • OAuthClientSecret: The client secret of your Custom OAuth App.

    CData provides an embedded OAuth application that simplifies OAuth desktop authentication. See the Help documentation for information on other OAuth authentication methods (web, headless, etc.), creating custom OAuth applications, and reasons for doing so.

    When you configure the connection, you may also want to set the Max Rows connection property. This will limit the number of rows returned, which is especially helpful for improving performance when designing reports and visualizations.

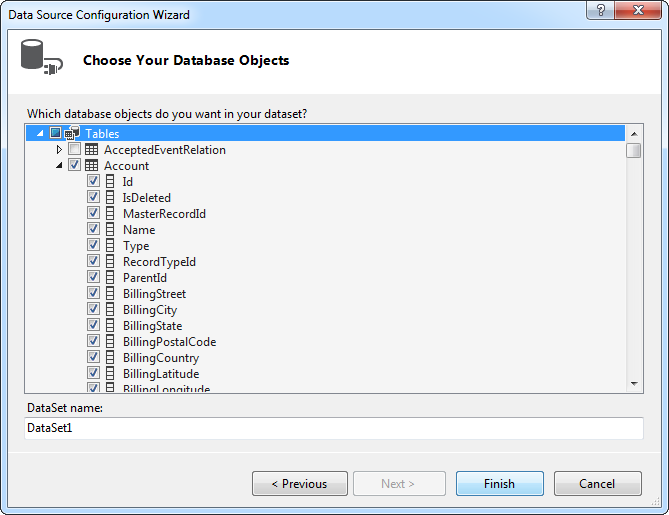

  5. Choose the database objects you want to work with. This example uses the Accounts table.

DataBind

After adding the data source and selecting database objects, you can bind the objects to the chart. This example assigns the x-axis to Name and the y-axis to Balance.

  1. In the Chart properties, click the button in the Series property to open the Series Collection Editor.
  2. In the Series properties, select the columns you want for the x- and y-axes: Select columns from the menu in the XValueMember and YValueMember properties.

The chart is now databound to the Reckon Accounts Hosted data. Run the chart to display the current data.

Code Walk-through

DataBinding to Reckon Accounts Hosted data requires only a few lines of code and can be completed in three easy steps.

  1. Connect to Reckon Accounts Hosted.
  2. Create the ReckonAccountsHostedDataAdapter to execute the query and create a DataSet to be filled with its results.
  3. DataBind the result set to the chart.

Below is the complete code:

ReckonAccountsHostedConnection conn = new ReckonAccountsHostedConnection("SubscriptionKey=my_subscription_key;CountryVersion=2021.R2.AU;CompanyFile=Q:/CompanyName.QBW;User=my_user;Password=my_password;CallbackURL=http://localhost:33333;OAuthClientId=my_oauth_client_id;OAuthClientSecret=my_oauth_client_secret;InitiateOAuth=GETANDREFRESH"); ReckonAccountsHostedCommand comm = new ReckonAccountsHostedCommand("SELECT Name, Balance FROM Accounts WHERE IsActive = 'true'", conn); ReckonAccountsHostedDataAdapter da = new ReckonAccountsHostedDataAdapter(comm); DataSet dataset = new DataSet(); da.Fill(dataset); chart1.DataSource = dataset; chart1.Series[0].XValueMember = "Name"; chart1.Series[0].YValueMembers = "Balance"; // Insert code for additional chart formatting here. chart1.DataBind();
