Replicate REST Data in Heroku for Use in Salesforce Connect

CData Sync is a standalone application that supports a wide range of replication scenarios, including replicating both sandbox and production instances into your database. By replicating REST data to a PostgreSQL database in Heroku, you can access REST external objects (via Salesforce Connect) alongside standard Salesforce objects.

Requirements

For this replication example, you need the following:

1. CData Sync (trial or licensed), along with a license (full or trial) for REST replication.
2. A Heroku app with the Heroku Postgres and Heroku Connect add-ons provisioned.
3. A Salesforce account.

Configure the Replication Destination

Using CData Sync, you can easily replicate data from REST data to a PostgreSQL database on Heroku. For this article, you will need an existing PostgreSQL database on Heroku. To add your PostgreSQL database as a replication destination, navigate to the Connections tab.

1. Click Add Connection.
2. Select the Destinations tab and locate the PostgreSQL connector.
3. Click the Configure Connection icon at the end of that row to open the New Connection page. If the Configure Connection icon is not available, click the Download Connector icon to install the PostgreSQL connector. For more information about installing new connectors, see Connections in the Help documentation.

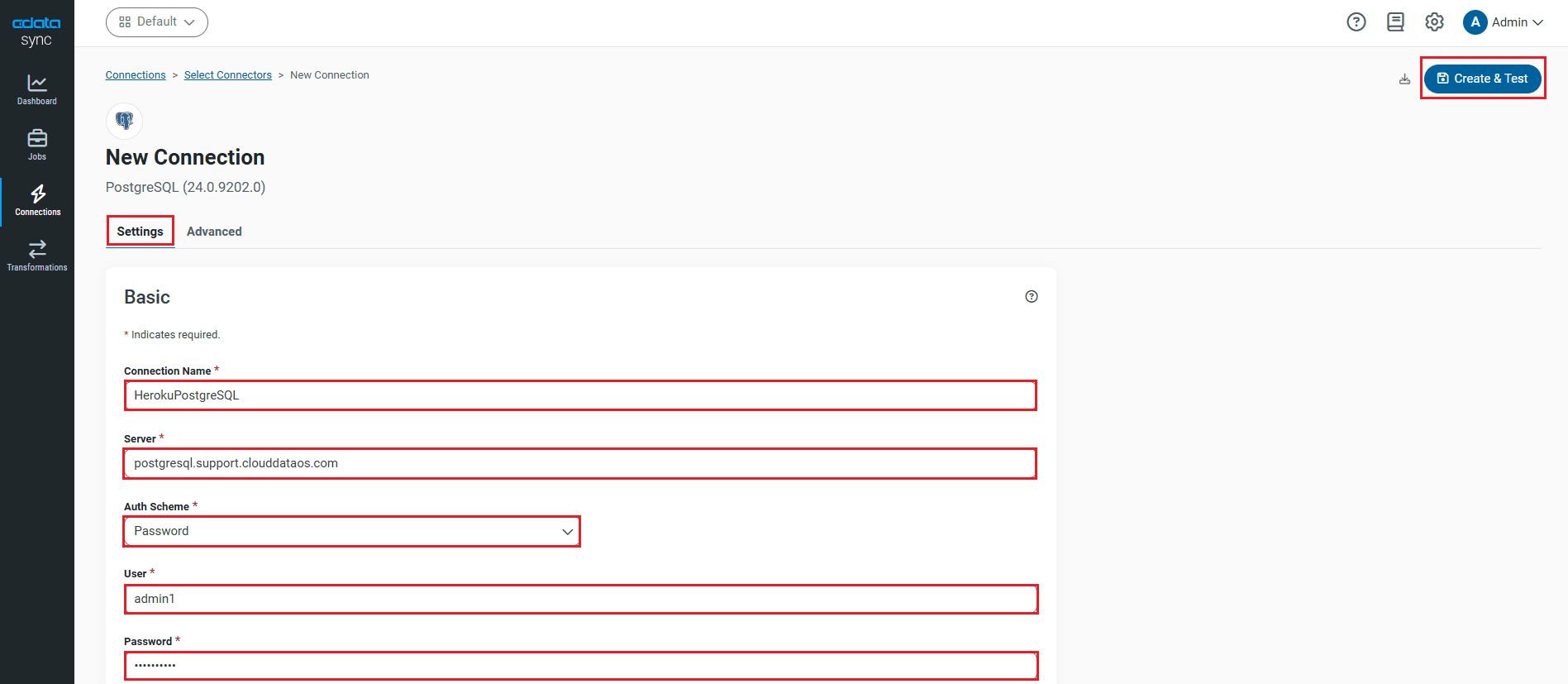

4. To connect to PostgreSQL, set the following connection properties:
   • Connection Name: Enter a connection name of your choice for the PostgreSQL connection.
   • Server: Enter the host name or IP of the server that hosts the PostgreSQL database. The default server value is localhost.
   • Auth Scheme: Select the authentication scheme. The default auth scheme is Password.
   • Port: Enter the port number of the server that hosts the PostgreSQL database. The default port value is 5432.
   • User: Enter the user ID provided for authentication with the PostgreSQL database.
   • Password: Enter the password provided for authentication with the PostgreSQL database.
   • Database: Enter the name of the database. If not specified, use the default database.

5. Once connected, click Create & Test to create, test and save the connection.

You are now connected to PostgreSQL and can use it as both a source and a destination.

NOTE: You can use the Label feature to add a label for a source or a destination.

Configure the REST Connection

You can configure a connection to REST from the Connections tab. To add a connection to your REST account, navigate to the Connections tab.

1. Click Add Connection.
2. Select a source (REST).
3. Configure the connection properties.



   See the Getting Started chapter in the data provider documentation to authenticate to your data source: The data provider models REST APIs as bidirectional database tables and XML/JSON files as read-only views (local files, files stored on popular cloud services, and FTP servers). The major authentication schemes are supported, including HTTP Basic, Digest, NTLM, OAuth, and FTP. See the Getting Started chapter in the data provider documentation for authentication guides.

   After setting the URI and providing any authentication values, set Format to "XML" or "JSON" and set DataModel to more closely match the data representation to the structure of your data.

   The DataModel property is the controlling property over how your data is represented into tables and toggles the following basic configurations.

   • Document (default): Model a top-level, document view of your REST data. The data provider returns nested elements as aggregates of data.
   • FlattenedDocuments: Implicitly join nested documents and their parents into a single table.
   • Relational: Return individual, related tables from hierarchical data. The tables contain a primary key and a foreign key that links to the parent document.

   See the Modeling REST Data chapter for more information on configuring the relational representation. You will also find the sample data used in the following examples. The data includes entries for people, the cars they own, and various maintenance services performed on those cars.


4. Click Connect to REST to ensure that the connection is configured properly.
5. Click Save & Test to save the changes.

Configure Queries for Each REST Instance

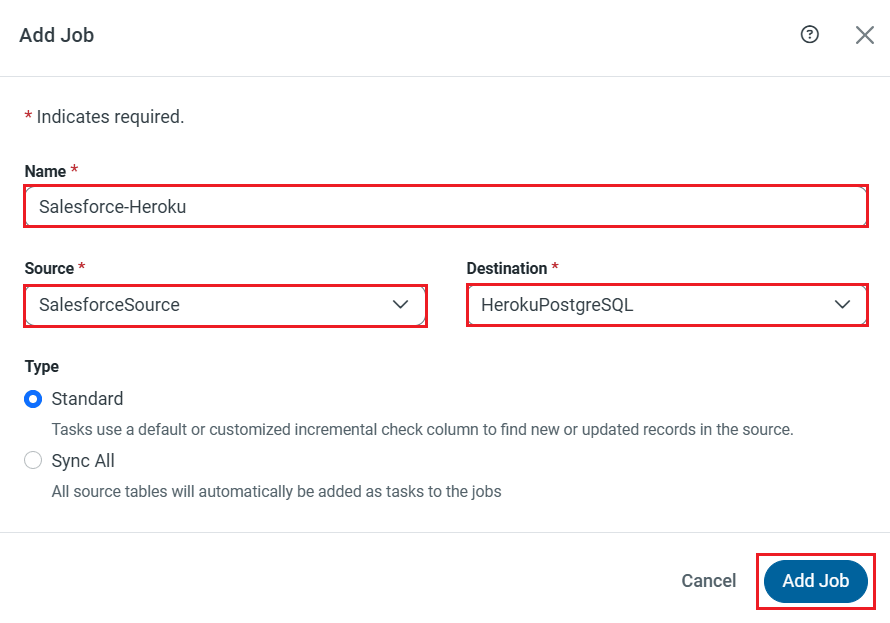

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab and click Add Job. Select the Source and Destination for your replication.

Replicate Entire Tables

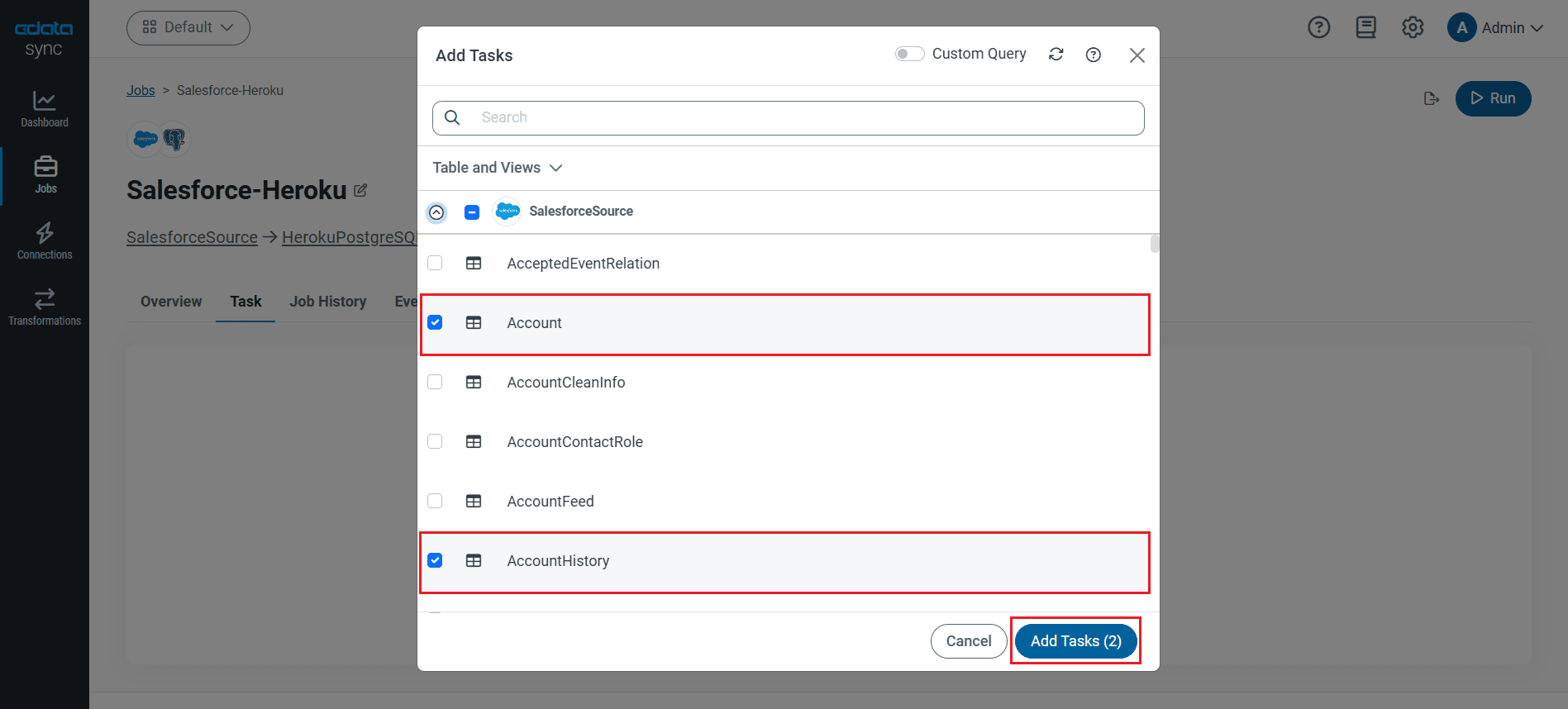

To replicate an entire table, navigate to the Task tab in the Job, click Add Tasks, choose the table(s) from the list of REST tables you wish to replicate into PostgreSQL, and click Add Tasks again.

Customize Your Replication

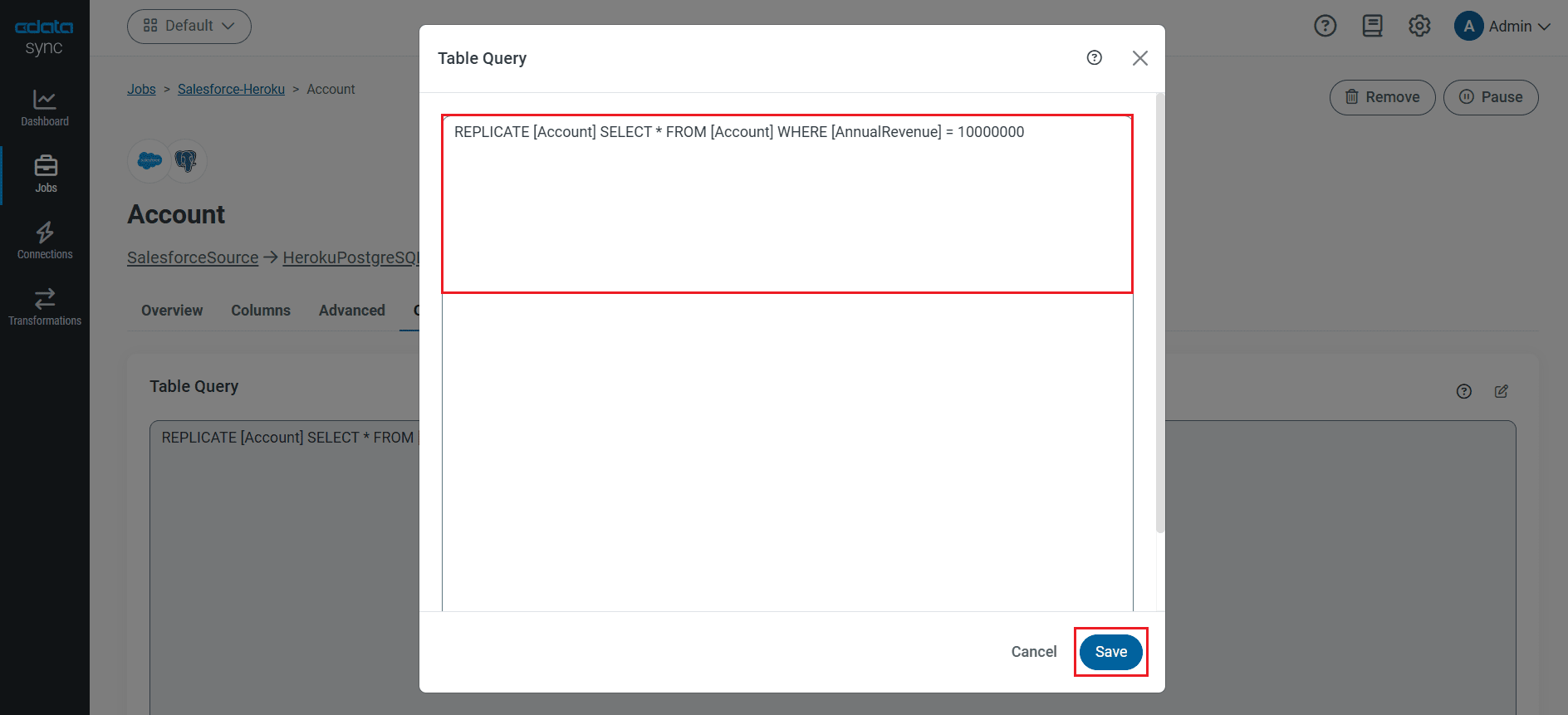

You can use the Columns and Query tabs of a task to customize your replication. The Columns tab allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. The Query tab allows you to add filters, grouping, and sorting to the replication with the help of SQL queries.

As you make changes using the interface, the SQL query used for the replication changes, going from something simple, like this:

REPLICATE [people]

to something customized and more complex, like this:

REPLICATE [people] SELECT [[ personal.name.first ]], [[ personal.name.last ]] FROM [people] WHERE [[ personal.name.last ]] = Roberts

Schedule Your Replication

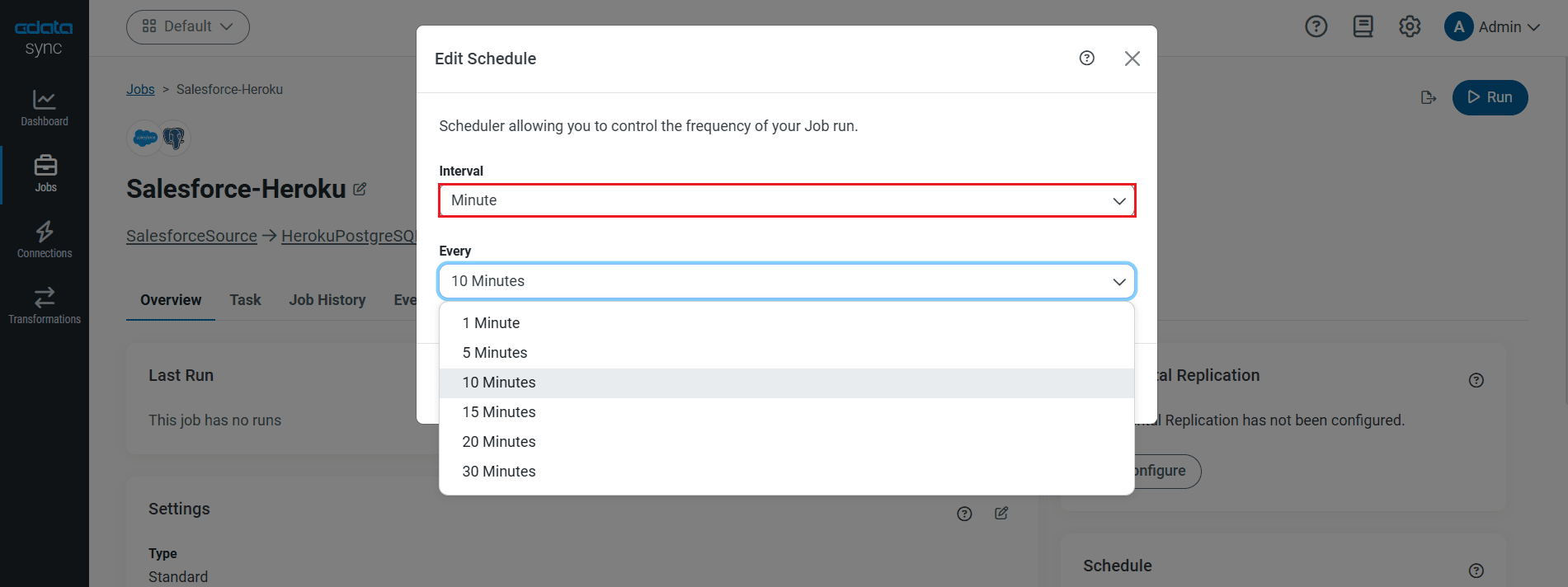

Select the Overview tab in the Job, and click Configure under Schedule. You can schedule a job to run automatically by configuring it to run at specified intervals, ranging from once every 10 minutes to once every month.

Once you have configured the replication job, click Save Changes. You can configure any number of jobs to manage the replication of your REST data to PostgreSQL.

Run the Replication Job

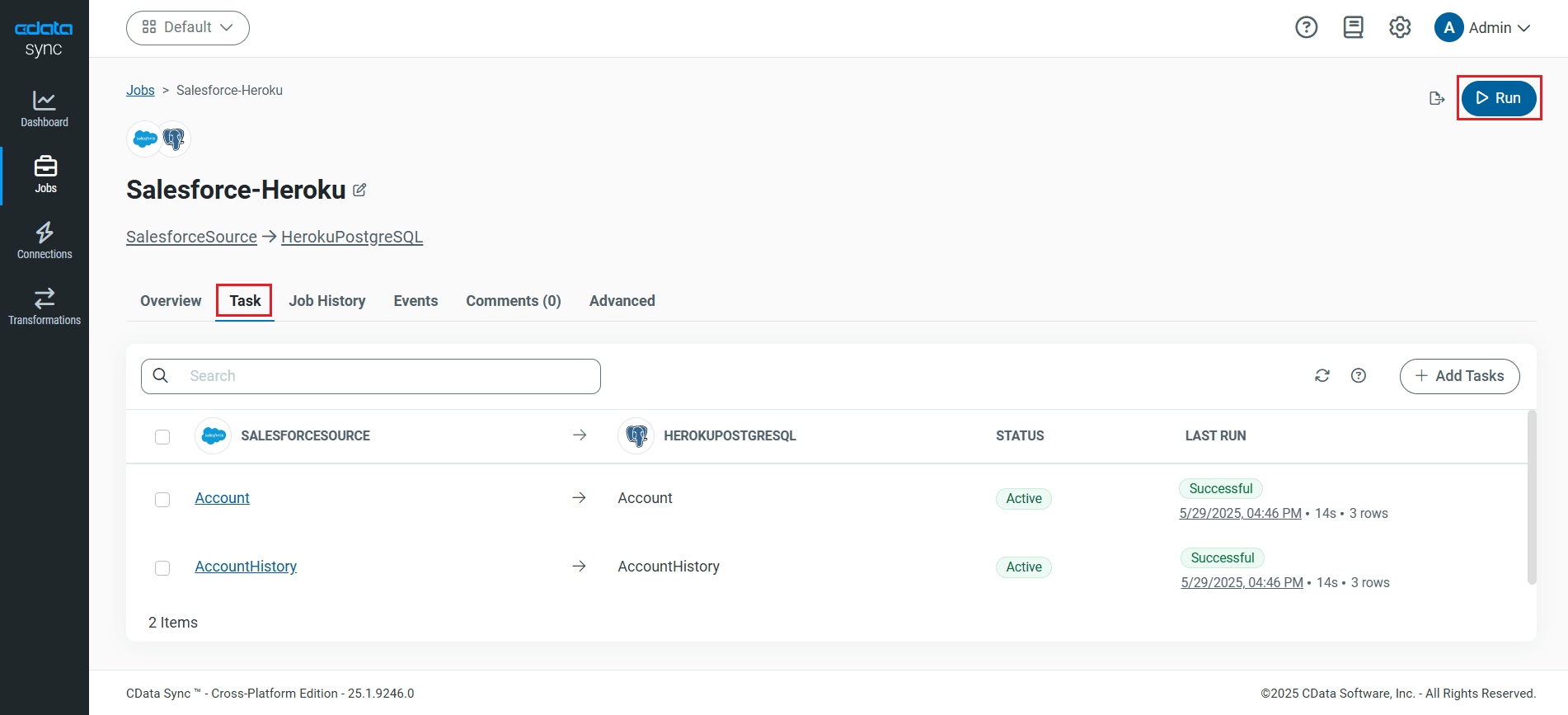

Once all the required configurations are made for the job, select the REST table you wish to replicate and click Run. After the replication completes successfully, a notification appears, showing the time taken to run the job and the number of rows replicated.

The REST data tables are now replicated in Heroku PostgreSQL database.

Connect to Your Replicated REST Data as an External Data Source

Once your REST data is replicated to the PostgreSQL database on Heroku, configure the OData interface for Heroku and connect to the database as an external data source via Salesforce Connect.

Configure the OData Service for Heroku

The first part of connecting to REST data replicated to a PostgreSQL database on Heroku is configuring the Heroku External Objects for the database.

1. In your Heroku dashboard, click the Heroku Connect Add-On.
2. Select External Objects. (If this is the first time using Heroku External Object, you will be prompted to create the OData service's login credentials)
3. View the OData service URL and credentials (noting the URL and credentials to be used later from Salesforce Connect).
4. In Data Sources, select which replicated tables to share.

Refer to the Heroku documentation for more detailed instructions.

Configure an External Data Source in Salesforce

After the OData service for Heroku is configured, we can connect to the replicated REST data as an external data source from Salesforce Connect.

1. In Salesforce, click Setup
2. In the Administration section, click Data -> External Data Sources
3. Set the data source parameter properties:
   • External Data Source: the name you wish to display in the Salesforce user interface
   • Name: a unique identifier for the API
   • Type: Salesforce Connect: OData 4.0
   • URL: Enter the OData endpoint from Heroku Connect (above)
   • Format: JSON
4. Set Authentication:
   • Identity Type: Named Principal
   • Authentication Protocol: Password Authentication
   • Username: the Heroku Connect username
   • Password: the Heroku Connect password
5. Click Save.

Synchronize REST Objects

After you have created the external data source in Salesforce, follow the steps below to create REST external objects that reflect any changes in the data source. You will synchronize the definitions for the REST external objects with the definitions for REST tables.

1. Click the link for the external data source you created.
2. Click Validate and Sync.
3. Select the REST tables you want to work with as external objects and click Sync.

Access REST Data as Salesforce Objects

At this point, you will be able to connect to and work with your replicated REST entities as external objects just as you would with standard Salesforce objects, whether you are simply viewing the data or building related lists of external REST data alongside standard Salesforce objects.
