Automated Continuous SAP Ariba Procurement Replication to Snowflake

Always-on applications rely on automatic failover capabilities and real-time data access. CData Sync integrates live SAP Ariba Procurement data into your Snowflake instance, allowing you to consolidate all of your data into a single location for archiving, reporting, analytics, machine learning, artificial intelligence and more.

Configure Snowflake as a Replication Destination

Using CData Sync, you can replicate SAP Ariba Procurement data to Snowflake. To add a replication destination, navigate to the Connections tab.

1. Click Add Connection.
2. Select the Destinations tab and locate the Snowflake connector.
3. Click the Configure Connection icon at the end of that row to open the New Connection page. If the Configure Connection icon is not available, click the Download Connector icon to install the Snowflake connector. For more information about installing new connectors, see Connections in the Help documentation.

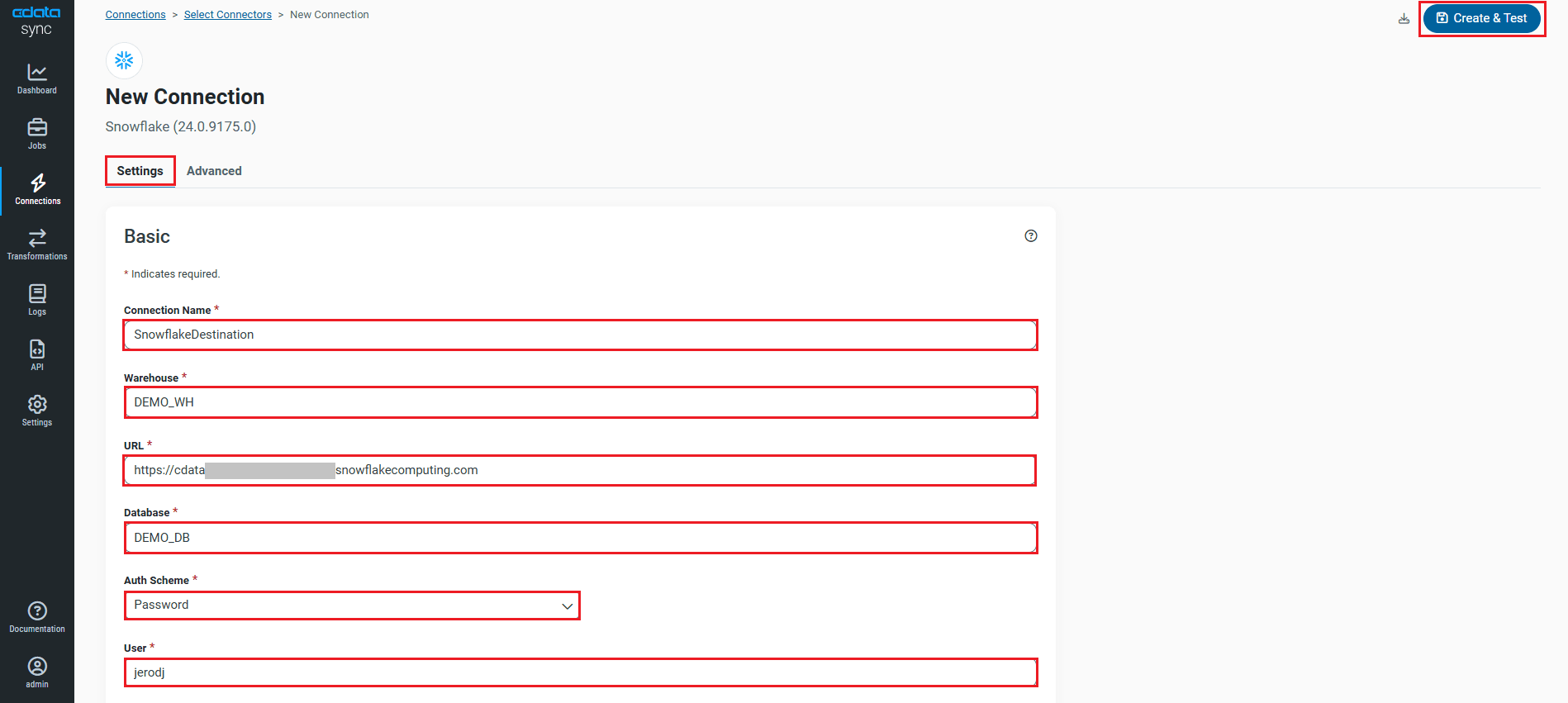

4. To connect to Snowflake, set the following connection properties:
   • Connection Name: Enter a connection name of your choice for the Snowflake connection.
   • Warehouse: Enter the name of your Snowflake warehouse.
   • URL: Enter the URL for your Snowflake database. CData Sync supports both Microsoft Azure and Amazon Web Services (AWS) instances:
     • AWS: https://MyAccount.Region.snowflakecomputing.com
     • Azure: https://MyAccount.Region.azure.snowflakecomputing.com
   • URL: Enter the URL of the Snowflake database instance, for example: https://myaccount.snowflakecomputing.com
   • Database: The name of the Snowflake database
   • Auth Scheme: Select the authentication scheme. The default auth scheme is Password. The auth schemes available for Snowflake are Password, OKTA, PrivateKey, AzureAD, OAuth, PingFederate, and External Browser.
   • User: Enter the username that you use to authenticate to Snowflake.
   • Password: Enter the password that you use to authenticate to Snowflake.
   • Schema: The schema of the Snowflake database.

5. Once connected, click Create & Test to create, test and save the connection.

You are now connected to Snowflake and can use it as both a source and a destination.

NOTE: You can use the Label feature to add a label for a source or a destination.

In this article, we will demonstrate how to load SAP Ariba Procurement data into Snowflake and utilize it as a destination.

Configure the SAP Ariba Procurement Connection

You can configure a connection to SAP Ariba Procurement from the Connections tab. To add a connection to your SAP Ariba Procurement account, navigate to the Connections tab.

1. Click Add Connection.
2. Select a source (SAP Ariba Procurement).
3. Configure the connection properties.



   In order to connect with SAP Ariba Procurement, set the following:

   • ANID: Your Ariba Network ID.
   • ANID: Specify which API you would like the provider to retrieve SAP Ariba data from. Select the Buyer or Supplier API based on your business role (possible values are PurchaseOrdersBuyerAPIV1 or PurchaseOrdersSupplierAPIV1).
   • Environment: Indicate whether you are connecting to a test or production environment (possible values are TEST or PRODUCTION).

   Authenticating with OAuth

   After setting connection properties, you need to configure OAuth connectivity to authenticate.

   • Set AuthScheme to OAuthClient.
   • Register an application with the service to obtain the APIKey, OAuthClientId and OAuthClientSecret.

     For more information on creating an OAuth application, refer to the Help documentation.

   Automatic OAuth

   After setting the following, you are ready to connect:

   APIKey: The Application key in your app settings. OAuthClientId: The OAuth Client Id in your app settings. OAuthClientSecret: The OAuth Secret in your app settings.

   When you connect, the provider automatically completes the OAuth process:

   1. The provider obtains an access token from SAP Ariba and uses it to request data.
   2. The provider refreshes the access token automatically when it expires.
   3. The OAuth values are saved in memory relative to the location specified in OAuthSettingsLocation.

4. Click Connect to SAP Ariba Procurement to ensure that the connection is configured properly.
5. Click Save & Test to save the changes.

Configure Replication Queries

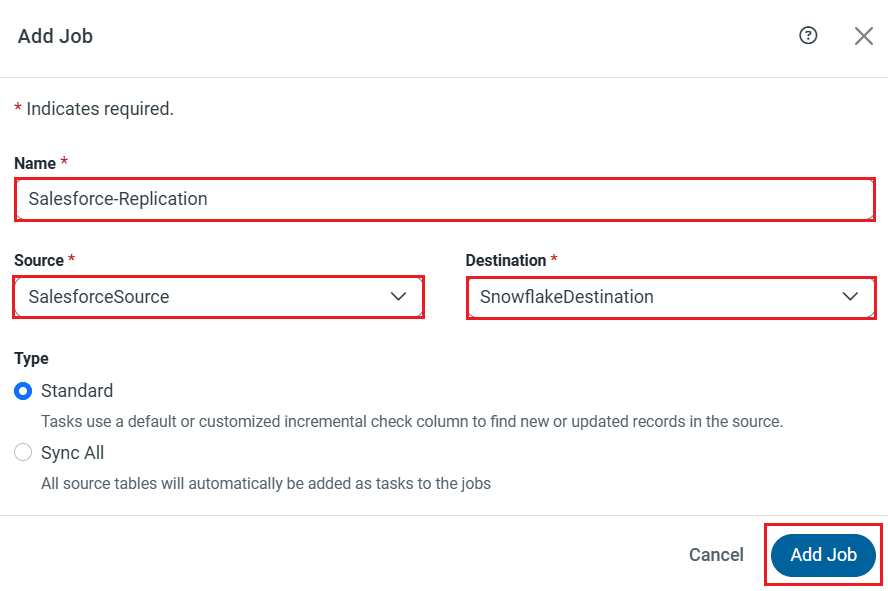

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab and click Add Job. Select the Source and Destination for your replication.

Replicate Entire Tables

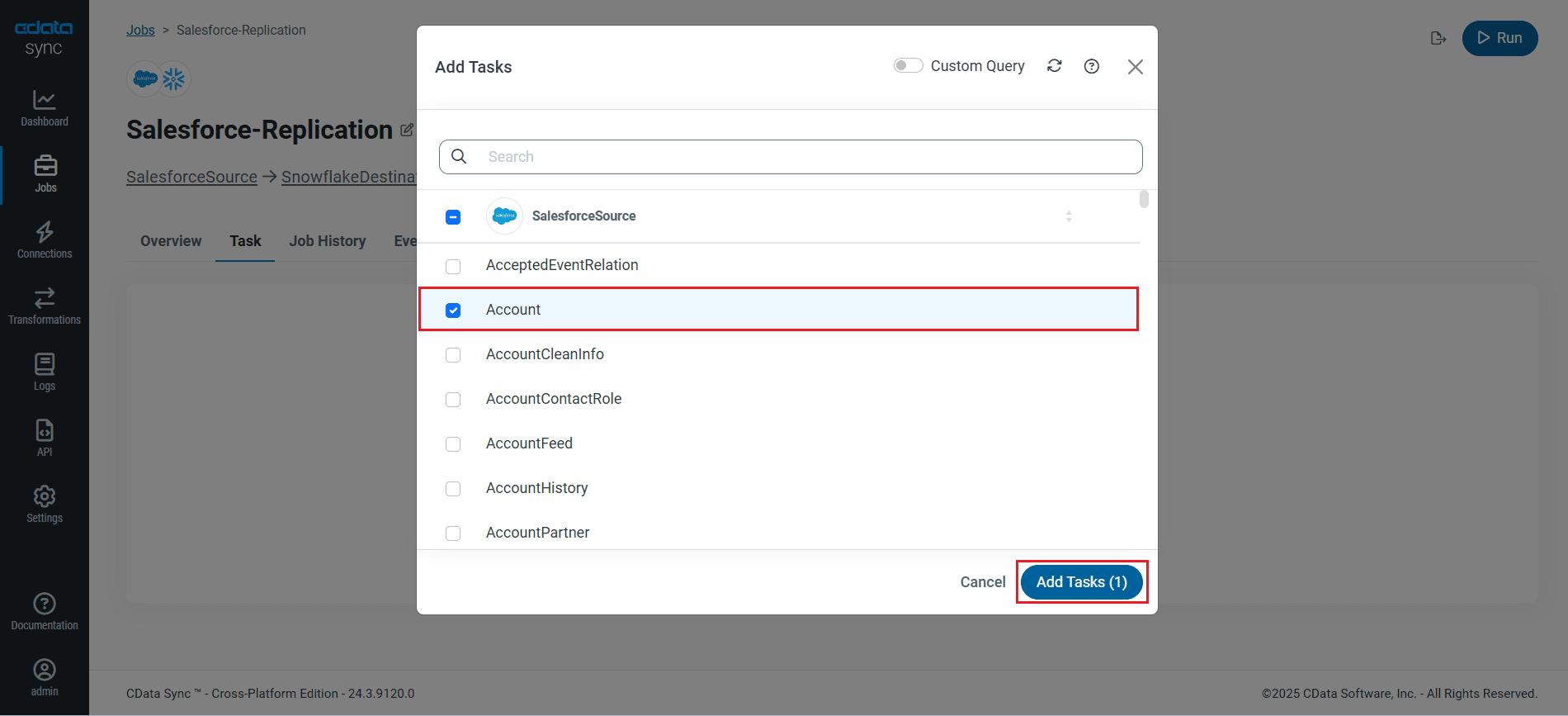

To replicate an entire table, navigate to the Task tab in the Job, click Add Tasks, choose the table(s) from the list of SAP Ariba Procurement tables you wish to replicate into Snowflake, and click Add Tasks again.

Customize Your Replication

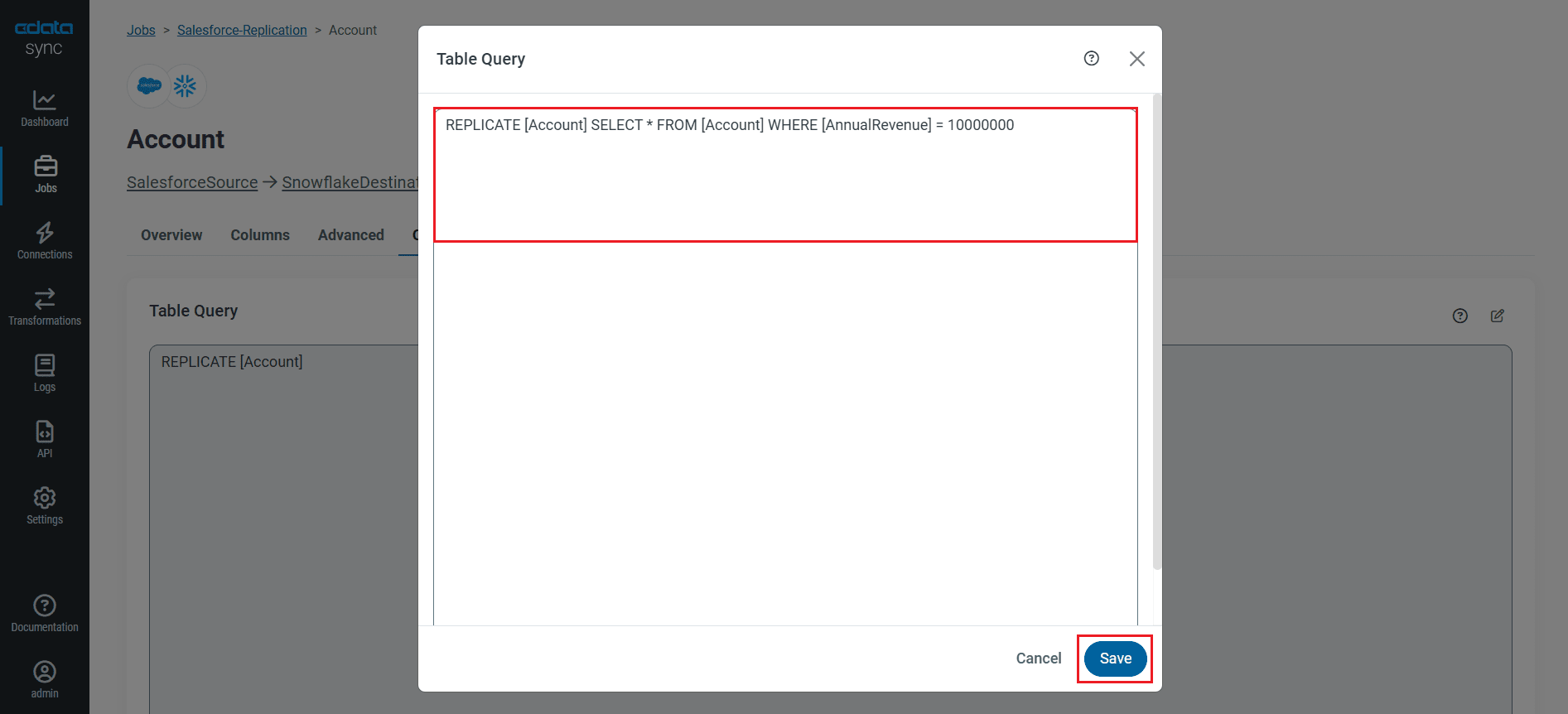

You can use the Columns and Query tabs of a task to customize your replication. The Columns tab allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. The Query tab allows you to add filters, grouping, and sorting to the replication with the help of SQL queries.

Schedule Your Replication

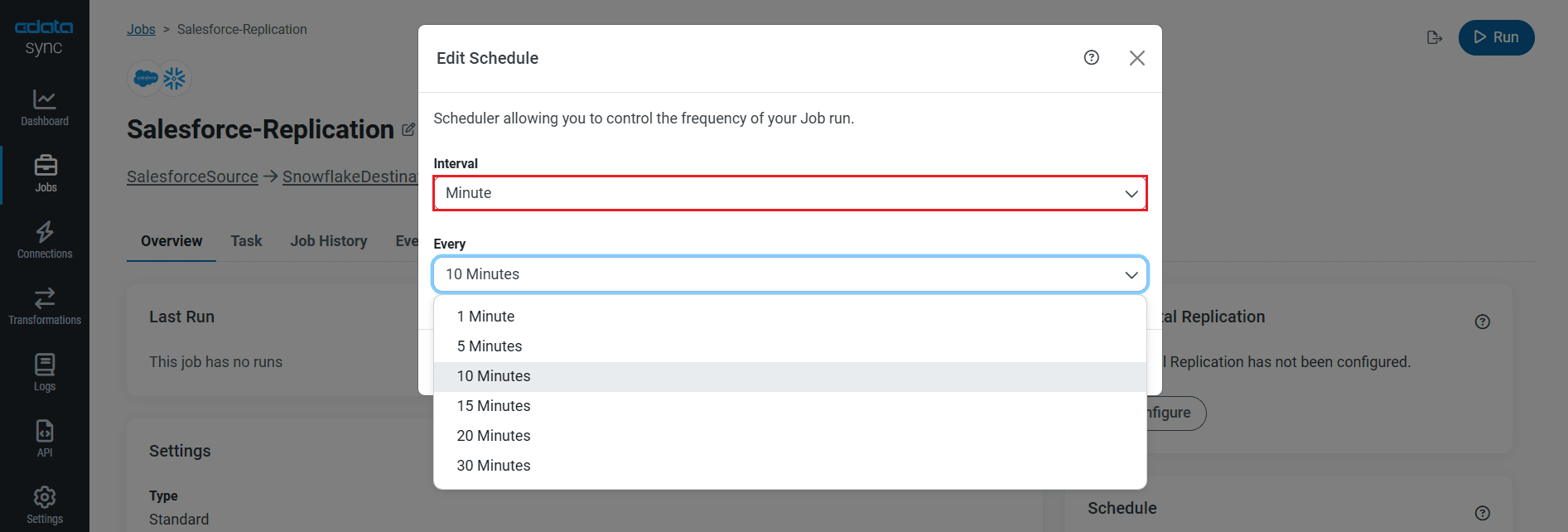

Select the Overview tab in the Job, and click Configure under Schedule. You can schedule a job to run automatically by configuring it to run at specified intervals, ranging from once every 10 minutes to once every month.

Once you have configured the replication job, click Save Changes. You can configure any number of jobs to manage the replication of your SAP Ariba Procurement data to Snowflake.

Run the Replication Job

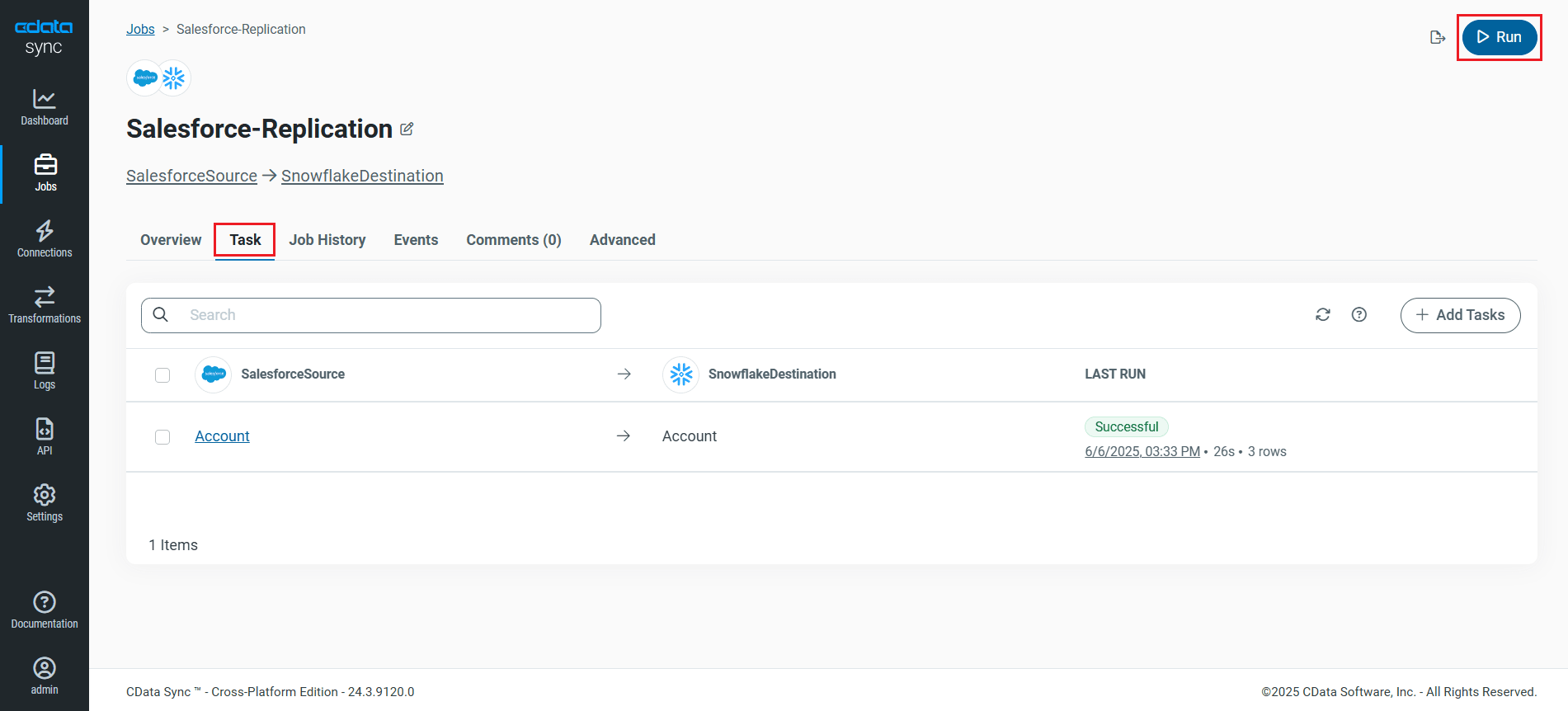

Once all the required configurations are made for the job, select the SAP Ariba Procurement table you wish to replicate and click Run. After the replication completes successfully, a notification appears, showing the time taken to run the job and the number of rows replicated.

Free Trial & More Information

Now that you have seen how to replicate SAP Ariba Procurement data into Snowflake, visit our CData Sync page to explore more about CData Sync and download a free 30-day trial. Start consolidating your enterprise data today!

As always, our world-class Support Team is ready to answer any questions you may have.
