詳細はこちら →Node-RED Flow: 新しいSalesforce 顧客を会計のQuickBooks Online 顧客リストに追加するフロー
Node-RED は、機能ごとのノードをドラグ&ドロップで結びつけることでさまざまなフローを実現できるオープンソースソフトウェアです。 Node-RED を使えば、簡単にオンラインサービス、API、IoT 機器を繋ぐデータフローを構築できます。 CData API Server は80+ を超えるデータソース (オンプレDBからNoSQL やSalesforce などのSaaS まで)をGUI だけでREST API にして公開できるツールです。 API Server で作ったきれいなREST API をNode-RED で使うことで、オンプレとクラウド、クラウド間のワークフローや自動化が簡単に構築できます。 この記事ではSalesforce に新しい顧客を追加や更新を行うと自動的にクラウド会計のSaaS であるQuickBooks のCustomer に追加を行うフローを作ってみます。 今回はSalesforce とQuickBooks ですが、CData が対応する80を超えるデータソースをそれぞれNode-RED のフローで使うことが可能です。

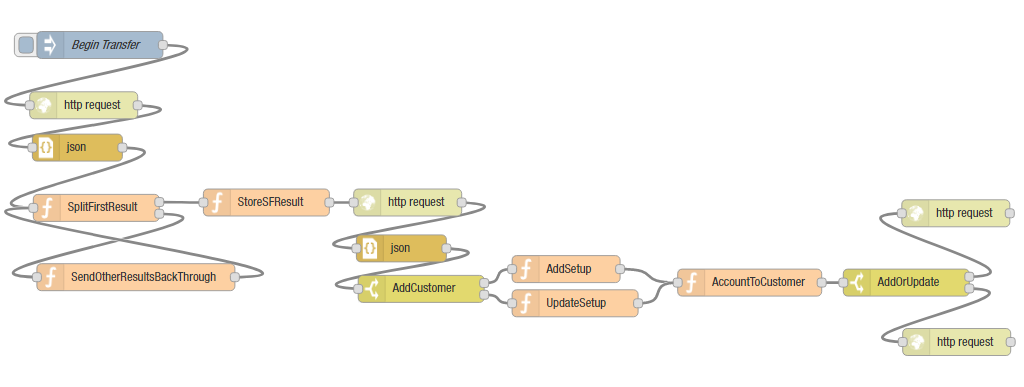

![A Node-RED Flow for Moving Salesforce Accounts into QuickBooks Online as Customers](apiserver-node-red-0.png)
Node-RED のインストール
Node-RED を利用するにはNode.js が必要です。To run Node-RED, you need to install Node.js. Node.js Website で詳細を確認してください。 Node.js のインストールが完了したら、Node-RED をインストールする一番簡単な方法は npm (下記参照)を使う方法です。
sudo npm install -g --unsafe-perm node-red
より細かいインストールの説明は、Node-RED installation page を参照してください。
API Server のセットアップ
まずは80を超えるデータソースをNode-RED で使用可能にするためにAPI Server をインストールします。 次に今回利用するSaaS であるSalesforce とQuickBooks Online とAPI Server との接続を確立します。 下の手順で設立を確立するとSalesforce およびQuickBooks Online のOData エンドポイントが構築できます。 Node-RED ではOData エンドポイントを部品として使うことができます。
API Server のデプロイ
The API Server runs on your own server. On Windows, you can deploy using the stand-alone server or IIS. On a Java servlet container, drop in the API Server WAR file. See the help documentation for more information and how-tos.
API Server は簡単にMicrosoft Azure、Amazon EC2、および Heroku に配布して利用することが可能です。
Salesforce への接続
API Server の[設定]→[接続]をクリックして、Salesforce のロゴをクリックすると接続画面が開きます。 必要とされる認証情報を入力(OAuth かUser+Password+SecurityToken での認証のどちらかが可能)です。 [テスト接続]で接続kを確認後、設定を保存します。
必要とされる認証情報を入力します。Salesforce ではOAuth、Login、SSO の複数の認証種類が利用できます。 Login メソッドでは、username、password、Security Token を入力して認証します。
username およびpassword での認証を希望しない場合には、OAuth 認証が可能です。
QuickBooks Online への接続
同様にAPI Server の管理コンソールで、[設定]→[接続]をクリックしてQuickBooks Online を接続します。 接続先にQuickBooks Online のロゴが表示されない場合には、CData ADO.NET Data Provider かJDBC Driver のインストールを行うと下部のリストに表示されます。
QuickBooks Online はOAuth 認証を使います。OAuth はブラウザへのログインが必要です。 OAuth 認証では、OAuthClientId、OAuthClientSecret、およびCallBackURL の入力が必要です。 もしくは、自分で登録したIntuit 登録アプリを使うことも可能です。
ドライバーの接続方法の詳細は製品ヘルプの[Getting Started (はじめに)]を参照してください。
エンドポイントの作成
接続設定が完了したら、次はSalesforce、およびQuickBooks Online のエンティティからAPI Server のエンドポイントとして公開するものを設定します。 [設定]→[リソース]をクリックして、Salesforce の[Account]エンティティとQuickBooks Online の[Customers]エンティティをそれぞれ選択します。これだけでそれぞれのOData エンドポイントが自動生成されます。
![Salesforce Account and QuickBooks Online Customer Endpoints in API Server](apiserver-node-red-1.png)
Node-RED フローの作成w
Node-RED でAPI Server で作ったエンドポイントをフローに仕立てるのはドラグ&ドロップだけで実施できます。 Node-RED はコマンドラインで node-red を呼び出すと開きます。
次のステップでフローを作成します。こちらのdownload the complete flow からサンプルフローをダウンロードも可能です。
Salesforce Account データの取得
ワークスペースにnode をドラッグします。このnode からフローを始めます。 node をダブルクリックして、名前を付けます。次に[http request node]をワークスペースに追加します。 このnode がAPI Server にリクエストを送り、Salesforce Account データを取得します。 node をダブルクリックして、プロパティを設定します。node がHTTP GET リクエストをSalesforce Account リソースに送ります。 差分更新には、$filter パラメータをURL で使うだけです。 セキュリティにはベーシック認証を使います。API Server の[設定]→[ユーザー]でAPI Server にアクセスできるユーザーを作成し、Auth トークンを取得します。 node のプロパティ設定が終わったら、二つのnode を線でつなぎます。

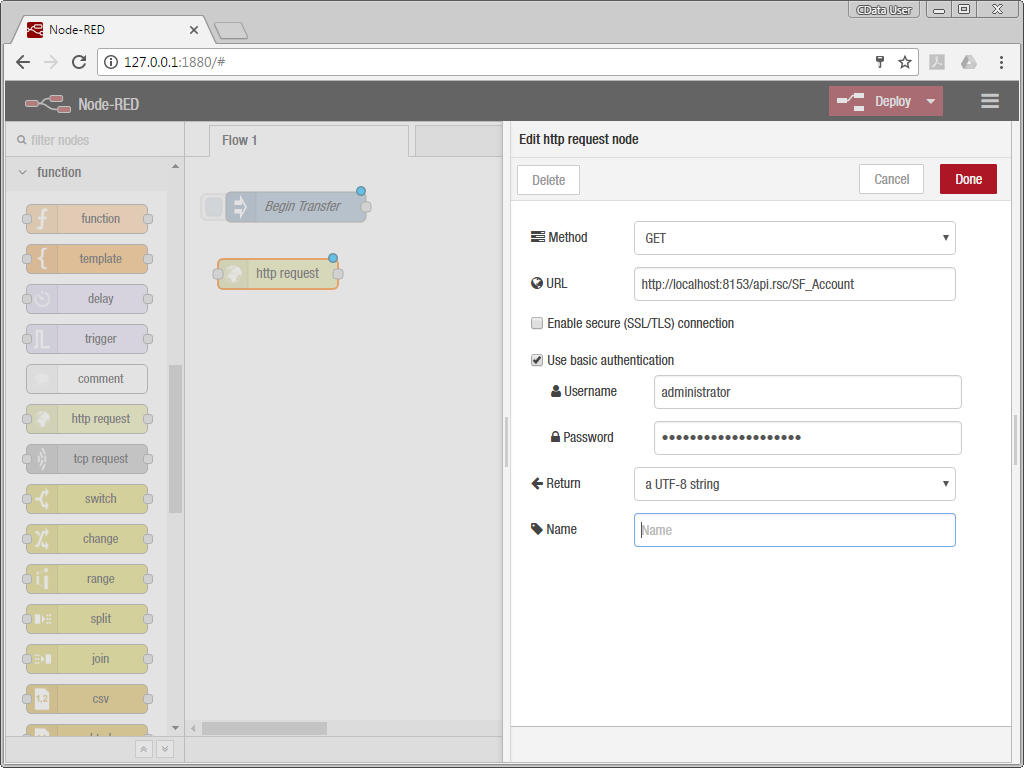

![Configure the http request Node to GET Salesforce Account Data](apiserver-node-red-3.png)
Salesforce Account の処理

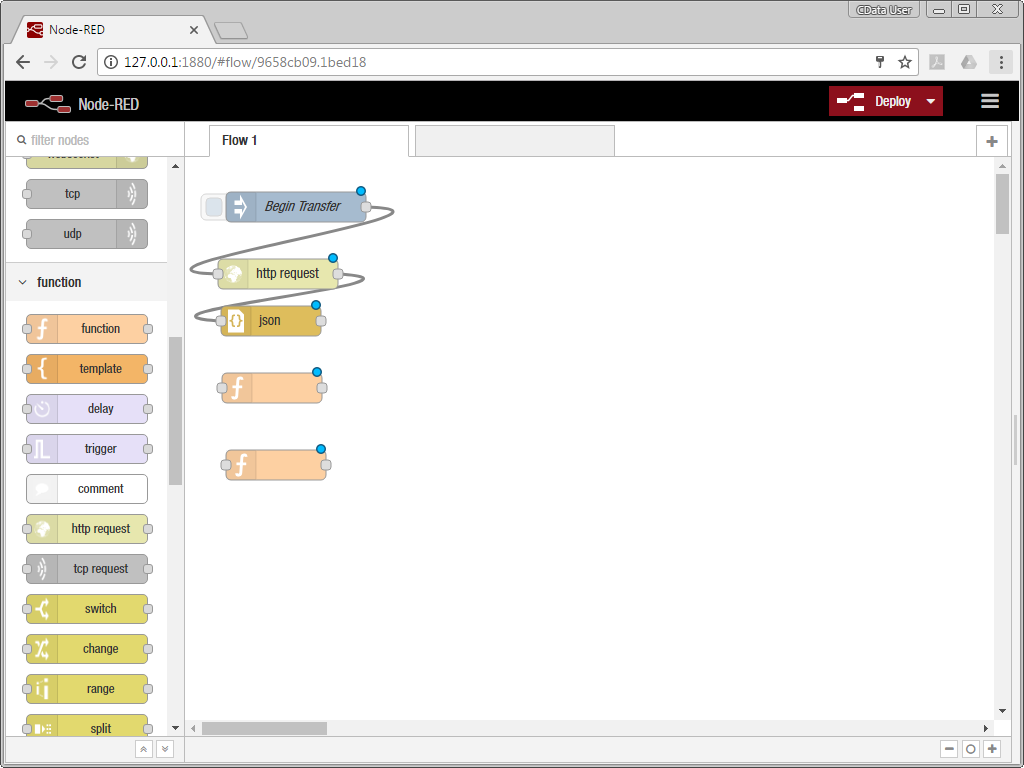

次にjson node とfunction node を2つドロップします。json node はAPI Server からのレスポンスをJSON オブジェクトにパースする役目です。 2つのfunction node はHTTP リクエストの結果をそれぞれフローにプッシュします。
![Preparing to Push Results Through the Flow](apiserver-node-red-4.png)
var arrLen = msg.payload.value.length;
if(arrLen > 1) {
msg2 = {};
msg2.payload = msg.payload.value.slice(1,arrLen);
msg.payload = msg.payload.value[0];
msg.escapedName = escape(msg.payload.Name);
return [msg,msg2];
} else if (arrLen == 1) {
msg.payload = msg.payload.value[0];
msg.escapedName = escape(msg.payload.Name);
//remove API Server response headers
msg.headers = {};
return [msg, null];
}
return [null, null];
次のfunction は残りの値の配列をその前のfunction のインプットにマッチするメッセージにリファクタリングします。 これにより、それぞれのSalesforce account からのHTTP リクエスト結果をひとつづつ扱うことができるようになります。 node をダブルクリックして、次のJavaScript をfunction に入力します:
var payload = msg.payload;
msg.payload = {}
msg.payload.value = payload;
return msg;
それぞれのnode を線でつなぎます。json node のアウトプットを1つめのfunction node(SplitFirstResut)に 2つめのSplitFirstResult のアウトプットを2つめのfunction node(SendOtherResultsBackThrough)に、そしてSendOtherResultsBackTrhough のアウトプットをSplitFrirstResult のインプットにつなぎます。

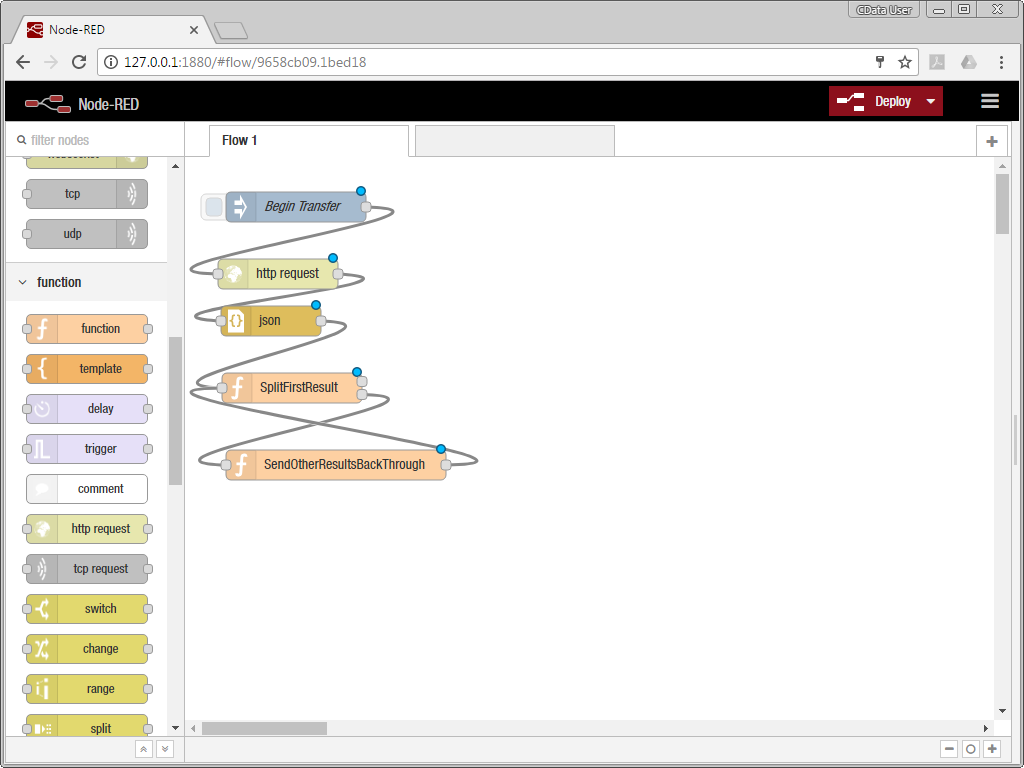

![Parsing the Results, One at a Time](apiserver-node-red-5.png)
QuickBooks Online で既存顧客をチェック
もう1つずつfunction node とhttp request node をワークスペースに追加します。 function node はSalesforce Account のデータをmsg.payload からmsg.salesforceResult に動かします。 次のJavaScript をコピーして、function に入力します:
msg.headers = {};
msg.salesforceResult=msg.payload;
return msg;
http request node はQuickBooks Online の既存のcustomers からSalesforce account と同じ名前を持っている顧客を探します。 node のURL をQuickBooks Online customers エンドポイントにします。 OData $filter を使って、既存の顧客を探します(escapedName フィルタのtriple-bracket に注意)。 同様にユーザー名とパスワードで認証を通します。
QuickBooks Online Customers エンドポイントのフィルタ
http://localhost:8153/api.rsc/QBO_Customers/?$filter=(DisplayName eq '{{{escapedName}}}')
SplitFirstResutl function のはじめのアウトプットからあたらしいfunction (StoreSFResult)のインプットに線をつなぎ、StoreSFResult Create a wire from the first output of the SplitFirstResult function to the input your new function (StoreSFResult) and from the output of StoreSFResult のアウトプットから新しいhttp request node につなぎます。

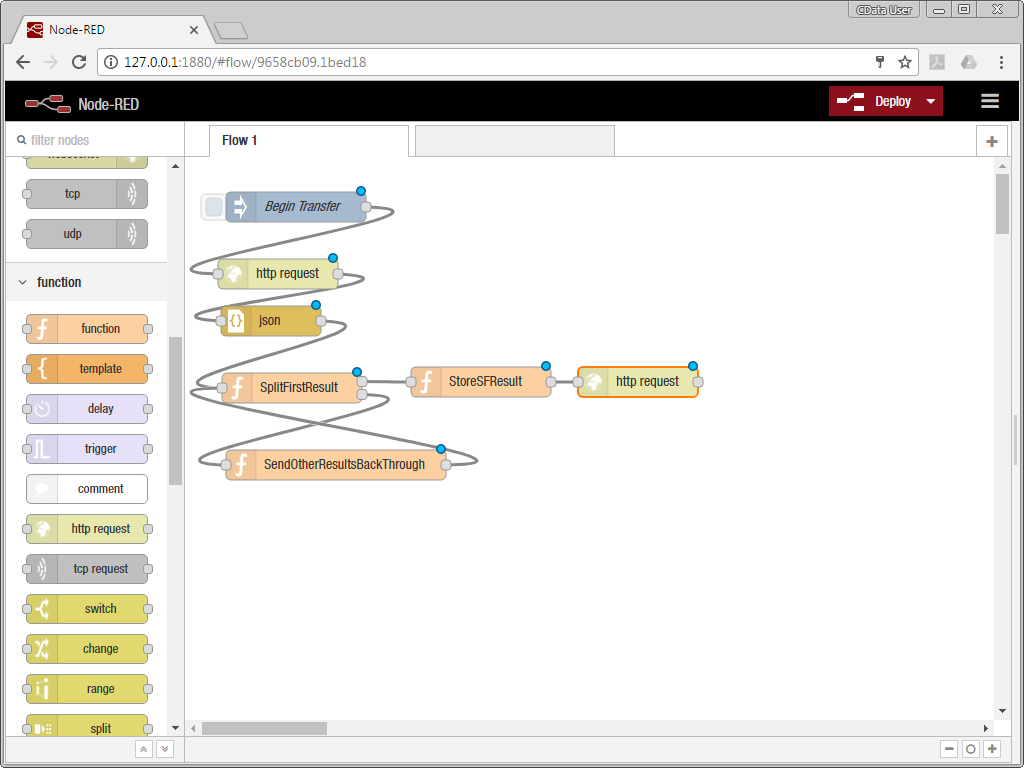

![Storing the Salesforce Account Data and Searching QuickBooks Online](apiserver-node-red-6.png)
レコードを追加するか更新するかの判断

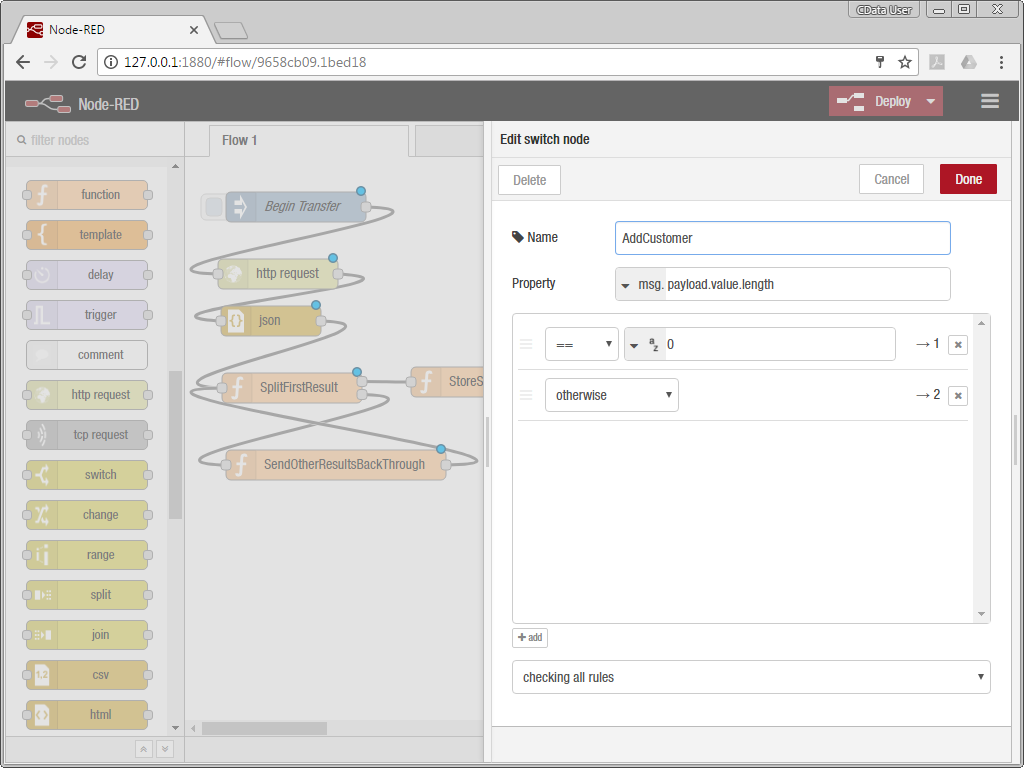

json node、switch node、2つのあたらししfunction node をワークスペースに追加します。 json node はAPI Servere からのレスポンスをパースして、switch がQuickBooks Online にすでに顧客が存在するかでフローを分岐させます。
![Configuring the switch Node to Determine Whether a QuickBooks Customer Exists or Not](apiserver-node-red-7.png)
あたらしいfunction node(AddSetup)では、次のHTTP リクエストの為にヘッダーを除き、追加を指示するフラグにtrue を設定します。 次のJavaScript をfunction に入力します:
if (msg.salesforceResult) {
msg.headers = {};
msg.add = true;
return msg;
}
return null;
次のfunction node(UpdateSetup)では、既存のヘッダーを外し、既存顧客のIF を保管し、追加を指示するフラグにfalse を設定します。 次のJavaScript をfunction に入力します:
if (msg.salesforceResult &&
(typeof msg.payload.value[0].Id == 'string')) {
msg.headers = {};
msg.customerId = msg.payload.value[0].Id ;
msg.add = false;
return msg;
}
return null;
http request node のアウトプットからjson node に線をつなぎます。json node のアウトプットからはAddCustomer swithch node のインプットに線をつなぎます。 output 1 とAddCustomer のoutput 2 からは、AddSetup およびUpdateSetup のインプットにそれぞれ線をつなぎます。

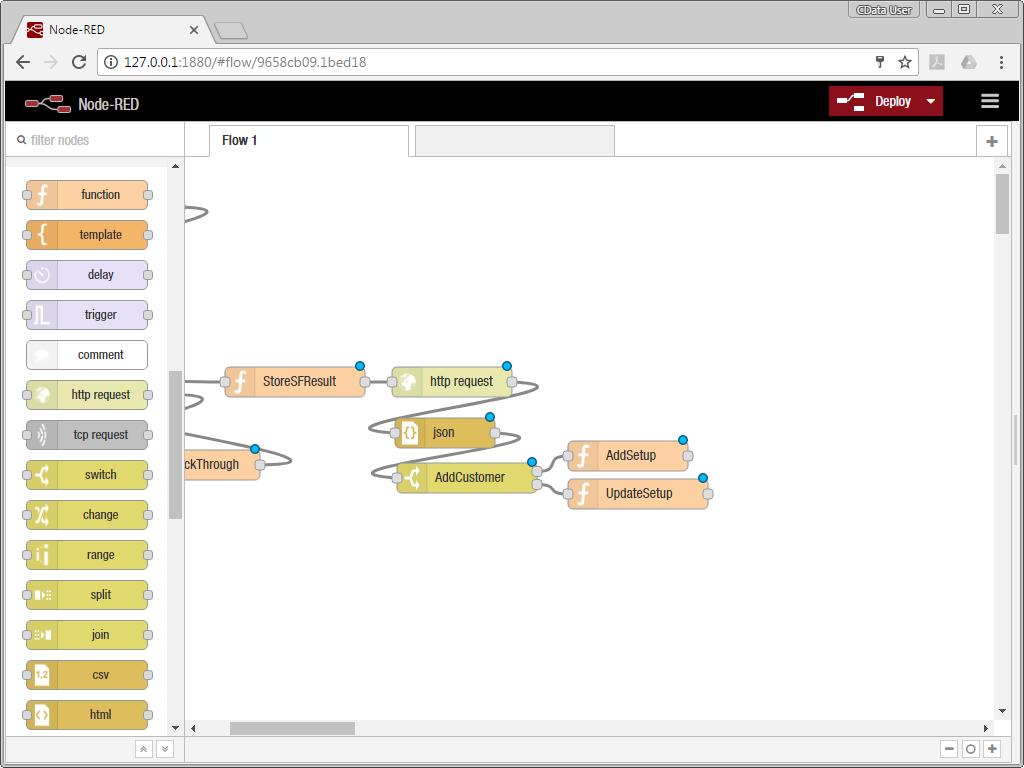

![The switch and function Nodes to Add or Update](apiserver-node-red-8.png)
Salesforce Account からQuickBooks Online Customer へのマッピング
function node をワークスペースに追加します。このfunction はSalesforce Account からQuickBooks Online のCustomer にデータをマッピングします。
顧客が新しい場合には、DisplayName が含まれ、そうでない場合には無視されます。
次のJavaScript をあたらしいfunction node(AccountToCustomer)にコピーして入力します:
var customer = {};
var account = msg.salesforceResult;
if (account.Name && (msg.add))
customer.DisplayName = account.Name;
if (account.Active__c)
customer.Active = account.Active__c;
if (account.BillingCity)
customer.BillAddr_City = account.BillingCity;
if (account.BillingCountry)
customer.BillAddr_Country = account.BillingCountry;
if (account.BillingState)
customer.BillAddr_CountrySubDivisionCode = account.BillingState;
if (account.BillingLatitude)
customer.BillAddr_Lat = account.BillingLatitude;
if (account.BillingStreet)
customer.BillAddr_Line1 = account.BillingStreet;
if (account.BillingLongitude)
customer.BillAddr_Long = account.BillingLongitude;
if (account.BillingPostalCode)
customer.BillAddr_PostalCode = account.BillingPostalCode;
if (account.CurrencyIsoCode)
customer.CurrencyRef = account.CurrencyIsoCode;
if (account.fax)
customer.Fax_FreeFormNumber = account.fax;
if (account.Phone)
customer.PrimaryPhone_FreeFormNumber = account.Phone;
if (account.ShippingCity)
customer.ShipAddr_City = account.ShippingCity;
if (account.ShippingCountry)
customer.ShipAddr_Country = account.ShippingCountry;
if (account.ShippingState)
customer.ShipAddr_CountrySubDivisionCode = account.ShippingState;
if (account.ShippingLatitude)
customer.ShipAddr_Lat = account.ShippingLatitude;
if (account.ShippingStreet)
customer.ShipAddr_Line1 = account.ShippingStreet;
if (account.ShippingLongitude)
customer.ShipAddr_Long = account.ShippingLongitude;
if (account.ShippingPostalCode)
customer.ShipAddr_PostalCode = account.ShippingPostalCode;
if (account.Website)
customer.WebAddr_URI = account.Website;
msg.payload = customer;
return msg;
AddSetup のアウトプットおよびUpdateSetup のアウトプットからAccountToCustomer のインプットに線をつなぎます:

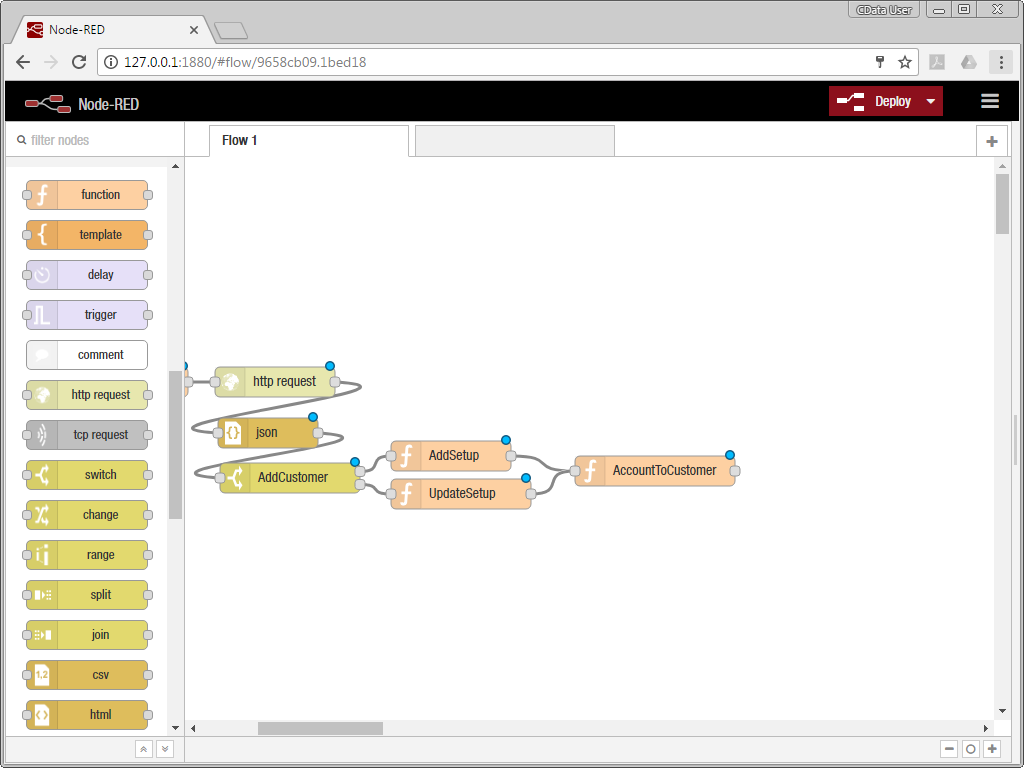

![The function Node for Mapping an Account to a Customer](apiserver-node-red-9.png)
新しい顧客の作成と既存顧客の更新
あたらしいswitch node とhttp request node を2つワークスペースに追加します。 switch node は、フローがAPI Server にHTTP リクエストを送ってQuickBooks Online customr に新しい顧客を追加するか、HTTP リクエストで既存顧客を更新するかを指定します。
追加か更新かを決定するには、switch node をmsg.add をベースに設定します:

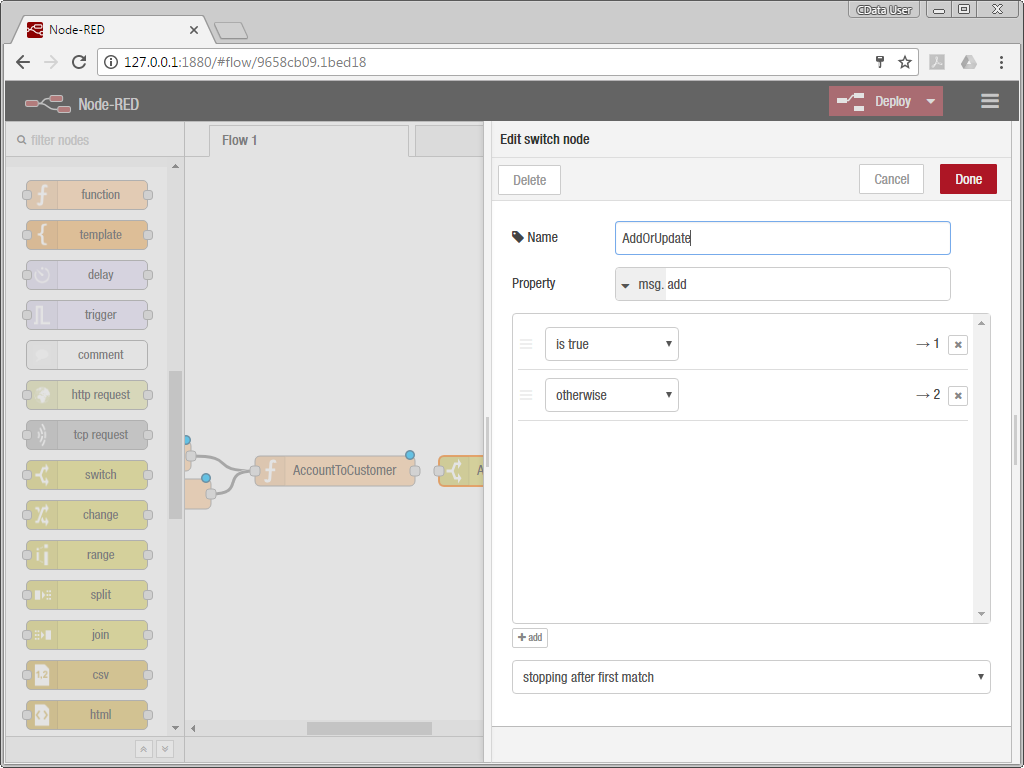

![Configuring the switch Node to Add or Update](apiserver-node-red-10.png)
はじめのhttp request node はQuickBooks Online への顧客追加を行います。 API Server のQuickBooks Online Customer エンドポイントにHTTP POST リクエストをmsg.payload をリクエストボディにして投げます。 The first http request node adds a new customer to QuickBooks Online.

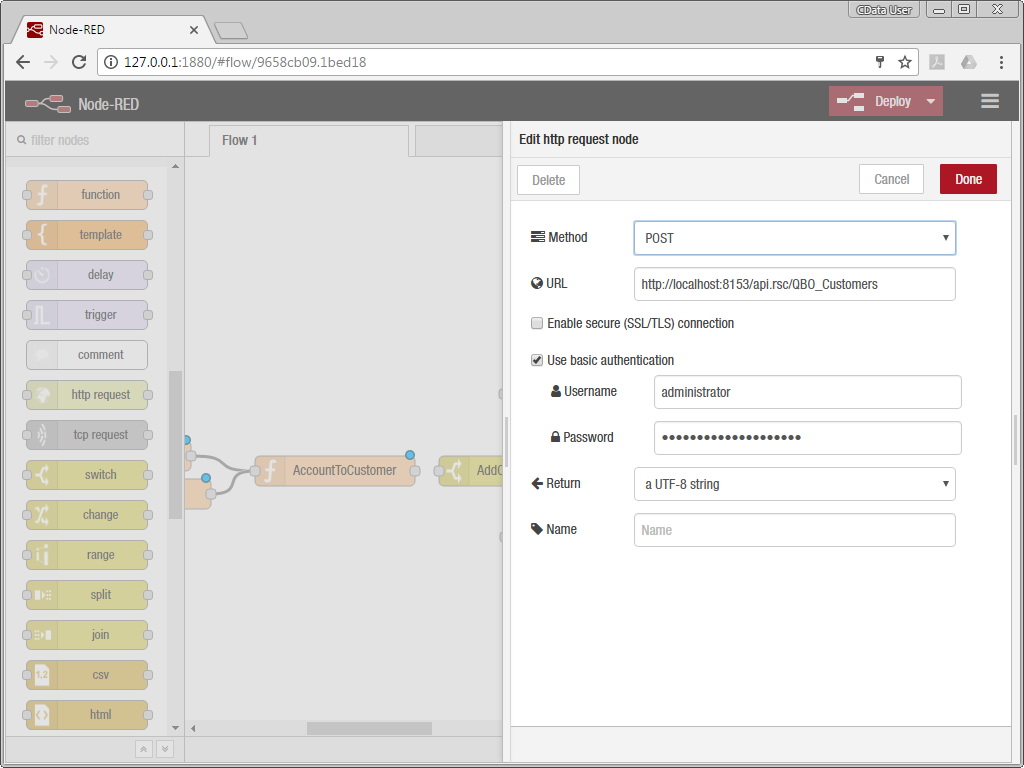

![Configure the http request Node to Add a Customer](apiserver-node-red-11.png)

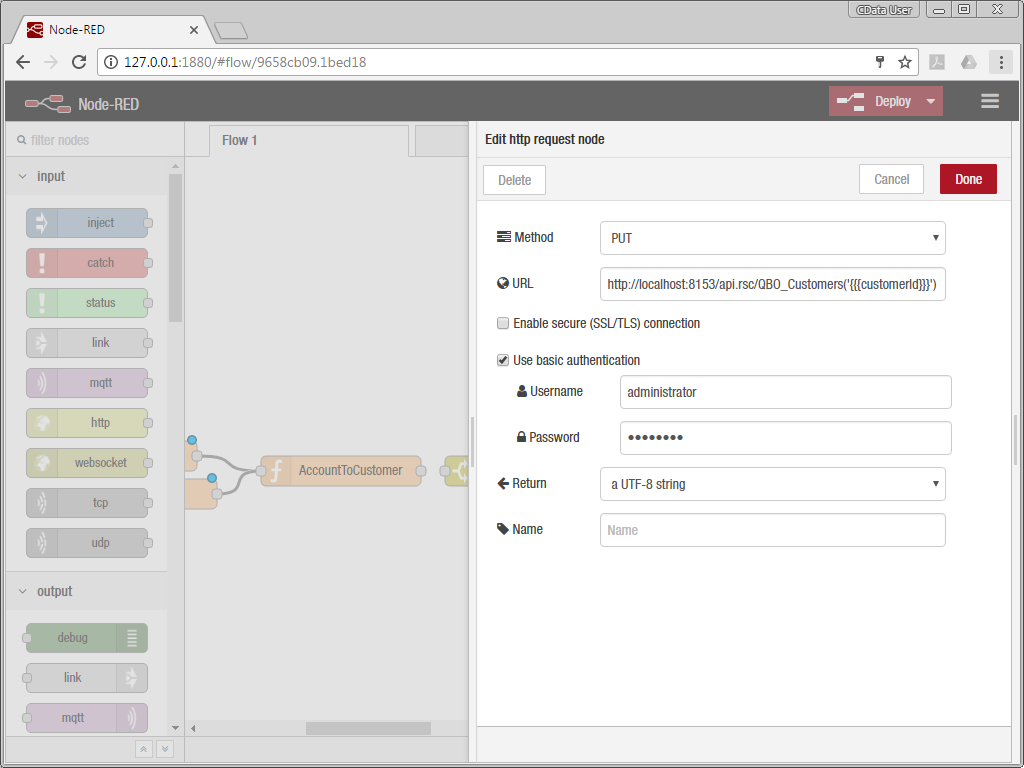

API Server のQuickBooks Online customer の更新には、エンドポイントにHTTP PUT リクエストをmsg.payload をリクエストボディにして投げます。
![Configure the http request Node to Update a Customer](apiserver-node-red-12.png)
AccountToCustomer のアウトプットとADdOrUpdate のインプット、AddOrUpdate とhttp request node の追加の分、2つ目のAddOrUpdate とhttp request node の更新分とをつなぎます。 これでフローが完成しました。
![The Completed Flow](apiserver-node-red-13.png)
CData API Server が扱える他のデータソースを使ったフローを少しのカスタマイズで作ることができます。
詳細情報と無償試用版
Knowledge Base API Server 概要ではAPI Server の詳しい情報が参照可能です。また、 API Server サイトで30日の無償トライアルをダウンロード可能です。是非、お試しください。
