How to connect and process Greenplum Data from Azure Databricks



Use CData, Azure, and Databricks to perform data engineering and data science on live Greenplum Data

Databricks is a cloud-based service that provides data processing capabilities through Apache Spark. When paired with the CData JDBC Driver, customers can use Databricks to perform data engineering and data science on live Greenplum data. This article walks through hosting the CData JDBC Driver in Azure, as well as connecting to and processing live Greenplum data in Databricks.

With built-in optimized data processing, the CData JDBC Driver offers unmatched performance for interacting with live Greenplum data. When you issue complex SQL queries to Greenplum, the driver pushes supported SQL operations, like filters and aggregations, directly to Greenplum and utilizes the embedded SQL engine to process unsupported operations client-side (often SQL functions and JOIN operations). Its built-in dynamic metadata querying allows you to work with and analyze Greenplum data using native data types.

Install the CData JDBC Driver in Azure

To work with live Greenplum data in Databricks, install the driver on your Azure cluster.

  1. Navigate to your Databricks administration screen and select the target cluster.

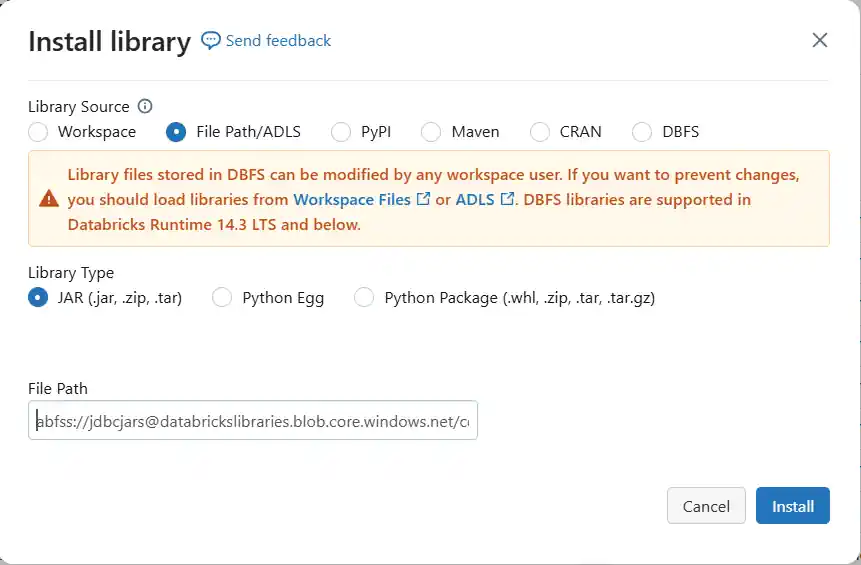

  2. On the Libraries tab, click "Install New."
  3. Select "Upload" as the Library Source and "Jar" as the Library Type.
  4. Upload the JDBC JAR file (cdata.jdbc.greenplum.jar) from the installation location (typically C:\Program Files\CData[product_name]\lib).

Connect to Greenplum from Databricks

With the JAR file installed, we are ready to work with live Greenplum data in Databricks. Start by creating a new notebook in your workspace. Name the notebook, select Python as the language (though Scala is available as well), and choose the cluster where you installed the JDBC driver. When the notebook launches, we can configure the connection, query Greenplum, and create a basic report.

Configure the Connection to Greenplum

Connect to Greenplum by referencing the class for the JDBC Driver and constructing a connection string to use in the JDBC URL. Additionally, you will need to set the RTK property in the JDBC URL (unless you are using a Beta driver). You can view the licensing file included in the installation for information on how to set this property.

driver = "cdata.jdbc.greenplum.GreenplumDriver"
url = "jdbc:greenplum:RTK=5246...;User=user;Password=admin;Database=dbname;Server=127.0.0.1;Port=5432;"

Built-in Connection String Designer

For assistance in constructing the JDBC URL, use the connection string designer built into the Greenplum JDBC Driver. Either double-click the JAR file or execute the jar file from the command-line.

java -jar cdata.jdbc.greenplum.jar

Fill in the connection properties and copy the connection string to the clipboard.

To connect to Greenplum, set the Server, Port (the default port is 5432), and Database connection properties and set the User and Password you wish to use to authenticate to the server. If the Database property is not specified, the default database for the authenticate user is used.

Load Greenplum Data

Once the connection is configured, you can load Greenplum data as a dataframe using the CData JDBC Driver and the connection information.

remote_table = spark.read.format ( "jdbc" ) \
	.option ( "driver" , driver) \
	.option ( "url" , url) \
	.option ( "dbtable" , "Orders") \
	.load ()

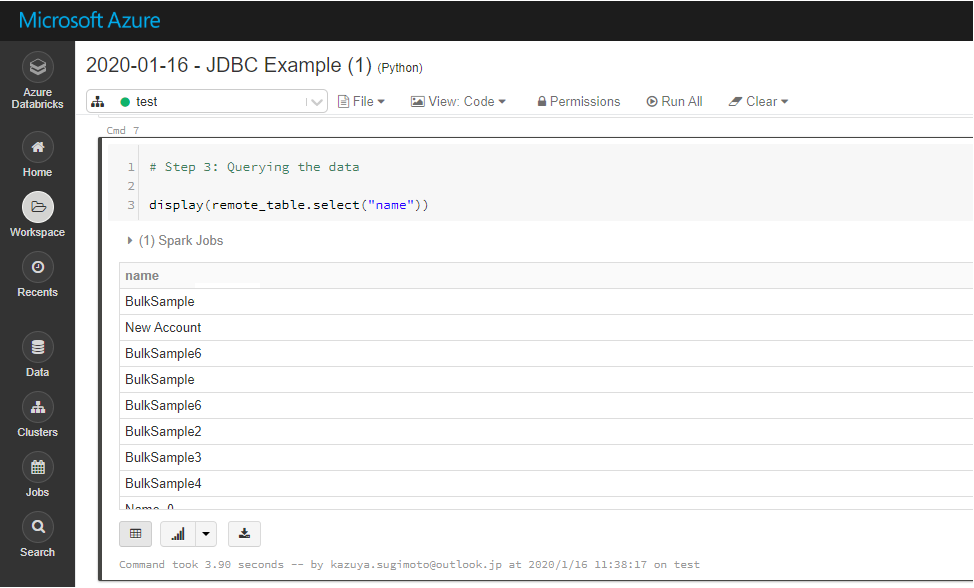

Display Greenplum Data

Check the loaded Greenplum data by calling the display function.

display (remote_table.select ("Freight"))

Analyze Greenplum Data in Azure Databricks

If you want to process data with Databricks SparkSQL, register the loaded data as a Temp View.

remote_table.createOrReplaceTempView ( "SAMPLE_VIEW" )

The SparkSQL below retrieves the Greenplum data for analysis.

% sql

SELECT Freight, ShipName FROM Orders WHERE ShipCountry = USA

The data from Greenplum is only available in the target notebook. If you want to use it with other users, save it as a table.

remote_table.write.format ( "parquet" ) .saveAsTable ( "SAMPLE_TABLE" )

Download a free, 30-day trial of the CData JDBC Driver for Greenplum and start working with your live Greenplum data in Azure Databricks. Reach out to our Support Team if you have any questions.
