Validate Microsoft Planner Data with QuerySurge

QuerySurge is a smart data testing solution that automates data validation and testing. When paired with the CData JDBC Driver for Microsoft Planner, QuerySurge can work with live Microsoft Planner data. This article walks through connecting to Microsoft Planner data from QuerySurge.

With built-in optimized data processing, the CData JDBC Driver offers unmatched performance for interacting with live Microsoft Planner data. When you issue complex SQL queries to Microsoft Planner, the driver pushes supported SQL operations, like filters and aggregations, directly to Microsoft Planner and utilizes the embedded SQL engine to process unsupported operations client-side (often SQL functions and JOIN operations). Its built-in dynamic metadata querying allows you to work with and analyze Microsoft Planner data using native data types.

Connecting to Microsoft Planner Data in QuerySurge

To connect to live Microsoft Planner data from QuerySurge, you need to deploy the JDBC Driver JAR file to your QuerySurge Agent(s) and add a new connection from the QuerySurge Admin view.

Deploy the JDBC Driver

1. Download the CData JDBC Driver for Microsoft Planner installer, unzip the package, and run the JAR file to install the driver.
2. Once the driver is installed, stop the Agent Service.
3. Copy the JAR File (and license file if it exists) from the installation location (typically C:\Program Files\CData\CData JDBC Driver for Microsoft Planner\lib\) to your Agent(s) (QuerySurge_install_dir\agent\jdbc).
4. Restart the Agent Service.

For more information on deploying JDBC drivers for QuerySurge, refer to the QuerySurge Knowledge Base.

Configure a New Connection to Microsoft Planner

1. Log into QuerySurge and navigate to the Admin view.
2. Click Configuration -> Connections in the Administration Tree.
3. Click Add to create a new connection.

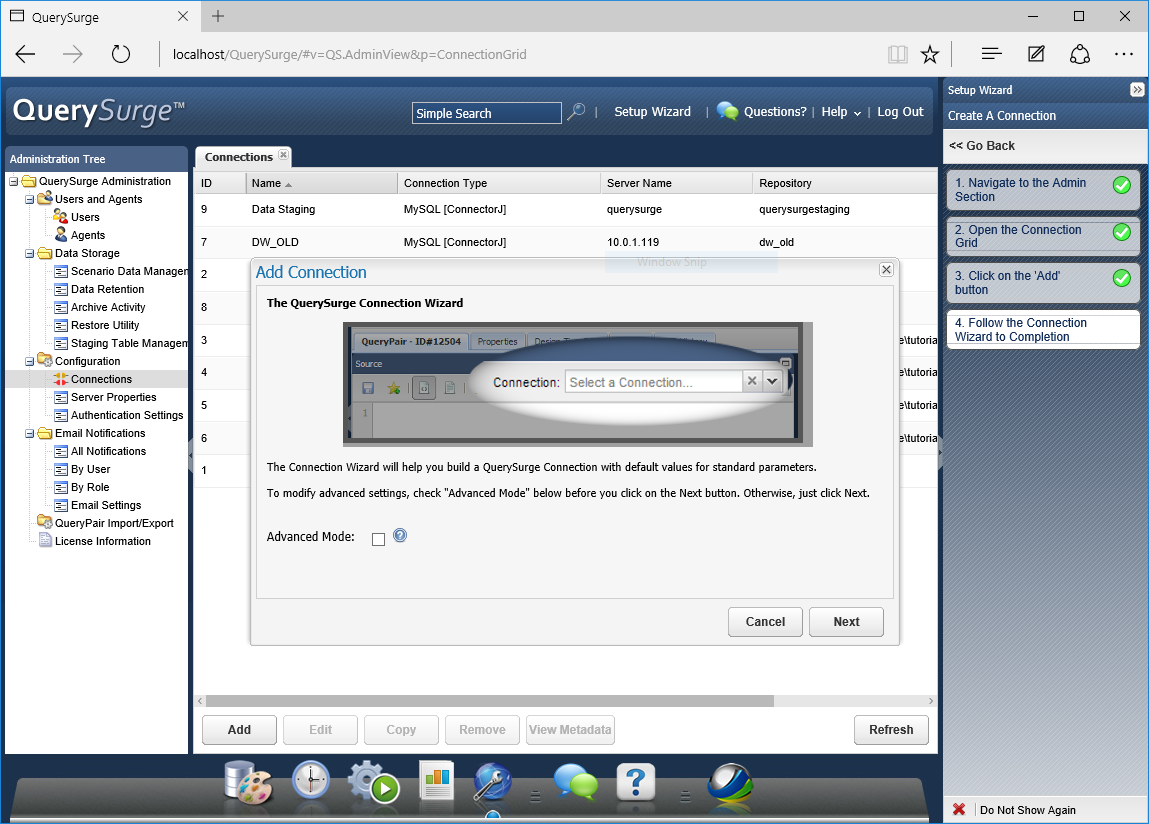

4. In the QuerySurge Connection Wizard, click Next.
5. Name the connection (e.g. CData JDBC Connection to Microsoft Planner).

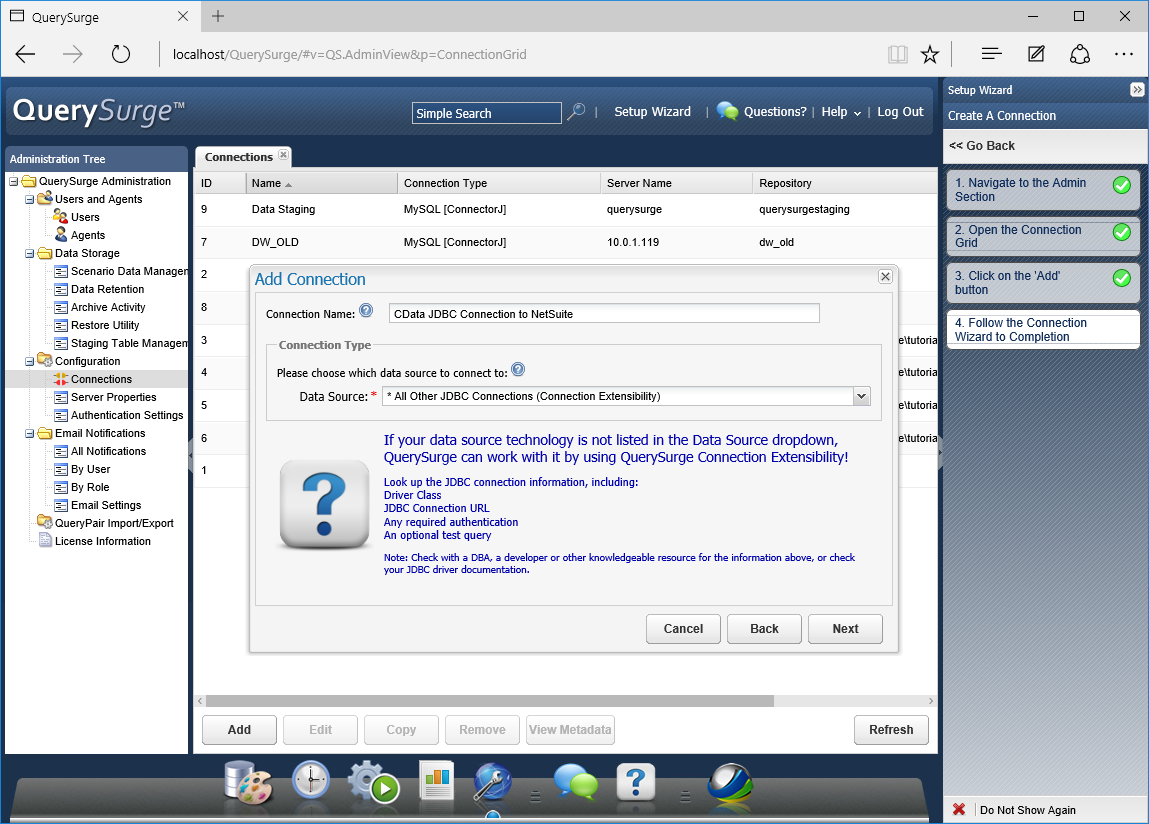

6. Set the Data Source to "All Other JDBC Connections (Connection Extensibility)" and click Next.

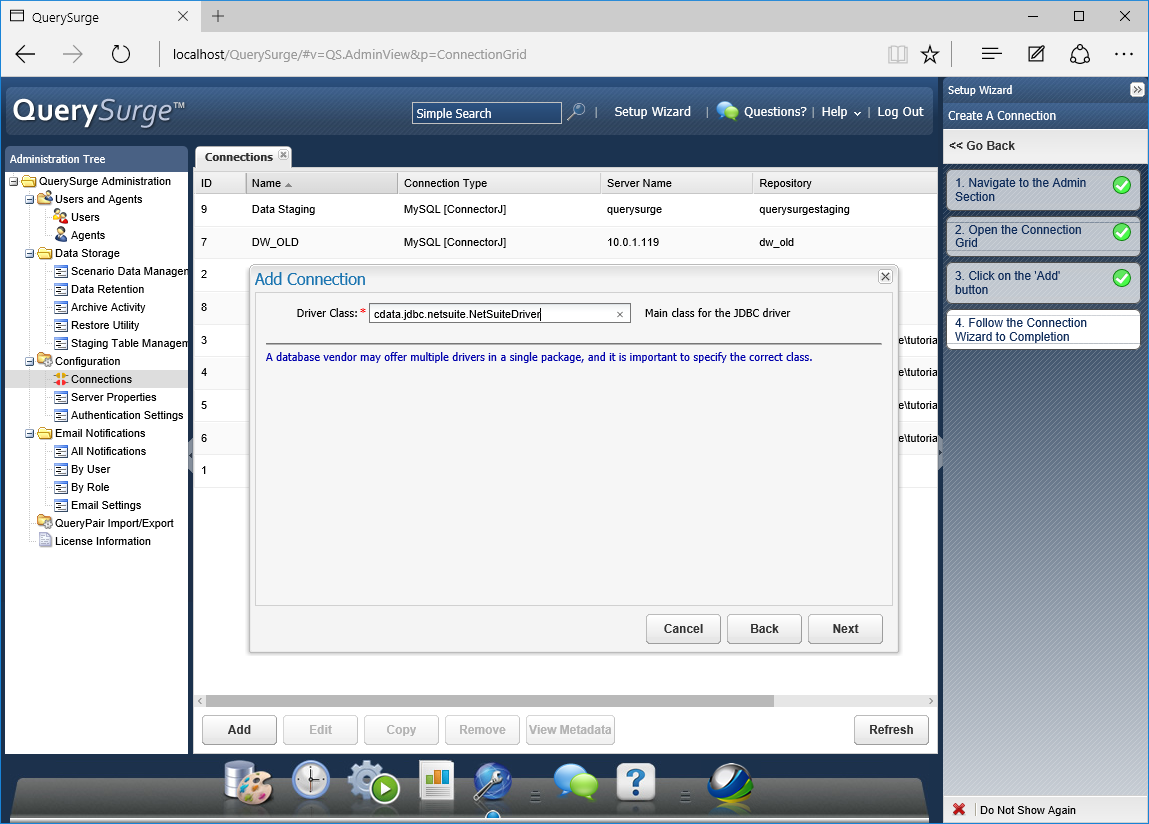

7. Set the Driver Class to cdata.jdbc.microsoftplanner.MicrosoftPlannerDriver and click Next.

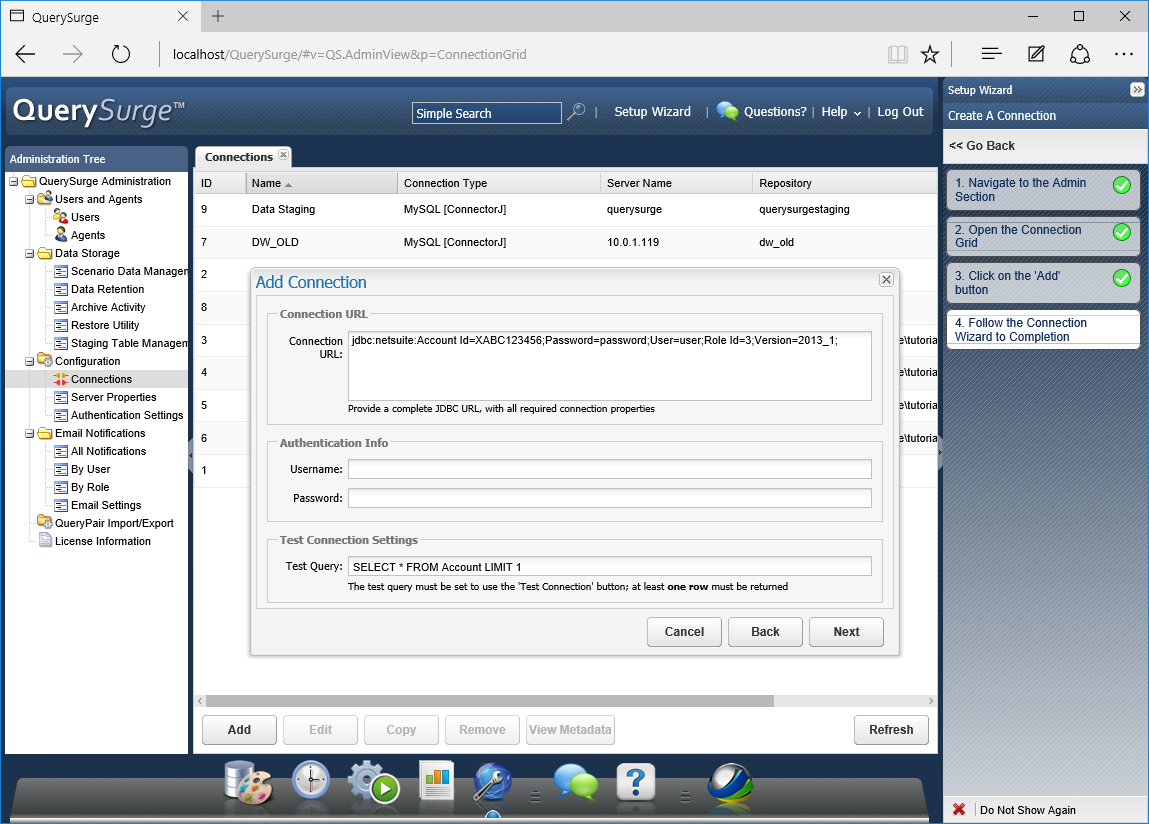

8. Set the Connection URL using the necessary connection properties to authenticate with Microsoft Planner. Your Connection URL will look something like the following:

   jdbc:microsoftplanner:OAuthClientId=MyApplicationId;OAuthClientSecret=MySecretKey;CallbackURL=http://localhost:33333;InitiateOAuth=GETANDREFRESH

   Built-in Connection String Designer

   For assistance in constructing the JDBC URL, use the connection string designer built into the Microsoft Planner JDBC Driver. Either double-click the JAR file or execute the jar file from the command-line.

   java -jar cdata.jdbc.microsoftplanner.jar

   Fill in the connection properties and copy the connection string to the clipboard.

   You can connect without setting any connection properties for your user credentials. Below are the minimum connection properties required to connect.

   • InitiateOAuth: Set this to GETANDREFRESH. You can use InitiateOAuth to avoid repeating the OAuth exchange and manually setting the OAuthAccessToken.
   • Tenant (optional): Set this if you wish to authenticate to a different tenant than your default. This is required to work with an organization not on your default Tenant.

   When you connect the Driver opens the MS Planner OAuth endpoint in your default browser. Log in and grant permissions to the Driver. The Driver then completes the OAuth process.

   1. Extracts the access token from the callback URL and authenticates requests.
   2. Obtains a new access token when the old one expires.
   3. Saves OAuth values in OAuthSettingsLocation to be persisted across connections.
9. Set the Test Query to enable the Test Connection button for the Connection (e.g. SELECT * FROM Tasks LIMIT 1) and click Next.
10. Click Test Connection to ensure the connection is configured properly and click Save to add the connection.

Once the connection is added, you can write SQL queries against your Microsoft Planner data in QuerySurge.

Compare Microsoft Planner Data Queries with a QueryPair

With the connection configured, you can follow the steps below to compare querying Microsoft Planner data with a QueryPair.

1. Select "Design Library" from the Design Menu
2. Click QueryPairs under QuerySurge Design
3. Click "Create New QueryPair"
4. Name the QueryPair and click Save

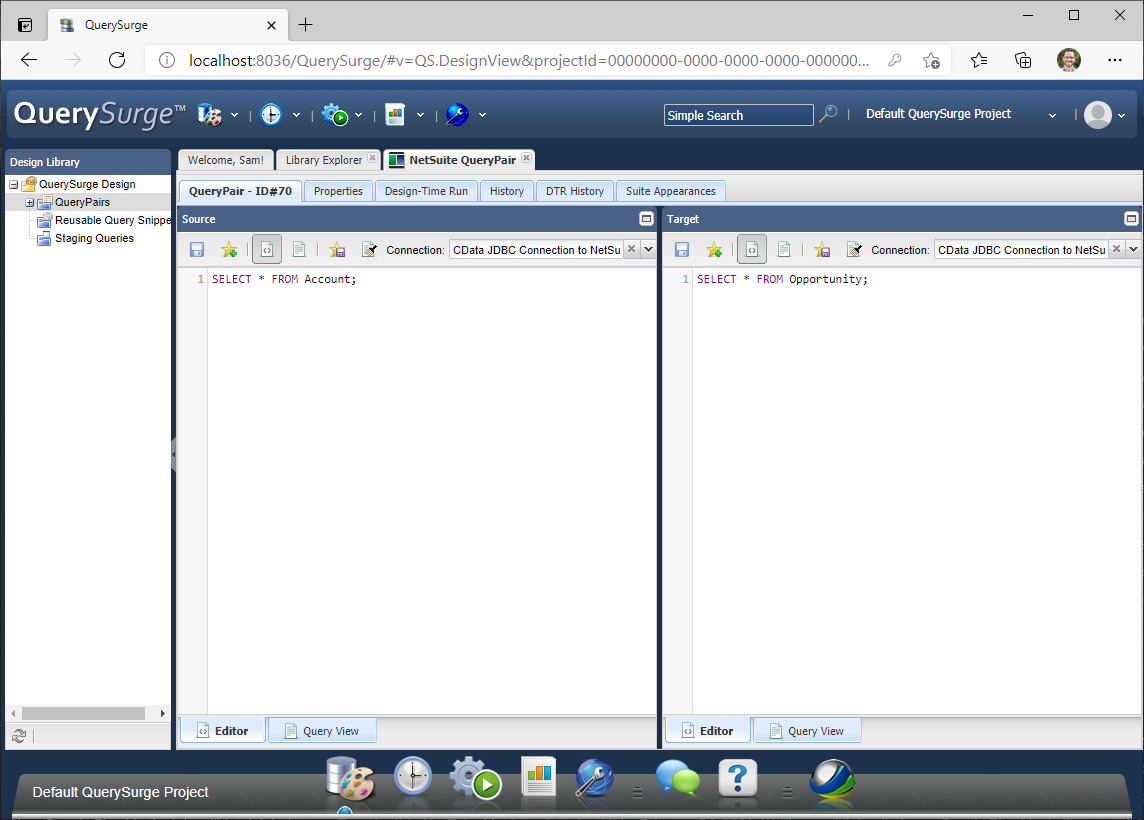

5. In either the Source or Target panes, select the connection created above (select the same connection to query Microsoft Planner twice or another connection to perform a comparison)
6. Write queries in the Editor for each pane, e.g. SELECT * FROM Tasks
7. Click the "Design-Time Run" tab to execute the queries
8. When the query execution is finished, click "View Query Results" to see the Microsoft Planner data returned by the query

Download a free, 30-day trial of the CData JDBC Driver for Microsoft Planner and start working with your live Microsoft Planner data in QuerySurge. Reach out to our Support Team if you have any questions.
