Using Transformations to JOIN Data After Replications (in SQL Server)

Data JOINS blog image

Data transformations are often the most complex and costly part of an ETL and ELT process. They can vary from simple data conversions to extremely complex data aggregating techniques. Enterprises often replicate data from multiple sources to data warehouses for data analysis and research. Transforming the replicated data is one way to create a more holistic view of the organization's data.

CData Sync not only offers a robust replication mechanism tailored to efficiently transfer data into your SQL Server environment from any of the 250+ supported SaaS, Big Data, and NoSQL sources but also enables you to transform the data on the go.

In this article, we describe how to use CData Sync to replicate multiple tables from a data source into SQL Server, then transform those datasets with the JOIN clause – a technique extensively employed across various industries to analyze data. We use Salesforce as a data source to extract the datasets, but the principles apply to any of our 250+ supported sources.

For a detailed guide on data transformation and a better understanding of this use case, check out our in-depth documentation.

1. Replicate tables from a data source to SQL Server

Always-on applications rely on automatic failover capabilities and real-time data access. CData Sync integrates live Salesforce data into your SQL Server instance, allowing you to consolidate all your data into a single location for archiving, reporting, analytics, machine learning, artificial intelligence and more.

Configure SQL Server as a Replication Destination

Using CData Sync, you can replicate Salesforce data to SQL Server. To add a replication destination, navigate to the Connections tab.

  1. Click on Add Connection
  2. Select the Destinations tab
  3. Search and select a database (SQL Server)
  4. Configure the connection properties

Search for the destination database
Fig 1: Search for the destination database

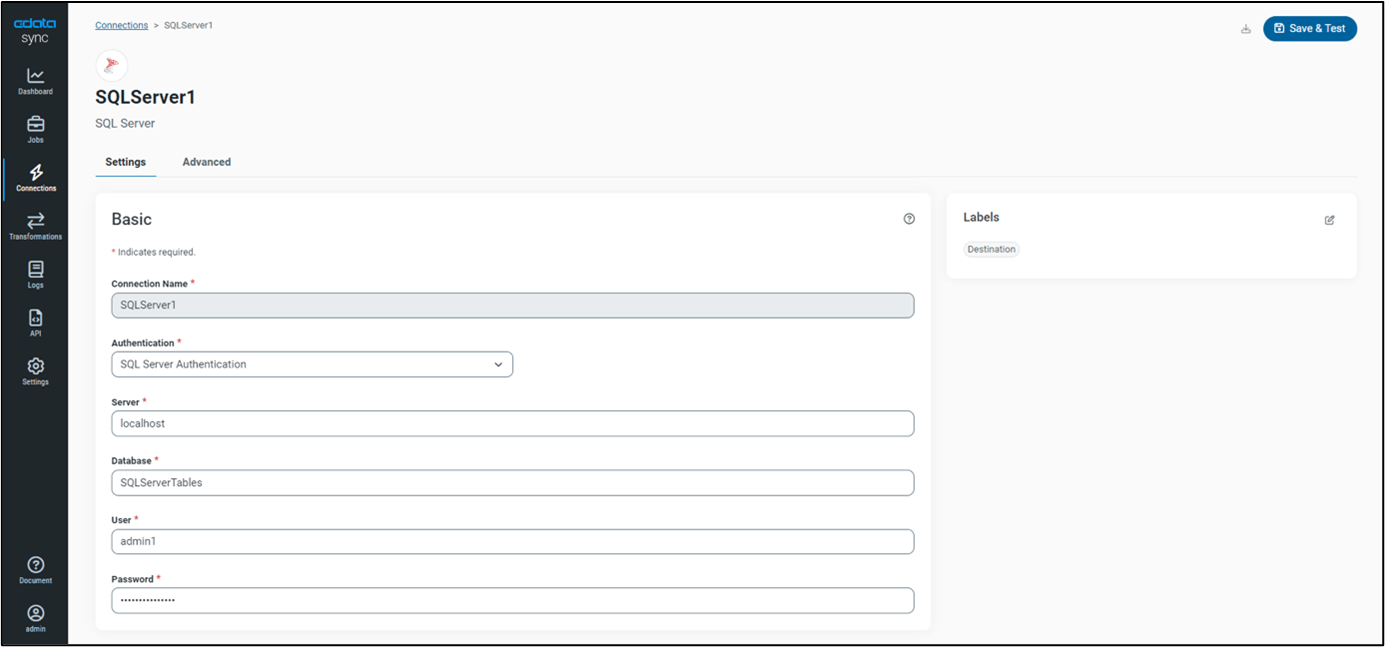

Configure the destination connection
Fig 2: Configure the destination connection

Configure the data source connection

You can configure a connection to Salesforce from the Connections tab. To add a connection to your Salesforce account, navigate to the Connections tab.

  1. Click on Add Connection
  2. Select the Sources tab
  3. Select a data source (Salesforce)
  4. Configure the connection properties

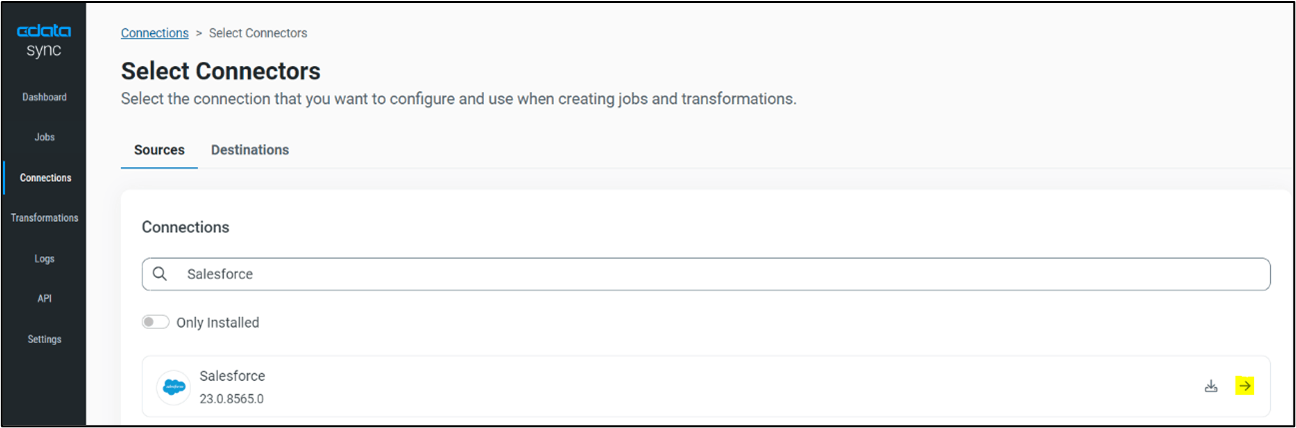

Search for the source database
Fig 3: Search for the source database

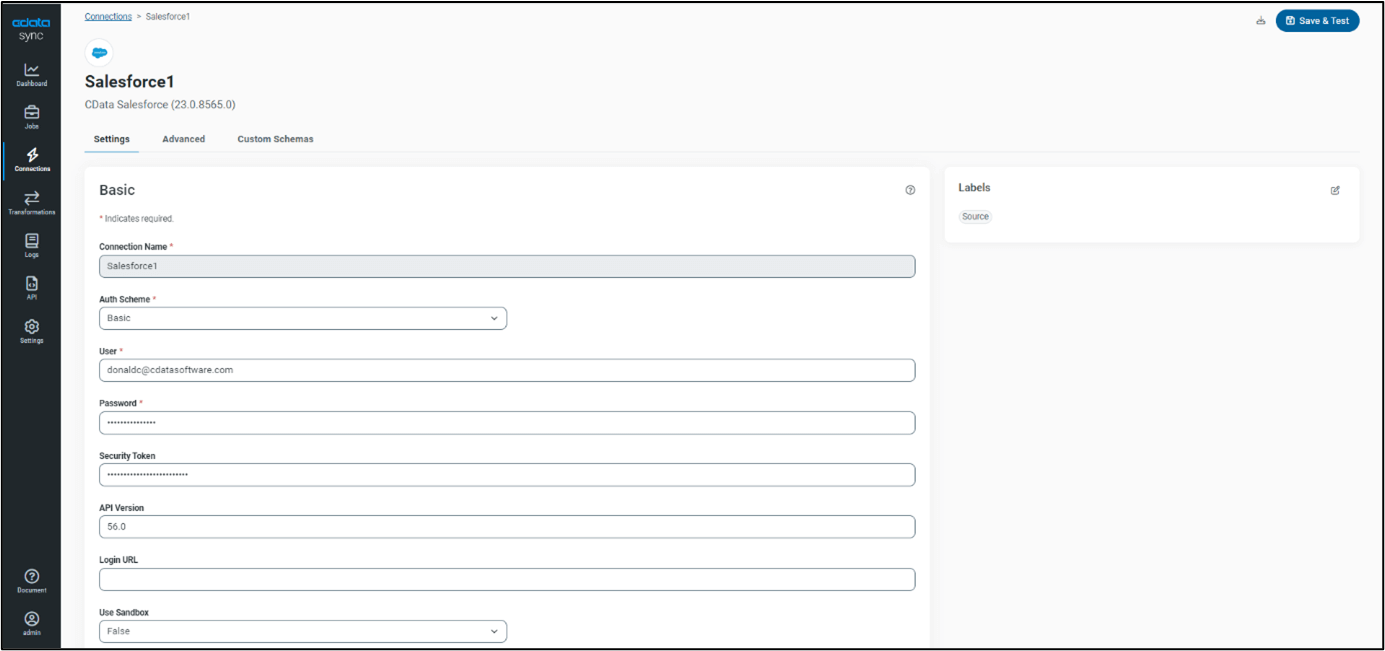

Configure the source connection
Fig 4: Configure the source connection

Configure replication tasks

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab, and click Add Job. Select the Source and Destination for your replication.

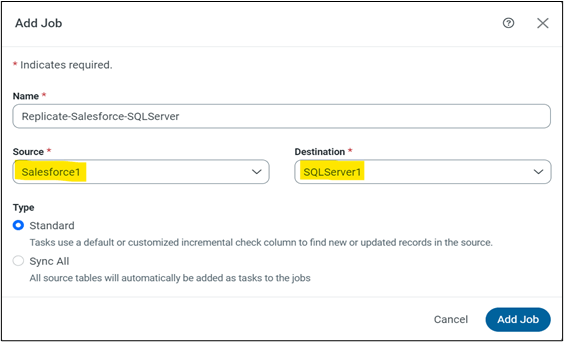

Add replication jobs
Fig 5: Add replication jobs

Replicate entire tables

To replicate an entire table, click Add Tasks in the Task section, choose the table(s) you wish to replicate, and click Add Tasks.

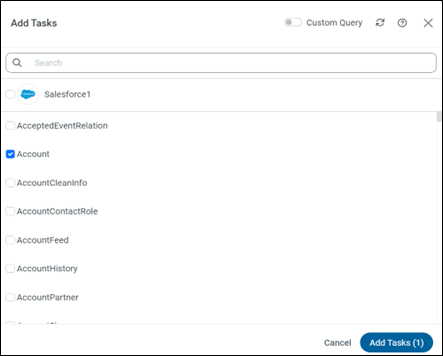

Add tasks (tables to replicate)
Fig 6: Add tasks (tables to replicate)

Customize your replication

You can use the Columns and Query tabs of a task to customize your replication. The Columns tab allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. The Query tab allows you to add filters, grouping, and sorting to the replication.

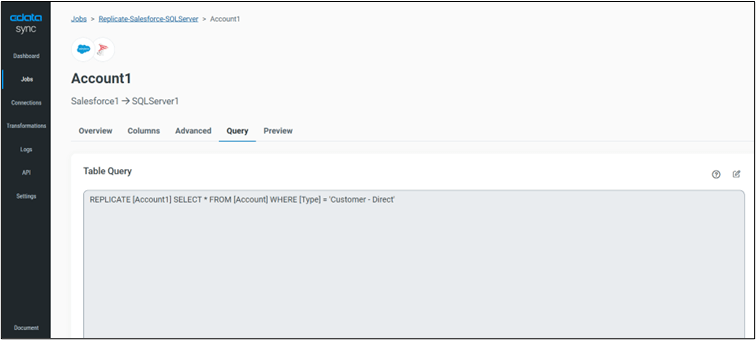

Add SQL query for the task
Fig 7: Add SQL query for the task

You can also utilize a newly introduced feature called 'Custom Query,' allowing you to make on-the-go customizations while adding a new task in CData Sync.

Add a custom SQL query for the task
Fig 8: Add a custom SQL query for the task

2. Transformation post-replication: Destination transformation

After you have replicated the required datasets from your data source, proceed to the Transformation tab and select Add Transformations to create a transformation job. In this section, we will delve into a couple of methods for utilizing the JOIN query, as it represents one of the most widely applied transformations across industries for generating daily reports, analyzing critical data and building new applications.

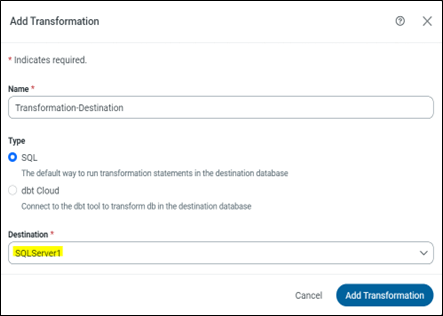

Add a transformation task
Fig 9: Add a transformation task

Add a SQL transformation query

This type of transformation processes external SQL scripts or SQL queries that you create in an SQL editor. You can use these queries to insert, delete, update, and retrieve rows from a database. The SQL transformation processes the queries, returning rows and database errors. After creating a transformation job, add custom queries in the Query.

For a detailed guide on Post-Job (ELT) Transformations using CData Sync, check out our Getting Started guide.


An INNER JOIN query in SQL is used to combine rows from two or more tables based on a related column between them. It returns only the rows where there is a match in both tables, effectively filtering out rows that do not have corresponding values in the specified columns.


DROP TABLE IF EXISTS Inner_Joined_Table;
SELECT [Account1].[Name],
INTO   Inner_Joined_Table
FROM   [Account1],
       INNER JOIN [Opportunity1]
               ON [Account1].[Id] = [Opportunity1]. [AccountId];

Result (SQL Server)

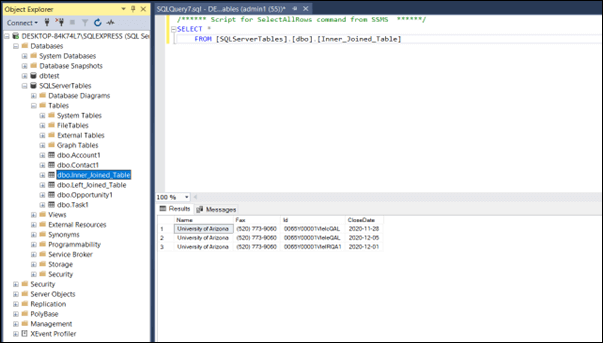

Inner join in SQL Server
Fig 10: Inner join in SQL Server


A LEFT JOIN (or LEFT OUTER JOIN) query in SQL is used to retrieve all records from the left table (table1) and the matched records from the right table (table2). If there is no match found in the right table, NULL values are returned for columns from the right table.


SELECT [Contact1].[FirstName],
INTO   Left_Joined_Table
FROM   [Account1]
       LEFT JOIN [Contact1]
              ON [Account1].[Id] = [Contact1].[AccountId];

Result (SQL SERVER):

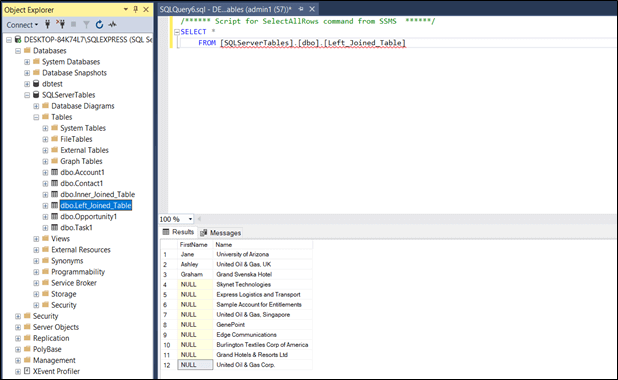

Left join in SQL Server
Fig 11: Left join in SQL Server

Business use cases

Some possible business use cases utilizing transformations post-replication jobs are:

  • A retail company can employ replication to transfer sales data from its point-of-sale systems to a central data warehouse. Subsequently, the company can utilize transformations to clean and normalize the data in the data warehouse.
  • A financial company has the option to utilize replication for duplicating customer account data from its core banking system to a data warehouse. Following this, the company can employ transformations to filter the data, including only customers with a specific balance or those who have been inactive for a certain period.
  • A healthcare provider has the capability to apply replication for duplicating patient data from its electronic health record system to a data warehouse. The company can then employ transformations to aggregate the data, enabling the creation of reports on disease prevalence or treatment effectiveness.
