Interact with Live Databricks Data in Warp via CData Connect AI

Warp is an agentic development environment that combines a modern terminal with an AI agent. It supports large language model (LLM) interactions and Model Context Protocol (MCP) server integrations, so the agent can reach live external data sources without leaving the terminal.

By integrating Warp with CData Connect AI through its built-in MCP Server, the Warp Agent gets governed, real-time access to live Databricks data. You can explore Databricks data, ask questions in plain language, and work with your records without writing custom integration code.

This article walks through configuring Databricks connectivity in Connect AI, configuring the CData MCP Server in Warp, and interacting with live Databricks data from the Warp Agent.

Getting Started

---

Step 1: Configure Databricks connectivity for Warp

Connectivity to Databricks from Warp is made possible through Connect AI's Remote MCP Server. To interact with Databricks data from Warp, start by creating and configuring a Databricks connection in Connect AI.

1. Log into Connect AI, click Sources, and then click Add Connection

2. Select Databricks from the Add Connection panel

3. Enter the necessary authentication properties to connect to Databricks.

   To connect to a Databricks cluster, set the properties as described below.

   Note: The needed values can be found in your Databricks instance by navigating to Clusters, and selecting the desired cluster, and selecting the JDBC/ODBC tab under Advanced Options.

   • Server: Set to the Server Hostname of your Databricks cluster.
   • HTTPPath: Set to the HTTP Path of your Databricks cluster.
   • Token: Set to your personal access token (this value can be obtained by navigating to the User Settings page of your Databricks instance and selecting the Access Tokens tab).

4. Click Save & Test
5. Navigate to the Permissions tab and update user-based permissions

Add a Personal Access Token

A Personal Access Token (PAT) is used to authenticate the connection to Connect AI from Warp. It is best practice to create a separate PAT for each integration to maintain granular access control.

1. Click the gear icon () at the top right of the Connect AI app to open Settings
2. On the Settings page, go to the Access Tokens section and click Create PAT
3. Give the PAT a descriptive name and click Create

4. Copy the token when displayed and store it securely. It will not be shown again

With the Databricks connection configured and a PAT generated, Warp can now connect to Databricks data through Connect AI.

Step 2: Configure Connect AI in Warp

Enable the Warp Agent, configure an LLM provider, and the Connect AI MCP endpoint in Warp so the agent can discover and call live data tools.

1. Download and install Warp, and then sign up or log in to your Warp account

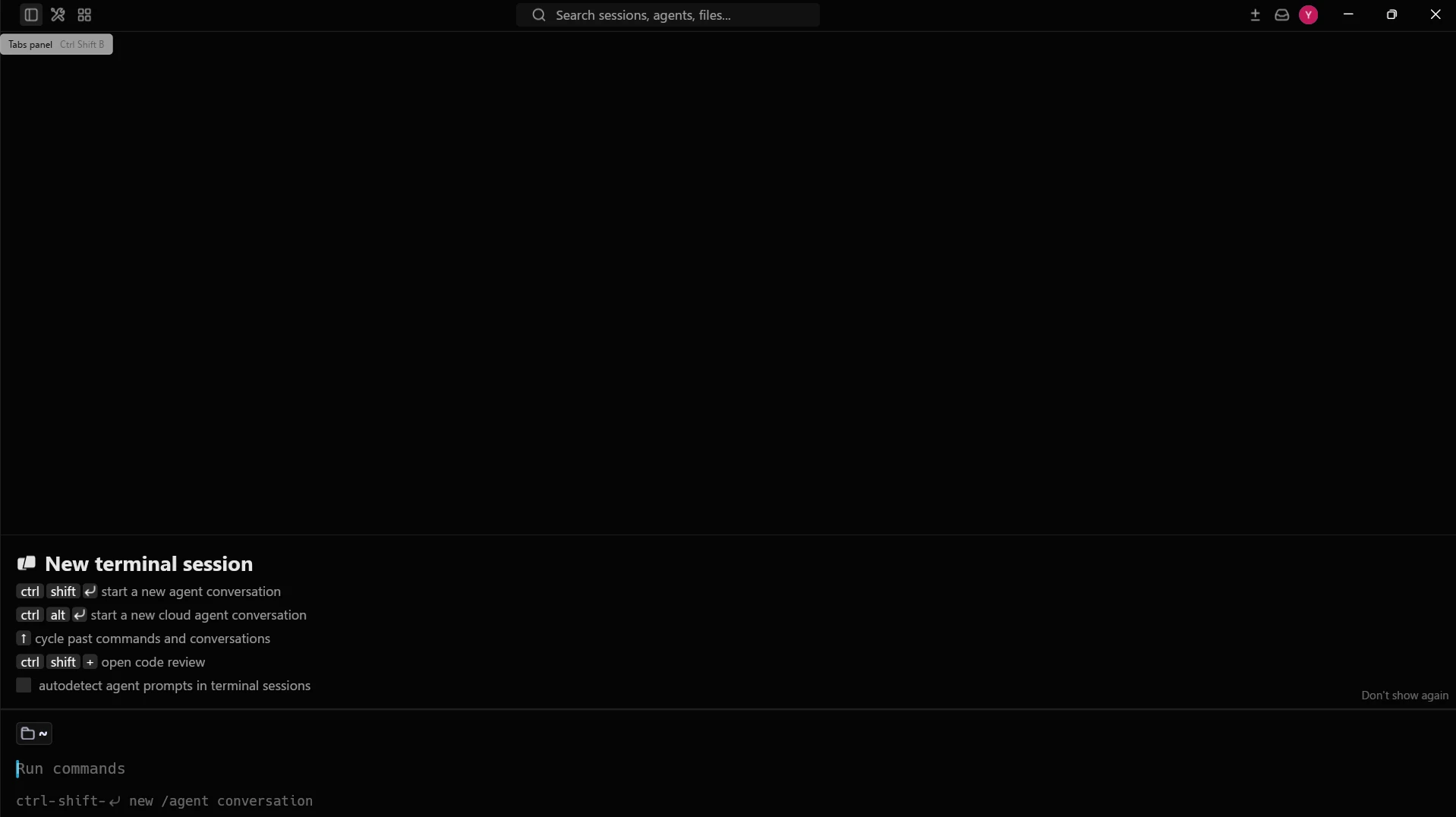

2. Click the Tabs panel icon at the top left of the window, or press Ctrl + Shift + B

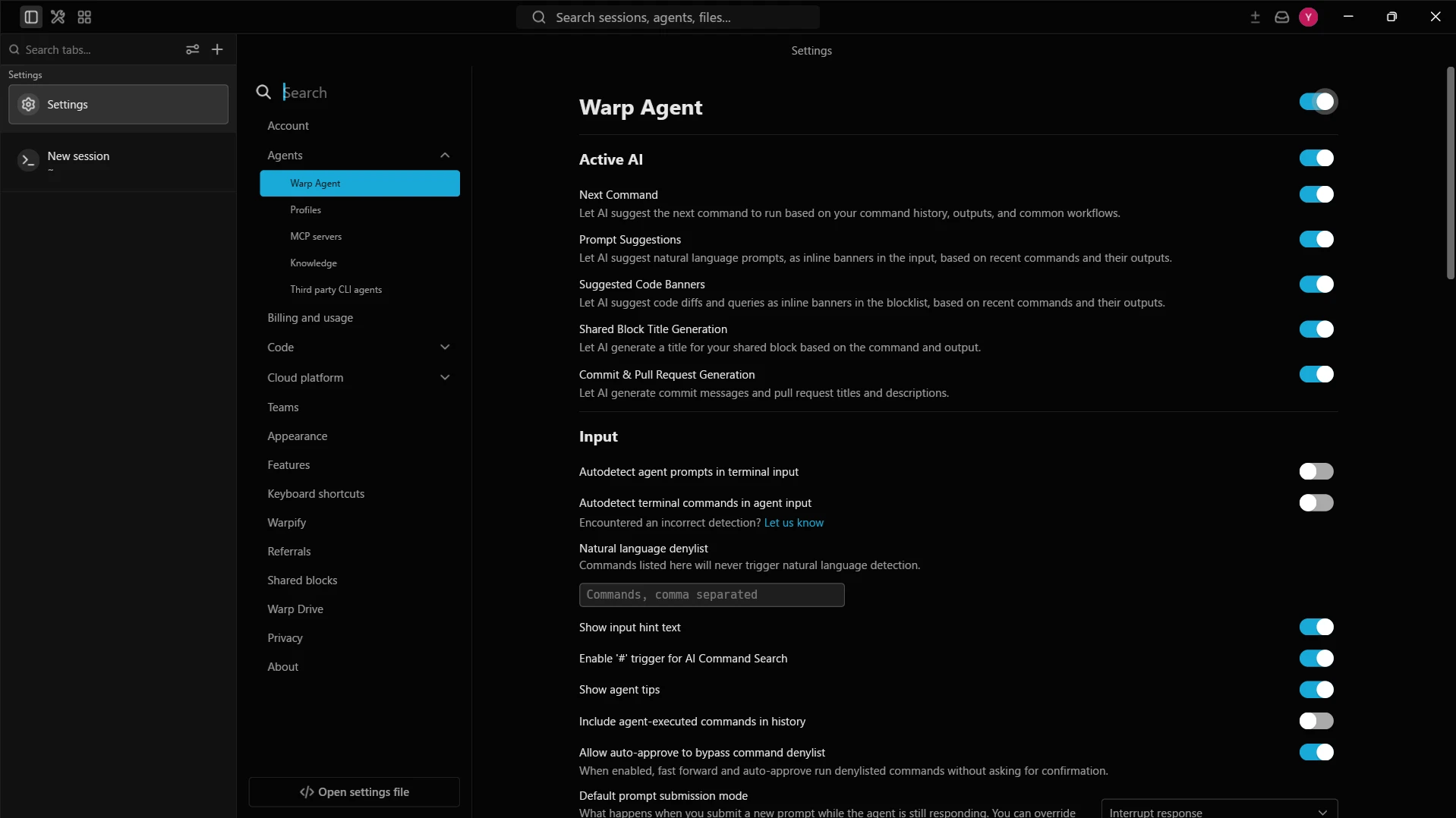

3. Click Settings, expand Agents, select Warp Agent, and toggle Warp Agent on

Configure an LLM provider

The Warp Agent needs an LLM provider to interpret your prompts and decide which MCP tools to call. Add an API key for your preferred provider.

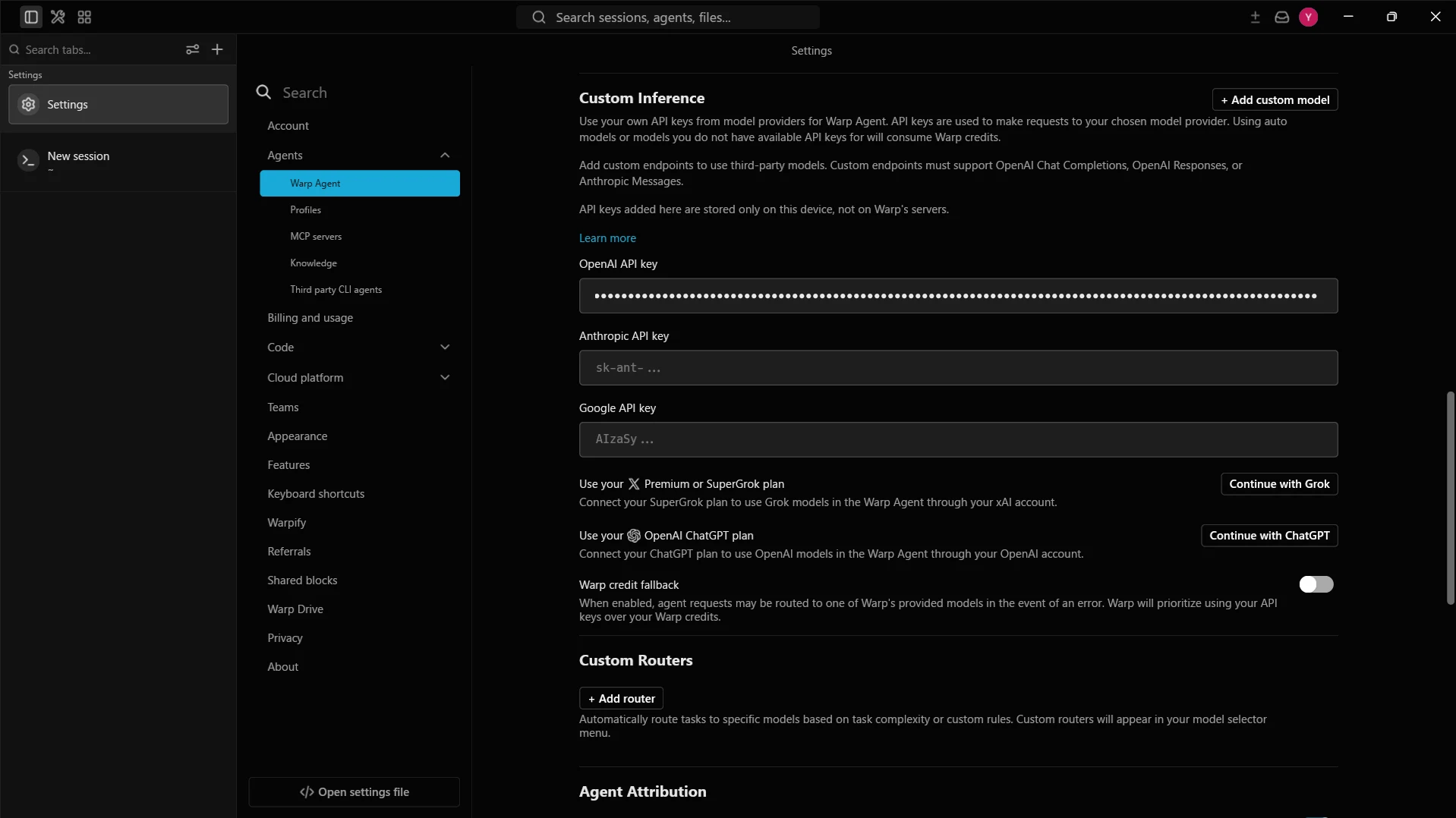

1. On the same Warp Agent page, scroll down to the Custom Inference section
2. Enter the API key for the LLM provider of your choice (e.g., OpenAI, Anthropic, or Google)

Add the Connect AI MCP Server

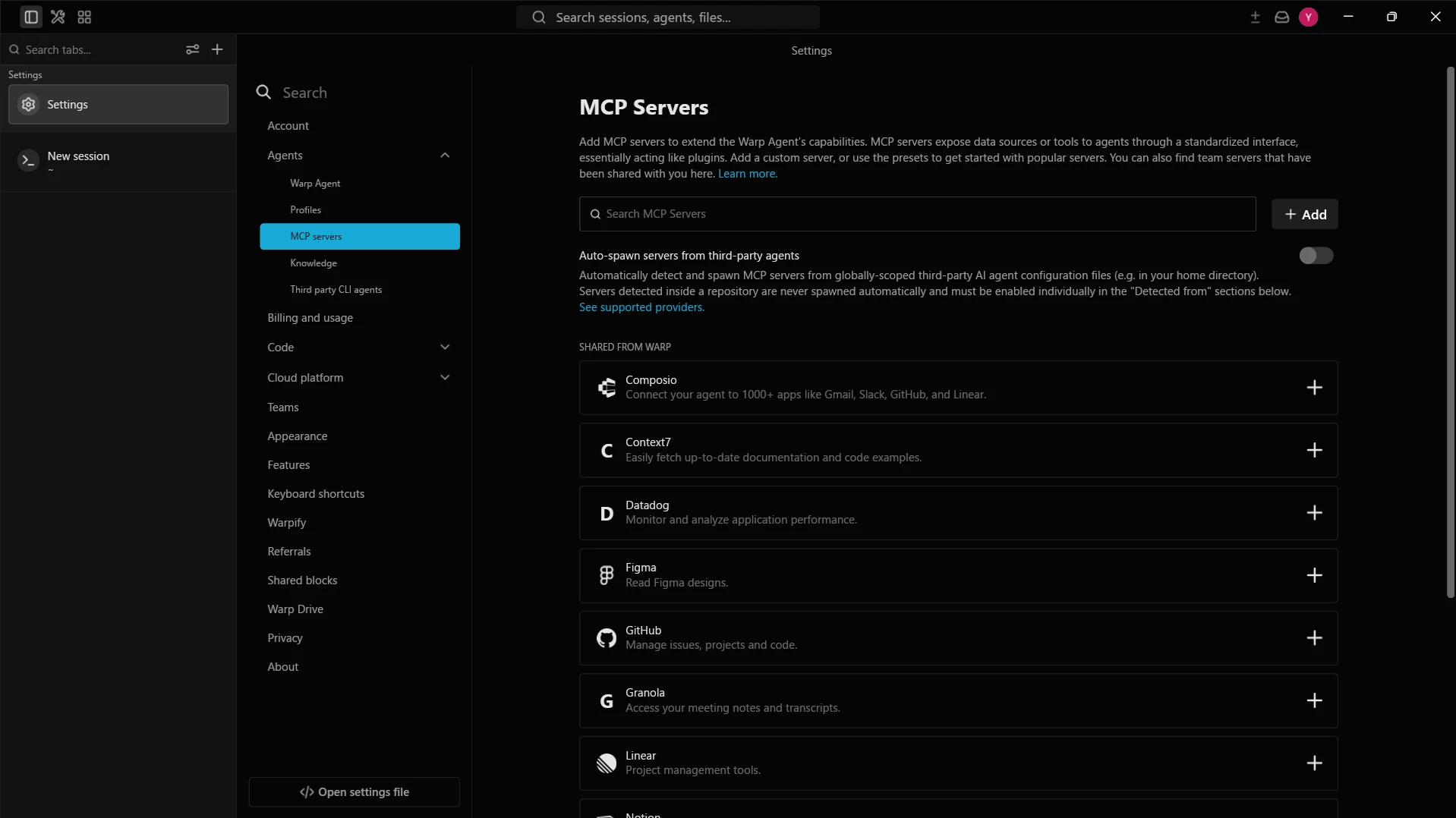

1. Under Agents, click MCP servers, and then click Add

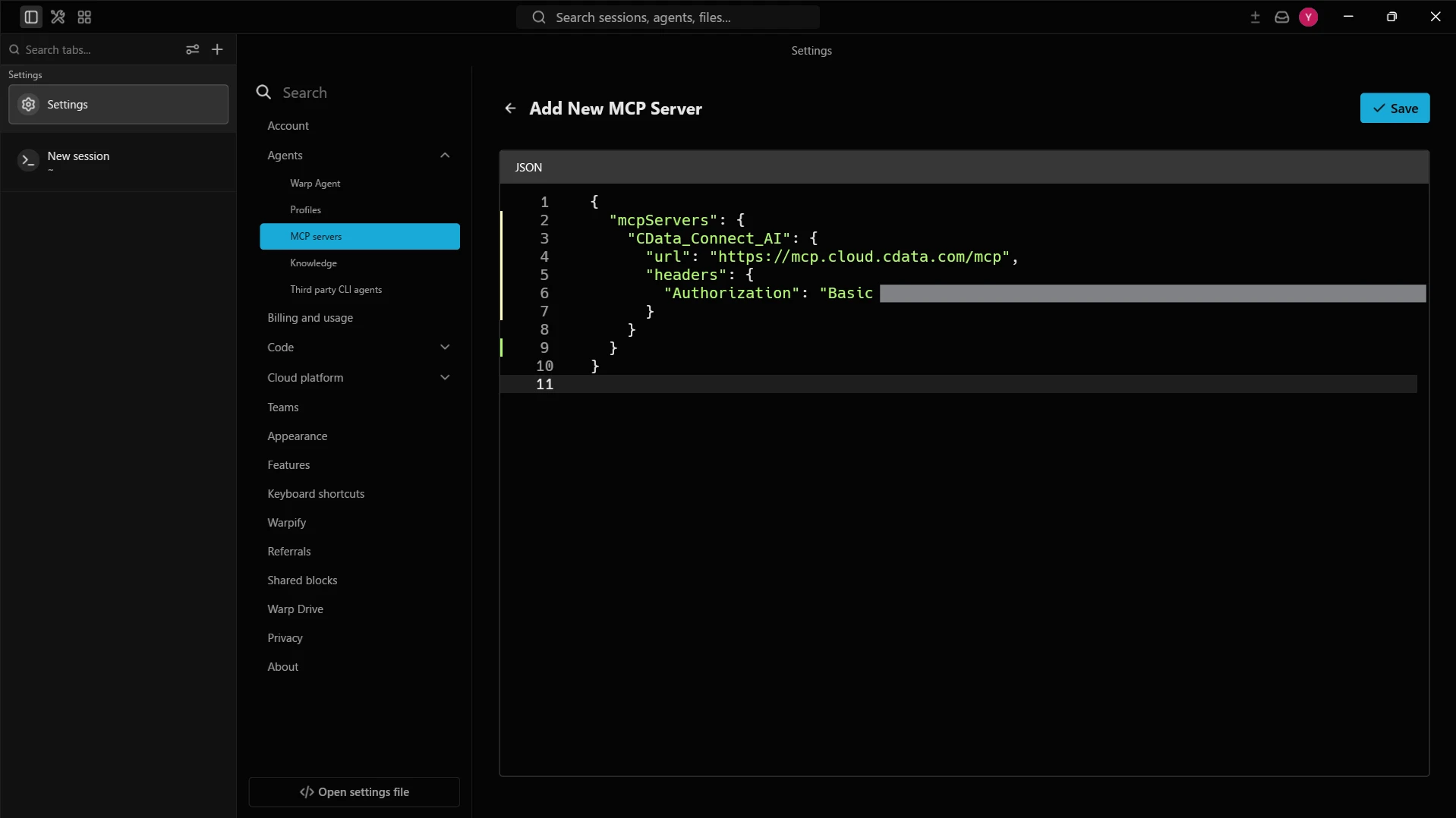

2. In the Add New MCP Server editor, paste the following JSON configuration:

   {
     "mcpServers": {
       "CData_Connect_AI": {
         "url": "https://mcp.cloud.cdata.com/mcp",
         "headers": {
           "Authorization": "Basic your_base64_encoded_email_PAT"
         }
       }
     }
   }

   Note: Combine your Connect AI email and PAT in the format email:PAT, Base64 encode the combined string, and prefix it with Basic. For example, given [email protected]:ABC123...XYZ, the header value becomes something like: Basic dXNlckBteWRvbWFpbjphSzkvbVB4Mi9Rcjd2TjQ...


3. Click Save to add the MCP server

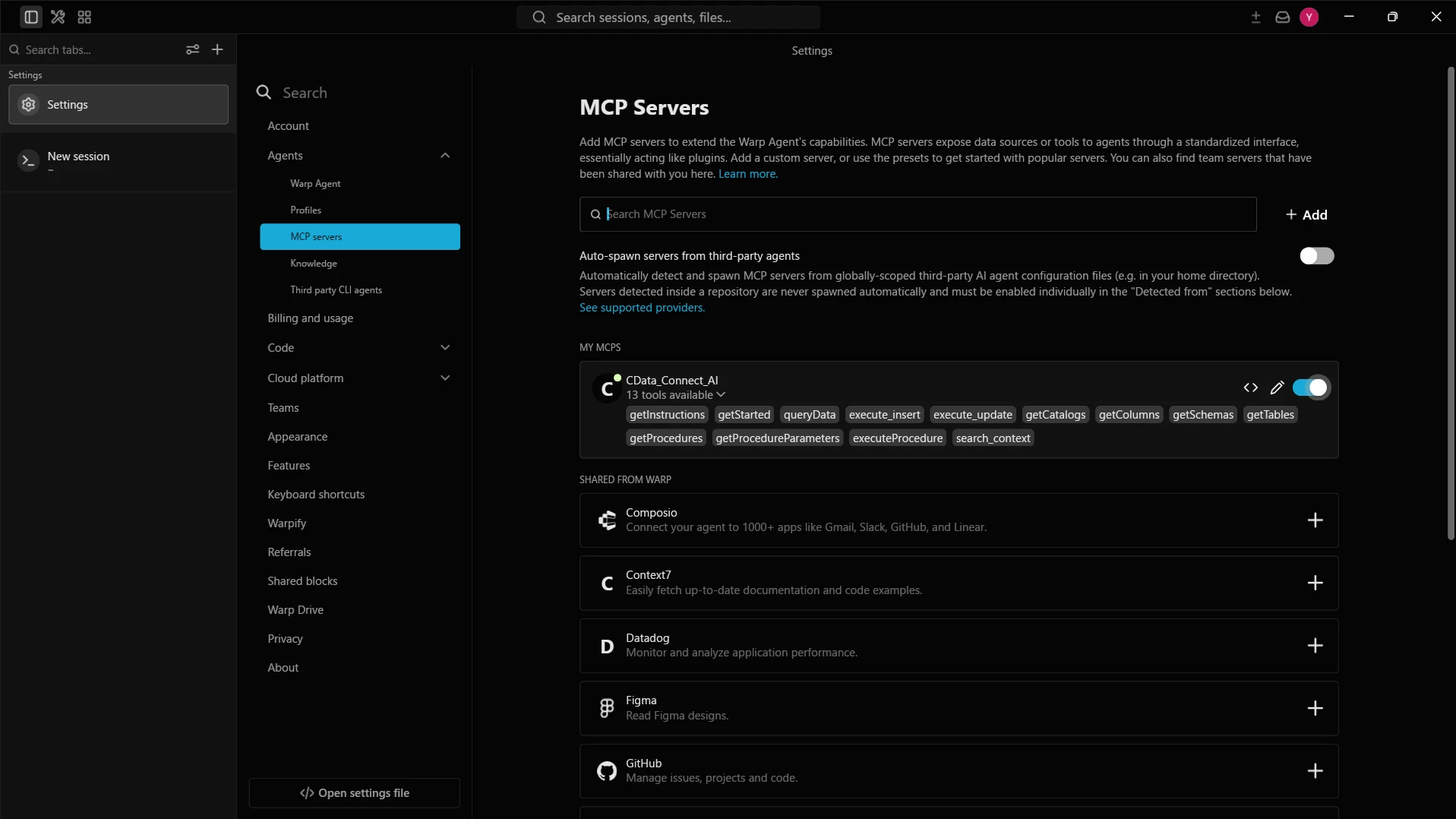

4. Under My MCPs, confirm that CData_Connect_AI appears with the toggle enabled and the tools available

With the MCP server and an LLM provider configured, the Warp Agent is ready to interact with live Databricks data through Connect AI.

Step 3: Interact with live Databricks data from the Warp Agent

Use natural language prompts in the Warp Agent to explore live Databricks data.

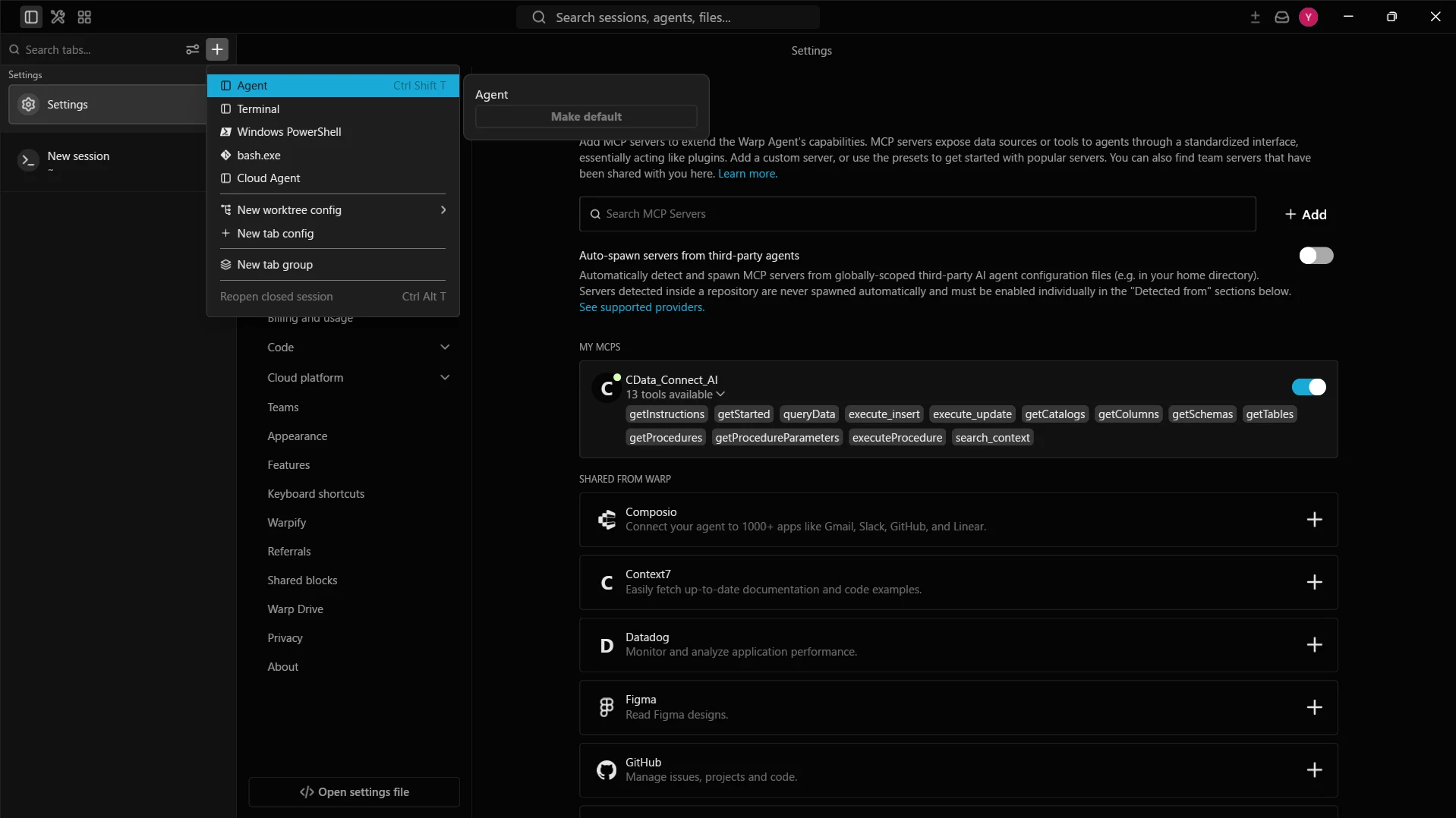

1. Click the icon in the left navigation bar and select Agent

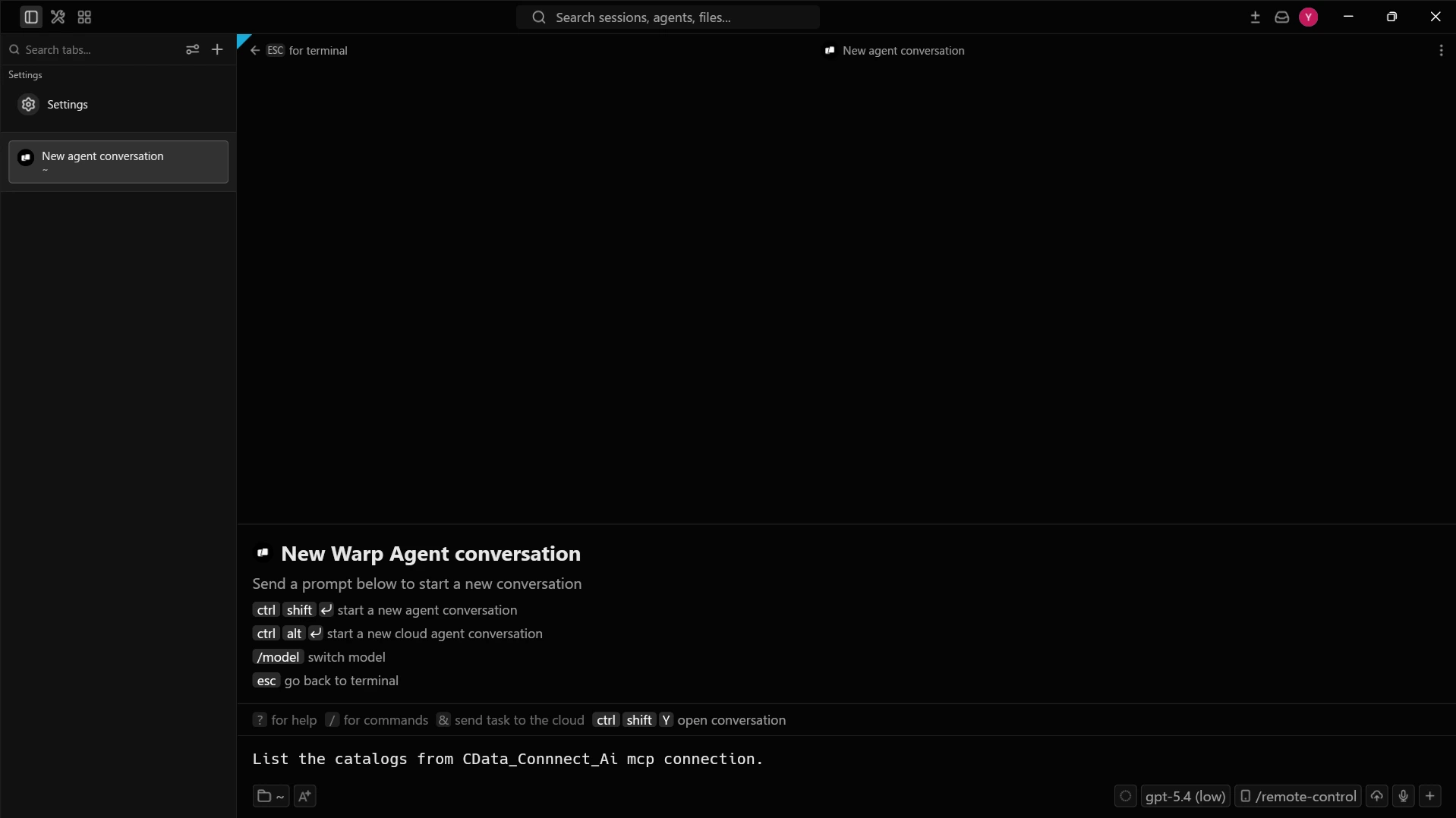

2. Enter a prompt to interact with your data, for example:
   • List the sources available in my CData_Connect_AI mcp connection
   • Show me what I can explore in Databricks
   • Fetch the five most recent records from Databricks data

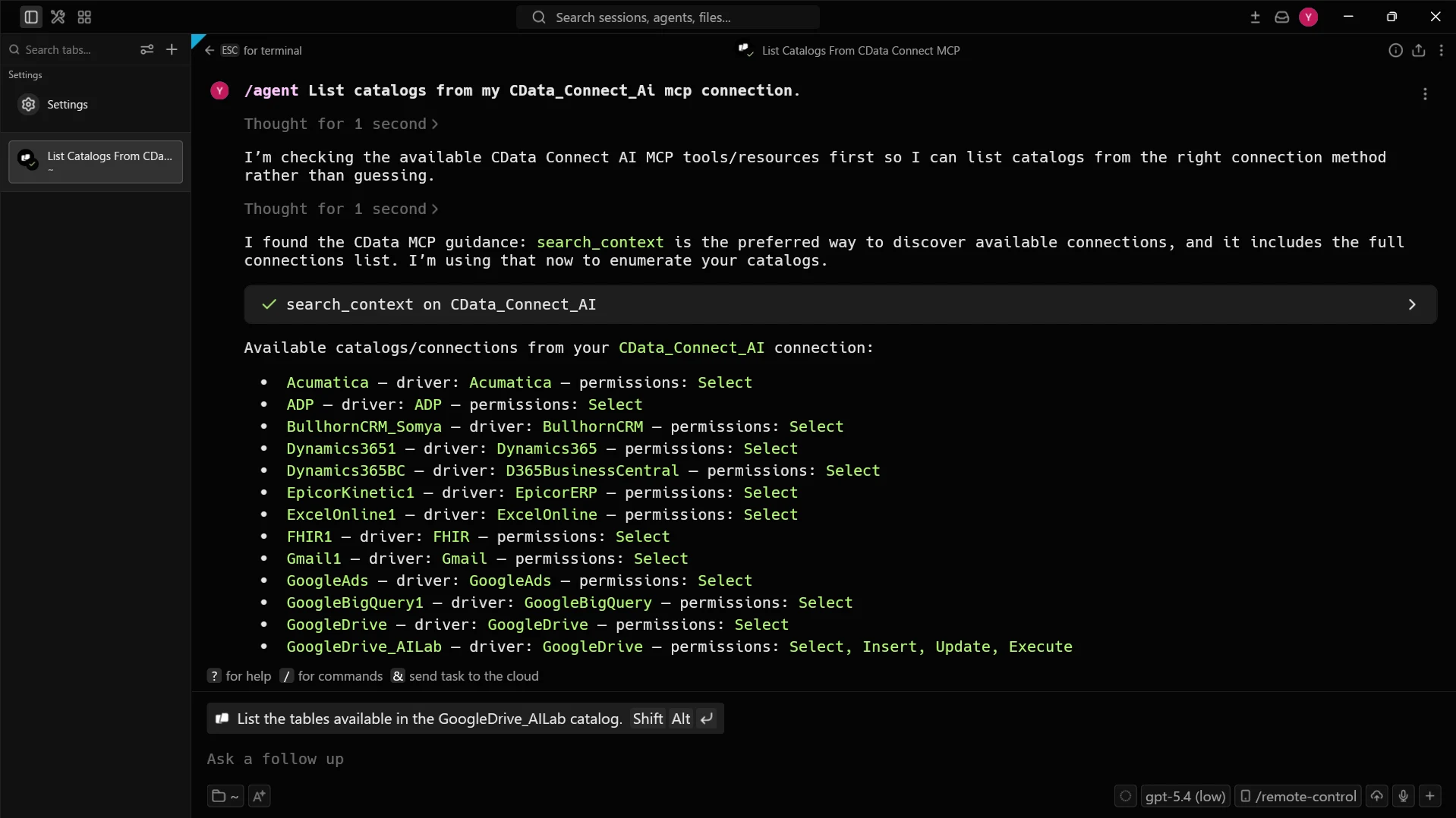

3. The agent calls the Connect AI MCP Server and returns live results from Databricks data

Your Warp Agent now calls the Connect AI MCP Server to interact with live Databricks data through remote MCP tools, all from the terminal.
