How to Configure SQL Server Replication to Power Scalable Reporting

Balancing transaction processing with the heavy demands of business intelligence is a major challenge. Running complex queries on a primary SQL Server instance often locks tables and degrades application performance. The solution is replicating data to a dedicated environment optimized for reporting.

CData Sync resolves this bottleneck by simplifying data movement across the entire ecosystem. Whether the priority is automated, no-code replication to data warehouses or optimizing on-premises SQL Server topologies, ensuring teams have scalable, reliable access to data is paramount. Accordingly, this guide focuses on configuring native SQL Server replication to keep critical operations running smoothly.

Understanding SQL Server replication for reporting

SQL Server replication is a technology that copies and distributes data and database objects from one database to another and maintains consistency between them. For reporting scenarios, this means creating a near real-time copy of your production data on a secondary server, allowing analysts to run complex queries without locking tables on the source.

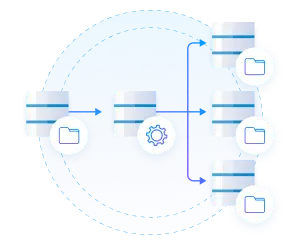

The Three Main Types of Replications

To choose the right tool for the job, you must understand the available modes. SQL Server offers snapshot, transactional, and merge replication types, each serving different needs:

• Snapshot Replication: Distributes data exactly as it appears at a specific moment. It is best for data that changes infrequently or when you need a complete refresh.

• Transactional Replication: Propagates changes row-by-row as they occur. Transactional replication is commonly used for server-to-server scenarios requiring high throughput, making it the standard standard choice for real-time analytics and creating a SQL Server reporting replica.

• Merge Replication: Allows changes to be made at both the publisher and subscriber, merging them later. This is typically used for disconnected environments rather than central reporting.

Comparison of Replication Types for Reporting

Planning your replication topology and objectives

Define the core objectives first, start by establishing clear goals such as acceptable data latency (real-time vs. minutes/hours), update patterns (one-way vs. bidirectional), schema-change frequency, and availability requirements. These decisions directly shape the replication architecture.

Select the Appropriate Replication Type

Match your topology to business needs:

• Transactional replication: Ideal for high-throughput server-to-server scenarios and near-real-time reporting

• Snapshot replication: Best for infrequent, full-data refreshes

• Merge replication: Supports disconnected subscribers with bidirectional updates

• Peer-to-peer: Enables active-active configurations for high availability

Plan Resource Allocation

Consider infrastructure carefully. For high-volume environments, host the distributor on a dedicated instance to avoid bottlenecks. Assess network bandwidth, storage capacity for distribution databases, and compute resources for transformation workloads.

Use Decision Frameworks

Create flowcharts mapping reporting requirements to topology choices, documenting special cases like multi-master scenarios. Balance performance gains against architectural complexity to ensure maintainability.

Preparing the Environment for Replication Setup

Verify Core Prerequisites

Before configuring replication, ensure foundational requirements are met. Enable the SQL Server Agent service; it handles replication jobs. Confirm network connectivity between Publisher, Distributor, and Subscribers, and validate user permissions for replication accounts.

Pre-Flight Checklist

Security and Compliance

Encrypt replication communications (SSL or similar) to secure data in transit [3]. Align configurations with regulatory requirements (GDPR, HIPAA) and implement audit logging.

Modern Alternatives

Consider CData Sync for simplified replication scenarios requiring minimal infrastructure overhead, offering automated synchronization with built-in encryption and compliance features across heterogeneous data sources.

Configuring the Distributor and Distribution Database

The Distributor is the server and associated database that manages replication metadata and temporary storage of changes before delivery to Subscribers. It acts as the critical intermediary ensuring reliable data flow.

Configuration Steps

Set up a distributor instance and allocate sufficient storage for replication logs. Follow these steps:

1. Launch SQL Server Management Studio (SSMS)

2. Right-click Replication → Configure Distribution

3. Select local or remote distributor

4. Specify distribution database location and size

5. Set retention periods (72+ hours for high-volume)

Scaling Best Practices

Use dedicated distributor servers in high-volume environments to prevent bottlenecks. Allocate separate storage for distribution databases, monitor disk I/O, and size based on transaction velocity.

Simplified Alternative

For cross-platform or cloud scenarios, CData Sync eliminates distributor complexity with automated replication across multiple SQL Server databases through an intuitive interface.

Creating and Managing Publications

Define a publication and specify the articles (database objects) to replicate. A publication is the logical container of tables, views, and stored procedures destined for reporting servers.

Filtering for Efficiency

Filtered articles let you replicate only specific rows or columns to reduce volume. Apply horizontal filtering (WHERE clauses) or vertical filtering (specific columns) to minimize network overhead and storage costs.

Configuration Methods

Use sp_addpublication, sp_addarticle, and sp_addsubscription to script a publication. Choose snapshot replication for full refreshes or transactional for near-real-time analytics.

Ongoing Management

• Track schema changes proactively

• Update filters as reporting needs evolve

• Add articles dynamically without re-initialization

Adding and Initializing Subscribers

The Subscriber is the server that receives replicated data and is typically used for reporting or analytics workloads. It maintains a synchronized copy of published articles for query isolation.

Registration and Subscription Models

Register subscribers and configure synchronization schedules for subscriptions. Push subscriptions execute Distribution Agent at the Distributor; pull subscriptions run agents locally at Subscribers, reducing central server load.

Initialization Methods

Snapshots are used to initialize transactional and merge replication topologies. For databases exceeding 10GB, use backup/restore initialization with @sync_type = 'initialize with backup' to bypass snapshot generation overhead.

Synchronization Configuration

Configure agent schedules via sp_addsubscription:

• Continuous: Distribution Agent runs constantly (< 1s latency)

• Scheduled: Interval-based execution (e.g., every 15 minutes)

• On-demand: Manual synchronization via sp_startpublication_snapshot

Tune SubscriptionStreams parameter for parallel delivery threads.

Optimizing Subscribers for Reporting Performance

User can create different indexes on the destination copy to optimize reporting performance. Apply these strategies to maximize analytical throughput,

• Custom indexes: Build covering indexes, columnstore indexes for aggregations, and filtered indexes tailored to reporting queries without impacting Publisher schema

• Materialized aggregates: Create pre-computed summary tables, indexed views, and denormalized structures to eliminate expensive joins and accelerate dashboards

• Read-only enforcement: Execute ALTER DATABASE [ReportDB] SET READ_ONLY to prevent accidental writes, eliminate conflicts, and enable query parallelism

• Hardware isolation: Deploy subscribers on dedicated servers with separate CPU/memory pools

• Resource controls: Configure Resource Governor limits, query timeouts, and Read-Committed Snapshot Isolation (RCSI) to prevent heavy BI queries from resource contention

• Partition alignment: Implement table partitioning strategies matching report time windows for faster data pruning

Monitoring and Maintaining Replication Health

Replication Monitor is the primary tool to monitor the overall health of a replication topology.

• Track latency, agent failures, synchronization lag, and delivered transactions/sec

• Set thresholds and alerts in Replication Monitor to get notified when issues occur [5]

• Monitor Distribution Agent performance and undistributed commands queue

• Script topology with sp_helpreplication for disaster recovery

• Export configurations periodically using Generate Scripts wizard

• Review MSreplication_monitordata system tables for historical trends

• Enable SQL Server Agent job history retention for troubleshooting

Operational Best Practices and Common Pitfalls

Minimize overhead by replicating only required data to save network and storage costs. Replication increases DML/DDL work and I/O, plan for the extra load on systems.

• Script your replication topology (T-SQL) for disaster recovery and automation

• Schema changes are possible in replication but can be complex and painful to manage so test thoroughly in non-production

• Avoid replicating large LOB columns unless necessary

• Monitor Publisher transaction log growth and backup frequency

• Alternative approach: An Always On secondary replica can be used as a read-only reporting database, offering simpler configuration for enterprise environments with minimal latency

• Implement retention policies to prevent distribution database bloat

• Document topology architecture and failover procedures

Frequently Asked Questions
