Integrating Dataiku with SharePoint Data via CData Connect AI

Dataiku is a collaborative data science and AI platform that enables teams to design, deploy, and manage machine learning and generative AI projects within a governed environment. It's Agent and GenAI framework allows users to build intelligent agents that can analyze, generate, and act on data through custom workflows and model orchestration.

By integrating Dataiku with CData Connect AI through the built-in MCP (Model Context Protocol) Server, these agents gain secure, real-time access to live SharePoint data. The integration bridges Dataiku's agent execution environment with CData's governed enterprise connectivity layer, allowing every query or instruction to run safely against authorized data sources without manual exports or staging.

This article demonstrates how to configure SharePoint connectivity in Connect AI, prepare a Python code environment in Dataiku with MCP support, and create an agent that queries and interacts with live SharePoint data directly from within Dataiku.

Getting Started

---

Step 1: Configure SharePoint Connectivity for Dataiku

Connectivity to SharePoint from Dataiku is made possible through CData Connect AI's Remote MCP Server. To interact with SharePoint data from Dataiku, you start by creating and configuring a SharePoint connection in CData Connect AI.

1. Log into Connect AI, click Sources, then click Add Connection

2. Select "SharePoint" from the Add Connection panel

3. Enter the necessary authentication properties to connect to SharePoint.

   Set the URL property to the base SharePoint site or to a sub-site. This allows you to query any lists and other SharePoint entities defined for the site or sub-site.

   The User and Password properties, under the Authentication section, must be set to valid SharePoint user credentials when using SharePoint On-Premise.

   If you are connecting to SharePoint Online, set the SharePointEdition to SHAREPOINTONLINE along with the User and Password connection string properties. For more details on connecting to SharePoint Online, see the "Getting Started" chapter of the help documentation


4. Click Save & Test
5. Open the Permissions tab and set user-based permissions

Add a Personal Access Token

A Personal Access Token (PAT) is used to authenticate the connection to Connect AI from Dataiku. It is best practice to create a separate PAT for each integration to maintain granular access control

1. Click the gear icon () at the top right of the Connect AI app to open Settings
2. On the Settings page, go to the Access Tokens section and click Create PAT
3. Give the PAT a descriptive name and click Create

4. Copy the token when displayed and store it securely. It will not be shown again

With the SharePoint connection configured and a PAT generated, Dataiku can now connect to SharePoint data through the CData MCP Server.

Step 2: Prepare Dataiku and the Code Environment

A dedicated python code environment in Dataiku provides the runtime support needed for MCP-based communication. To enable Dataiku Agents to connect to CData Connect AI, create a Python environment and install the MCP client dependencies required for agent-to-server interaction.

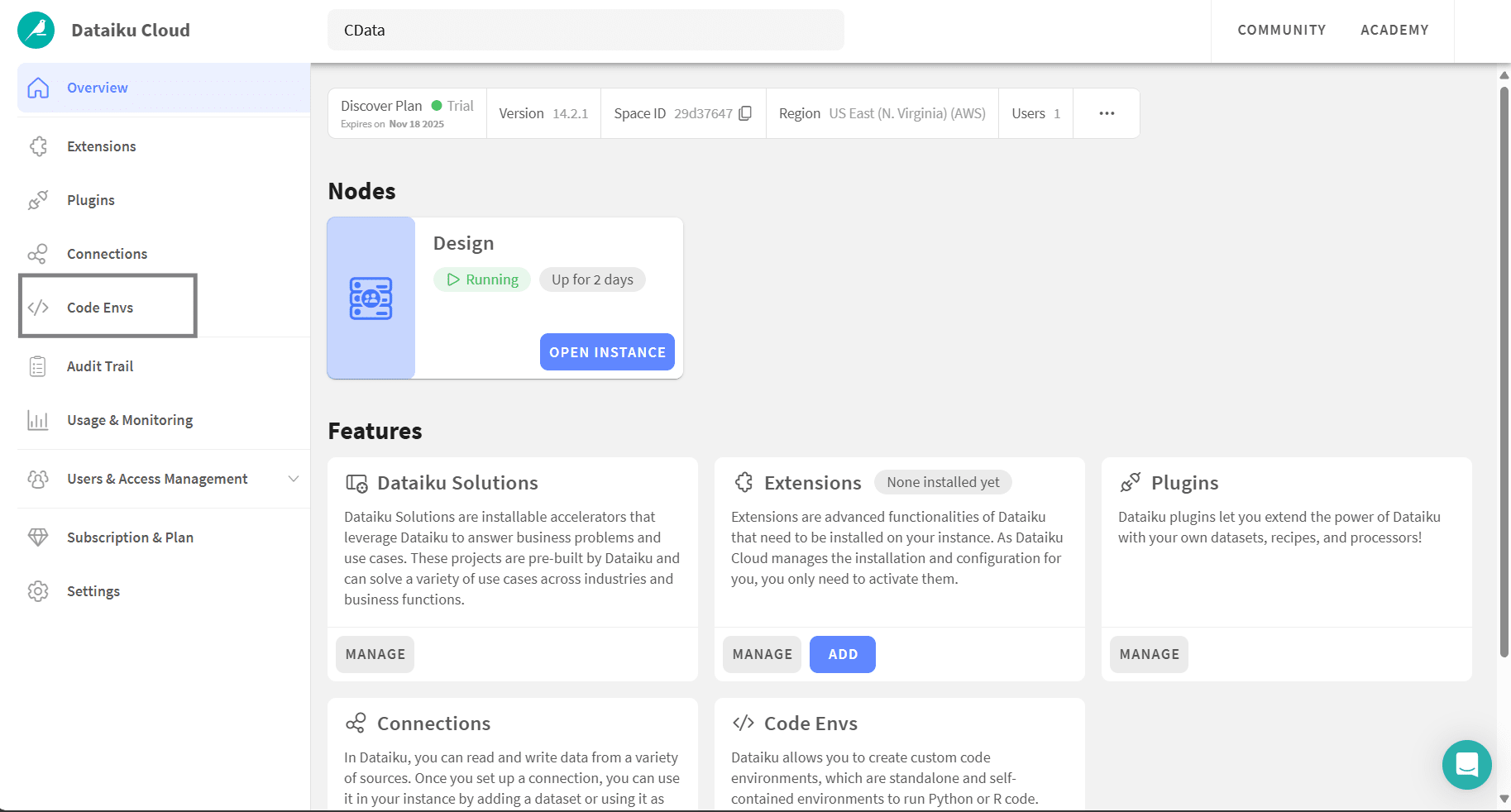

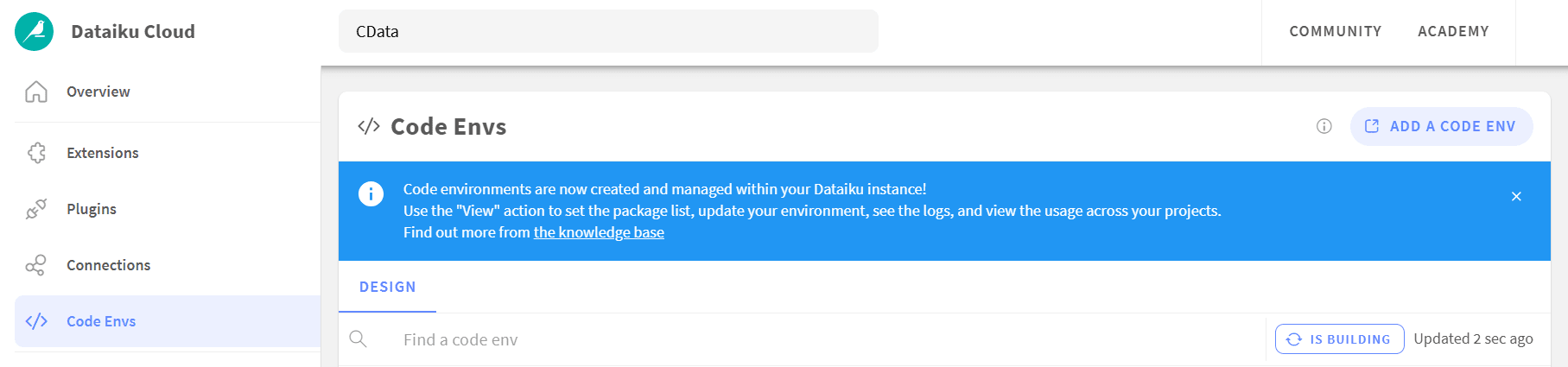

1. In Dataiku Cloud, open Code Envs

2. Click Add a code env to open the DSS settings window

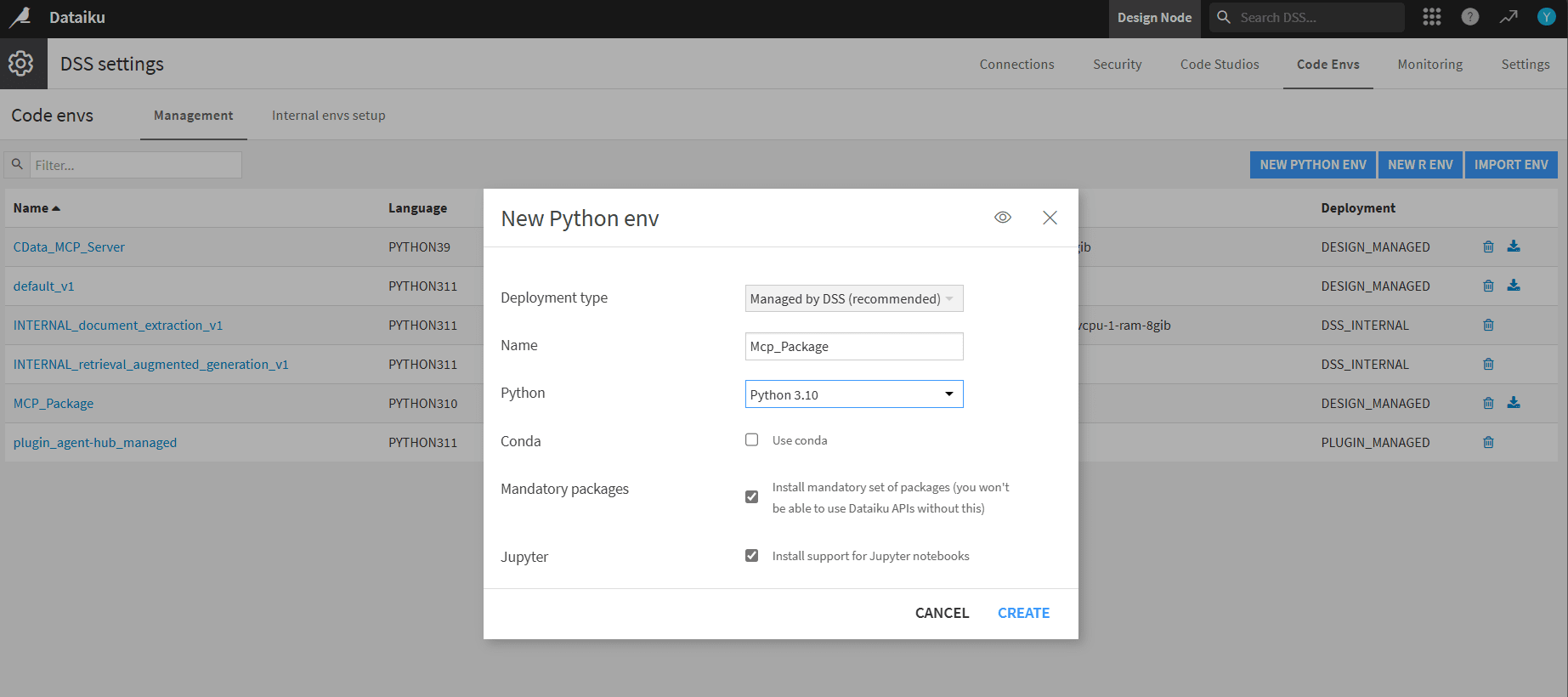

3. In DSS, click New Python env. Name it (for example, MCP_Package) and choose Python 3.10 (3.10 to 3.13 supported)

4. Open Packages to install and add the following pip packages:
• httpx
• anyio
• langchain-mcp-adapters

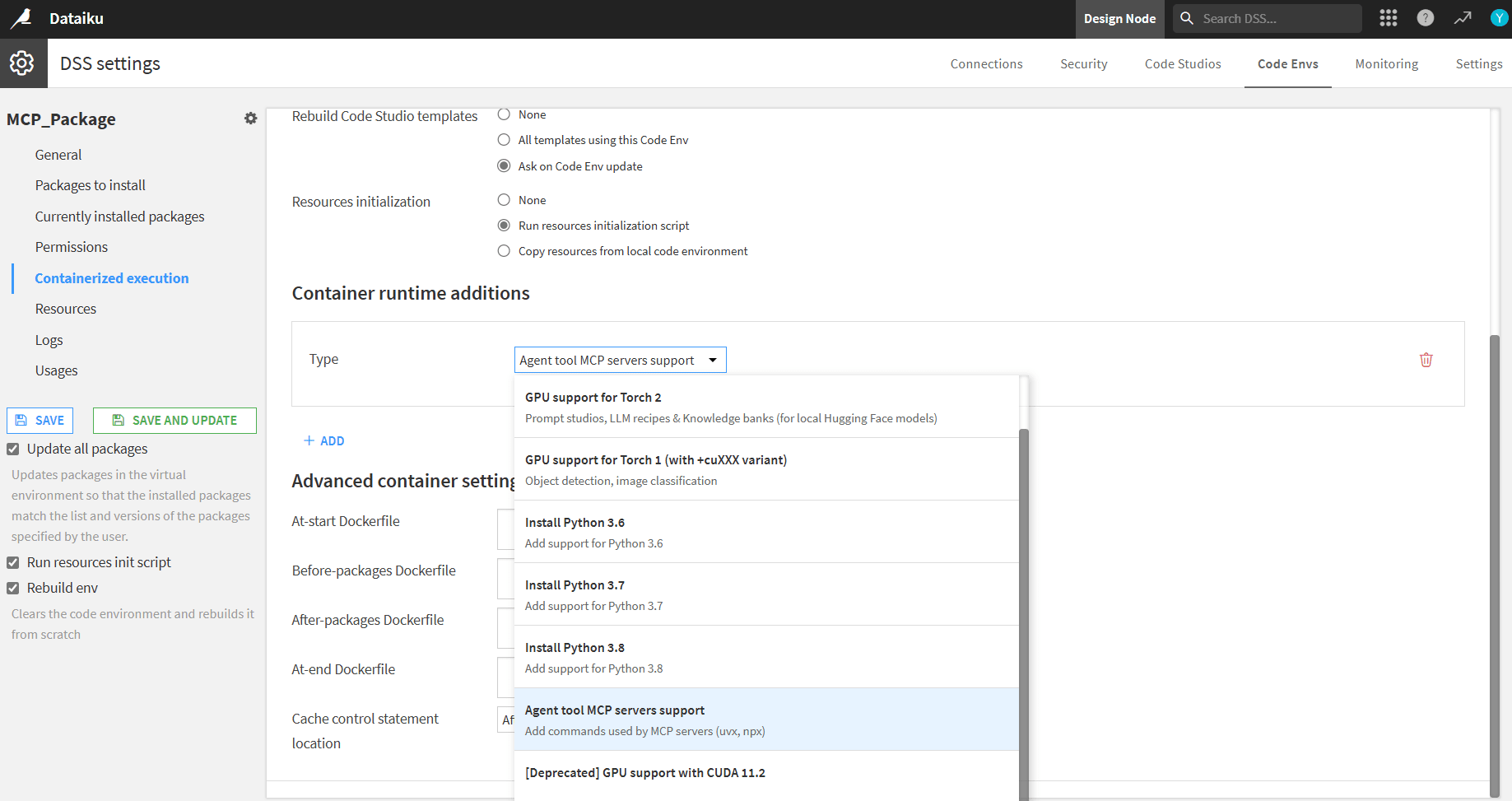

5. Open Containerized execution and under Container runtime additions select Agent tool MCP servers support

6. Check Rebuild env and click Save and update to install packages

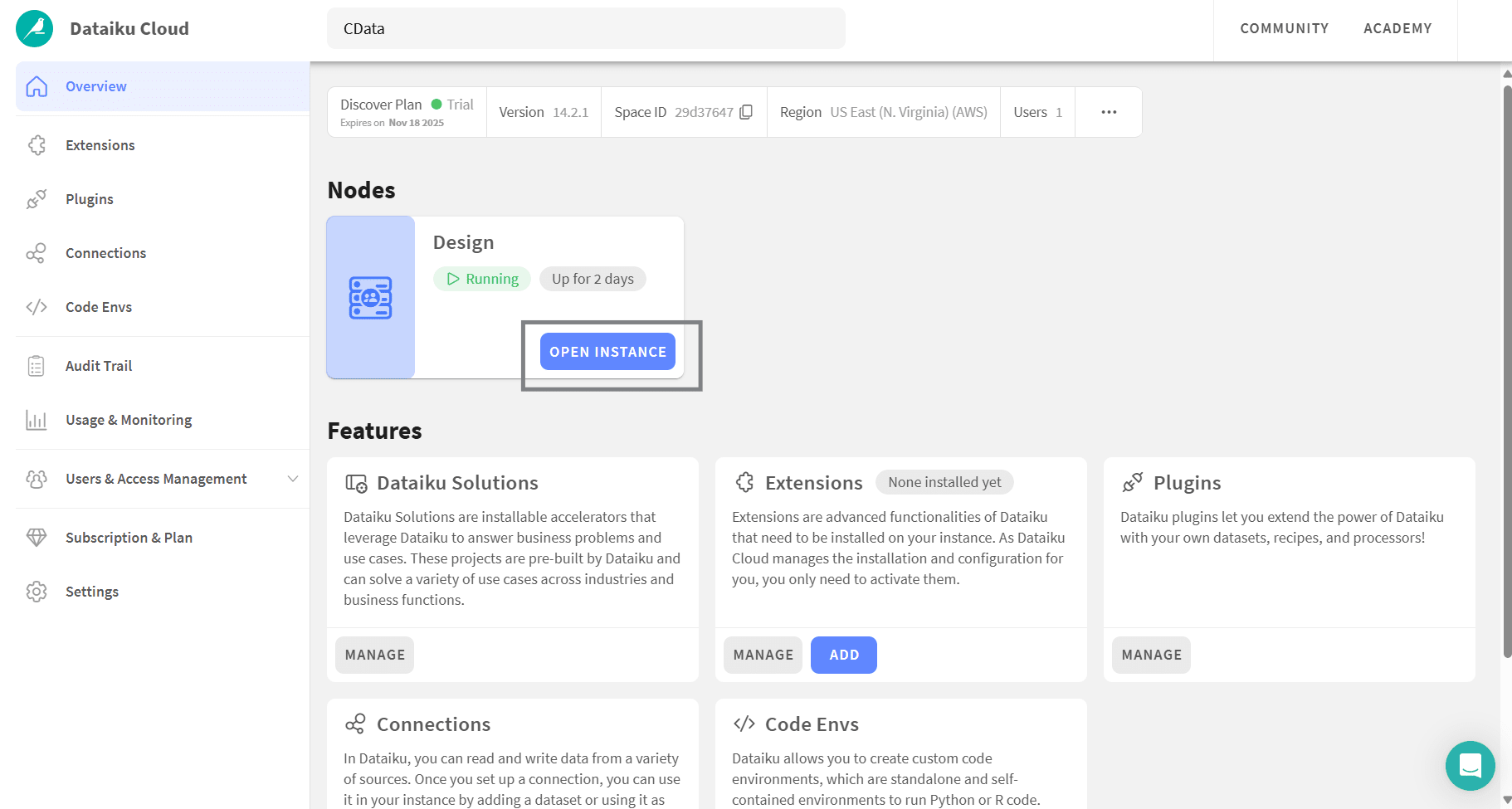

7. Back in Dataiku Cloud, open Overview and click Open instance

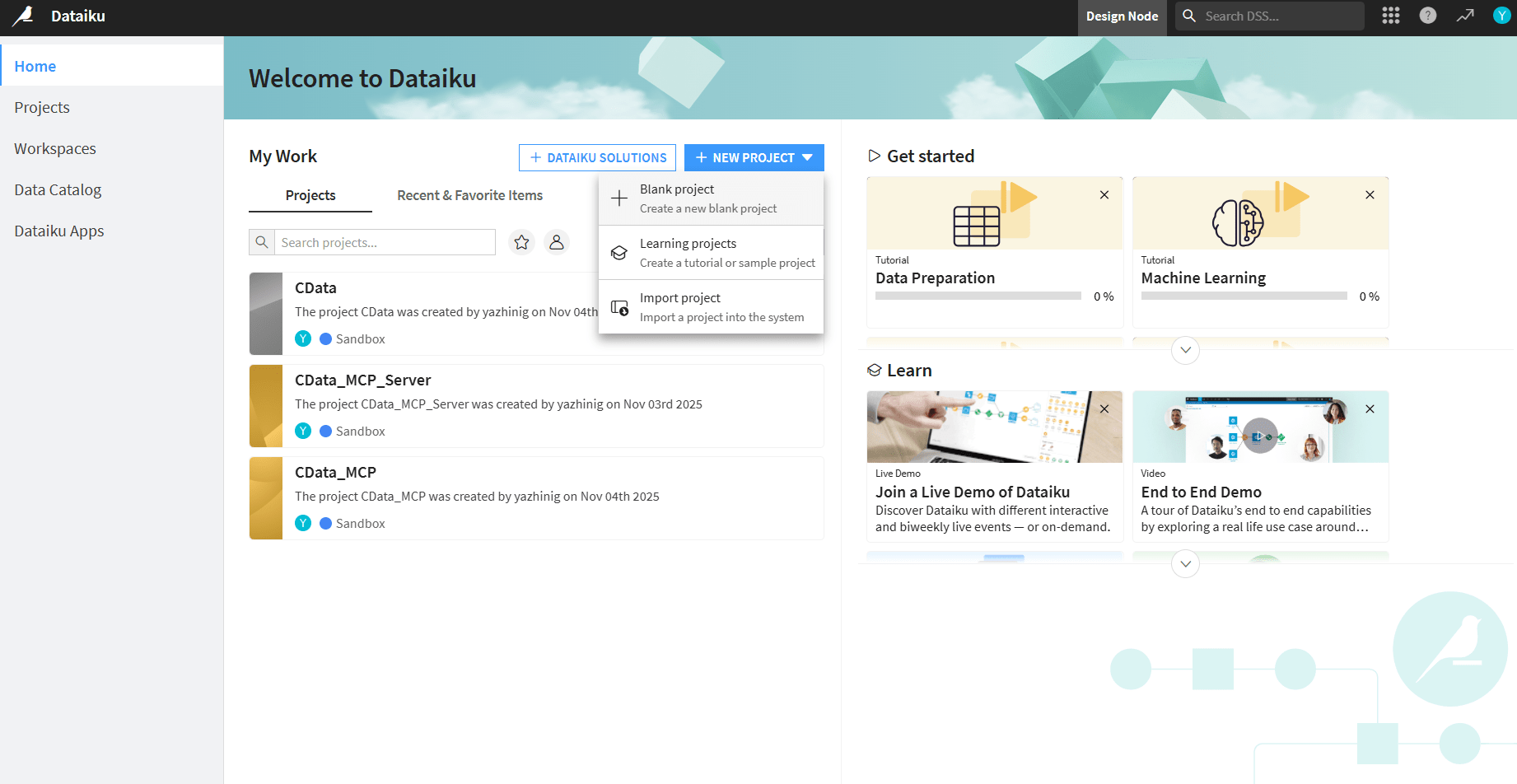

8. Click + New project and select Blank project. Name the project

Step 3: Create a Dataiku Agent and connect to the MCP server

The Dataiku Agent serves as the bridge between the Dataiku workspace and the CData MCP Server. To enable this connection, create a custom code-based agent, assign it the configured Python environment, and embed your Connect AI credentials to allow the agent to query and interact with live SharePoint data.

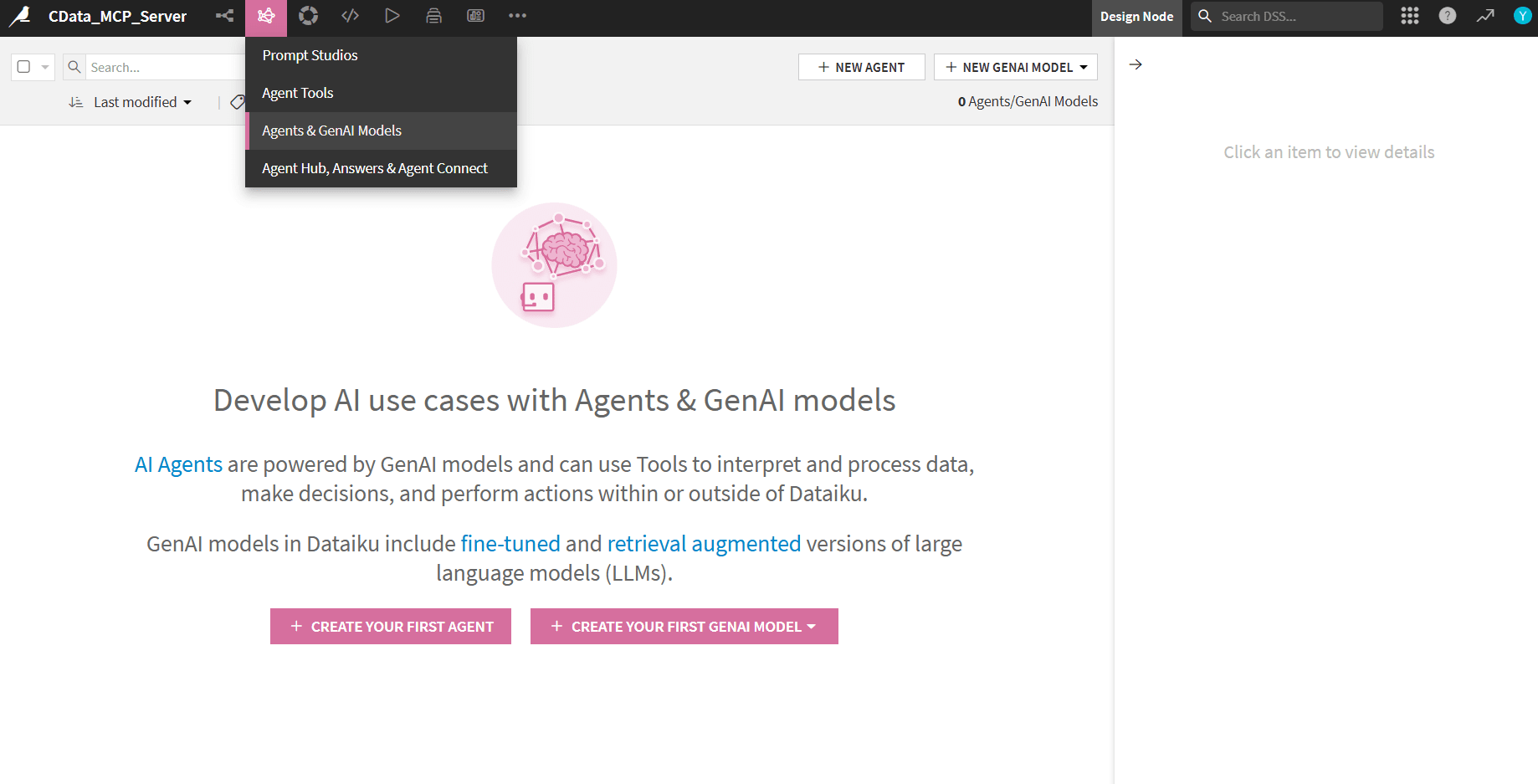

1. Go to Agents & GenAI Models and click Create your first agent

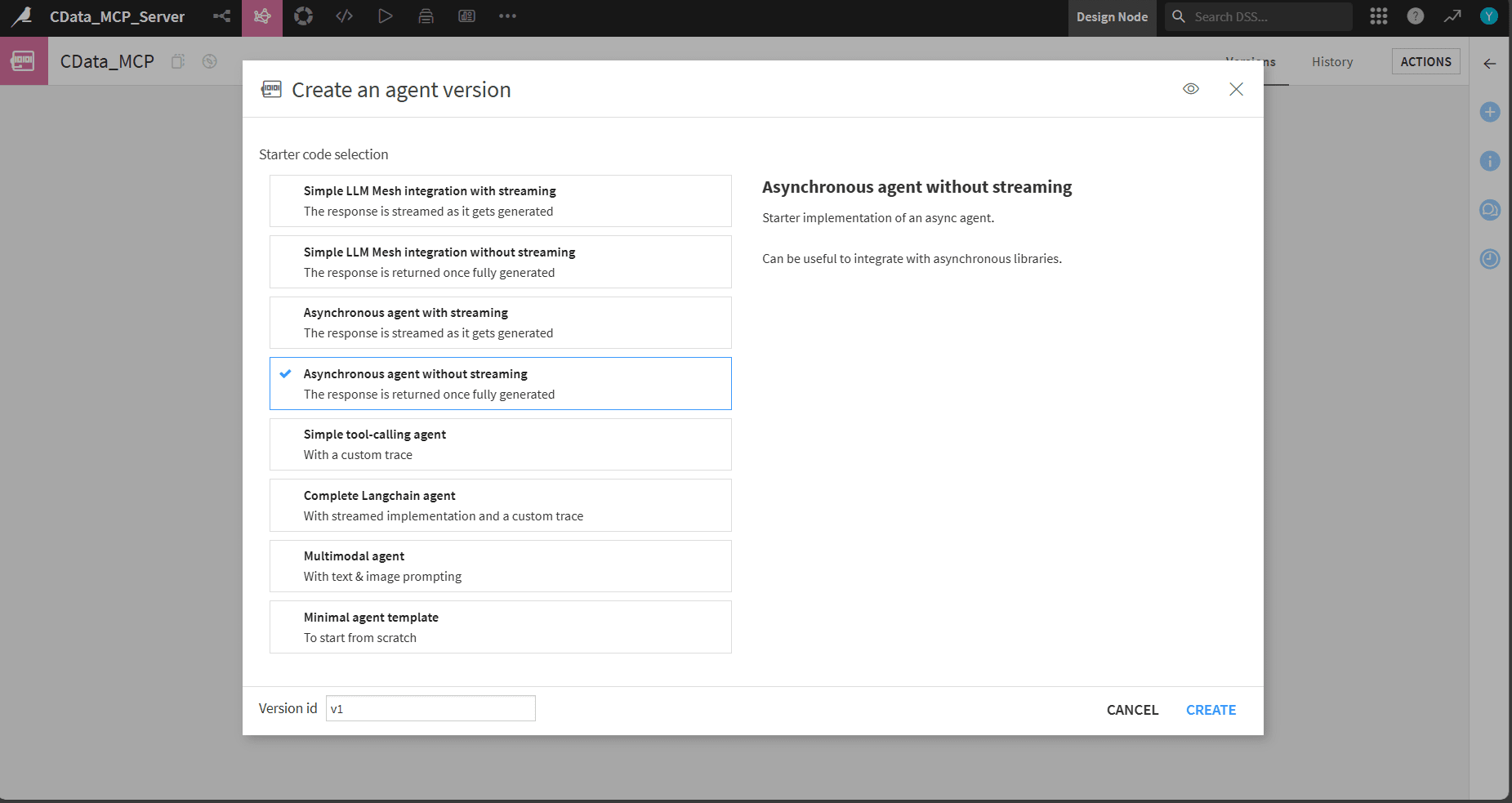

2. Choose Code agent, name it, and for Agent version select Asynchronous agent without streaming

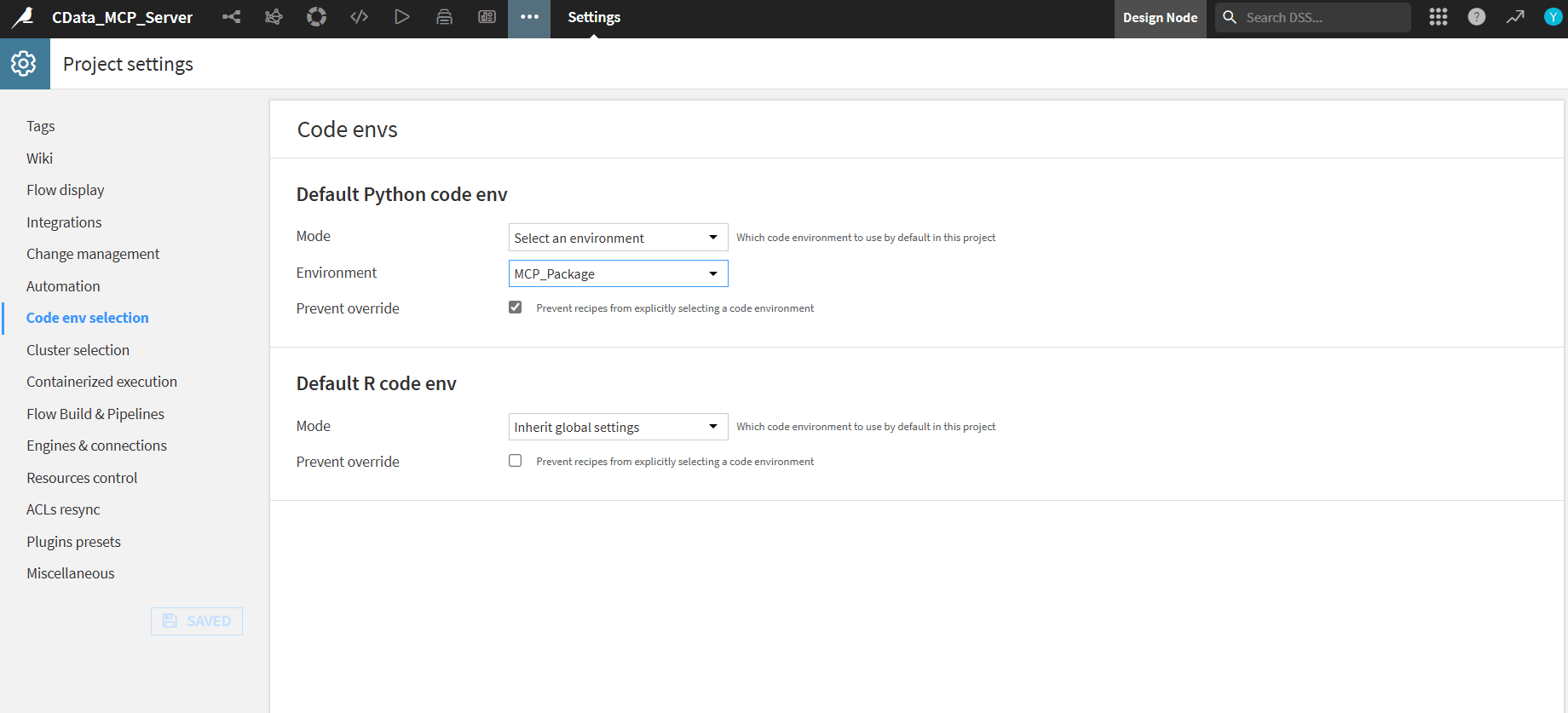

3. From the tab above select Settings. In Code env selection set Default Python code env to the environment you created (for example, MCP_Package)

4. Return to the Agent Design tab and paste the following code. Replace EMAIL, and PAT with your values

import os
import base64
from typing import Dict, Any, List

from dataiku.llm.python import BaseLLM
from langchain_mcp_adapters.client import MultiServerMCPClient

# ---------- Persistent MCP client (cached between calls) ----------
_MCP_CLIENT = None

def _get_mcp_client() -> MultiServerMCPClient:
    """Create (or reuse) a MultiServerMCPClient to CData Cloud MCP."""
    global _MCP_CLIENT
    if _MCP_CLIENT is not None:
        return _MCP_CLIENT

    # Set creds via env/project variables ideally
    EMAIL = os.getenv("CDATA_EMAIL", "YOUR_EMAIL")
    PAT   = os.getenv("CDATA_PAT",   "YOUR_PAT")
    BASE_URL = "https://mcp.cloud.cdata.com/mcp"

    if not EMAIL or PAT == "YOUR_PAT":
        raise ValueError("Set CDATA_EMAIL and CDATA_PAT as env variables or inline in the code.")

    token = base64.b64encode(f"{EMAIL}:{PAT}".encode()).decode()
    headers = {"Authorization": f"Basic {token}"}

    _MCP_CLIENT = MultiServerMCPClient(
        connections={
            "cdata": {
                "transport": "streamable_http",
                "url": BASE_URL,
                "headers": headers,
            }
        }
    )
    return _MCP_CLIENT


def _pick_tool(tools, names: List[str]):
    L = [n.lower() for n in names]
    return next((t for t in tools if t.name.lower() in L), None)


async def _route(prompt: str) -> str:
    """
    Simple intent router:
      - 'list connections' / 'list catalogs' -> getCatalogs
      - 'sql: ...' or 'query: ...' -> queryData
      - otherwise -> help text
    """
    client = _get_mcp_client()
    tools = await client.get_tools()

    p = prompt.strip()
    low = p.lower()

    # 1) List connections (catalogs)
    if "list connections" in low or "list catalogs" in low:
        t = _pick_tool(tools, ["getCatalogs", "listCatalogs"])
        if not t:
            return "No 'getCatalogs' tool found on the MCP server."
        res = await t.ainvoke({})
        return str(res)[:4000]

    # 2) Run SQL
    if low.startswith("sql:") or low.startswith("query:"):
        sql = p.split(":", 1)[1].strip()
        t = _pick_tool(tools, ["queryData", "sqlQuery", "runQuery", "query"])
        if not t:
            return "No query-capable tool (queryData/sqlQuery) found on the MCP server."
        try:
            res = await t.ainvoke({"query": sql})
            return str(res)[:4000]
        except Exception as e:
            return f"Query failed: {e}"

    # 3) Help
    return (
        "Connected to CData MCP

"
        "Say **'list connections'** to view available sources, or run a SQL like:
"
        "  sql: SELECT * FROM [Salesforce1].[SYS].[Connections] LIMIT 5

"
        "Remember to use bracket quoting for catalog/schema/table names."
    )


class MyLLM(BaseLLM):
    async def aprocess(self, query: Dict[str, Any], settings: Dict[str, Any], trace: Any):
        # Extract last user message from the Quick Test payload
        prompt = ""
        try:
            prompt = (query.get("messages") or [])[-1].get("content", "")
        except Exception:
            prompt = ""

        try:
            reply = await _route(prompt)
        except Exception as e:
            reply = f"Error: {e}"

        # The template expects a dict with a 'text' key
        return {"text": reply}

Run a Quick Test

1. Open Quick Test on the right side panel
2. Paste the JSON code and click Run test

{
   "messages": [
      {
         "role": "user",
         "content": "list connections"
      }
   ],
   "context": {}
}

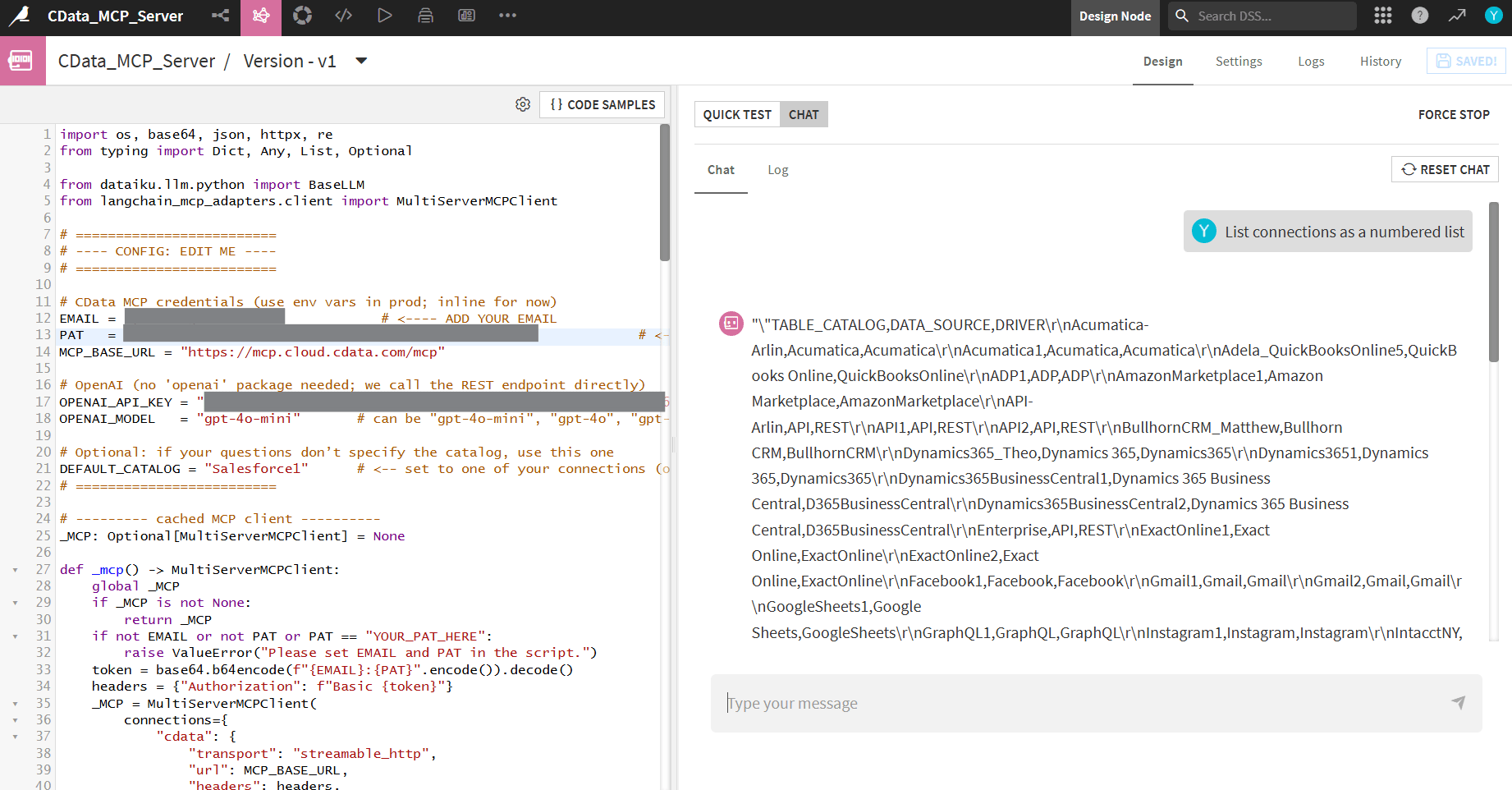

Chat with your Agent

Switch to the Chat tab and try prompting like, "List all connections". The chat output will show a list of connection catalogs.
