Integrate Cursor with Live Workday Data via CData Connect AI

Cursor is an AI-powered code editor that embeds conversational and agent-style assistance alongside your development workflow. By extending Cursor with MCP (Model Context Protocol) tools, you can give its AI agents secure access to external systems such as APIs and databases.

Integrating Cursor with CData Connect AI via the built-in CData MCP Server allows the editor's AI to query, analyze, and act on live Workday data without copying data into the IDE. The result is a development experience where you can chat with your governed enterprise data directly from Cursor.

This article outlines how to configure Workday connectivity in Connect AI, generate the required access token, register the CData MCP Server in Cursor, and then use the AI chat pane to explore live Workday data.

Getting Started

---

Step 1: Configure Workday connectivity for Cursor

Connectivity to Workday from Cursor is made possible through CData Connect AI's Remote MCP Server. To interact with Workday data from Cursor, start by creating and configuring a Workday connection in CData Connect AI.

1. Log into Connect AI, click Sources, and then click Add Connection

2. Select Workday from the Add Connection panel

3. Enter the necessary authentication properties to connect to Workday.

   To connect to Workday, users need to find the Tenant and BaseURL and then select their API type.

   Obtaining the BaseURL and Tenant

   To obtain the BaseURL and Tenant properties, log into Workday and search for "View API Clients." On this screen, you'll find the Workday REST API Endpoint, a URL that includes both the BaseURL and Tenant.

   The format of the REST API Endpoint is: https://domain.com/subdirectories/mycompany, where:

   • https://domain.com/subdirectories/ is the BaseURL.
   • mycompany (the portion of the url after the very last slash) is the Tenant.
   For example, in the REST API endpoint https://wd3-impl-services1.workday.com/ccx/api/v1/mycompany, the BaseURL is https://wd3-impl-services1.workday.com and the Tenant is mycompany.

   Using ConnectionType to Select the API

   The value you use for the ConnectionType property determines which Workday API you use. See our Community Article for more information on Workday connectivity options and best practices.

   API	ConnectionType Value
   WQL	WQL
   Reports as a Service	Reports
   REST	REST
   SOAP	SOAP




   Authentication

   Your method of authentication depends on which API you are using.

   • WQL, Reports as a Service, REST: Use OAuth authentication.
   • SOAP: Use Basic or OAuth authentication.

   See the Help documentation for more information on configuring OAuth with Workday.


4. Click Save & Test
5. Navigate to the Permissions tab and update user-based permissions

Add a Personal Access Token

A Personal Access Token (PAT) is used to authenticate the connection to Connect AI from Cursor. It is best practice to create a separate PAT for each integration to maintain granular access control.

1. Click the gear icon () at the top right of the Connect AI app to open Settings
2. On the Settings page, go to the Access Tokens section and click Create PAT
3. Give the PAT a descriptive name and click Create

4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use

With the Workday connection configured and a PAT generated, Cursor can now connect to Workday data through the CData MCP Server.

Step 2: Configure the CData MCP Server in Cursor

Next, configure Cursor to use the CData MCP Server. Cursor reads MCP configuration from an mcp.json file in the user configuration directory and exposes the registered servers under the Tools & MCP settings. Once configured, Cursor's AI chat can call the tools exposed by CData Connect AI.

1. Download the Cursor desktop application and complete the sign-up flow for your account
2. From the top menu, click Settings to open the settings panel
3. In the left navigation, open the Tools & MCP tab and click Add Custom MCP

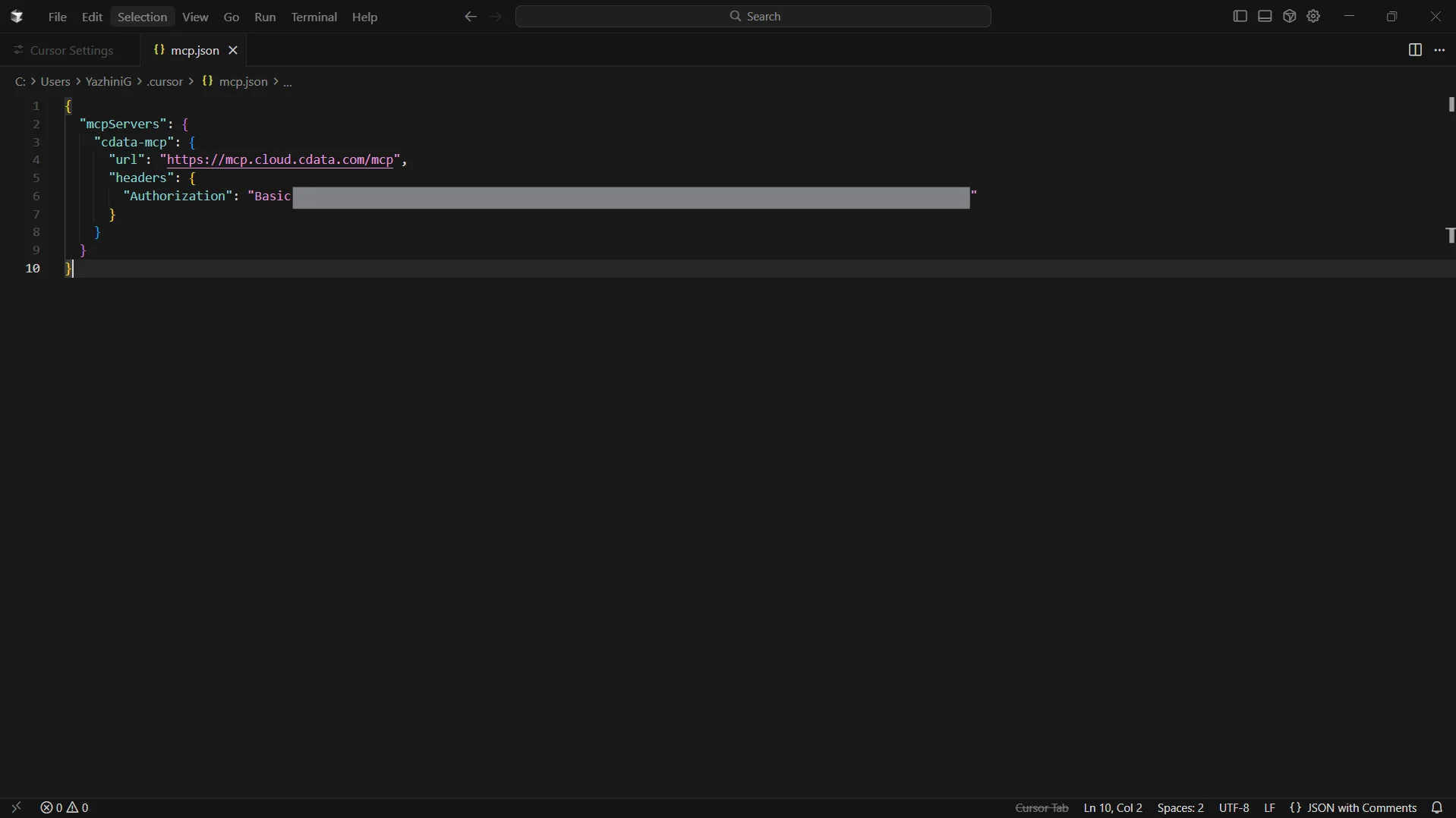

4. Cursor opens an mcp.json file in the editor
5. Add the following configuration. Make sure to base64-encode your email:PAT before inserting into the header:

   {
     "mcpServers": {
       "cdata-mcp": {
         "url": "https://mcp.cloud.cdata.com/mcp",
         "headers": {
           "Authorization": "Basic your_base64_encoded_email_PAT"
         }
       }
     }
   }



6. Save the file
7. Return to Settings and then select Tools & MCP. You can now see cdata-mcp enabled with an active indicator

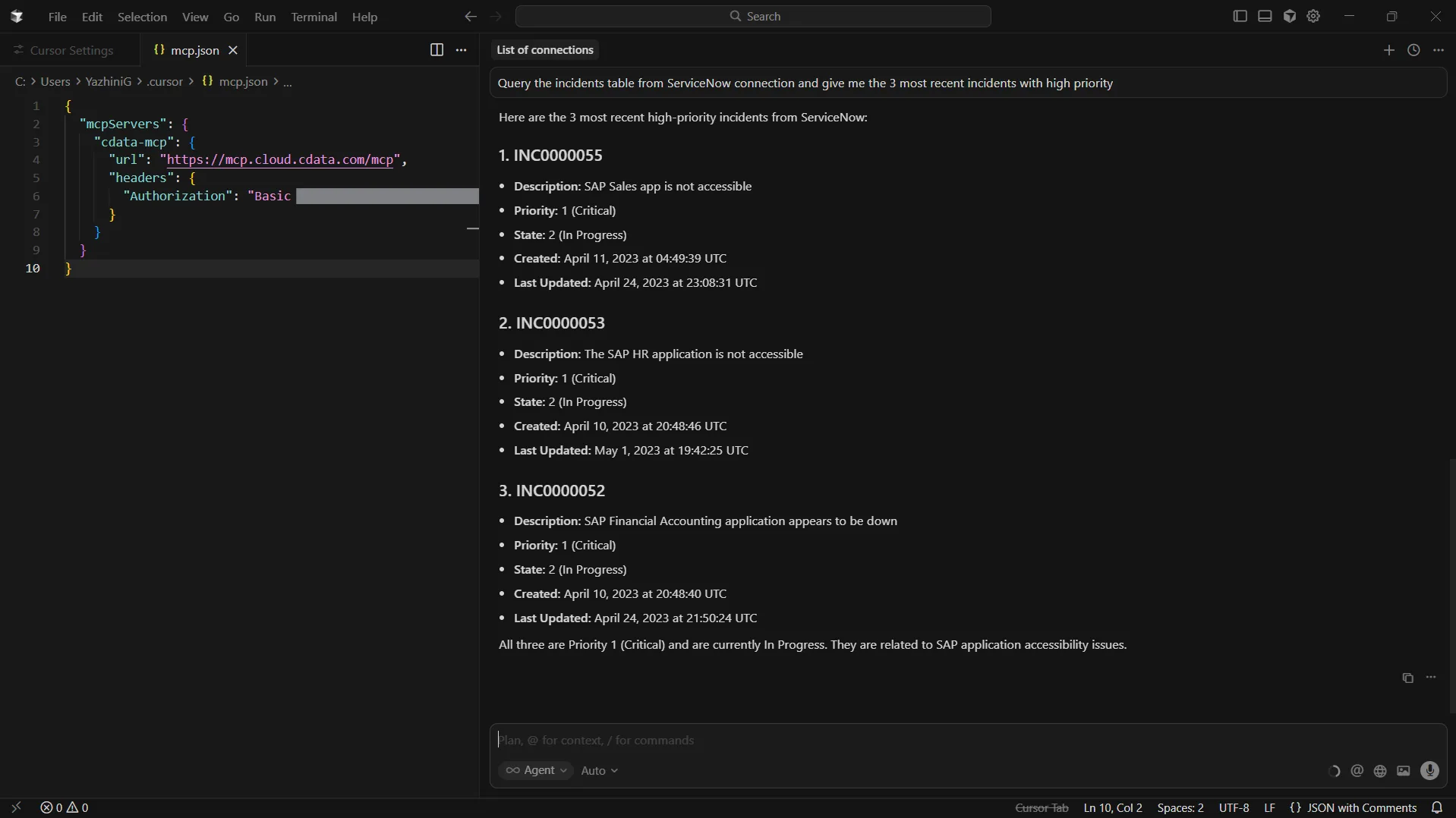

Step 3: Chat with CData Connect AI from Cursor

1. From the top bar, click Toggle AI Pane to open the chat window
2. Test the connection by entering "List connections"
3. You can also run queries like "Query Workday data and list the high priority accounts"

Cursor is now fully integrated with the CData Connect AI MCP Server and can act on live Workday data directly from the editor.
