Build SAP ByDesign-Connected Applications in Kiro with CData Connect AI MCP Server

Kiro is an agentic AI IDE from AWS that takes a spec-driven approach to software development, turning a natural language prompt into a detailed spec, then into working code, tests, and documentation. Available as a desktop IDE and CLI, Kiro supports remote MCP servers natively across all plans, letting agents pull live context from enterprise systems while they build.

By integrating Kiro with CData Connect AI through the MCP (Model Context Protocol), Kiro agents gain the ability to query, analyze, and act on live SAP ByDesign data directly inside any coding session. Connect AI manages authentication, security, and query optimization so you can focus on building intelligent applications, while Kiro handles spec generation, code writing, and task execution.

This article outlines the steps to configure SAP ByDesign connectivity in Connect AI, generate the required authentication credentials, register the Connect AI MCP Server in Kiro, and verify that your agent can successfully interact with live SAP ByDesign data during coding sessions.

Prerequisites

• Kiro account
• CData Connect AI account
• SAP ByDesign account with valid credentials.

Step 1: Configure SAP ByDesign Connectivity for Kiro

Connectivity to SAP ByDesign from Kiro is made possible through Connect AI's Remote MCP Server. To interact with SAP ByDesign data from your Kiro agent sessions, start by creating and configuring a SAP ByDesign connection in Connect AI.

1. Log into Connect AI, click Sources, and then click Add Connection.
2. Select SAP ByDesign from the Add Connection panel.
3. Enter the necessary authentication properties to connect to SAP ByDesign.

   Set the following connection properties to connect to SAP ByDesign.

   • Url: Set this to the Url of your SAP ByDesign site. For example, https://test.sapbydesign.com
   • User: Set this to the username of your account.
   • Password: Set this to the password of your account.
   • CustomService or AnalyticsService: Only one of these must be specified. If you have a custom service you want to retrieve data from, specify CustomService. If you want to retrieve the reports of a analytical service, specify AnalyticsService.
     If neither is specified, 'cc_home_analytics.svc' will used as a default for the AnalyticsService property. If you are not sure what service to specify, you can always query the Services view to list available services.

4. Click Save & Test.
5. Navigate to the Permissions tab in the Add SAP ByDesign Connection page and update the User-based permissions.

Add a Personal Access Token

A Personal Access Token (PAT) is used to authenticate the connection to Connect AI from Kiro. It is best practice to create a separate PAT for each integration to maintain granular access control.

1. Click the Gear icon at the top right of the Connect AI app to open Settings.
2. On the Settings page, go to the Access Tokens section and click Create PAT.
3. Give the PAT a descriptive name (e.g., Kiro MCP) and click Create.

With the SAP ByDesign connection configured and a PAT generated, Kiro can now connect to SAP ByDesign data through Connect AI.

Step 2: Register the CData Connect AI MCP Server in Kiro

Kiro connects to external data sources through MCP servers configured in a file called mcp.json. In this step, you will open that file, add the Connect AI server details, and verify the connection.

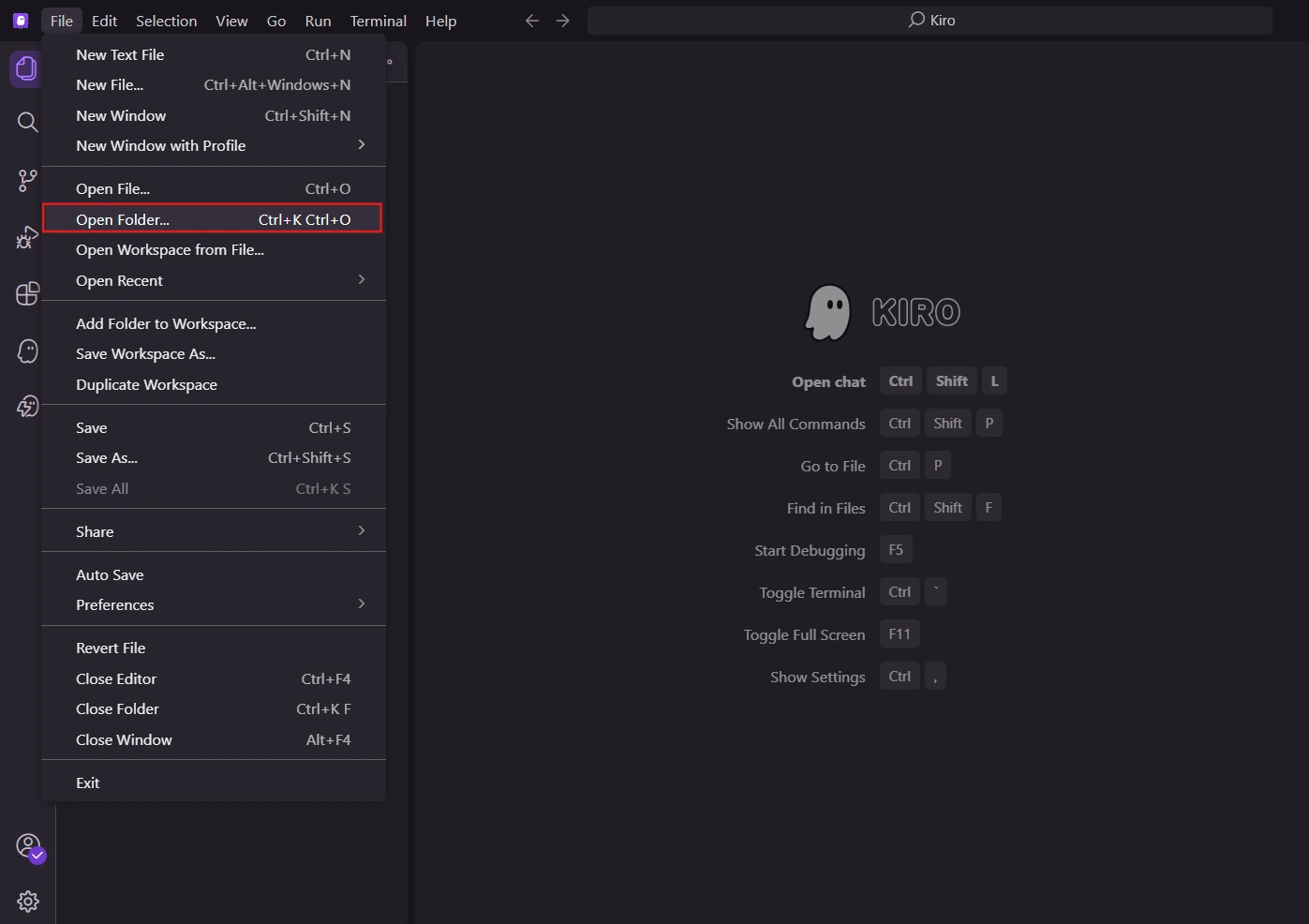

1. Open a project folder. Kiro requires an open project before its agent features activate. When Kiro launches, click Open a project on the Getting started screen (or click Open Folder in the Explorer panel on the left). You can open any existing folder or create a new empty one, it just needs to be open.

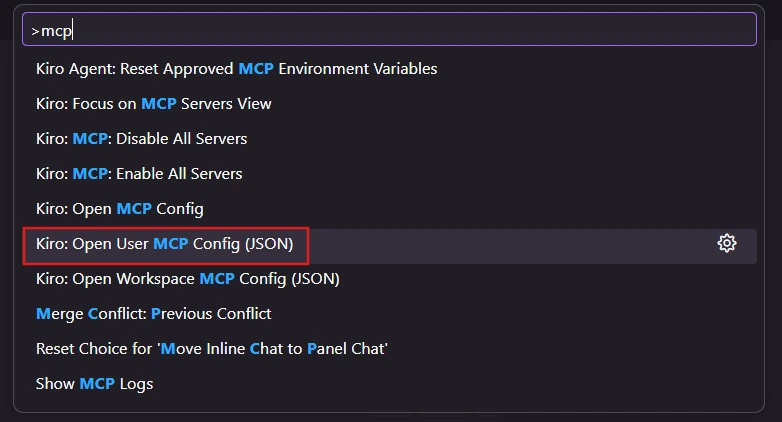

2. Open the MCP config file. Press Ctrl + Shift + P (Windows) or Cmd + Shift + P (Mac) to open the command palette. Type MCP and select Kiro: Open user MCP config (JSON). This opens the mcp.json file where you register MCP servers for Kiro.
3. Generate your Base64 credentials. Kiro authenticates with Connect AI using your email and PAT, encoded together as a single Base64 string. Open a terminal and run the command for your operating system. Replace [email protected] with your Connect AI login email and YourPAT with the PAT you created in Step 1.

   Windows (PowerShell):

   [Convert]::ToBase64String([Text.Encoding]::UTF8.GetBytes("[email protected]:YourPAT"))

   Mac/Linux (Terminal):

   echo -n "[email protected]:YourPAT" | base64

   Copy the output string. You will paste it into the config file in the next step.

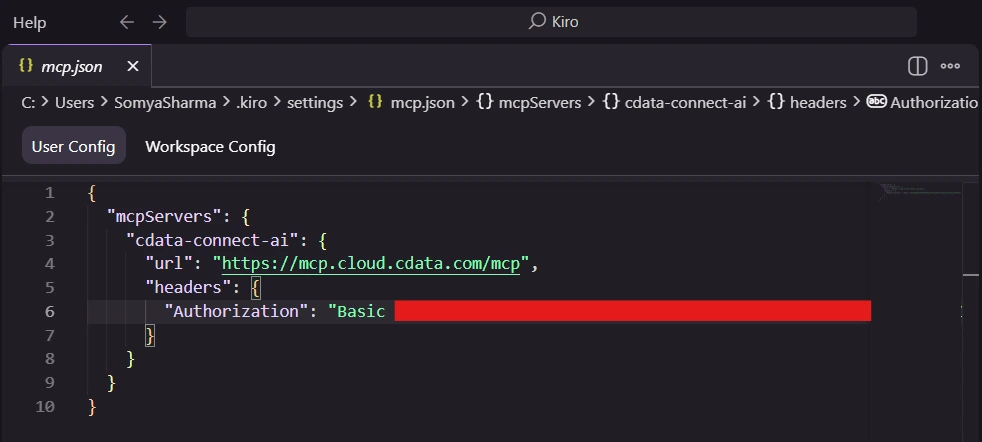

4. Add the Connect AI server to mcp.json. Paste the following block into your mcp.json file. Replace your_base64_string with the string you copied in the previous step:

   {
     "mcpServers": {
       "cdata-connect-ai": {
         "url": "https://mcp.cloud.cdata.com/mcp",
         "headers": {
           "Authorization": "Basic your_base64_string"
         }
       }
     }
   }


5. Save the file. Press Ctrl + S (Windows) or Cmd + S (Mac). Kiro picks up changes to mcp.json automatically, no restart is needed.

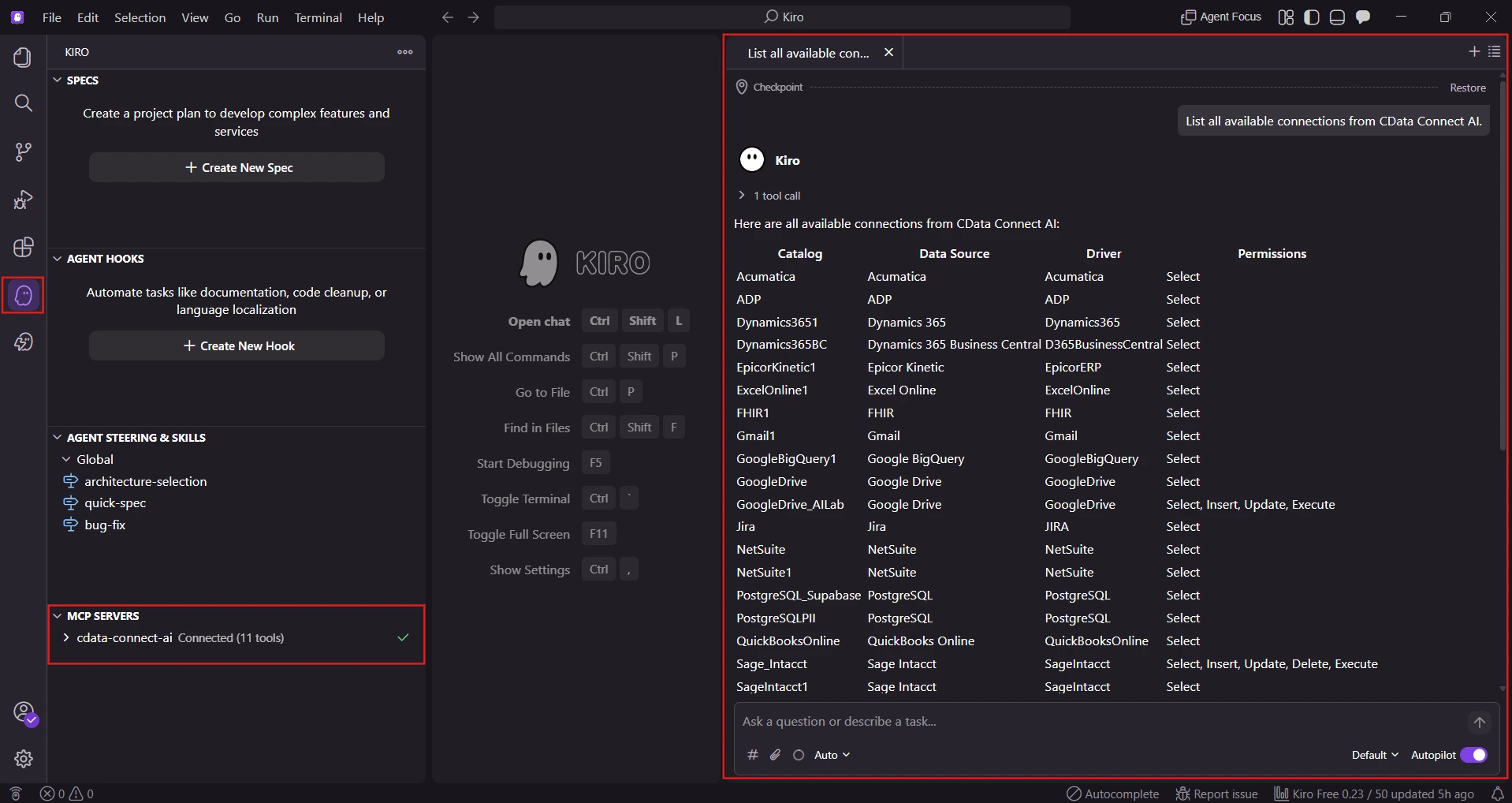

6. Verify the connection. Click the ghost icon in the left sidebar to open the Kiro panel. Under MCP SERVERS, you should see cdata-connect-ai with a green connected indicator. You can also confirm by typing the following in the Kiro chat panel:

   List all available connections from Connect AI.

   If your SAP ByDesign connection appears in the response, the MCP server is set up correctly and you are ready to query live data.



Step 3: Query Live SAP ByDesign Data from Kiro

With the MCP server registered and verified, Kiro agents can now access your live SAP ByDesign data directly in any session. Open the Kiro chat panel and use the following prompts to interact with your data.

The integration uses the following Connect AI MCP tools in sequence:

Open the Kiro chat panel and try the following prompts to interact with your SAP ByDesign data:

• "What tables are available in my SAP ByDesign connection?"
• "What are the top records in SAP ByDesign data ordered by revenue?"
• "List all active SAP ByDesign data and their current status."
• "Summarize SAP ByDesign data activity for this quarter."

Kiro automatically discovers all CData connections, selects the most relevant connection, discovers the schema, generates, and executes the appropriate SQL query, and returns live results directly in the chat.

Build real-time, data-aware applications with Kiro and CData

Kiro and CData Connect AI together enable intelligent, AI-driven development where natural language prompts are automatically translated into live data operations across enterprise systems, without ETL pipelines, data sync jobs, or custom integration logic. This streamlined approach delivers stronger governance, lower operational overhead, and faster, more grounded responses from AI-powered agents.

Start a free trial today to see how CData Connect AI can empower Kiro with live, secure access to hundreds of enterprise systems.
