Automated Continuous CData Connect AI Replication to Local Delimited Files

Always-on applications rely on automatic failover capabilities and real-time data access. CData Sync integrates live CData Connect AI data into local delimited files (CSV/TSV), allowing you to consolidate all of your data into a single location for archiving, reporting, analytics, machine learning, artificial intelligence and more.

Configure CSV/TSV as a Replication Destination

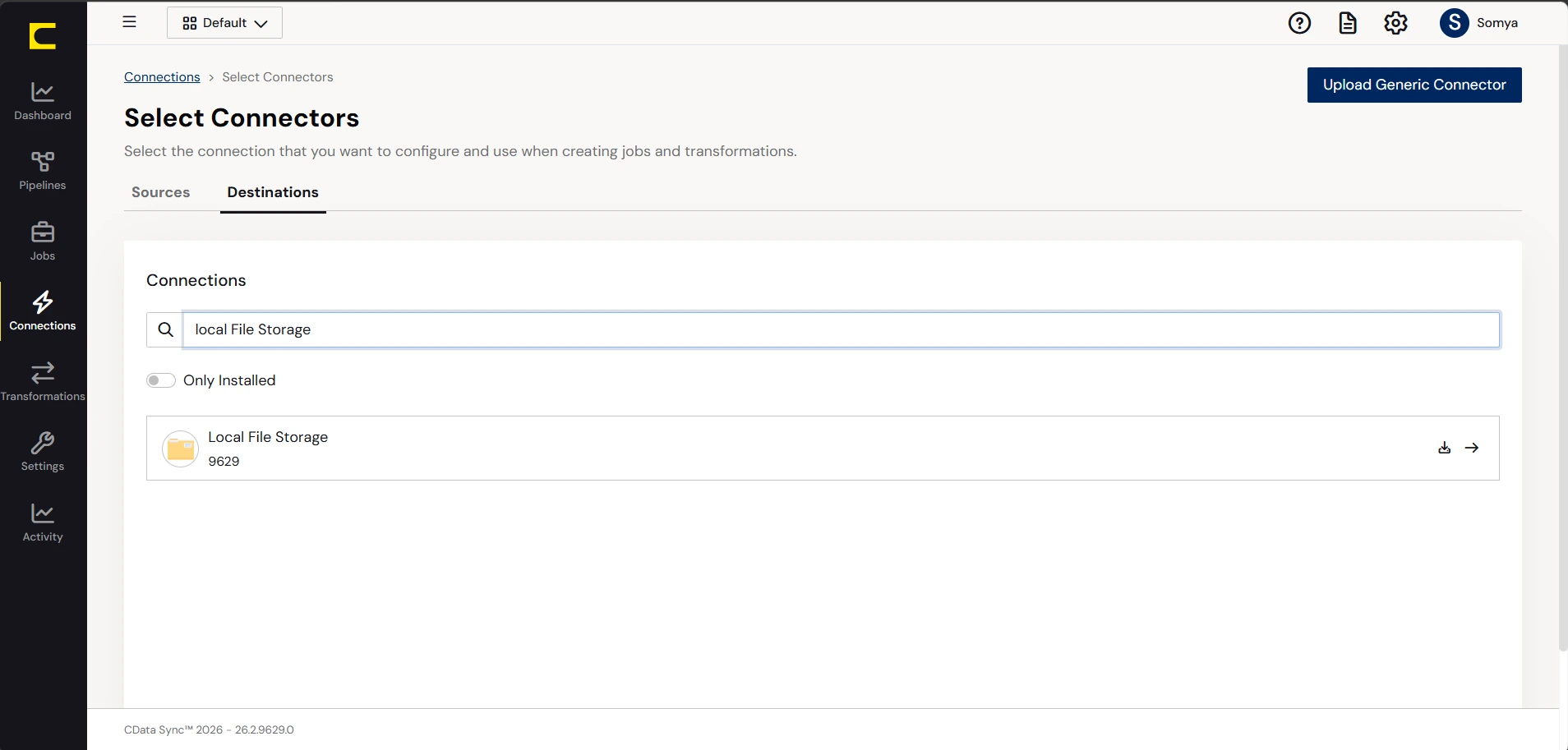

Using CData Sync, you can replicate CData Connect AI data to delimited files, like CSV or TSV. To add a replication destination, navigate to the Connections tab.

1. Click Add Connection.
2. Select CSV as a destination.

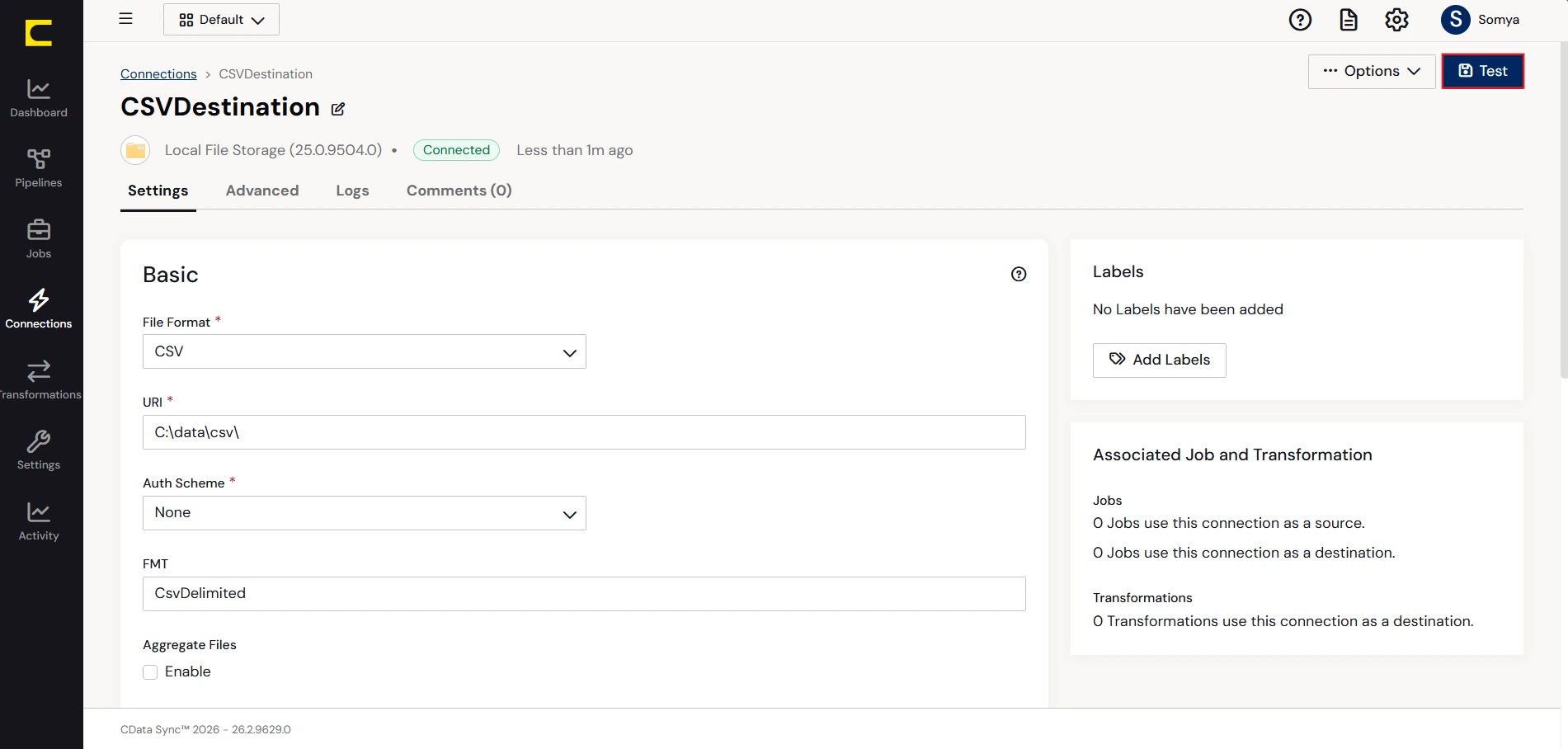

3. Enter the necessary connection properties. To connect to a directory for storing delimited files, set the following:
   • Destination Folder: Set this location on the disk for the delimited files.
   • Include Column Headers: Set this to True for the first row in each file to represent the column names.
4. Click Test Connection to ensure that the connection is configured properly.
5. Click Save Changes.

Configure the CData Connect AI Connection

You can configure a connection to CData Connect AI from the Connections tab. To add a connection to your CData Connect AI account, navigate to the Connections tab.

1. Click Add Connection.
2. Select a source (CData Connect AI).
3. Configure the connection properties.



   There are two ways to connect to Connect AI: OAuth authentication and Basic authentication.

   To connect to Connect AI using OAuth, set Auth Scheme to "OAuth." When the OAuth login page appears in your default web browser, log in to Connect AI to proceed.

   If you are unable to use browser-based OAuth authentication to connect to Connect AI, you can use Basic authentication. In this case, set Auth Scheme to "Basic,"" and then set the User and Personal Access Token for Connect AI.

   Connect to a Workspace

   To connect the JDBC client to a specific workspace, you specify the workspace name in the Advanced tab of the JDBC driver for Connect AI.


4. Click Connect to ensure that the connection is configured properly.
5. Click Save Changes.

Configure Replication Queries

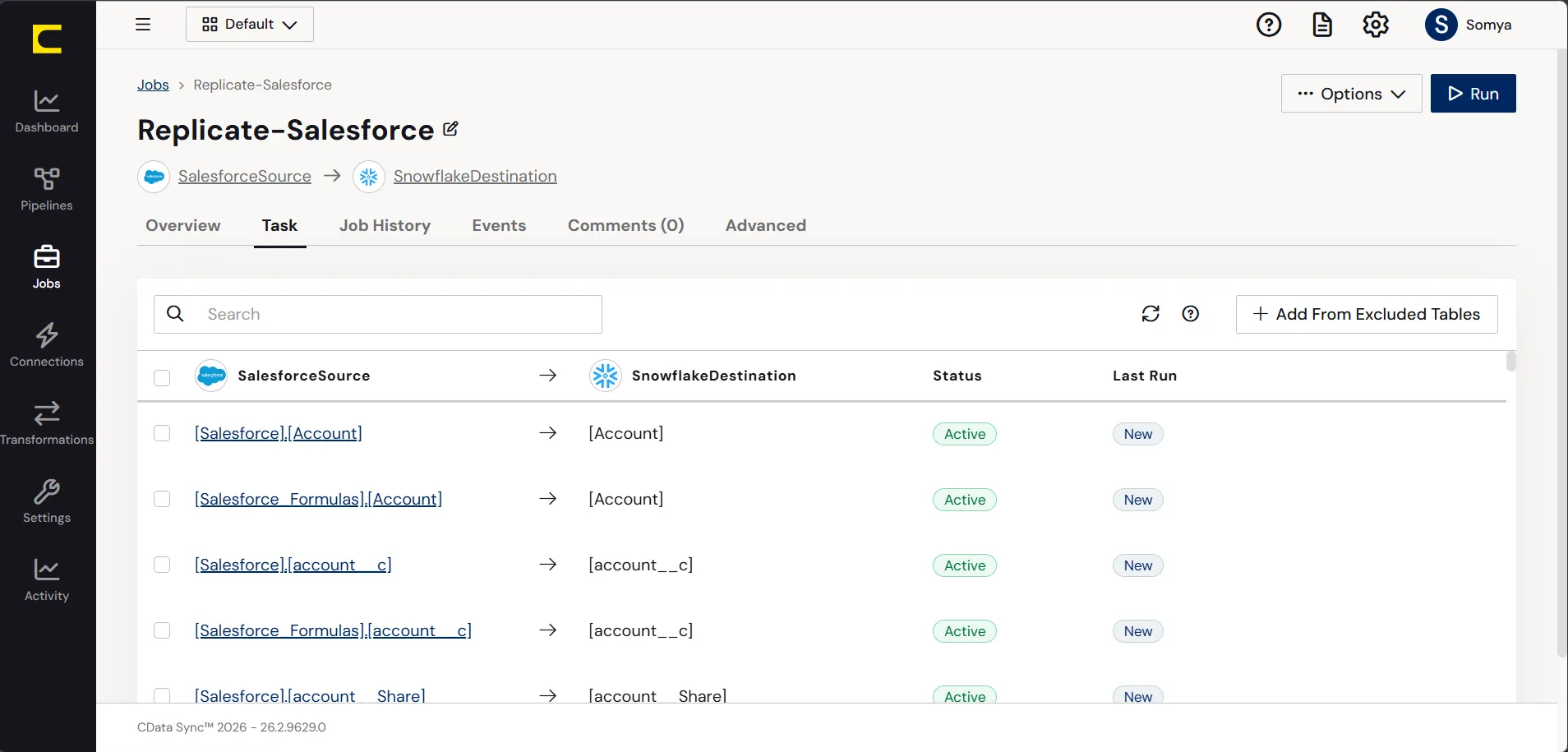

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab and click Add Job. Select the Source and Destination for your replication.

Replicate Entire Tables

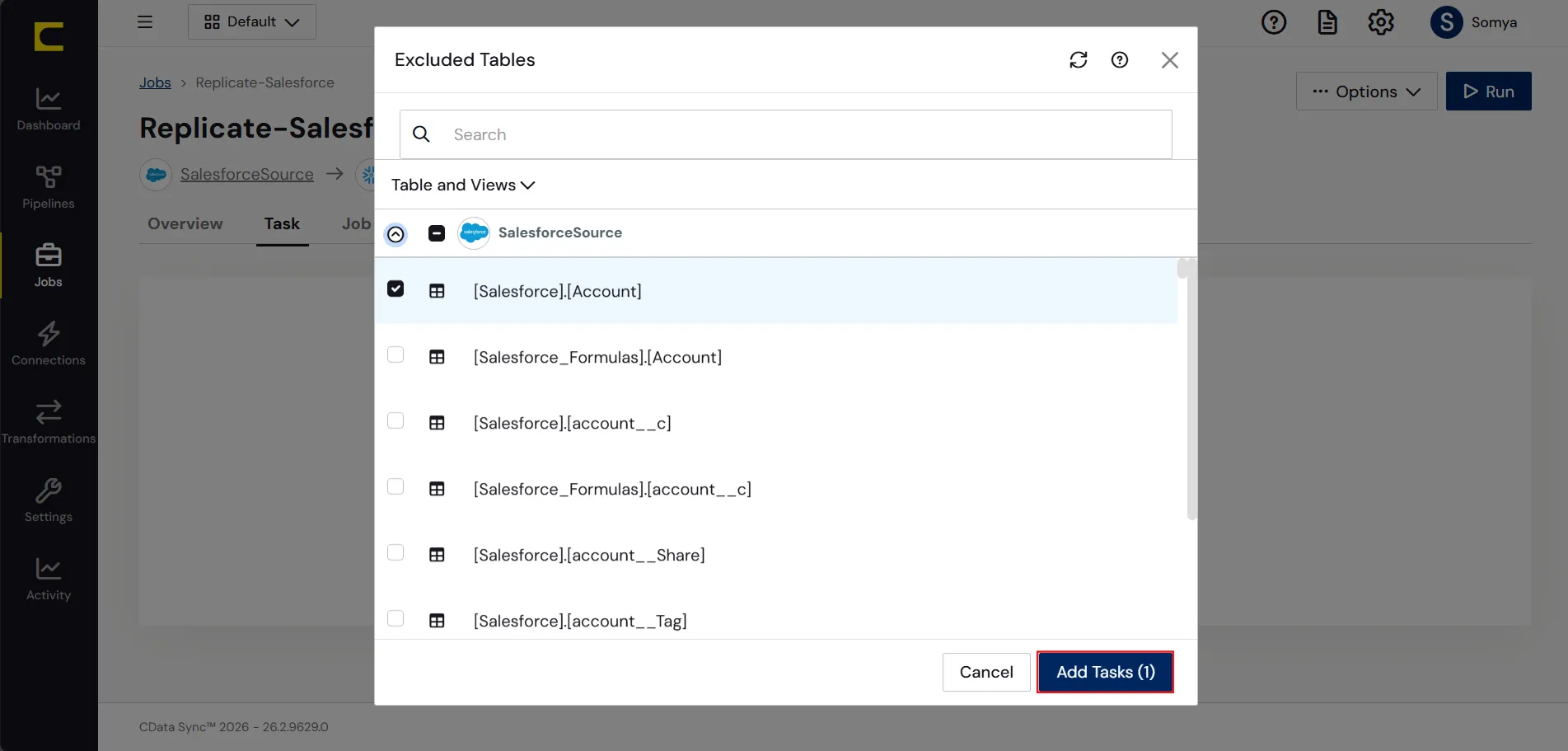

To replicate an entire table, click Add Tables in the Tables section, choose the table(s) you wish to replicate, and click Add Selected Tables.

Customize Your Replication

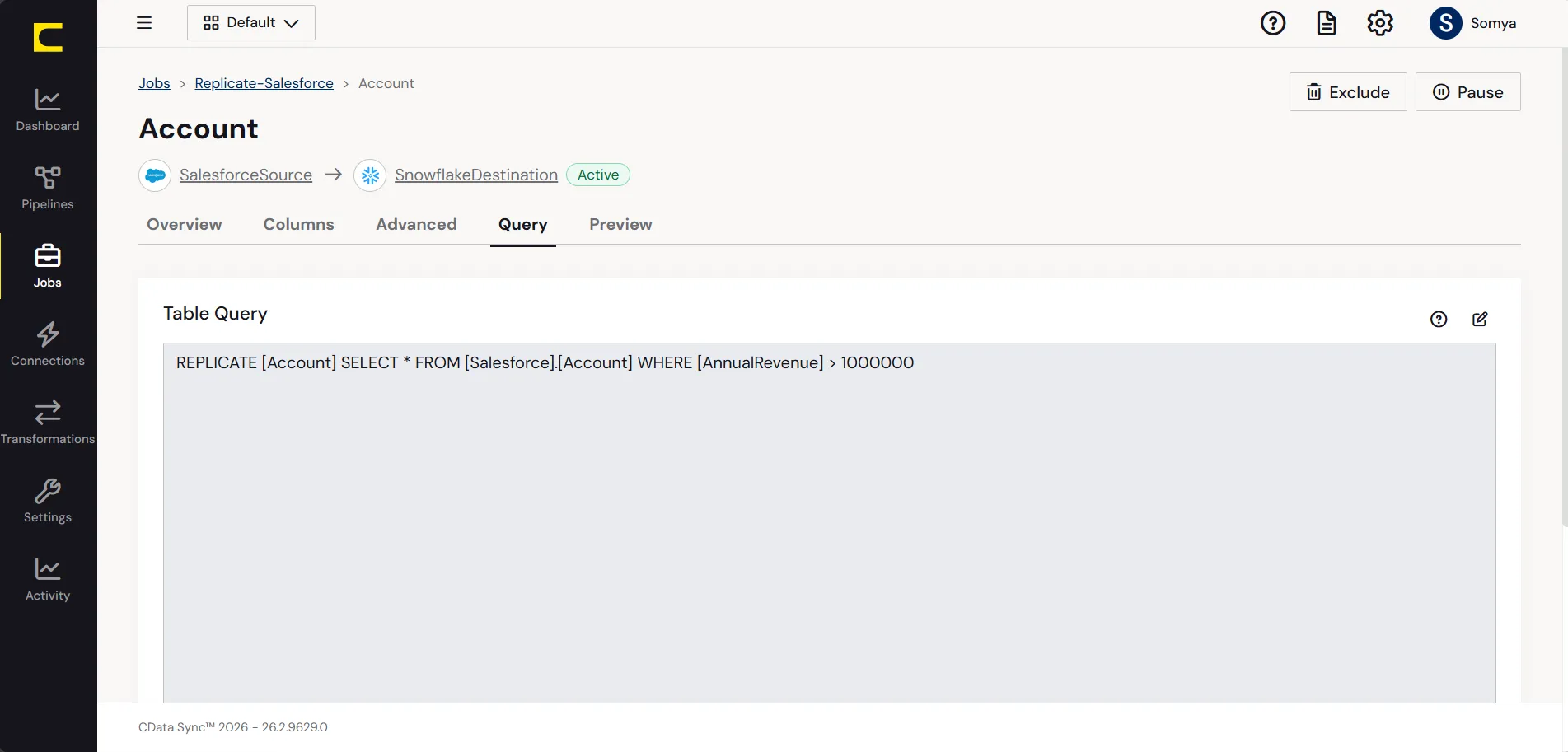

You can use the Columns and Query tabs of a task to customize your replication. The Columns tab allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. The Query tab allows you to add filters, grouping, and sorting to the replication.

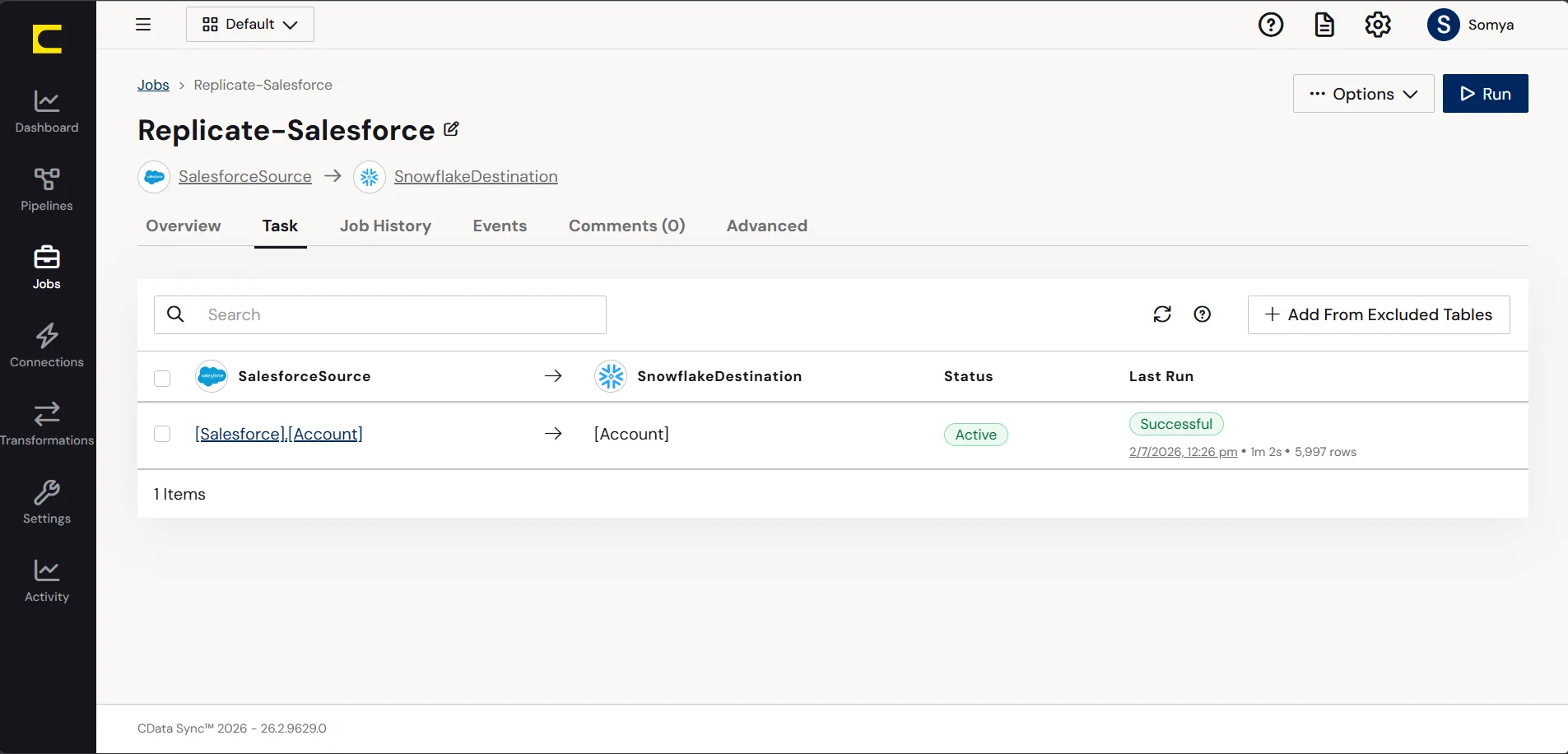

Schedule Your Replication

In the Schedule section, you can schedule a job to run automatically, configuring the job to run after specified intervals ranging from once every 10 minutes to once every month.

Once you have configured the replication job, click Save Changes. You can configure any number of jobs to manage the replication of your CData Connect AI data to delimited files.
