Use CData Sync for automated, continuous, customizable SAS xpt replication to MongoDB.

Always-on applications rely on automatic failover capabilities and real-time data access. CData Sync integrates live SAS xpt data into your MongoDB instance, allowing you to consolidate all of your data into a single location for archiving, reporting, analytics, machine learning, artificial intelligence and more.

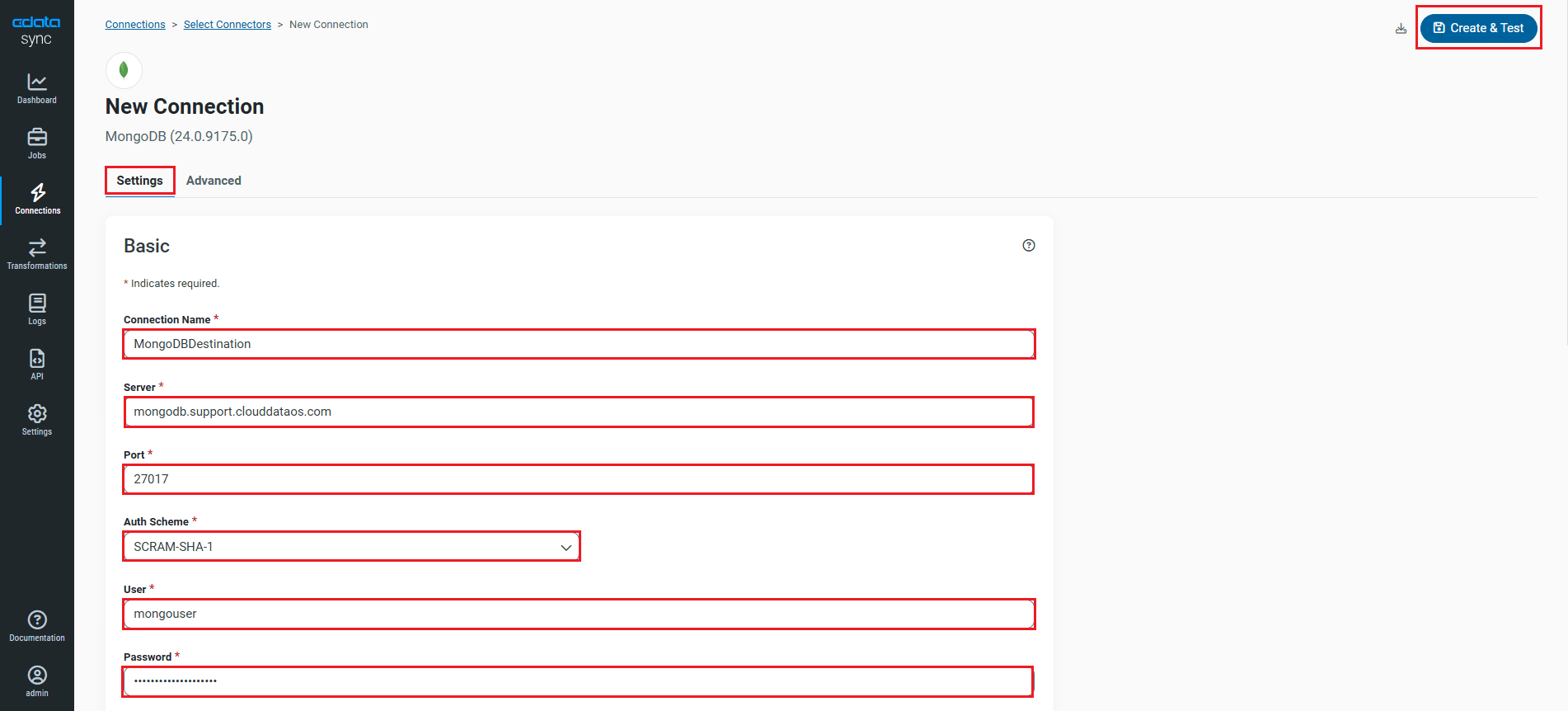

Configure MongoDB as a Replication Destination

Using CData Sync, you can replicate SAS xpt data to MongoDB. To add a replication destination, navigate to the Connections tab.

  1. Click Add Connection.
  2. Select MongoDB as a destination.
  3. Enter the necessary connection properties. To connect to MongoDB, set the following:
    • Server: Set this to the name or address of the server where your MongoDB instance is running. You can specify the port here or in Port.
    • Database: Set this to the database you want to read from and write to.

    Connecting to CosmosDB with the MongoDB API

    To obtain the connection string needed to connect to a Cosmos DB account using the MongoDB API, log in to the Azure Portal, select Azure Cosmos DB, and select your account. In the Settings section, click Connection String and set the following values.

    • Server: Set this to the Host value, the FQDN of the server provisioned for your account. You can also specify the port here or in Port.
    • Port: Set this to the port.
    • Database: Set this to the database you want to read from and write to.
    • User: Set this to the database user.
    • Password: Set this to the user's password.

  4. Click Test Connection to ensure that the connection is configured properly.
  5. Click Save Changes.

Configure the SAS xpt Connection

You can configure a connection to SAS xpt from the Connections tab. To add a connection to your SAS xpt account, navigate to the Connections tab.

  1. Click Add Connection.
  2. Select a source (SAS xpt).
  3. Configure the connection properties.

    Connecting to Local SASXpt Files

    You can connect to local SASXpt file by setting the URI to a folder containing SASXpt files.

    Connecting to S3 data source

    You can connect to Amazon S3 source to read SASXpt files. Set the following properties to connect:

    • URI: Set this to the folder within your bucket that you would like to connect to.
    • AWSAccessKey: Set this to your AWS account access key.
    • AWSSecretKey: Set this to your AWS account secret key.
    • TemporaryLocalFolder: Set this to the path, or URI, to the folder that is used to temporarily download SASXpt file(s).

    Connecting to Azure Data Lake Storage Gen2

    You can connect to ADLS Gen2 to read SASXpt files. Set the following properties to connect:

    • URI: Set this to the name of the file system and the name of the folder which contacts your SASXpt files.
    • AzureAccount: Set this to the name of the Azure Data Lake storage account.
    • AzureAccessKey: Set this to our Azure DataLakeStore Gen 2 storage account access key.
    • TemporaryLocalFolder: Set this to the path, or URI, to the folder that is used to temporarily download SASXpt file(s).

  4. Click Connect to ensure that the connection is configured properly.
  5. Click Save Changes.

Configure Replication Queries

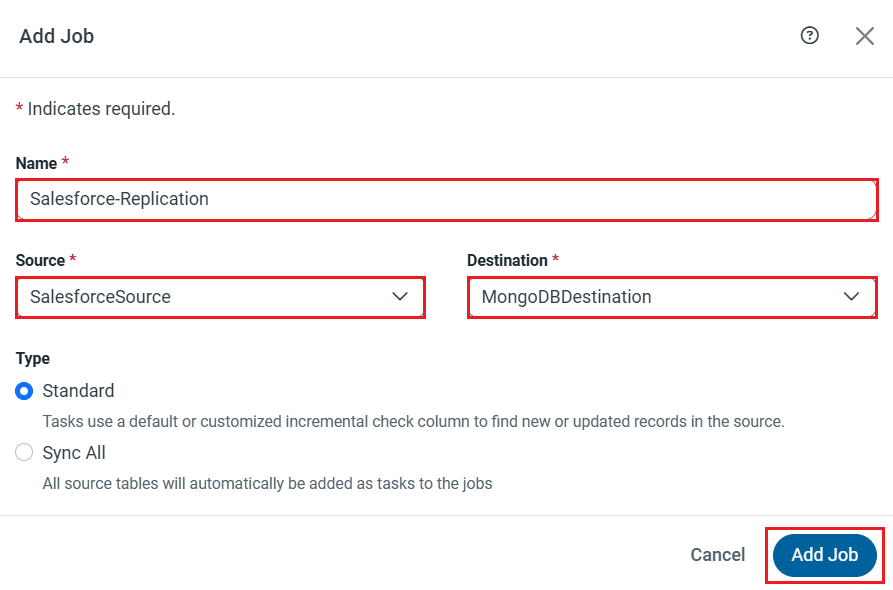

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab and click Add Job. Select the Source and Destination for your replication.

Replicate Entire Tables

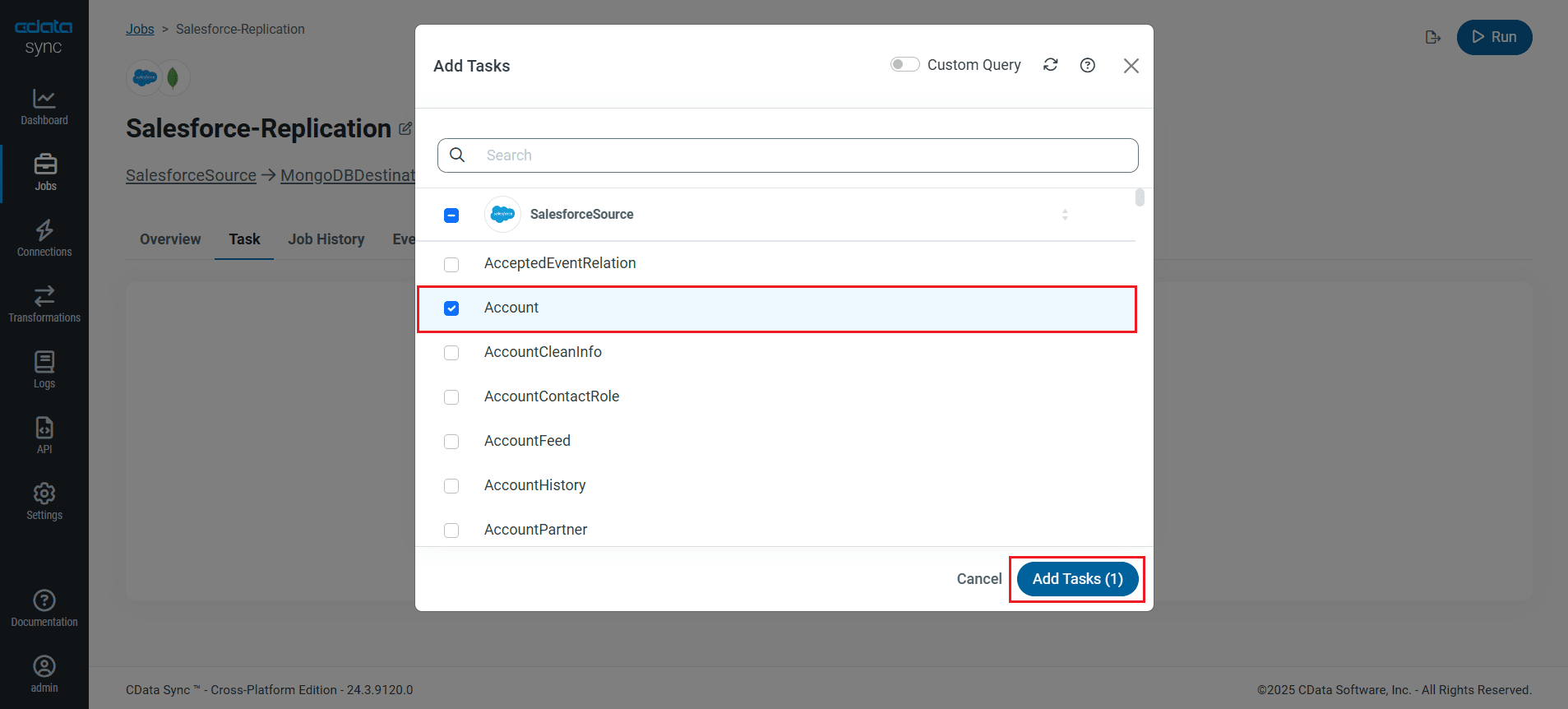

To replicate an entire table, click Add Tables in the Tables section, choose the table(s) you wish to replicate, and click Add Selected Tables.

Customize Your Replication

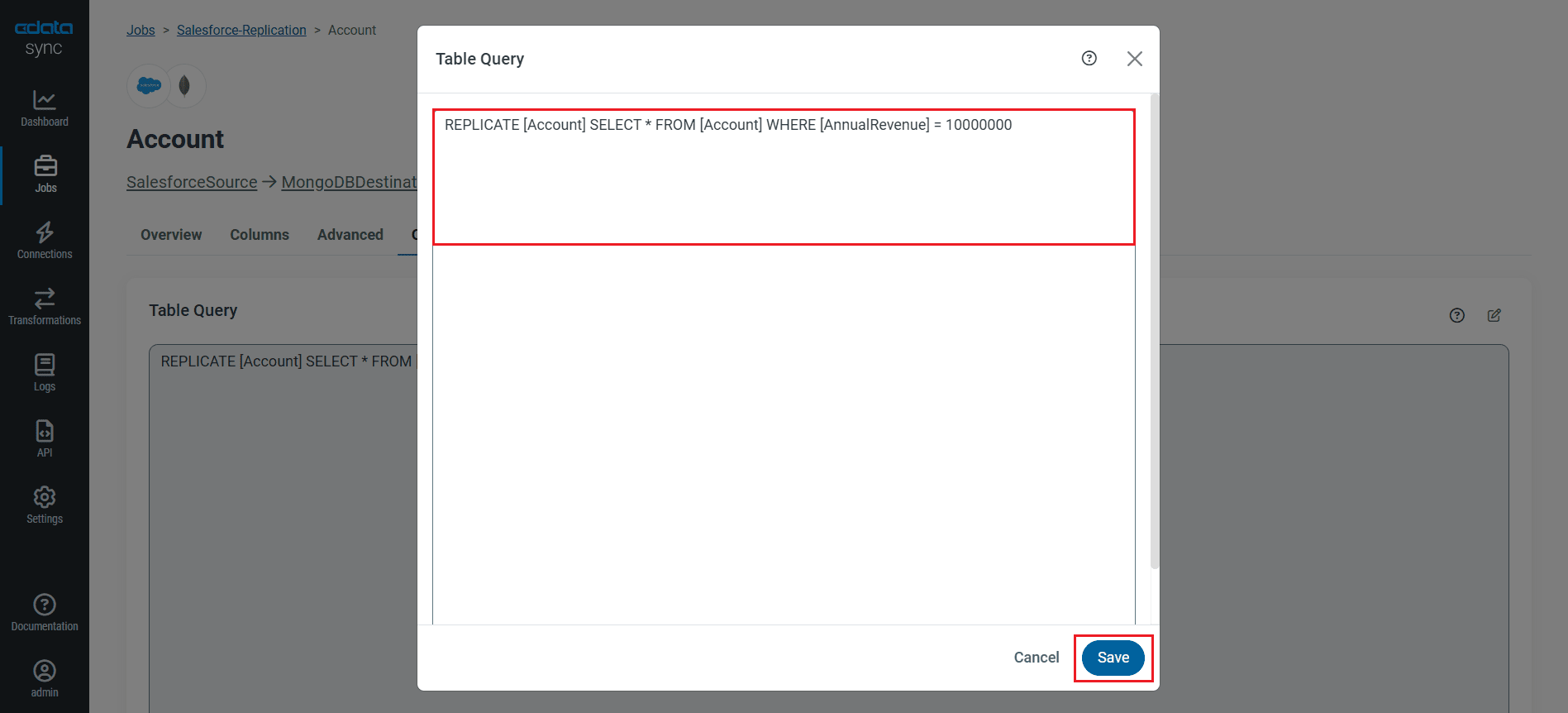

You can use the Transform feature to customize your replication. The Transform feature allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. To customize your replication, click the Transform button in the Tables section and customize the replication.

Schedule Your Replication

In the Schedule section, you can schedule a job to run automatically, configuring the job to run after specified intervals ranging from once every 15 minutes to once every month.

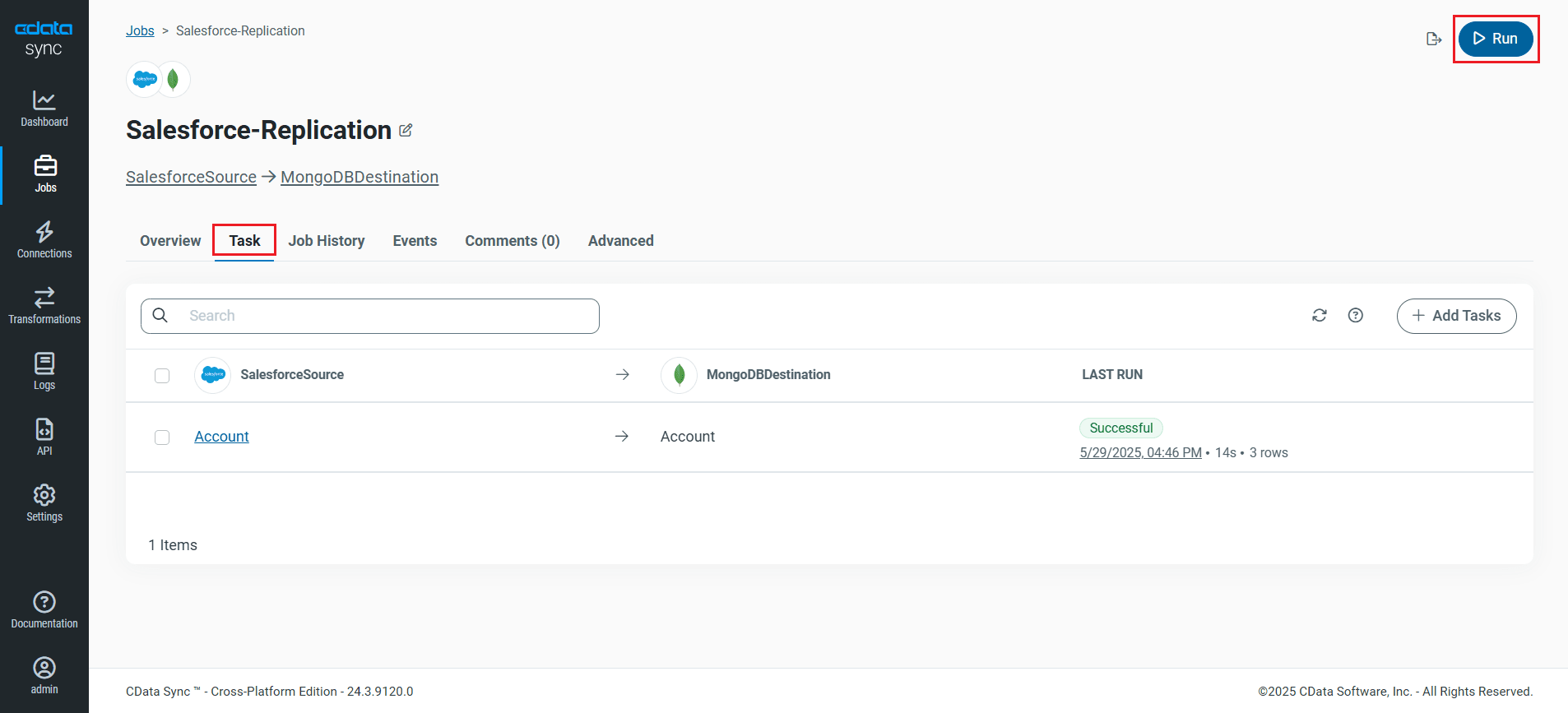

Once you have configured the replication job, click Save Changes. You can configure any number of jobs to manage the replication of your SAS xpt data to MongoDB.
