Create API-Connected Nintex Workflows

Nintex Workflow Cloud is a cloud-based platform where you can design workflows to automate simple or complex processes using drag-and-drop interactions — without writing any code. When paired with CData Connect Cloud, you get instant, cloud-to-cloud access to API data for business applications. This article shows how to create a virtual database for your API in Connect Cloud and build a simple workflow from API data in Nintex.

CData Connect Cloud provides a pure, cloud-to-cloud interface for your API, allowing you to build workflows from live API data in Nintex Workflow Cloud — without replicating the data to a natively supported database. Nintex allows you to access data directly using SQL queries. Using optimized data processing out of the box, CData Connect Cloud pushes all supported SQL operations (filters, JOINs, etc.) directly to your API, leveraging server-side processing to quickly return the requested API data.

Configure your API Connectivity for Nintex

Connectivity to your API from Nintex is made possible through CData Connect Cloud. To work with API data from Nintex, we start by creating and configuring a your API connection.

1. Log into Connect Cloud, click Connections and click Add Connection
2. Select "API" from the Add Connection panel
3. Enter the necessary authentication properties to connect to your API.

   To connect to your API, configure the following properties on the Global Settings page:

   • In Authentication, select the Type and fill in the required properties
   • In Headers, add the required HTTP headers for your API
   • In Pagination, select the Type and fill in the required properties

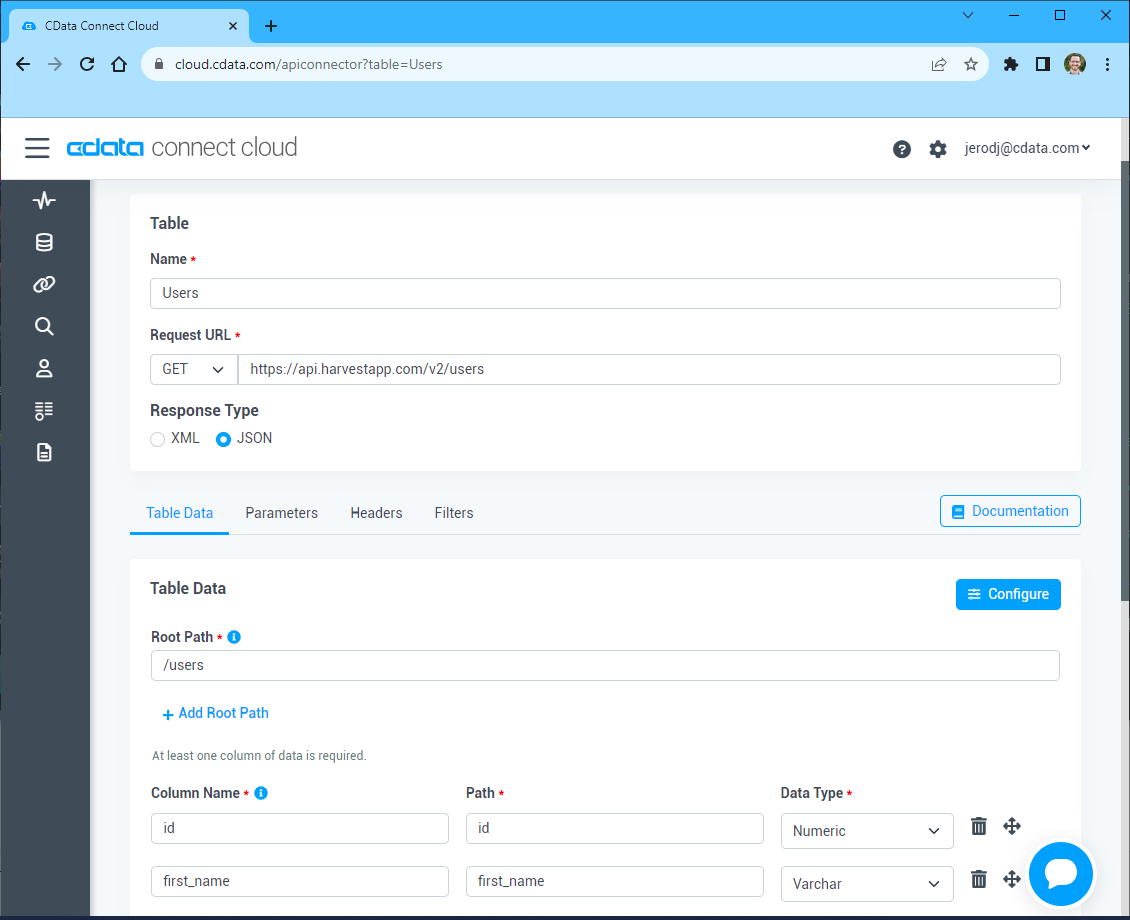

   After the configuring the global settings, navigate to the Tables to add tables. For each table you wish to add:

   1. Click "+ Add"
   2. Set the Name for the table
   3. Set Request URL to the API endpoint you wish to work with
   4. (Optional) In Parameters, add the required URL Parameters for your API endpoint
   5. (Optional) In Headers, add the required HTTP headers for the API endpoint
   6. In Table Data click " Configure"

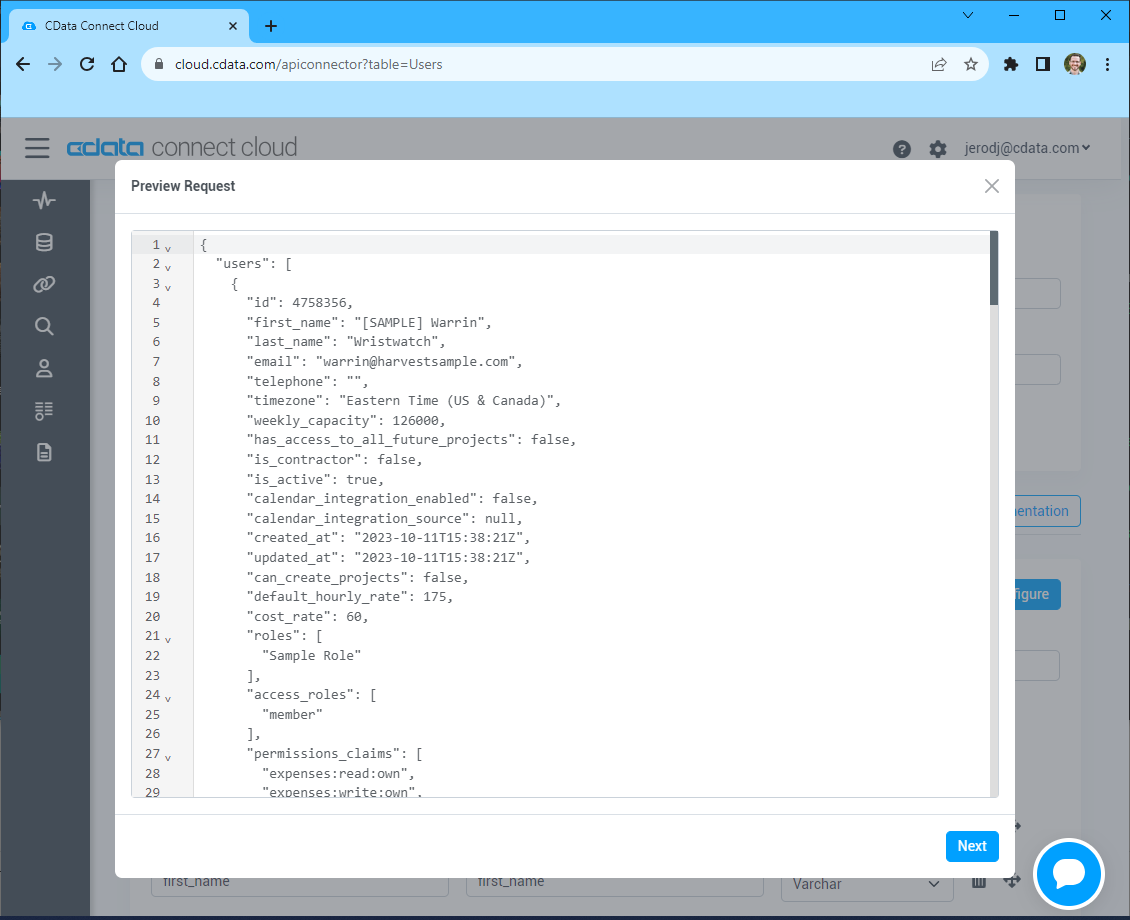

   7. Review the response from the API and click "Next"

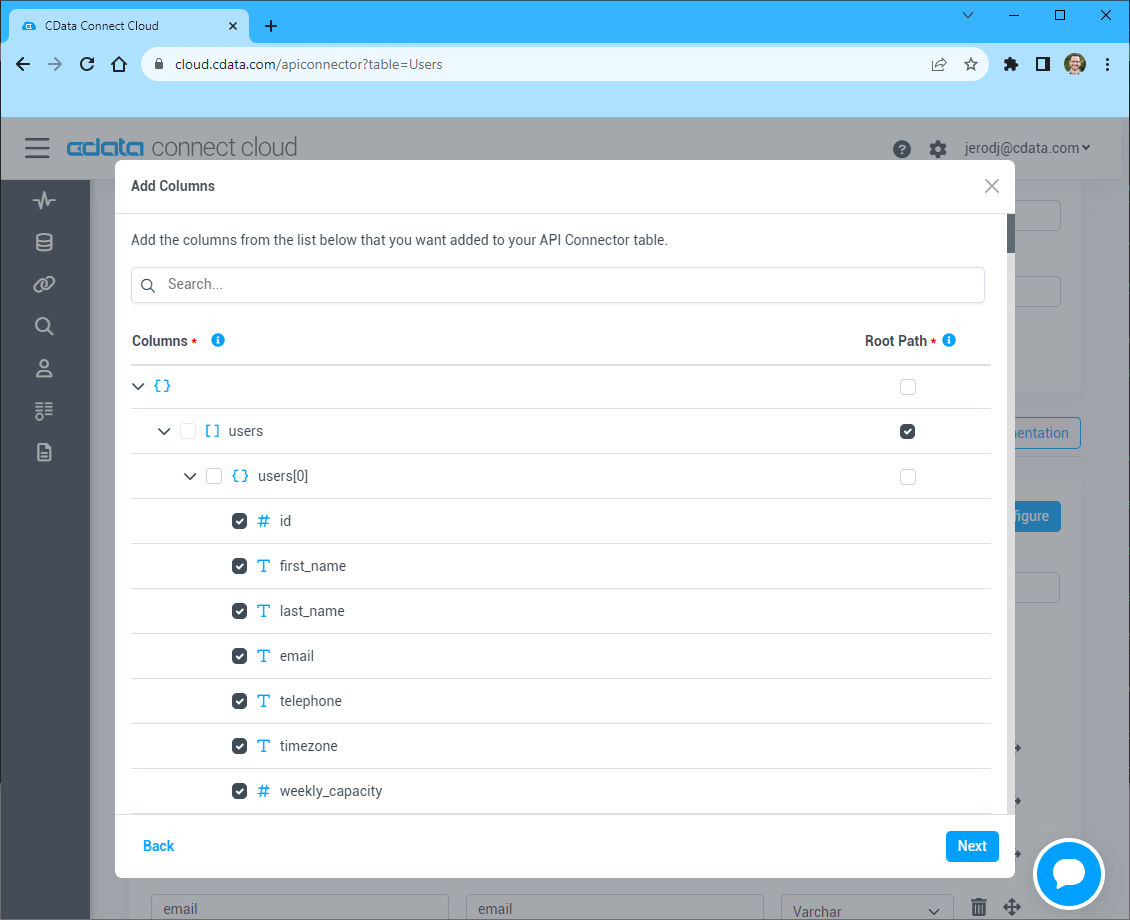

   8. Select which element to use as the Repeated Elements and which elements to use as Columns and click "Next"

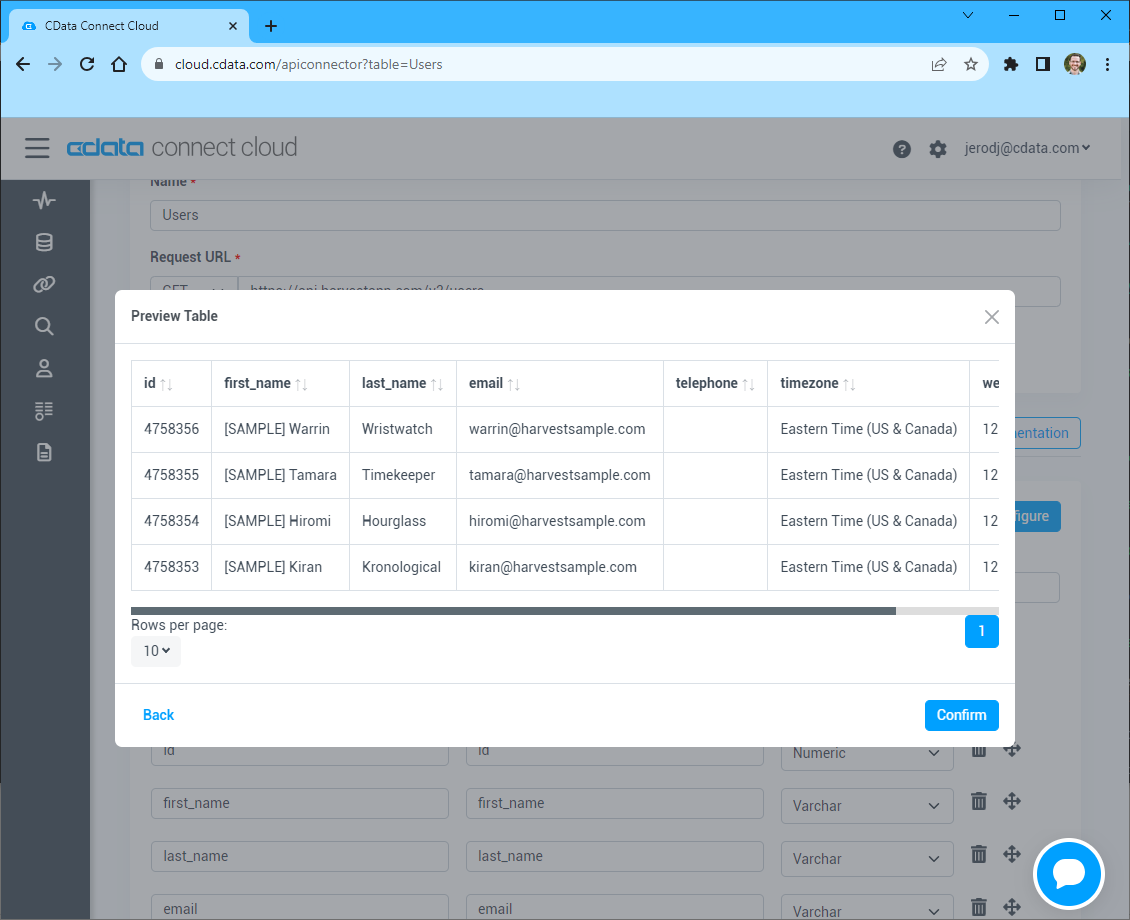

   9. Preview the tabular model of the API response and click "Confirm"
4. Click Create & Test
5. Navigate to the Permissions tab in the Add your API Connection page and update the User-based permissions.

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile.
2. On the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT.
3. Give your PAT a name and click Create.
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use.

With the connection configured, you are ready to connect to API data from Nintex Workflow Cloud.

Connect to your API from Nintex

The steps below outline creating a new connection to API data from Nintex (via Connect Cloud).

1. Log into Nintex Workflow Cloud
2. In the Connections tab, click "Add new"
3. Select "Microsoft SQL Server" as the connector and click "Connect"
4. In the SQL Server connection wizard, set the following properties:
   • Connection Name: a Connect Cloud
   • Username: a Connect Cloud username (e.g. user@mydomain.com)
   • Password: the Connect Cloud user's PAT
   • Database Host: tds.cdata.com
   • Database Name: the your API connection (a.g., API1)
5. Click "Connect"
6. Configure the connection permissions and click "Save permissions"

Create a Simple your API Workflow

With the connection to CData Connect Cloud configured, we are ready to build a simple workflow to access API data. Start by clicking the "Create workflow" button.

Configure the Start Event Action

1. Click the start event task and select the "Form" event
2. Click "Design form"
3. Drag a "Text - Long" element onto the Form and click the element to configure it
   • Set "Title" to "Enter SQL query"
   • Set "Required" to true
4. Drag a "Text - Short" element onto the Form and click the element to configure it
   • Set "Title" to "Enter desired result column"
   • Set "Required" to true

Configure an "Execute a Query" Action

1. Add an "Execute a query" action after the "Start event: Form" action and click to configure the action
2. Set "SQL Script" to the "Enter SQL Query" variable from the "Start event" action
3. Set "Column to retrieve" to the "Enter desired result column" variable from the "Start event" action
4. Set "Retrieved column" to a new variable (a.g., "values")

Configure a "Send an Email" Action

1. Add a "Send an email" action after the "Execute a query" action and click to configure the action
2. Set the "Recipient email address"
3. Set the "Subject"
4. Set the "Message body" to the variable created for the retrieved column

Once you configure the actions, click "Save," name the Workflow, and click "Save" again. You now have a simple workflow that will query your API using SQL and sand an email with the results.
