Connect to Calendly Data in Claris FileMaker Pro

Claris FileMaker is a low-code database application development tool that allows users to create custom apps for managing and organizing data. It combines a powerful relational database engine with an intuitive interface, enabling both technical and non-technical users to design and deploy applications across desktop, web, and mobile platforms.

In this article, we'll explore how to use the CData API Driver for ODBC in FileMaker to connect to Calendly data.

Create an ODBC Data Source for Calendly

If you have not already, first specify connection properties in an ODBC DSN (data source name). This is the last step of the driver installation. You can use the Microsoft ODBC Data Source Administrator to create and configure ODBC DSNs.

Start by setting the Profile connection property to the location of the Calendly Profile on disk (e.g. C:\profiles\CalendlyProfile.apip). Next, set the ProfileSettings connection property to the connection string for Calendly (see below).

Calendly API Profile Settings

To authenticate to Calendly, provide an API Key. The Calendly API Key, can be found in your Calendly account, under 'Integrations' > 'API & Webhooks' > 'Generate New Token'. Set the APIKey in the ProfileSettings connection property.

When you configure the DSN, you may also want to set the Max Rows connection property. This will limit the number of rows returned, which is especially helpful for improving performance when designing reports and visualizations.

Connect and sync Calendly data with FileMaker using the CData API Driver for ODBC

Once you configure the CData API Driver for ODBC, you can connect to live Calendly data in FileMaker and use it in your applications. In this section, we'll walk through the steps to connect live Calendly data to FileMaker.

You can download and install the latest version of FileMaker Pro for your Mac/Windows/Linux systems here: https://www.claris.com/resources/downloads/.

Importing Calendly data using FileMaker's ODBC Import Function

Follow the steps below to easily import Calendly data using the ODBC import feature:

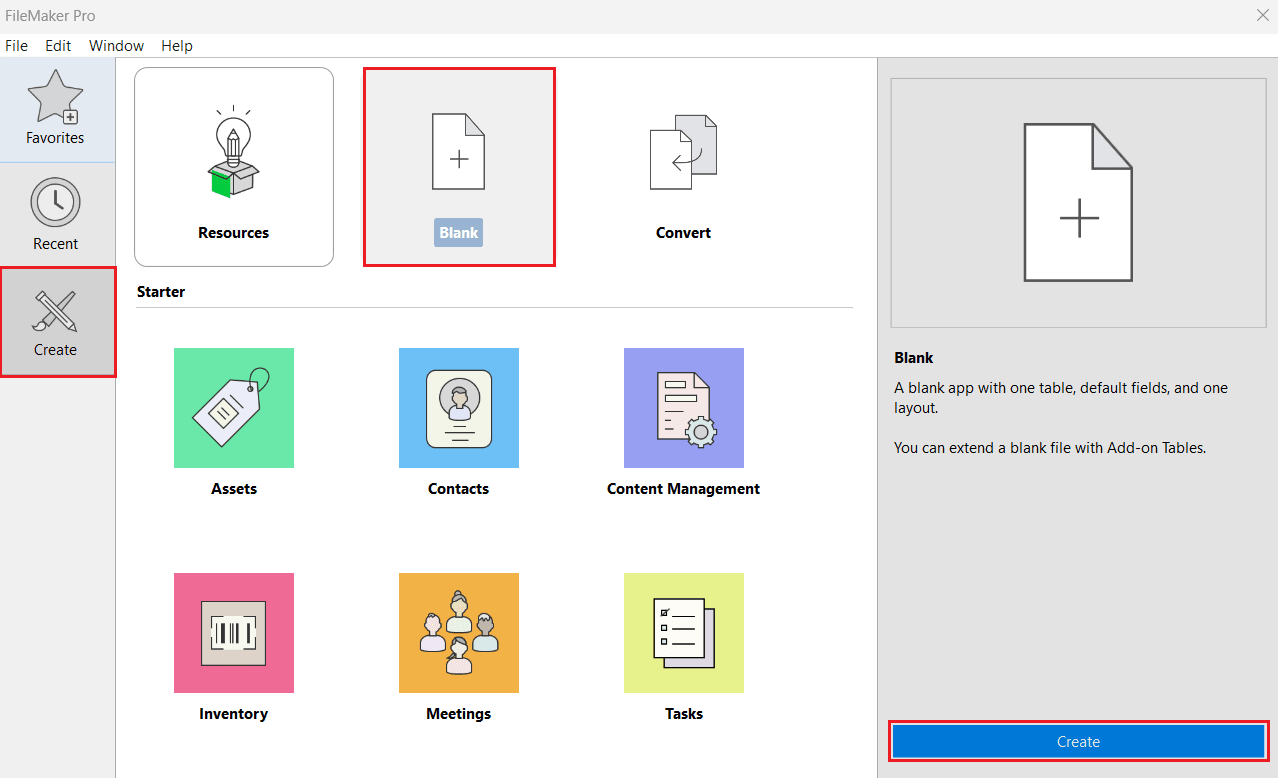

1. Open FileMaker Pro. Navigate to Create from the left panel and select Blank > Create.

2. Enter a desired filename and click Save.

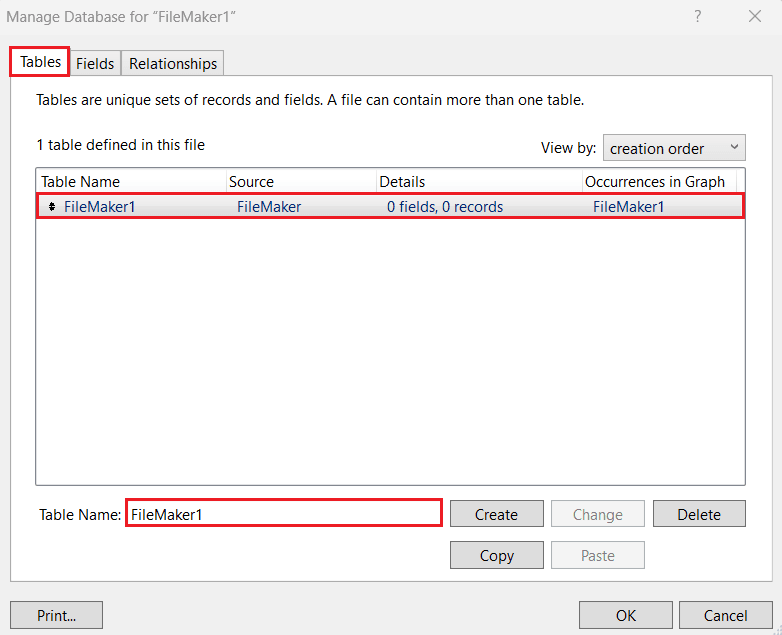

3. In the Manage Database window, go to the Tables tab and create or rename the table where you want to display Calendly data.

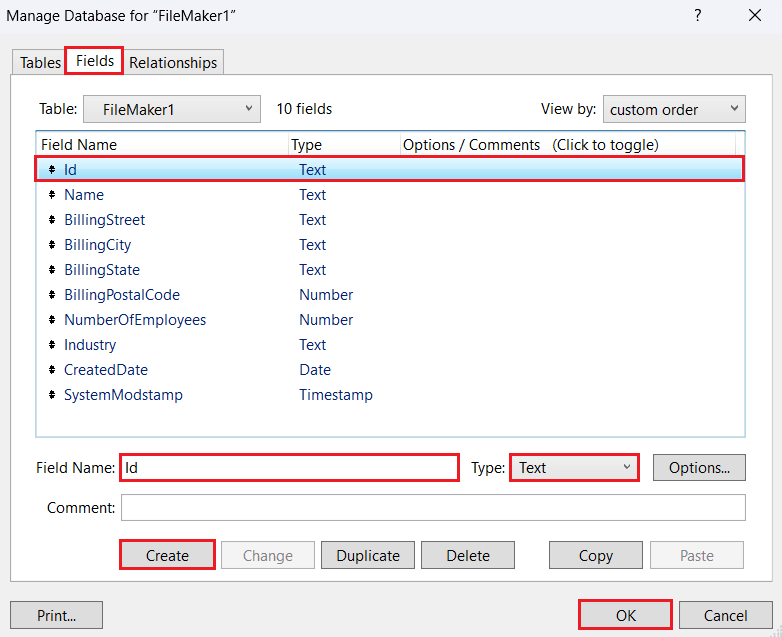

4. In the Fields tab, add the required fields to the table.

5. In the Relationships tab, define table relationships if your database has multiple tables, then click OK.
6. To reopen and modify the table structure later, go to File > Manage > Database.

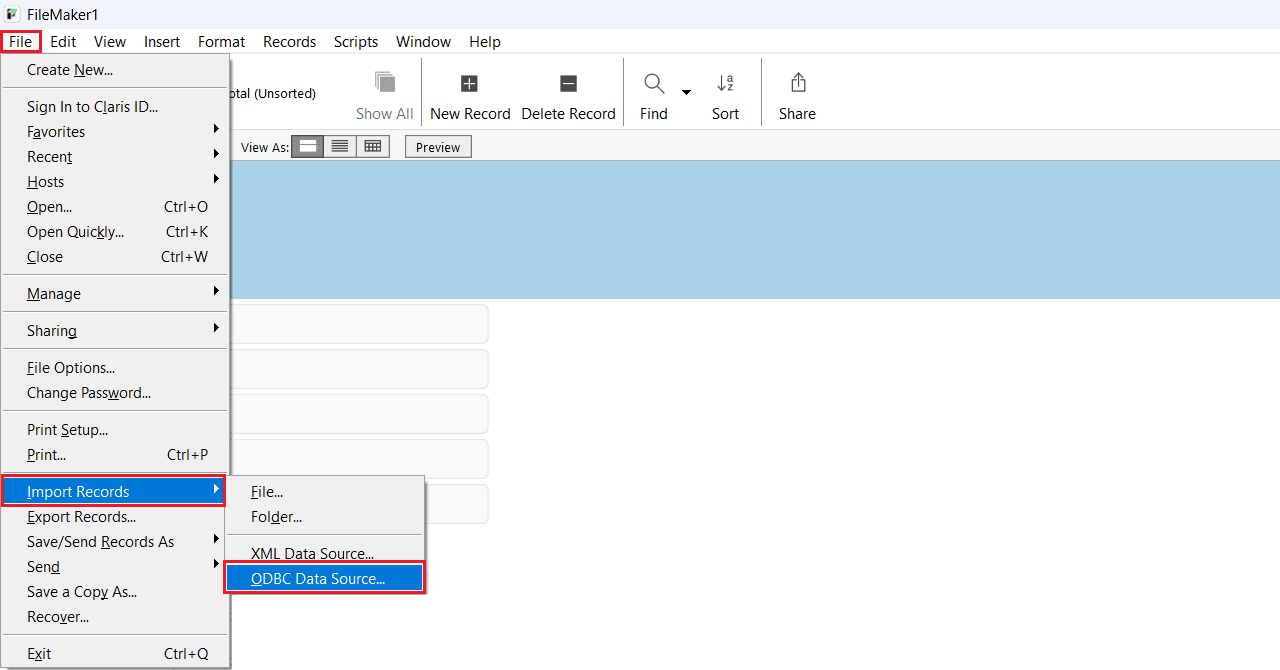

7. To import Calendly data via the CData API Driver for ODBC, navigate to File > Import Records > ODBC Data Source.

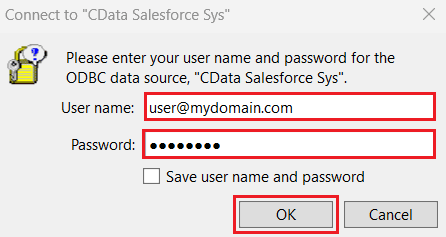

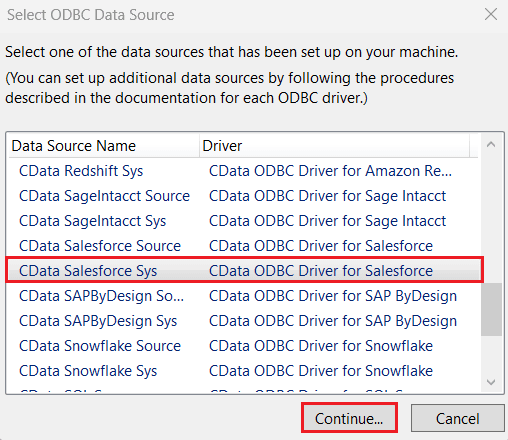

8. In the Select ODBC Data Source window, choose CData API Driver for ODBC and click Create. Enter your Calendly username and password, then click OK.

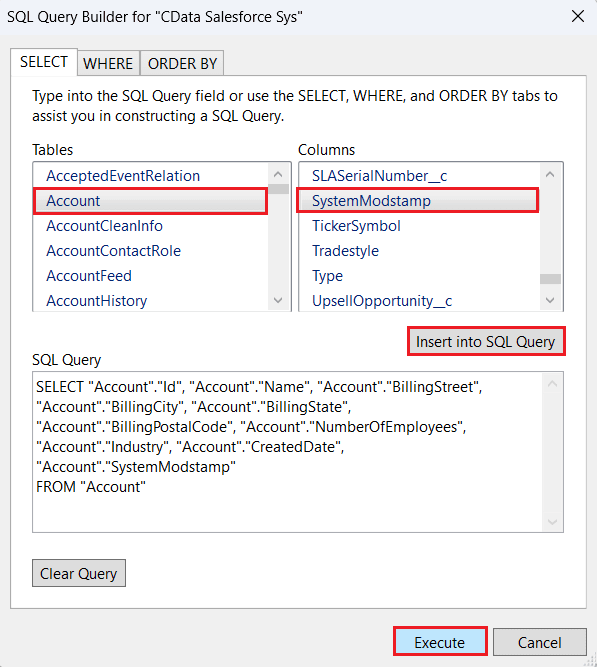

9. In the SQL Query Builder window, select the desired table from the Tables section and choose the relevant columns from the Columns section. Click Insert into SQL Query after each selection to automatically generate a query that retrieves data from Calendly. You can also manually edit the query using WHERE and ORDER BY clauses or use the tabs provided in the SQL Query Builder. Click Execute to run the query.

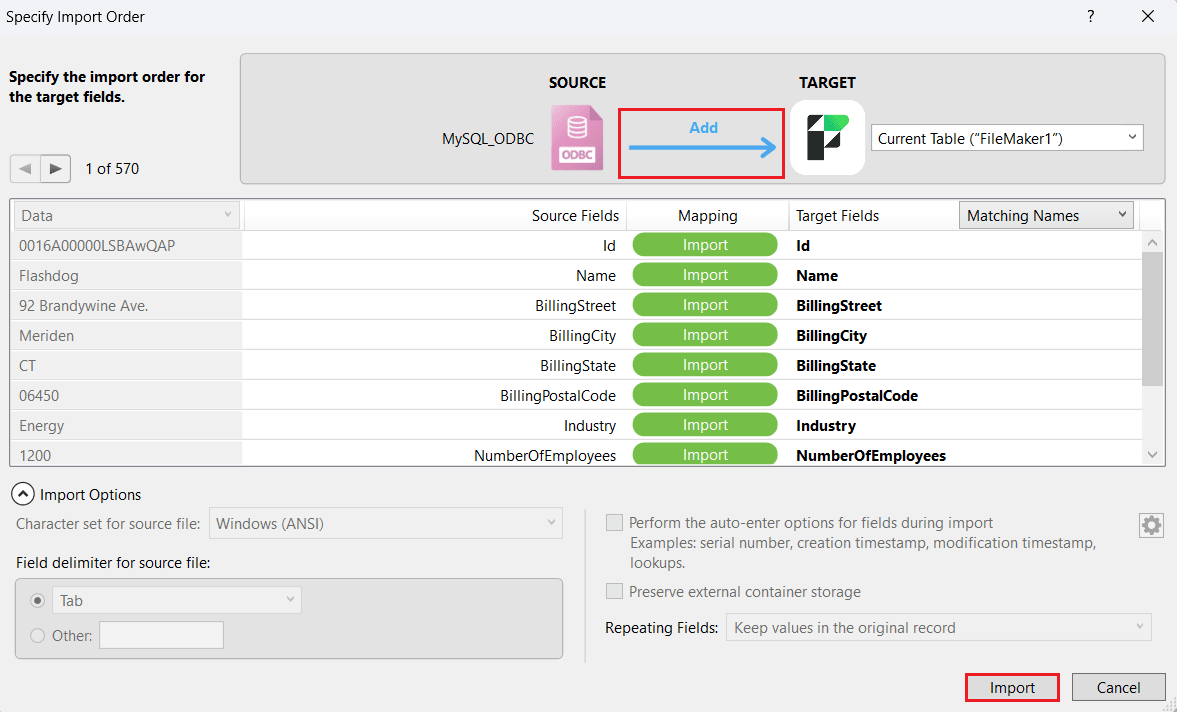

10. In the Specify Import Order window, define the import order for the target fields. Select Add between source and target to add new records to the target table from the selected fields. Click Import.

You have now successfully imported Calendly data into FileMaker Pro using the CData API Driver for ODBC. To perform incremental updates, change the import order to "Update" or use "Replace" based on your use case.

Process Calendly data at design time

You can sort and aggregate data, as well as calculate summary functions while browsing tables. To manipulate the view of data at design time, complete the following steps:

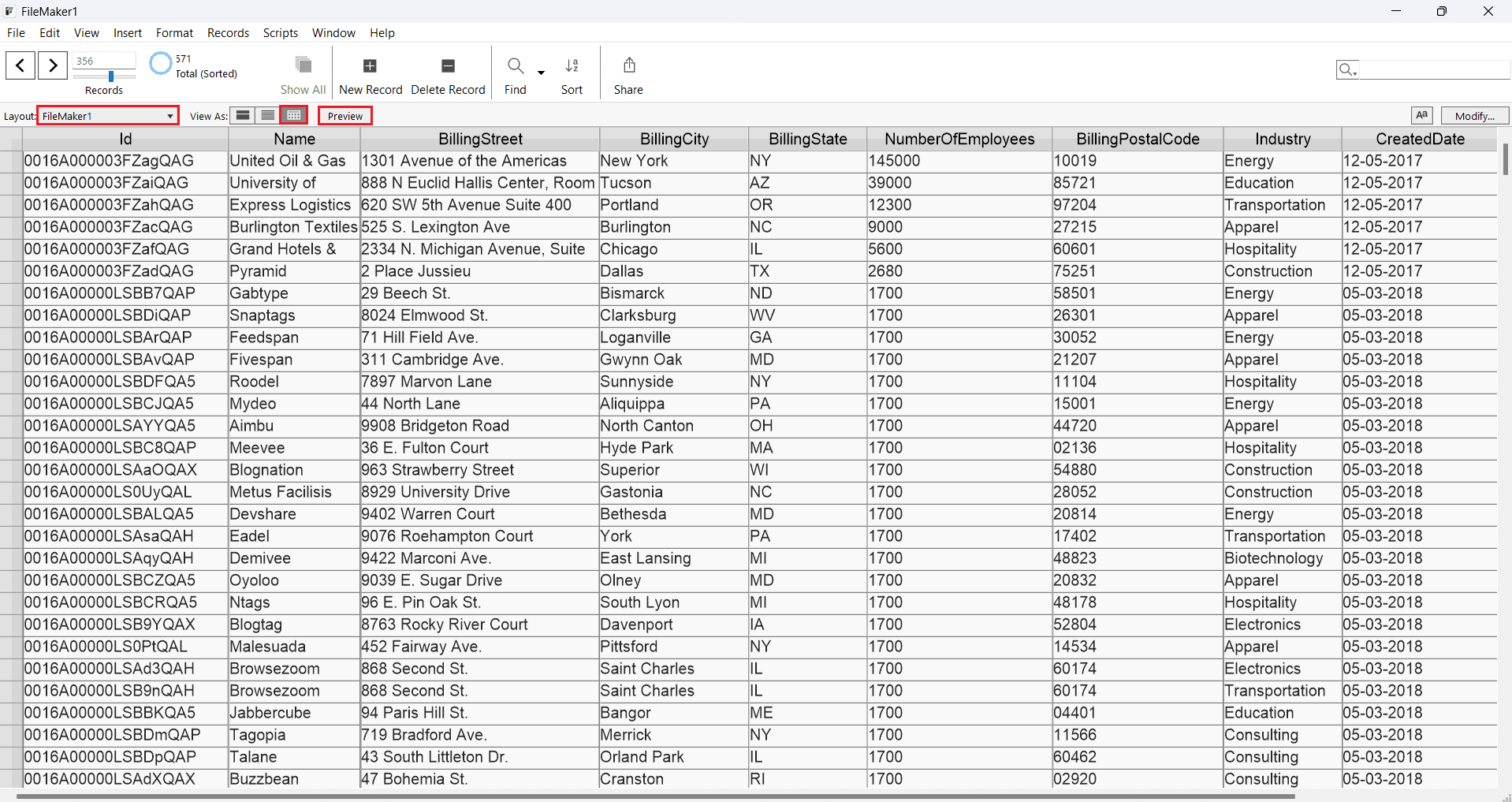

• Switch to Preview Mode: Click the Preview at the top to check how the Calendly data with look before you print it.
• Switch to Table View: Click the table icon in the View As menu in the main toolbar of the application.

Aggregate and summarize

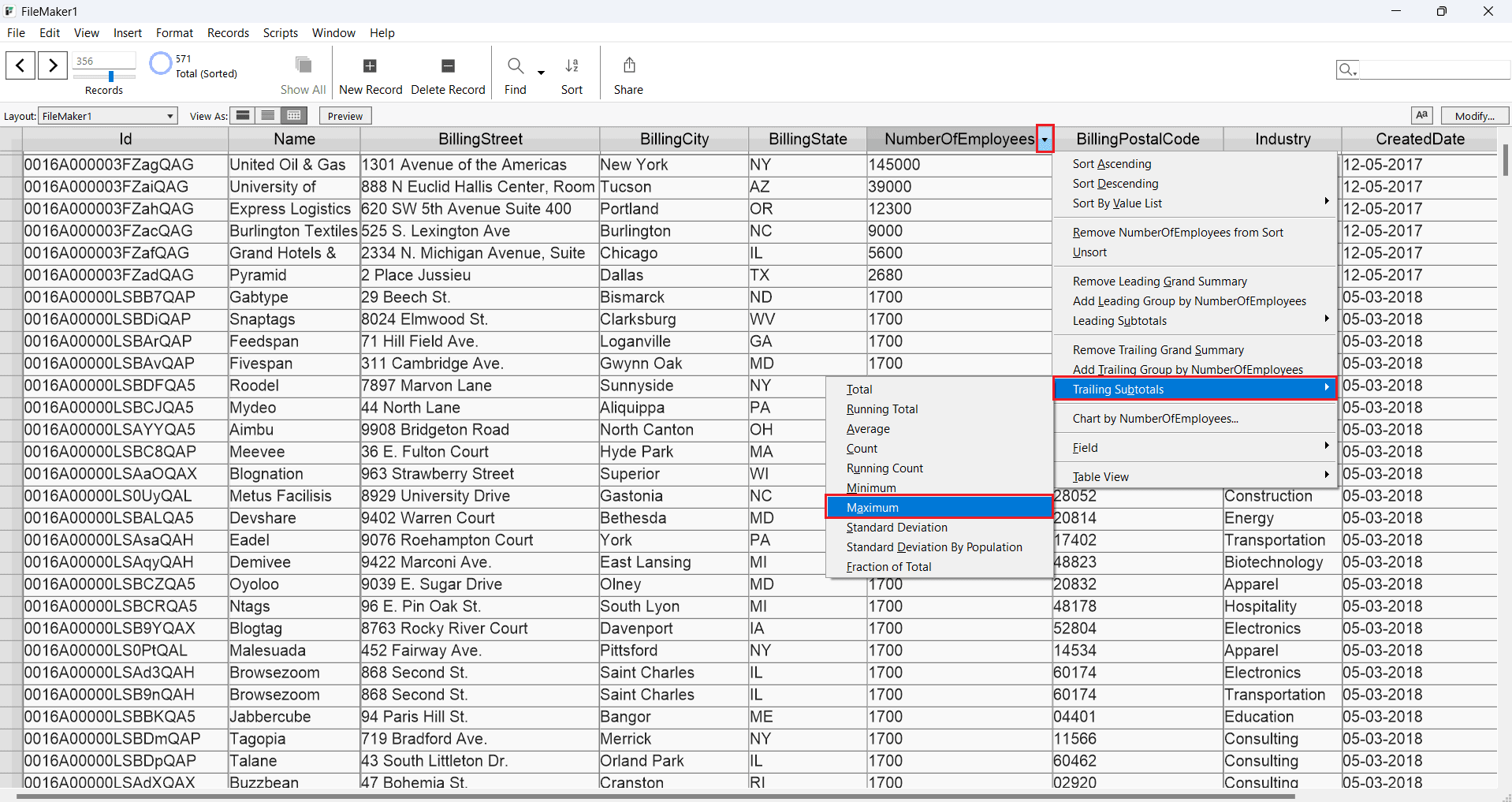

Follow the steps below to group column values and display summaries, as shown in the screenshot:

• Sort: Click the arrow in the NumberOfEmployees column header and choose Sort Ascending from the menu.
• Group: In the same menu, click Add Trailing Group by Industry to group the values and insert a summary row. Alternatively, click Add Leading Group to add a summary row at the beginning.
• Summarize: Select a summary option from the Trailing Subtotals menu for a grouped column.

Create a bar chart

Use the following steps to create a simple bar chart showing the total NumberOfEmployees for each Industry:

1. Click the arrow in the NumberOfEmployees column header and select Chart by NumberOfEmployees.
   • If you've already grouped the table by a column (e.g., Industry), you can chart NumberOfEmployees by that column.

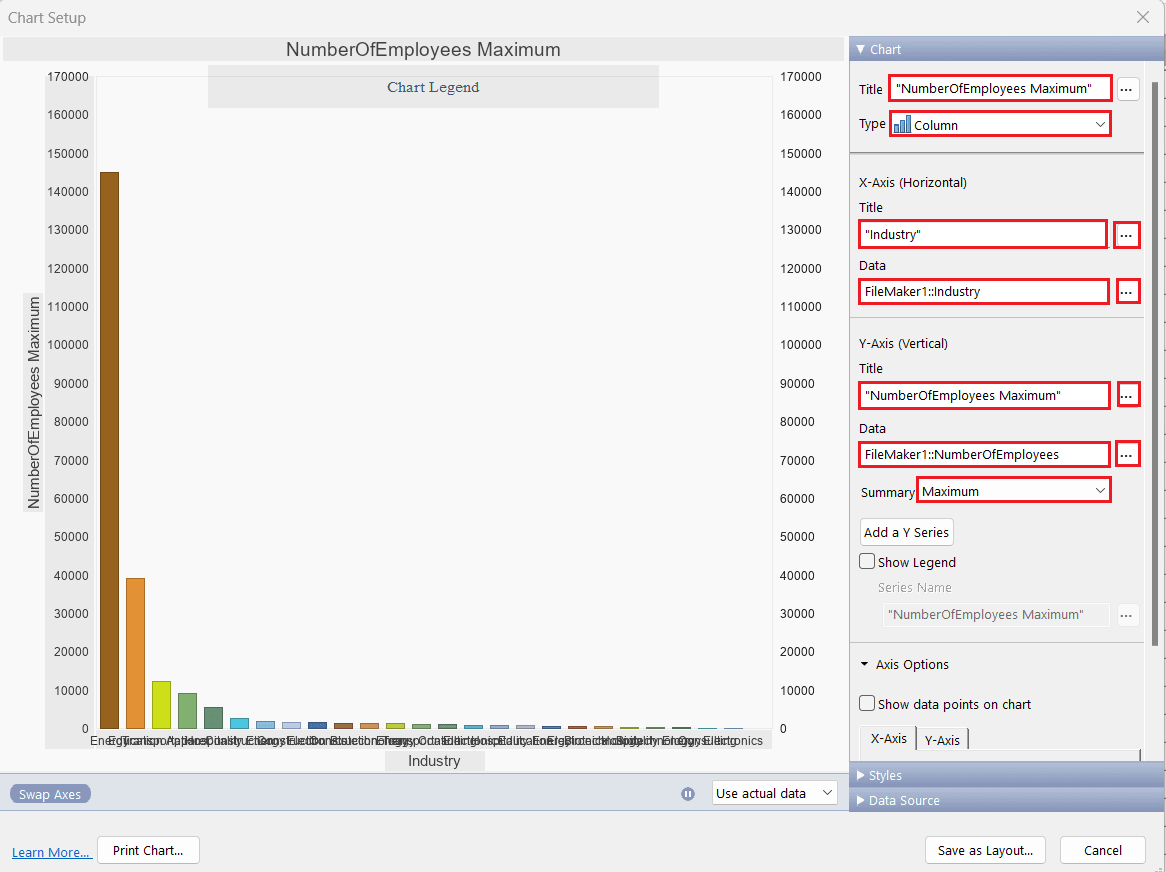

2. In the Chart Setup window:
   • Click the button next to the Data box to add the x-axis column.
   • Choose the appropriate column in the dialog that appears.
   • For the y-axis, select a summary option from the Summary menu.

Get Started Today

Download a free 30-day trial of the CData API Driver for ODBC to integrate Calendly data into Claris FileMaker and work with Calendly data in your FileMaker applications.

Reach out to our Support Team if you have any questions.
