Automated Kintone Data Replication to SQL Server

Always-on applications rely on automatic failover capabilities and real-time data access. CData Sync integrates live Kintone data into your Teradata instance, allowing you to consolidate all of your data into a single location for archiving, reporting, analytics, machine learning, artificial intelligence and more.

Configure Teradata as a Replication Destination

Using CData Sync, you can replicate Kintone data to Teradata. To add a replication destination, navigate to the Connections tab.

1. Click Add Connection.

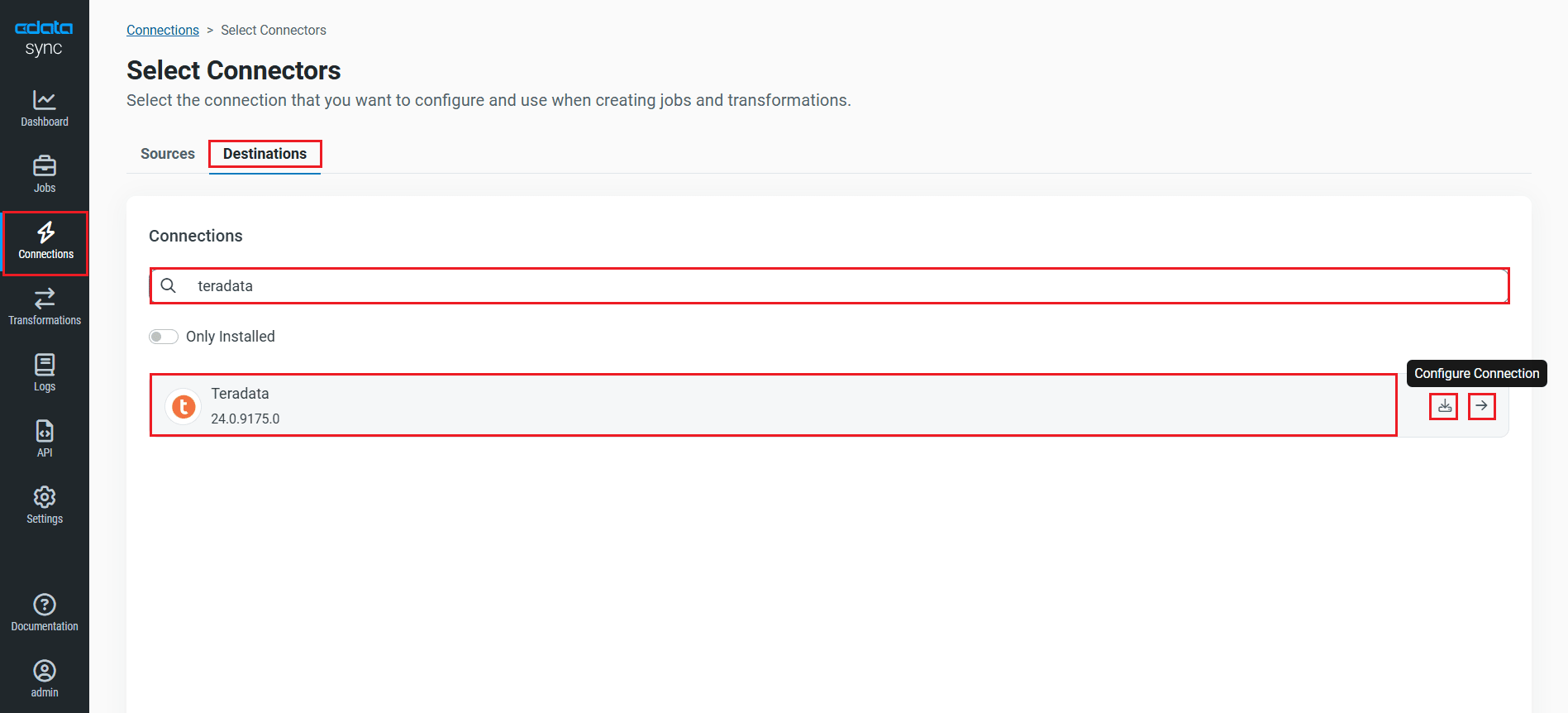

2. Select Teradata as a destination.

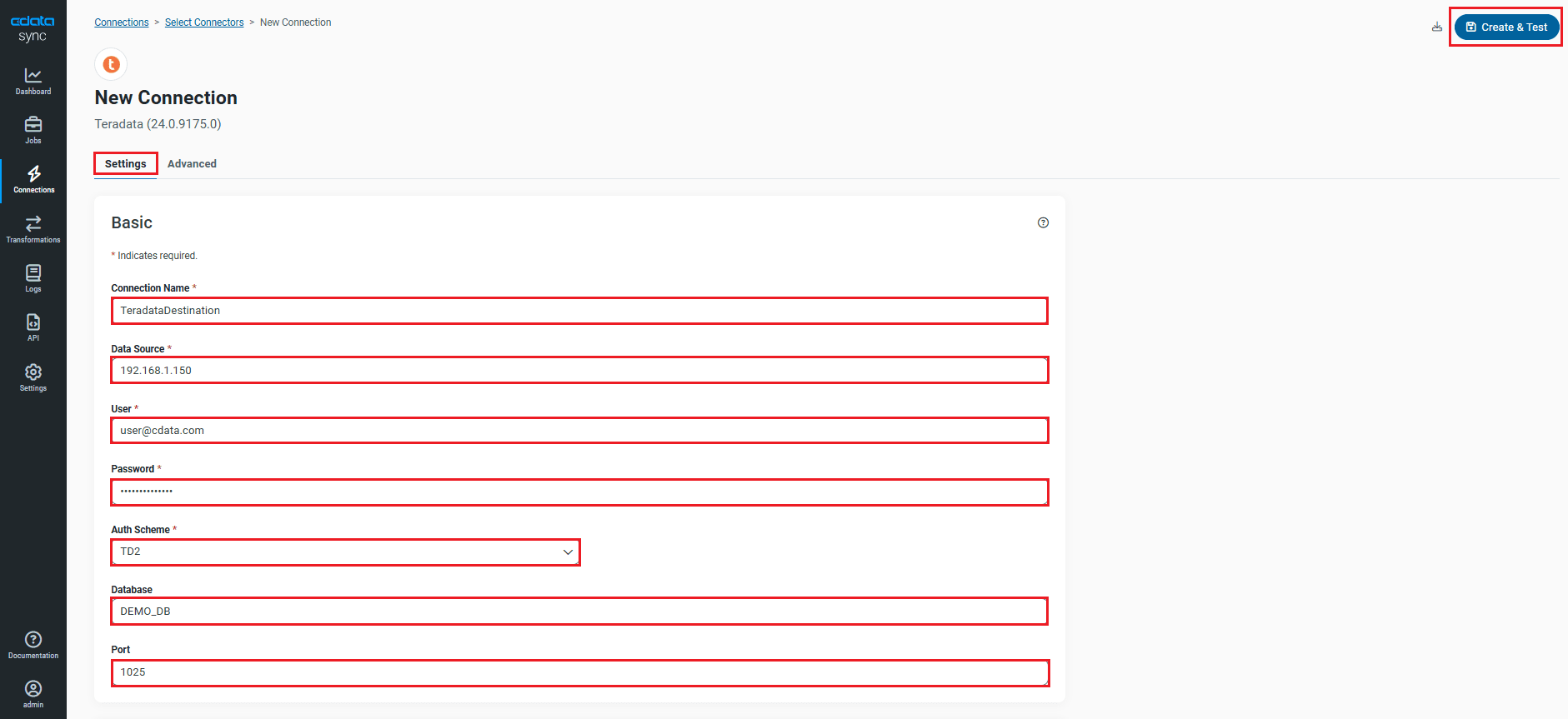

3. Enter the necessary connection properties. To connect to Teradata, set the following connection properties (CData Sync ships with the Npgsql ADO.NET Provider for PostgreSQL):
   • Connection Name: Enter a connection name of your choice.
   • Data Source: Enter either the Teradata server name, the database computer (DBC) username, or the Teradata Director Program Id (TDPID).
   • User: Enter the username that you use to authenticate to your Teradata account.
   • Password: Enter the password that you use to authenticate to your Teradata account.
   • Auth Scheme: Select the authentication scheme. TD2 is the default scheme.
   • Database: Enter the name of your Teradata database.

     Note: If you do not specify a database, CData Sync connects to your default database.

   • Port: Enter the port number for your Teradata server. The default port value is 1025.
4. Click Test Connection to ensure that the connection is configured properly.
5. Click Save Changes.

Configure the Kintone Connection

You can configure a connection to Kintone from the Connections tab. To add a connection to your Kintone account, navigate to the Connections tab.

1. Click Add Connection.
2. Select a source (Kintone).
3. Configure the connection properties.



   In addition to the authentication values, set the following parameters to connect to and retrieve data from Kintone:

   • Url: The URL of your account.
   • GuestSpaceId: Optional. Set this when using a guest space.

   Authenticating with Kintone

   Kintone supports the following authentication methods.

   Using Password Authentication

   You must set the following to authenticate:

   • User: The username of your account.
   • Password: The password of your account.

   Using Basic Authentication

   If the basic authentication security feature is set on the domain, supply the additional login credentials with BasicAuthUser and BasicAuthPassword. Basic authentication requires these credentials in addition to User and Password.

   Using Client SSL

   Instead of basic authentication, you can specify a client certificate to authenticate. Set SSLClientCert, SSLClientCertType, SSLClientCertSubject, and SSLClientCertPassword. Additionally, set User and Password to your login credentials.

4. Click Connect to ensure that the connection is configured properly.
5. Click Save Changes.

Configure Replication Queries

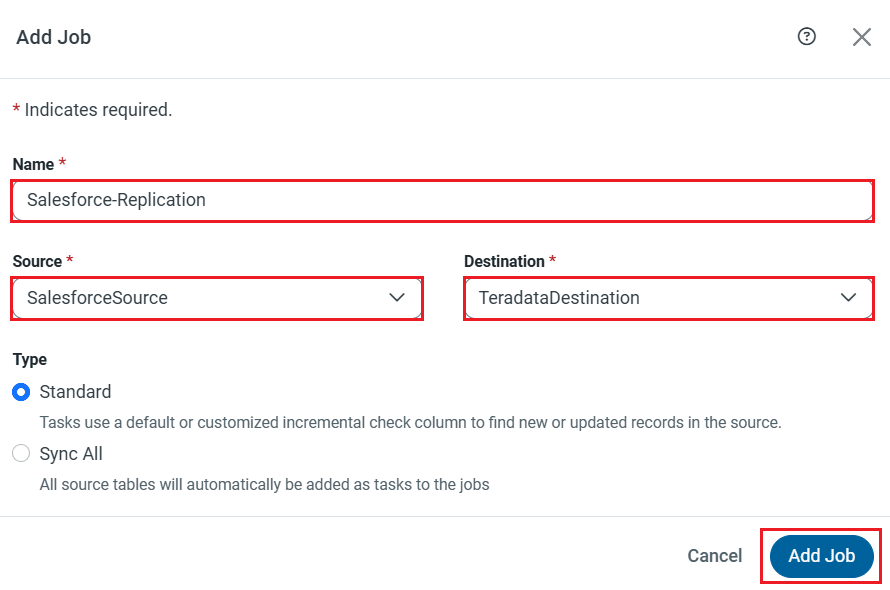

CData Sync enables you to control replication with a point-and-click interface and with SQL queries. For each replication you wish to configure, navigate to the Jobs tab and click Add Job. Select the Source and Destination for your replication.

Replicate Entire Tables

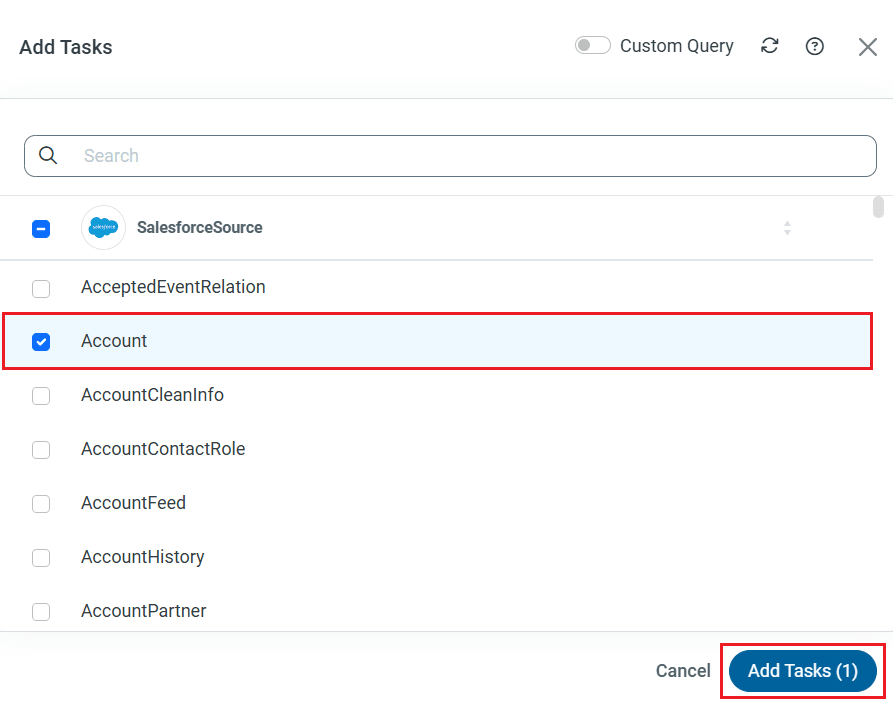

To replicate an entire table, click Add Tables in the Tables section, choose the table(s) you wish to replicate, and click Add Selected Tables.

Customize Your Replication

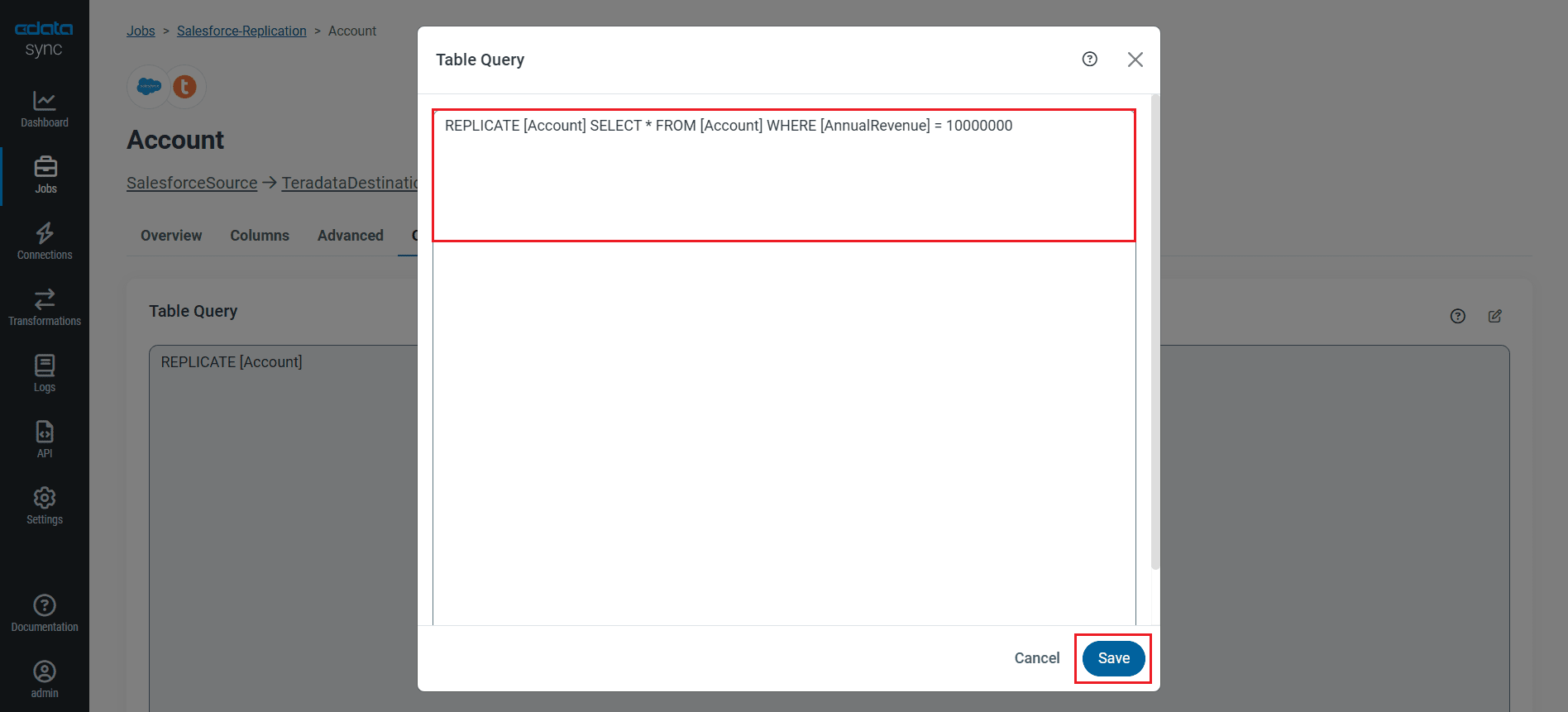

You can use the Columns and Query tabs of a task to customize your replication. The Columns tab allows you to specify which columns to replicate, rename the columns at the destination, and even perform operations on the source data before replicating. The Query tab allows you to add filters, grouping, and sorting to the replication.

Schedule Your Replication

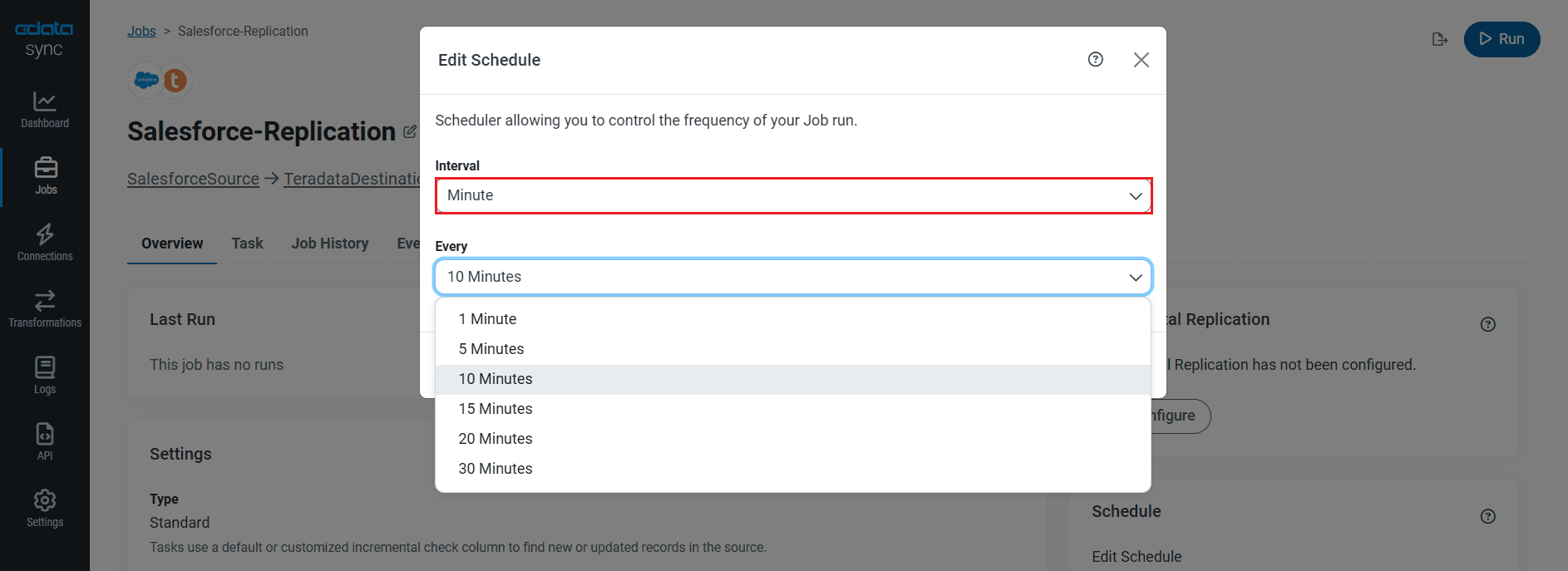

In the Schedule section, you can schedule a job to run automatically, configuring the job to run after specified intervals ranging from once every 15 minutes to once every month.

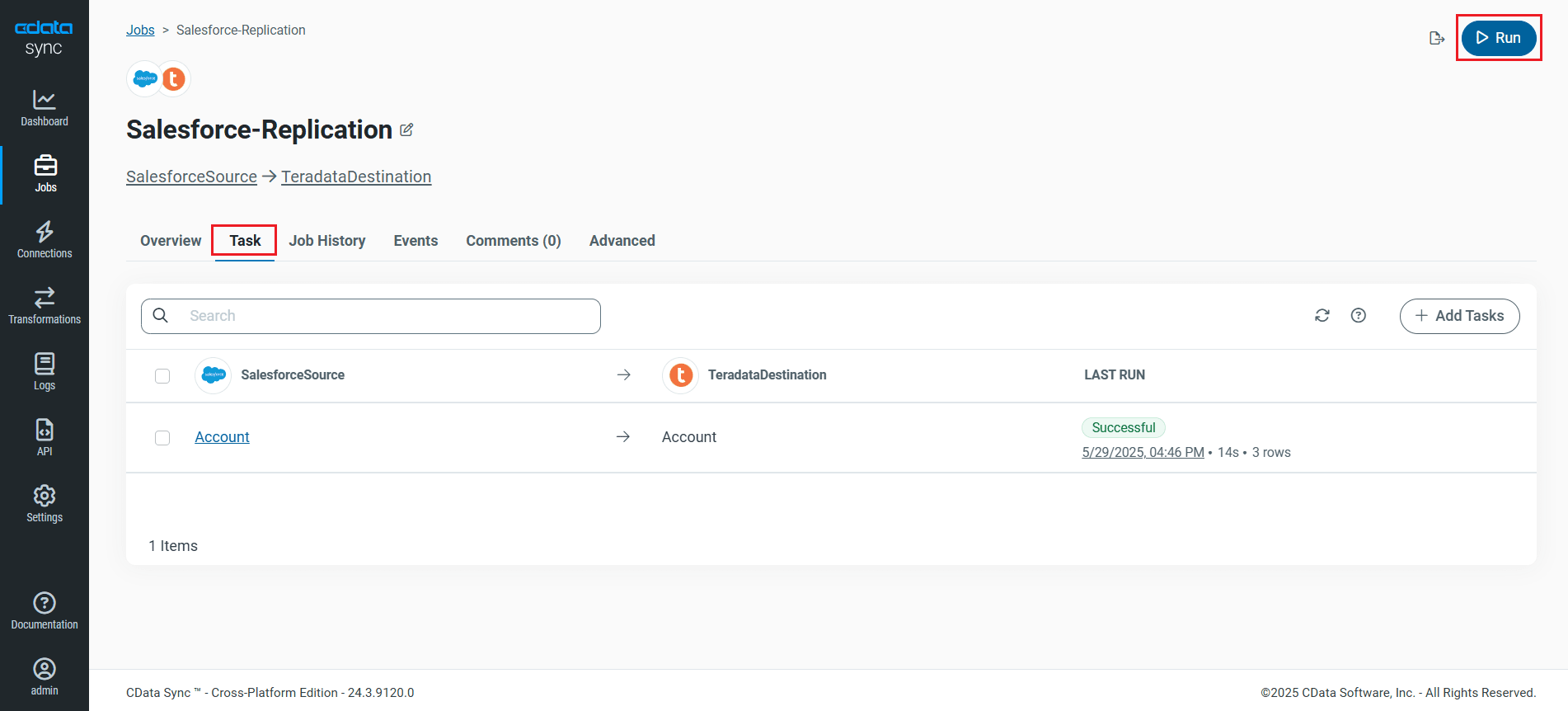

Once you have configured the replication job, click Save Changes. You can configure any number of jobs to manage the replication of your Kintone data to Teradata.
