Search Zoho Books External Objects in Salesforce Connect (API Server)

The CData API Server enables you to access Zoho Books data from cloud-based applications like the Salesforce console and mobile applications like the Salesforce1 Mobile App. In this article, you will use the API Server and Salesforce Connect to access Zoho Books external objects alongside standard Salesforce objects.

Set Up the API Server

If you have not already done so, download the CData API Server. Once you have installed the API Server, follow the steps below to begin producing secure Zoho Books OData services:

Connect to Zoho Books

To work with Zoho Books data from Salesforce Connect, we start by creating and configuring a Zoho Books connection. Follow the steps below to configure the API Server to connect to Zoho Books data:

1. First, navigate to the Connections page.
2. Click Add Connection and then search for and select the Zoho Books connection.
3. Enter the necessary authentication properties to connect to Zoho Books.

   Zoho Books uses the OAuth authentication standard. To authenticate using OAuth, create an app to obtain the OAuthClientId, OAuthClientSecret, and CallbackURL connection properties. See the OAuth section of the Getting Started guide in the Help documentation for an authentication guide.


4. After configuring the connection, click Save & Test to confirm a successful connection.

Configure API Server Users

Next, create a user to access your Zoho Books data through the API Server. You can add and configure users on the Users page. Follow the steps below to configure and create a user:

1. On the Users page, click Add User to open the Add User dialog.
2. Next, set the Role, Username, and Privileges properties and then click Add User.
3. An Authtoken is then generated for the user. You can find the Authtoken and other information for each user on the Users page:

Creating API Endpoints for Zoho Books

Having created a user, you are ready to create API endpoints for the Zoho Books tables:

1. First, navigate to the API page and then click Add Table .
2. Select the connection you wish to access and click Next.
3. With the connection selected, create endpoints by selecting each table and then clicking Confirm.

Gather the OData Url

Having configured a connection to Zoho Books data, created a user, and added resources to the API Server, you now have an easily accessible REST API based on the OData protocol for those resources. From the API page in API Server, you can view and copy the API Endpoints for the API:

Connect to Zoho Books Data as an External Data Source

Follow the steps below to connect to the feed produced by the API Server.

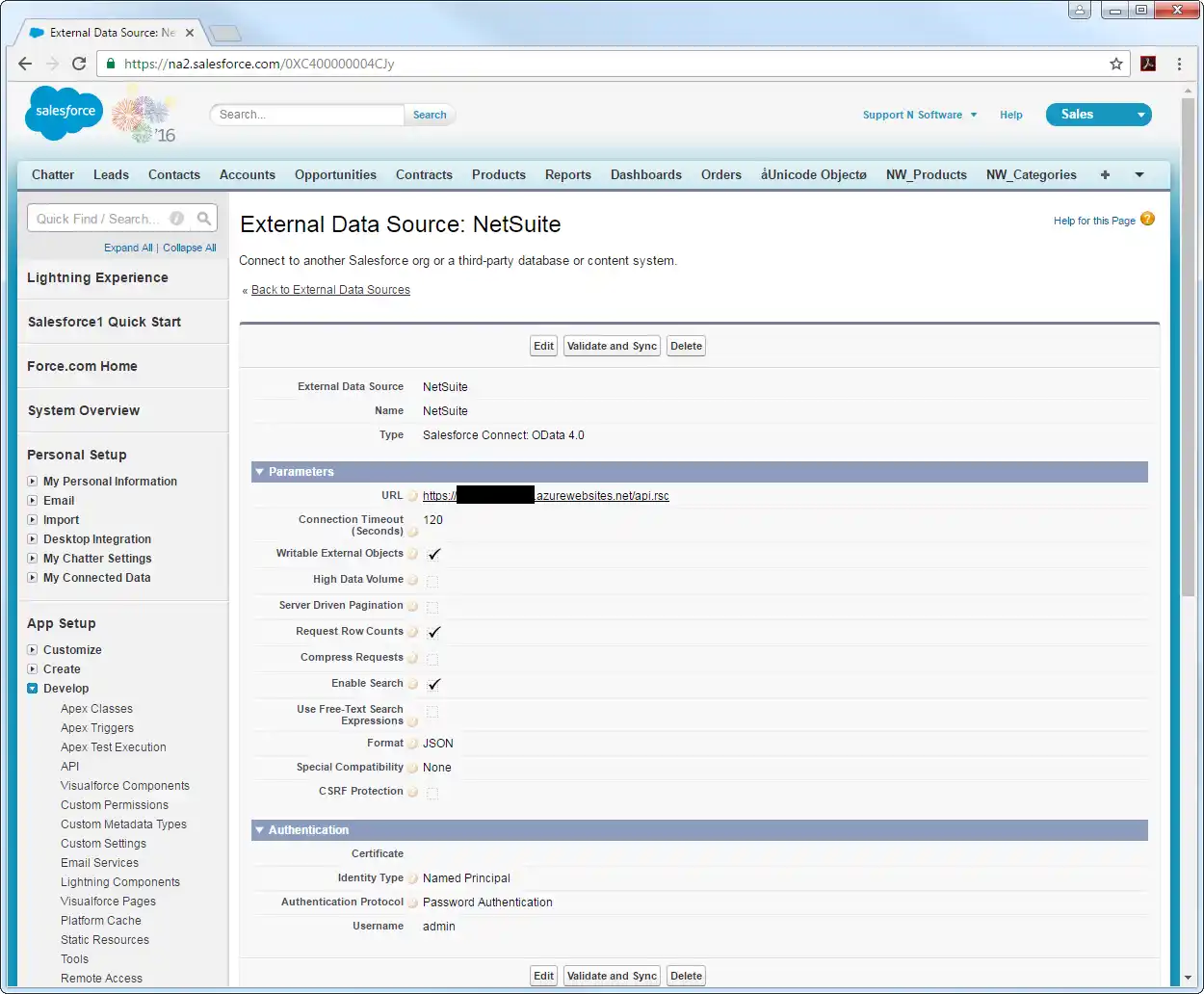

1. Log into Salesforce and click Setup -> Develop -> External Data Sources.
2. Click New External Data Source.
3. Enter values for the following properties:
   • External Data Source: Enter a label to be used in list views and reports.
   • Name: Enter a unique identifier.
   • Type: Select the option "Salesforce Connect: OData 4.0".

   • URL: Enter the URL to the OData endpoint of the API Server. The format of the OData URL is https://your-server:your-port/api.rsc.

     Note that plain-text is suitable for only testing; for production, use TLS.

4. Select JSON in the Format menu.

5. In the Authentication section, set the following properties:
   • Identity Type: If all members of your organization will use the same credentials to access the API Server, select "Named Principal". If the members of your organization will connect with their own credentials, select "Per User".
   • Authentication Protocol: Select Password Authentication to use basic authentication.
   • Certificate: Enter or browse to the certificate to be used to encrypt and authenticate communications from Salesforce to your server.
   • Username: Enter the username for a user known to the API Server.
   • Password: Enter the user's authtoken.

Synchronize Zoho Books Objects

After you have created the external data source, follow the steps below to create Zoho Books external objects that reflect any changes in the data source. You will synchronize the definitions for the Zoho Books external objects with the definitions for Zoho Books tables.

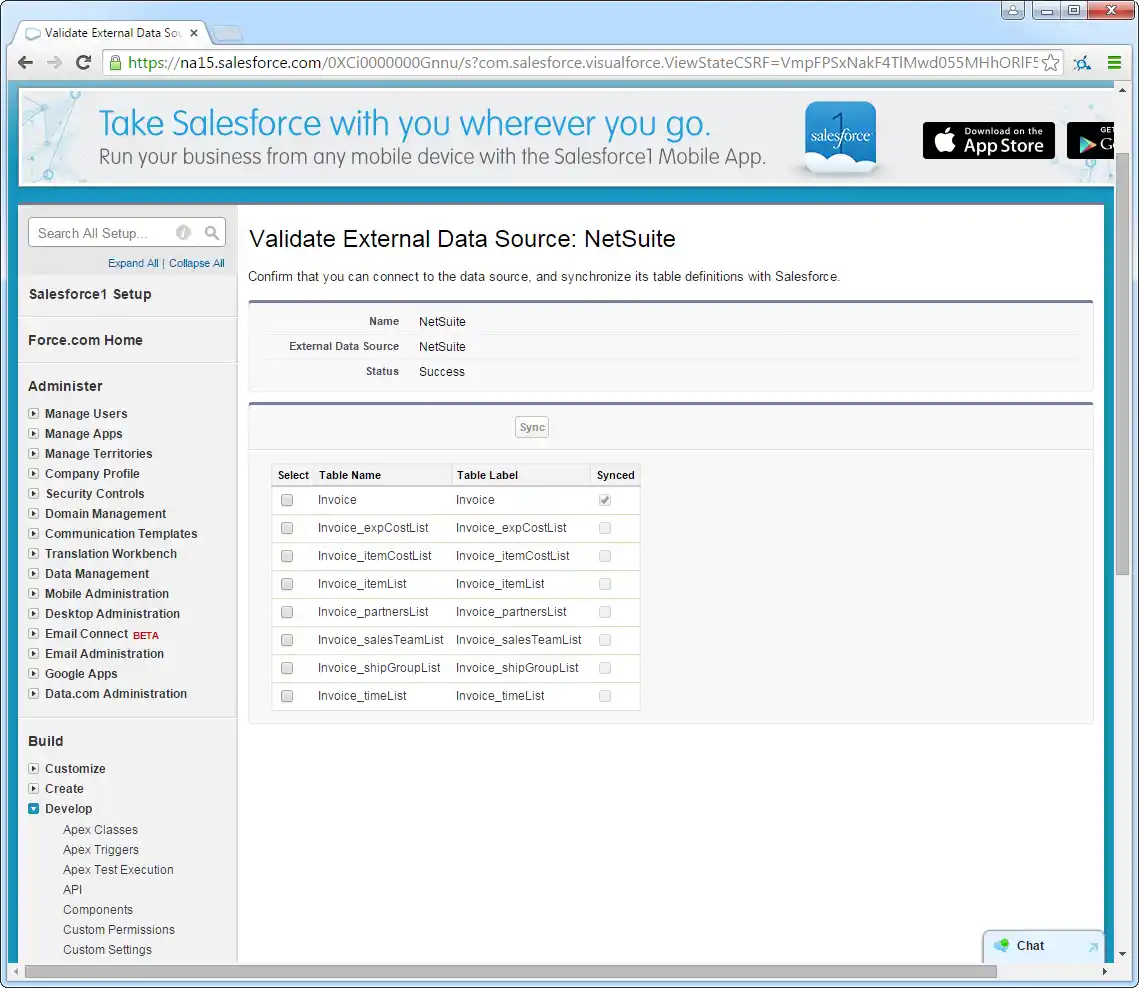

1. Click the link for the external data source you created.
2. Click Validate and Sync.
3. Select the Zoho Books tables you want to work with as external objects.

Access Zoho Books Data as Salesforce Objects

After adding Zoho Books data as an external data source and syncing Zoho Books tables with Zoho Books external objects, you can use the external objects just as you would standard Salesforce objects.

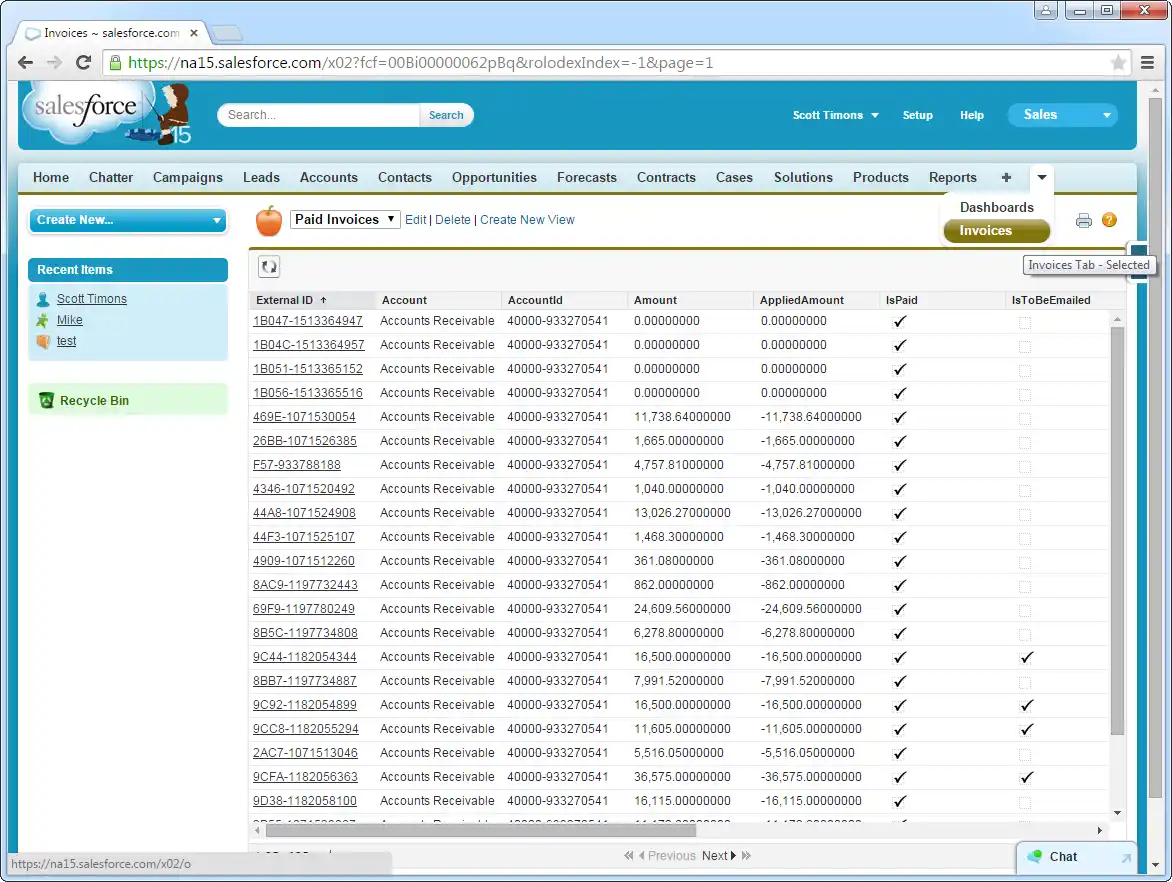

• Create a new tab with a filter list view:



• Display related lists of Zoho Books external objects alongside standard Salesforce objects:



Troubleshooting

You can use the following checklist to avoid typical connection problems:

• Ensure that your server has a publicly accessible IP address. Related to this check, but one layer up, at the operating system layer, you will also need to ensure that your firewall has an opening for the port the API Server is running on. At the application layer, ensure that you have added trusted IP addresses on the Settings -> Security tab of the administration console.
• Ensure that you are using a connection secured by an SSL certificate from a commercial, trusted CA. Salesforce does not currently accept self-signed certificates or internal CAs.

• Ensure that the server you are hosting the API Server on is using TLS 1.1 or above. If you are using the .NET API Server, you can accomplish this by using the .NET API Server's embedded server.

  If you are using IIS, TLS 1.1 and 1.2 are supported but not enabled by default. To enable these protocols, refer to the how-to on MSDN and the Microsoft technical reference.

  If you are using the Java edition, note that TLS 1.2 is enabled by default in Java 8 but not in Java 6 or 7. If you are using these earlier versions, you can refer to this this Oracle how-to.
